XZU404A-TMFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO.11 OF11(0505- )DCB..DCRUE ; (0505- )XZU404,413,414,423,424,43#,454..SCB..DCRL,DCRTJ,

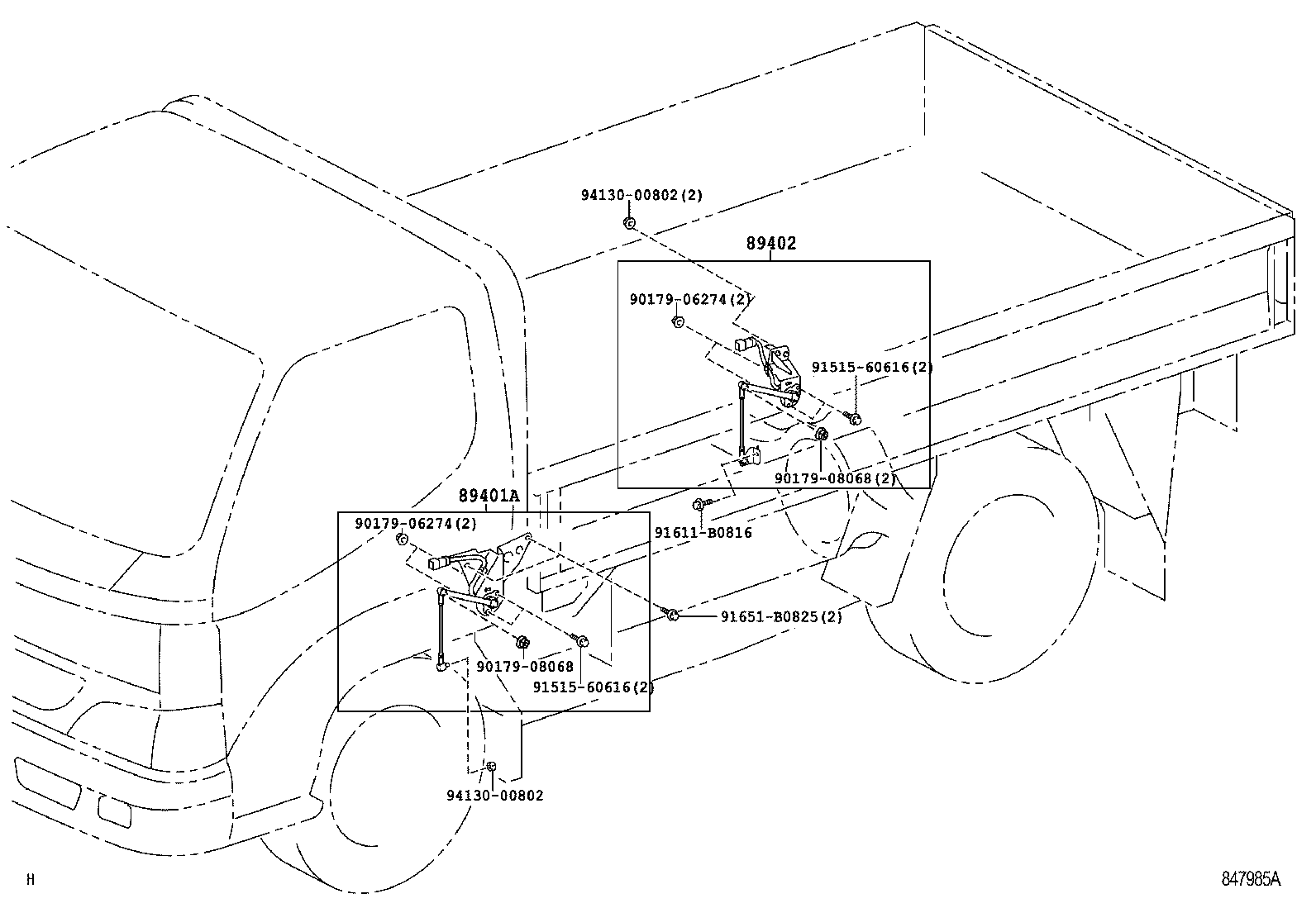

Click highlighted areas on diagram

ｻｽ ｽﾄﾛｰｸ ｾﾝｻ

diagram 89401A 89402 9017906274 9017906274 9017908068 9017908068 9151560616 9151560616 91611B0816 91651B0825 9413000802 9413000802
Part # Description Qty Price
89401A - SENSOR, SUSPENSION STROKE, FRONT(FOR DISCHARGE HEADLAMP
89401-37010

XZU404,413,414,423,424,433..DCRL,DSLL

 1
89402 - SENSOR, SUSPENSION STROKE, REAR(FOR DISCHARGE HEADLAMP)
89402-37010

XZU404,413,414,423,424,433..DCRL,DSLL

 1
Common parts
90179-06274
90179-08068
91515-60616
91611-B0816
91651-B0825
94130-00802
