XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
1 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-08028 |
XZU411..DCB..T5;XZU411..T3..6FC;XZU388,40#,415,421..(DM7,T3,T4)..(DCRL,DSL);XZU411,413,414,423,424,433..T4..(DCRL,DSL,DSLL) |
2 | ||
| 95333-08030 |
XZU388,40#,41#,42#,433 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
XZU388,40#,41#,42#,433 |
1 | ||
| 90105-12116 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 90430-12245 |
XZU388,40#,41#,42#,433 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37221 |
XZU388,40#,41#,42#,433..DM7,T3,T4,T5 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77001-37222 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) 960X310X385,ﾌﾕ-ｴﾙ ﾀﾝｸ=100L |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37100 |
XZU40# |
1 | ||
| 77135-37100 |
XZU40# |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37100 |
XZU40# |
1 | ||
| 77135-37100 |
XZU40# |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 77275B - PROTECTOR, FUEL LIQUID VAPOR SEPARATOR VALVE | ||||
| 77275-36020 |
XZU404..40T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU40#,413,414,42#..(DM7,T3,T5)..IV3;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU411..DCB..T5;XZU411,433..T4..CBU;XZU40#,413,414,42#..T4;XZU388,411,415,433..(T3,T4,T5)..(IV3,IV5);XZU40#,413,414,42#..(DM7,T3,T5)..(DCRL,DSL,DSLL)..IV3 |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU388,40#,41#,42#,433..(DM7,T3,T4,T5)..(DCRL,DSL,DSLL) *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-08249 | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91641-80825 | ||||
| 91642-81030 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

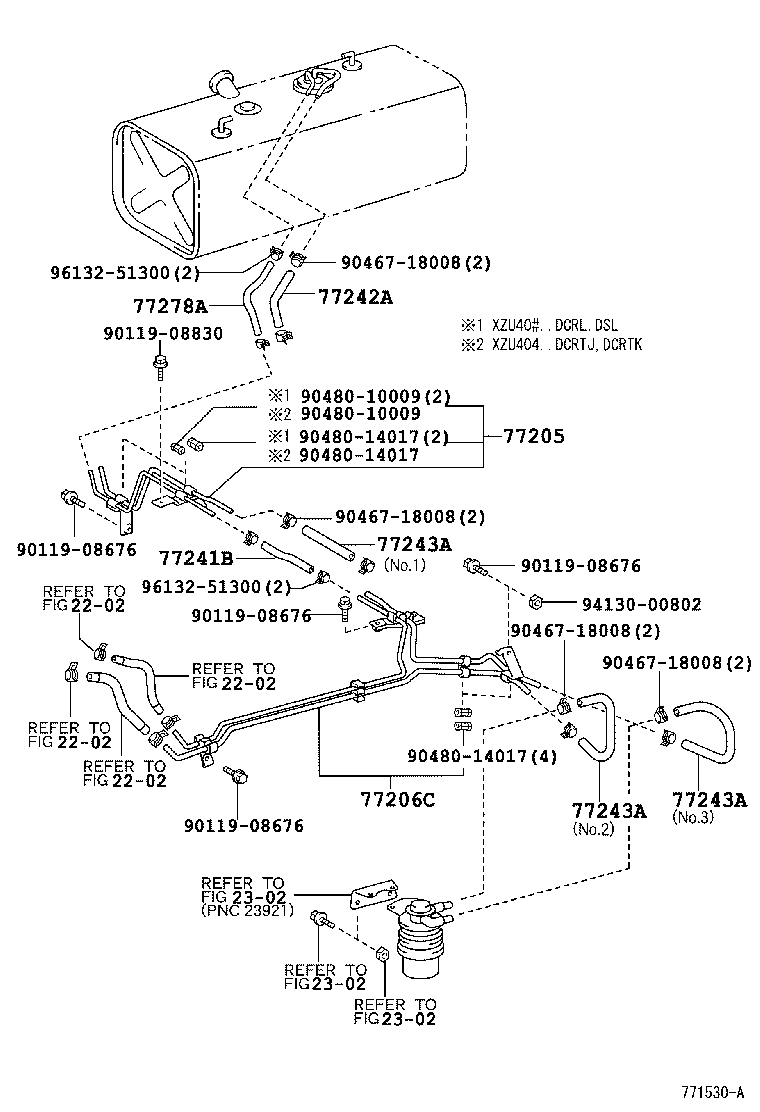

ILLUST NO. 2 OF 2(0406- )XZU40#
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37360 |
XZU40# |
1 | ||
| 77205-37360 |
XZU40# |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37870 |
XZU40#,411,414,415,421,424..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95333-08020 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=7.6 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12026 |
BU400,XZU40# *H,L=260,内径=12 |
1 | ||
| 95332-12026 |
XZU40#..DM7,T3,T4 *H,L=260,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12026 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL *H,L=260,内径=12,NO.2 |
1 | ||
| 95332-12032 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) *H,L=320,内径=12,NO.3 |
1 | ||
| 95332-12016 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL *H,L=160,内径=12,NO.1 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08030 |
XZU40# *H,L=280,内径=7.6 |
1 | ||
| 95333-08030 |
XZU40# *H,L=280,内径=7.6 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
