XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace

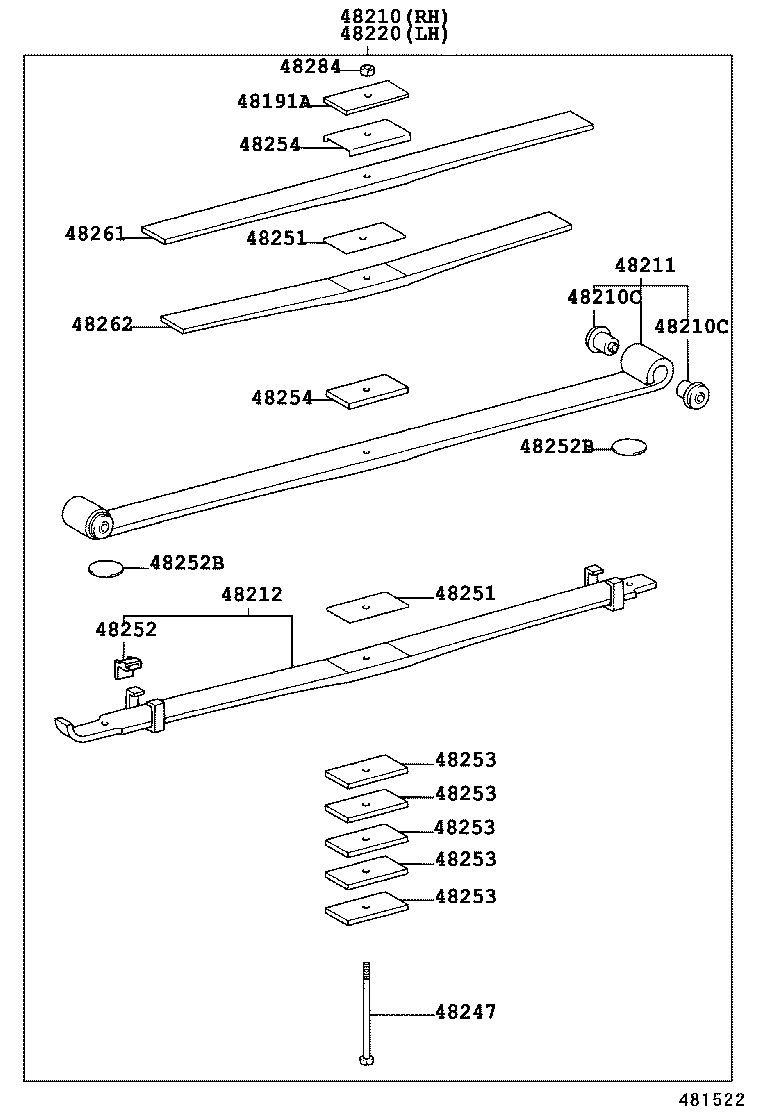

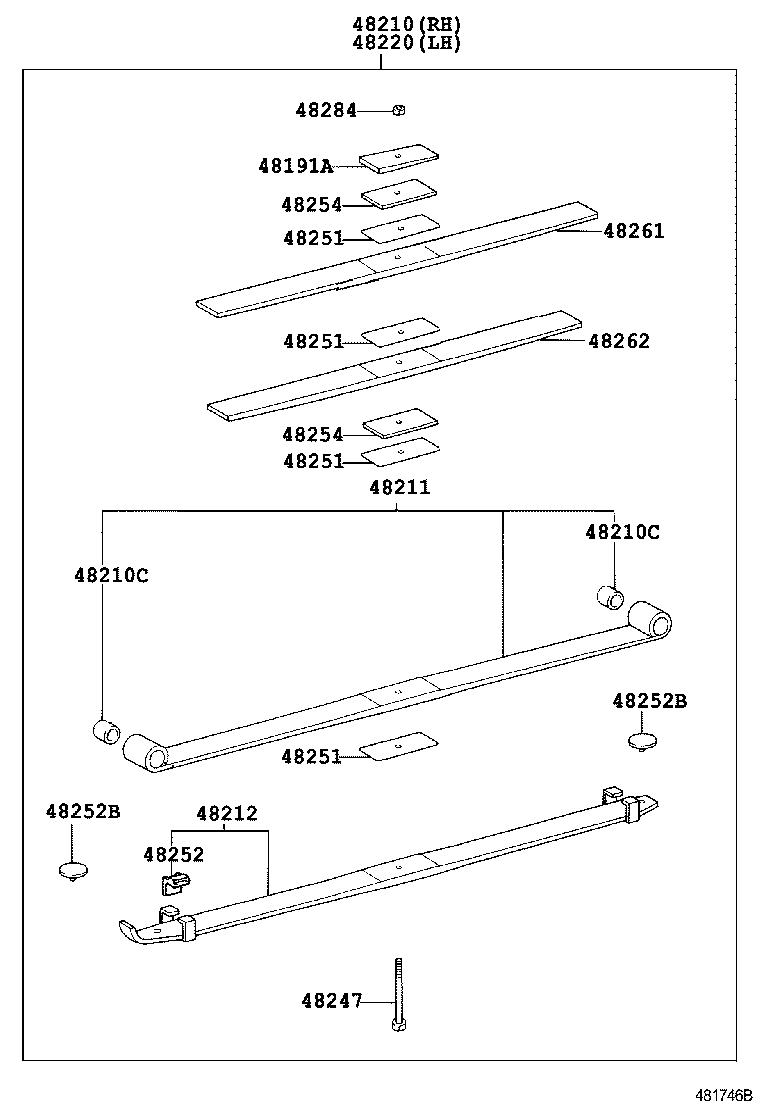

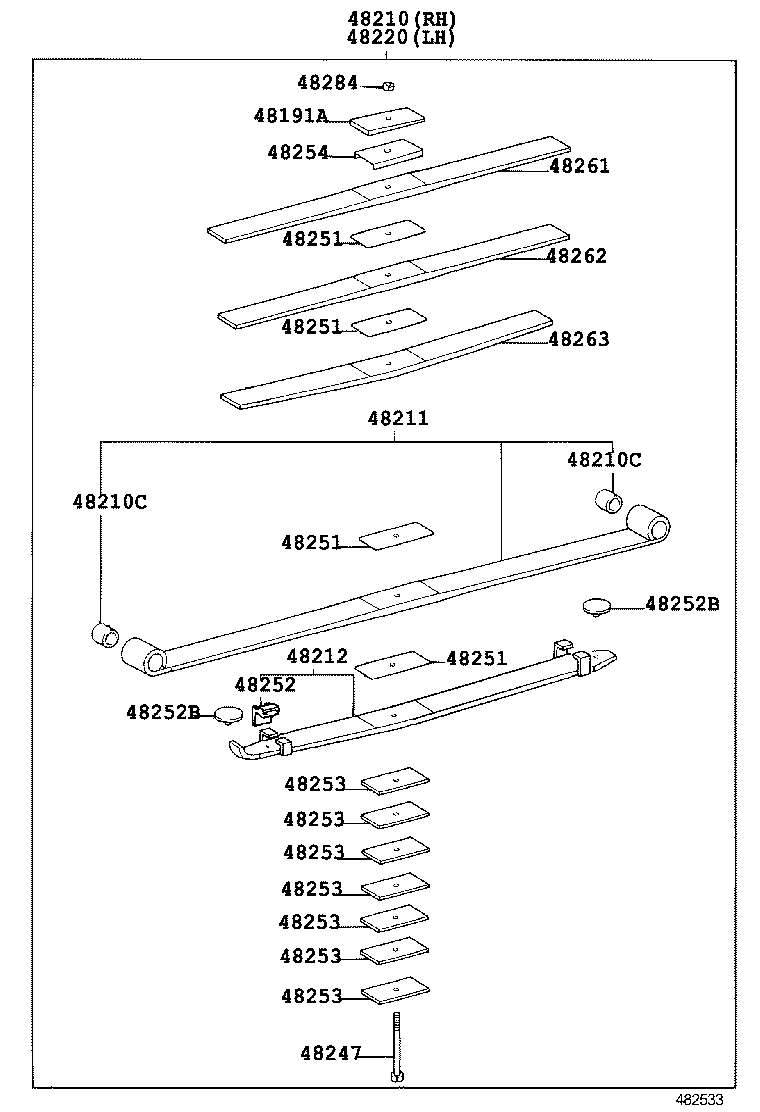

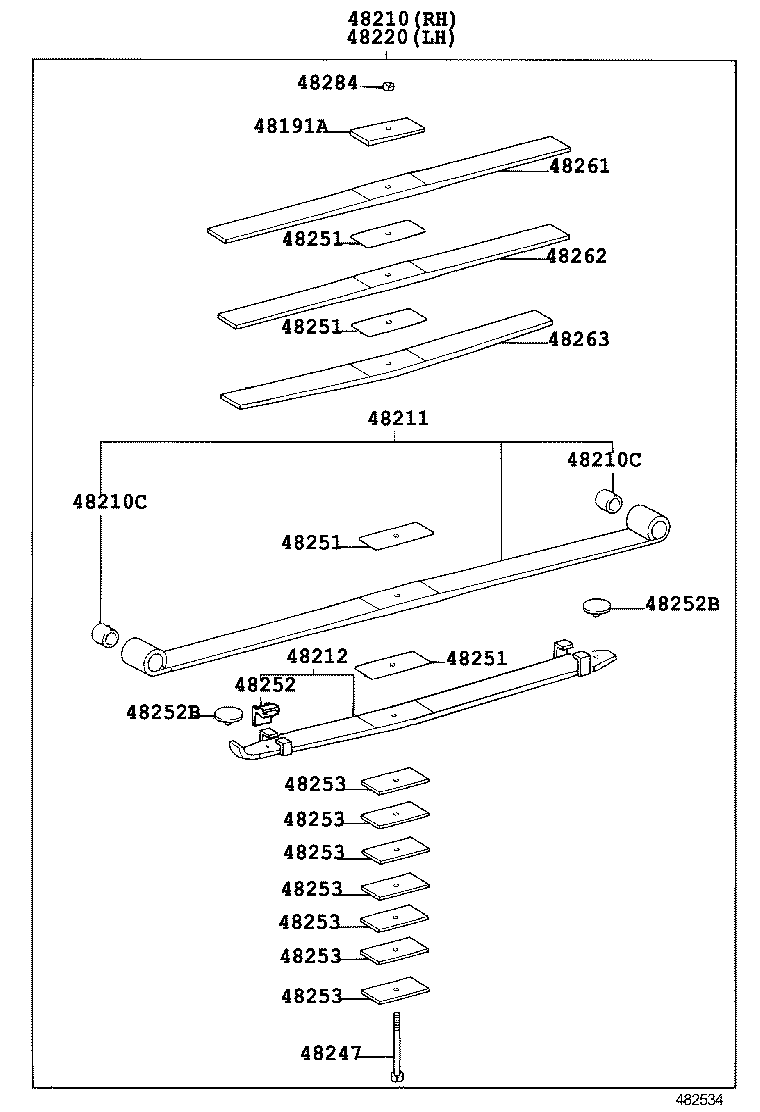

ILLUST NO. 2 OF 2(0406-0610)XZU413,414,421,424..20T..IV3 ; (0406-0610)XZU401,411,423..T4..20T..IV3 ;
MAIN 2+HELPER 2-LEAF,TYPE:D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
ILLUST NO. 2 OF 2(0406-0610)XZU40#,411,413,414,42#,433..T4..30T,35T ; (0406-0705)BZU410..30T ; (0610
MAIN 2+HEALPER 2-LEAF,TYPE:A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
ILLUST NO. 2 OF 2(0406-0610)XZU404..40T..IV3 ; (0406-0610)XZU413,414,423,433..40T ; (0610- )XZU40
MAIN 2+HELPER 3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-3V070 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48268-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48268-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48263-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48263-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
ILLUST NO. 2 OF 2(0406-0505)XZU414..40T..IV3 ; (0406-0610)XZU414..40T..CBU ; (0406-0610)XZU413,423,4
MAIN 2+HELPER 3-LEAF ｷﾖｳｶ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU40#,410,412,42#,430 |
2 | ||
| 48192-37100 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48201-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48201-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48202-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48212-3V100 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-3V150 |
XZU404,414..40T..IV3 ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48210-3V101 |
XZU404..40T ﾒｲﾝ7枚ﾘｰﾌ+ｻﾌﾞ6枚ﾘｰﾌ |
1 | ||
| 48210-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ3枚ﾘｰﾌ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-3V100 |
XZU404,414..40T..IV3 ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ,ｷｮｳｶｻｽﾍﾟﾝｼｮﾝ |
2 | ||
| 48247-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48247-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48253-3V020 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
8 | ||
| 48282-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
22 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-37380 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-3B800 |
XZU404..40T..IV3;BZU410,XZU388,421..T4,T5;XZU40#,41#,423,424,433..T2,T3,T4,T5 |
4 | ||
| 48252-37670 |
XZU404..40T..IV3;XZU388,421..T4,T5;XZU40#,41#,423,424,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
4 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48267-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48254-3V080 |
XZU404..40T..IV3;XZU413,414,423,433..40T |
14 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48261-3V101 |
XZU404..40T |
2 | ||
| 48213-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48214-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48262-3V101 |
XZU404..40T |
2 | ||
| 48263 - LEAF, REAR HELPER SPRING, NO.3 | ||||
| 48215-3V540 |
XZU404..40T..IV3;XZU413,414,423,433..40T ﾒｲﾝ 2+ﾍﾙﾊﾟｰ 3-ﾘｰﾌ |
2 | ||
| 48263-3V150 |
XZU404,414..40T..IV3 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
2 | ||
| 48263-3V101 |
XZU404..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-3V150 |
XZU404,423,433..40T ﾒｲﾝ 7+ﾍﾙﾊﾟｰ 6-ﾘｰﾌ |
2 | ||
| 94110-51200 |
XZU404..40T..IV3;BZU410,XZU40#,41#,42#,433..T2,T3,T4,T5 |
2 | ||
| 48284-3B750 |
XZU404..40T..IV3;XZU40#,41#,42#,433..(T2,T3,T4,T5)..(DCRL,DSL,DSLL) |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
