XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
(0406-0610)XZU40#,41#,42#,433..30T,35T,40T..DCRL,DSL,DSLL ; (0406-0705)30T..CNG,DCR

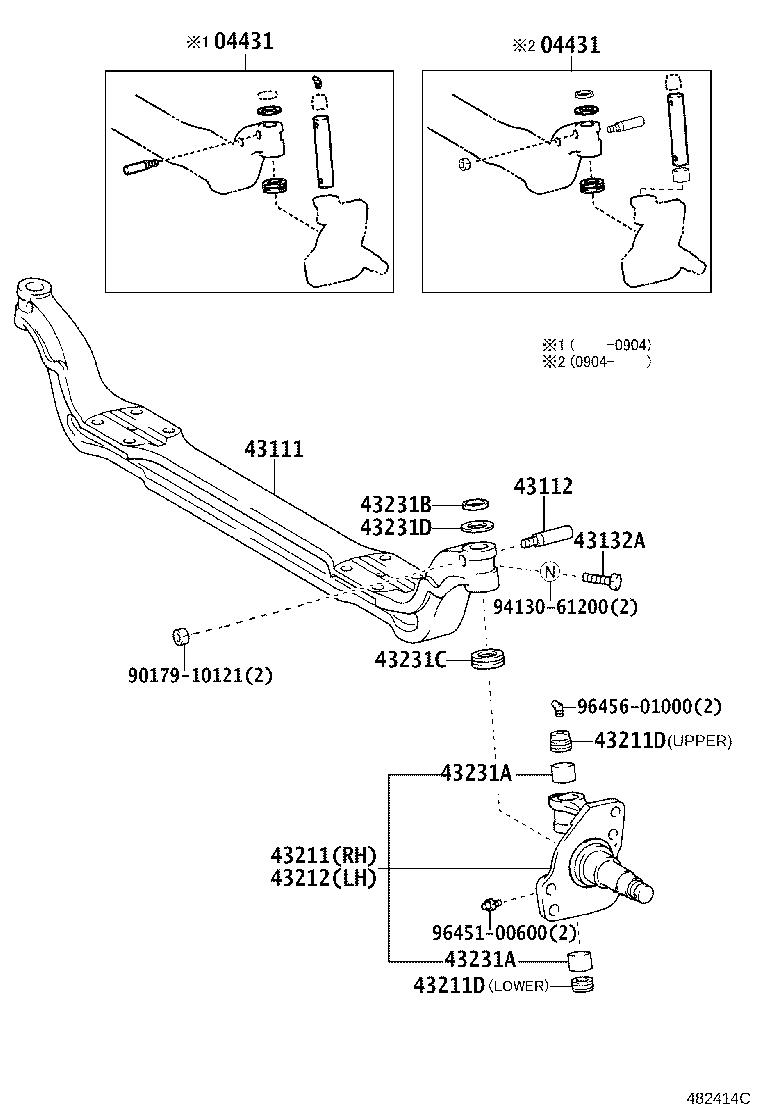

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37400 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 04431-37091 |
BZU410,XZU40#,41#,42#,433..30T,35T,40T |
1 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37080 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36030 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90384-35013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 上側 |
2 | ||
| 90384-35014 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 下側 |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90384-35013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 上側 |
2 | ||
| 90384-35014 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 下側 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-35001 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90032-09025 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.2 |
1 | ||
| 90032-09024 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.1 |
1 | ||
| 90032-09022 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=1.9 |
1 | ||
| 90032-09027 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.4 |
1 | ||
| 90032-09026 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.3 |
1 | ||
| 90032-09023 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.0 |
1 | ||
| 90032-09029 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.6 |
1 | ||
| 90032-09028 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.5 |
1 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| 43241 - COVER, STEERING KUNCKLE OIL SEAL | ||||
| 43241-36010 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
4 | ||
| Common parts | ||||
| 90031-09023 | ||||
| 90031-19028 | ||||
| 90034-08004 | ||||
| 90106-12001 | ||||
| 90106-12003 | ||||
| 90170-12009 | ||||
| 94130-61000 | ||||
| 94511-01000 | ||||
(0406-0610)XZU401,411,413,414,42#..20T ; (0406-0705)BZU410..20T ; (0610- )XZU404
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37400 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 04431-37091 |
BZU410,XZU40#,41#,42#,433..30T,35T,40T |
1 | ||
| 04431 - PIN KIT, STEERING KNUCKLE KING | ||||
| 04431-37400 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 04431-37091 |
BZU410,XZU40#,41#,42#,433..30T,35T,40T |
1 | ||
| 43111 - I BEAM, FRONT AXLE | ||||
| 43111-37080 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
1 | ||
| 43112 - PIN, KING PIN LOCK | ||||
| 43112-36030 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90384-35013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 上側 |
2 | ||
| 90384-35014 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 下側 |
2 | ||
| 43231A - BUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUS | ||||
| 90384-35013 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 上側 |
2 | ||
| 90384-35014 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 下側 |
2 | ||
| 43231C - BEARING (FOR STEERING KNUCKLE KING PIN) | ||||
| 90367-35001 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) |
2 | ||
| 43231D - SHIM (FOR KING PIN) | ||||
| 90032-09025 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.2 |
1 | ||
| 90032-09024 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.1 |
1 | ||
| 90032-09022 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=1.9 |
1 | ||
| 90032-09027 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.4 |
1 | ||
| 90032-09026 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.3 |
1 | ||
| 90032-09023 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.0 |
1 | ||
| 90032-09029 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.6 |
1 | ||
| 90032-09028 |
XZU40#,41#,42#,433..(30T,35T,40T)..(DCRL,DSL,DSLL) 厚さ=2.5 |
1 | ||
| Common parts | ||||
| 90179-10121 | ||||
| 94130-61200 | ||||
| 96451-00600 | ||||
| 96456-01000 | ||||
