XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace

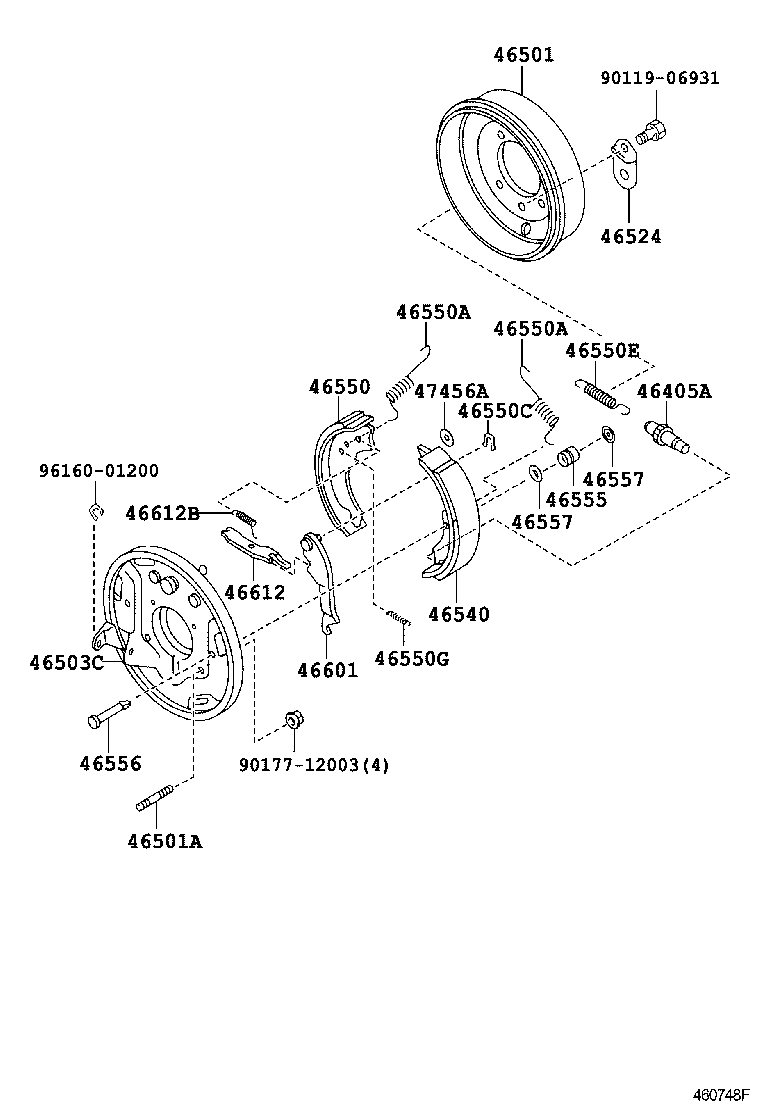

ILLUST NO. 2 OF 2(0406- )BZU410,XZU401,411,414,421,424..5F,6FC..30T,35T..CNG,DCRL,DSL,LPG ; (0610
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00289 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46511-37080 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00302 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
4 | ||
| SU002-00302 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00296 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00299 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00925 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00925 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| SU002-00297 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00293 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00294 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00295 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00292 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-10398 | ||||
| 90119-12211 | ||||

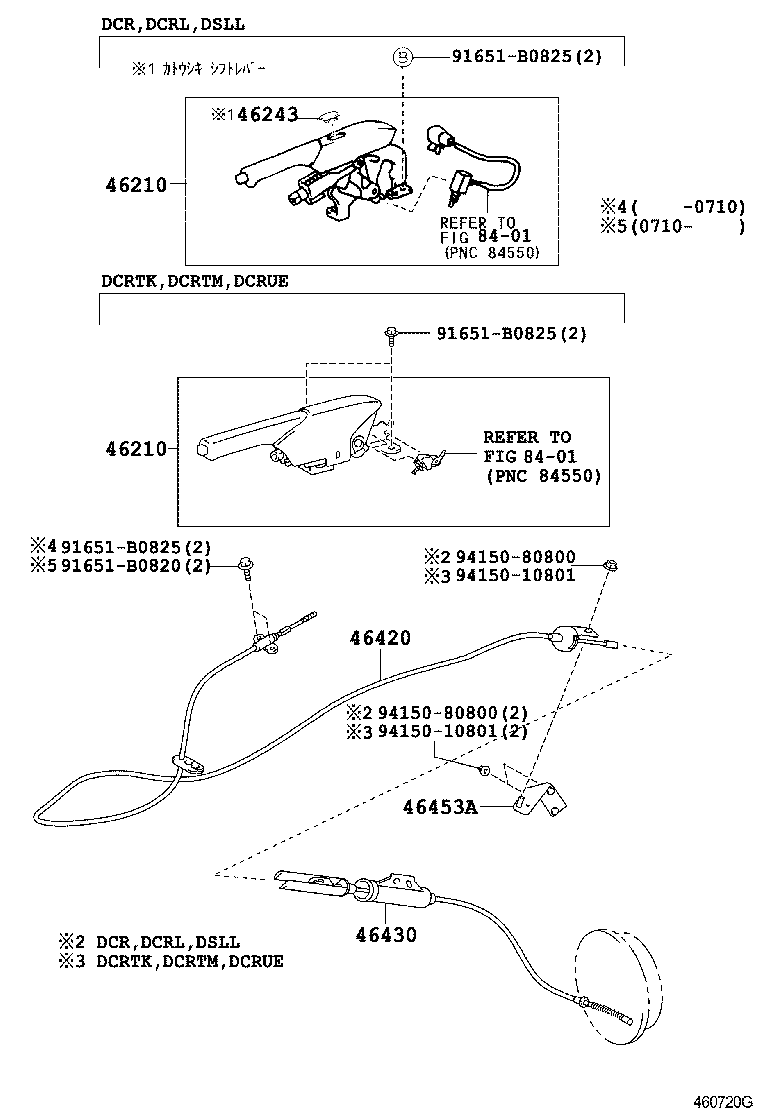

ILLUST NO. 1 OF 2(0406- )XZU401,411,414,421,424..5F,6FC..20T..DCRL,DSL ; (0610- )XZU404,414,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37440 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37460 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-08190 | ||||
| 90461-08225 | ||||
| 91553-80814 | ||||
| 91651-40814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

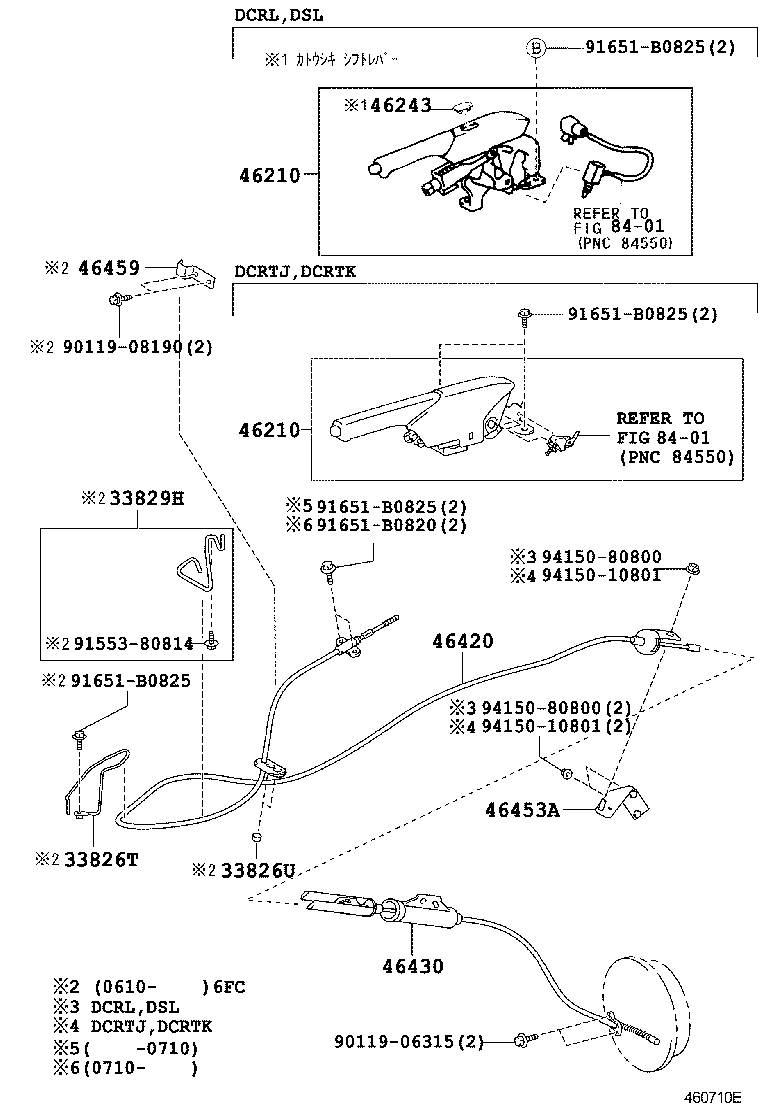

ILLUST NO. 1 OF 2(0406- )XZU401,411,414,421,424..5F,6FC..30T,35T..DCRL,DSL ; (0610- )XZU404,41
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37440 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37460 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-08190 | ||||
| 91553-80814 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

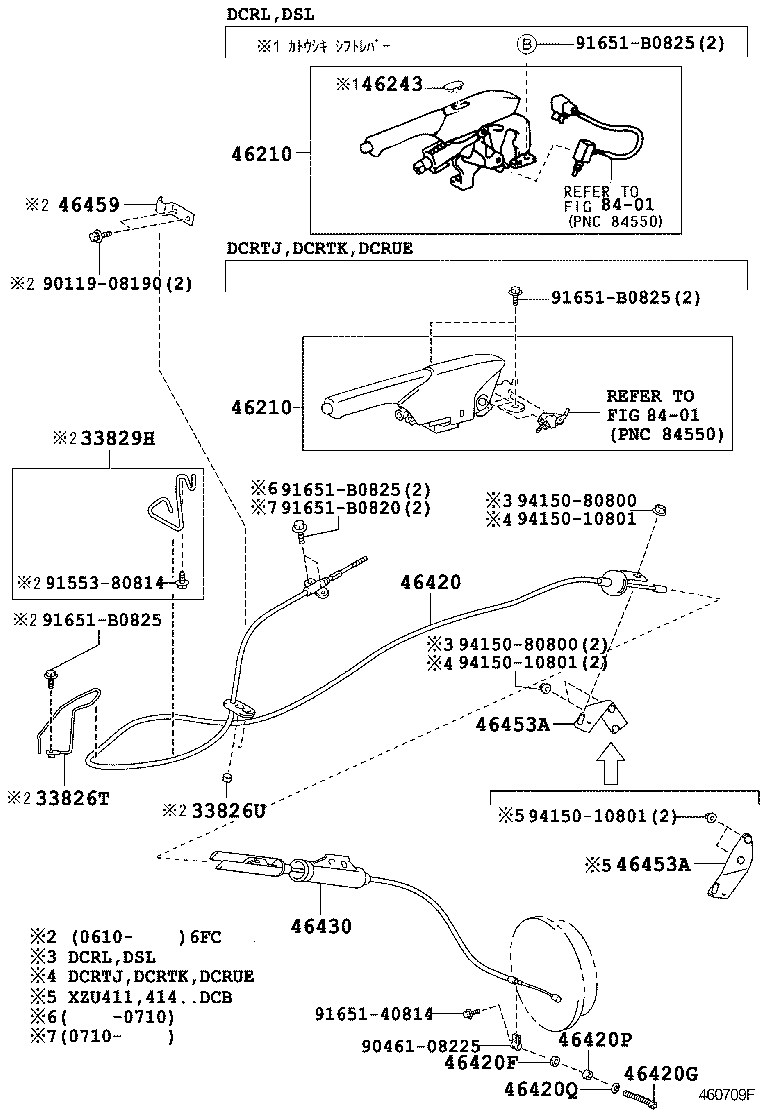

ILLUST NO. 1 OF 2(0406- )XZU404,414,415,424..6F..DCR,DCRL,DSLL; (0610- )6F..DCRTK,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46210-37010B0 |
BU400,410,420,430,XZU382,40#,41#,42#,430 DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37042B0 |
XZU421..5F..IV3;XZU424..6F..35T..IV3;XZU404,411,414..(DM7,T3)..MTM..(DCRL,DSL,DSLL)..IV3 ｱﾘ(ﾌﾞﾚ-ｷ ﾛﾂｸ ｼｽﾃﾑ),DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37012B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL ｶﾄｳｼｷ ｼﾌﾄﾚﾊﾞ-,DK.CHARCOAL,TRIM1# |
1 | ||
| 46210-37091B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-37020B0 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL DK.CHARCOAL,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37440 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37460 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZU40#,41#,42#,433..SCB..(DCRL,DSL,DSLL) |
1 | ||
| Common parts | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0406- )XZU388,404,414,415,424..MTM..DCR,DCRL,DSLL ; (0610- )XZU404,414,424,4
MYY5A,MYY6P,MYY6S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| SU002-00289 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46511-37080 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| SU002-00302 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| SU002-00296 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46524 - COVER, PARKING BRAKE DUST | ||||
| 46524-37030 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| SU002-00286 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00287 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| SU002-00299 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00288 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| SU002-00291 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| SU002-00925 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| SU002-00297 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| SU002-00303 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| SU002-00293 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| SU002-00294 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| SU002-00295 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| SU002-00292 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-06931 | ||||
| 90177-12003 | ||||
| 96160-01200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
