XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
(0406- )XZU404,414,415,424..DCR,DCRL,DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2 | ||||
| 44348-37310 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-37170 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44369-37120 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37150 |
XZU40#,41#,42#,430 |
1 | ||
| 44411-37241 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
XZU421..T5..5F;XZU421..6F..30T;XZU382,40#,410,420;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 90401-16027 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| 44412 - HOSE, RETURN | ||||
| 44412-37140 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37441 |
XZU404,414,415,424..DCRL,DSLL |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37081 |
XZU388,404,414,415,424 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37110 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44447-37200 |
XZU404,414,415,424 NO.1 |
1 | ||
| 44447-37220 |
XZU404,414,415,424 NO.2 |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37110 |
XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL) |
1 | ||
| 44447-37200 |
XZU404,414,415,424 NO.1 |
1 | ||
| 44447-37220 |
XZU404,414,415,424 NO.2 |
1 | ||
| 44448B - BRACKET, HOSE SUPPORT, NO.2 | ||||
| 44448-37020 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL NO.1 |
1 | ||
| 44448-37050 |
XZU404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 44448B - BRACKET, HOSE SUPPORT, NO.2 | ||||
| 44448-37020 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL NO.1 |
1 | ||
| 44448-37050 |
XZU404,414,415,424..DCRL,DSLL NO.2 |
1 | ||
| 44457B - BRACKET, POWER STEERING TUBE SUPPORT, NO.2 | ||||
| 44457-37130 |
XZU40#,41#,42#,433..DCRL,DSL,DSLL |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 82716-37290 | ||||
| 90034-61047 | ||||
| 90119-08873 | ||||
| 90467-16019 | ||||
| 90467-21010 | ||||
| 90959-01600 | ||||
| 91651-60816 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 94125-41600 | ||||
| 94130-00802 | ||||

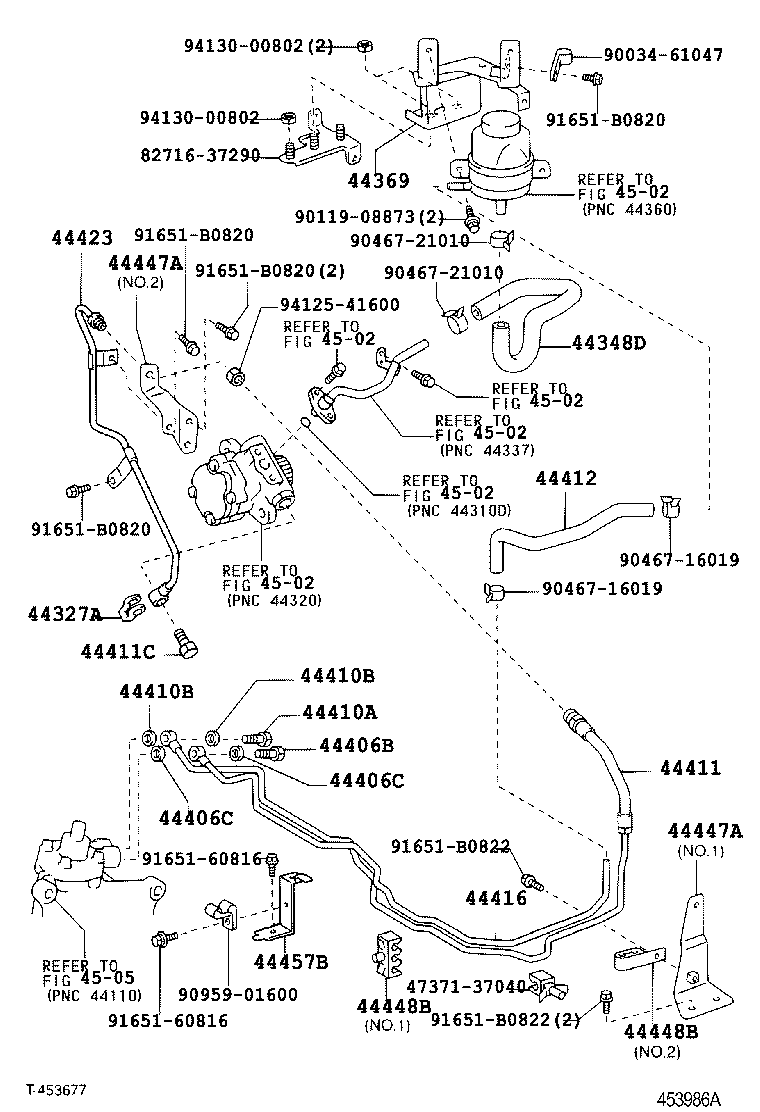

| Linked diagrams | ||||
| 4502 | ||||
| 4505 | ||||
