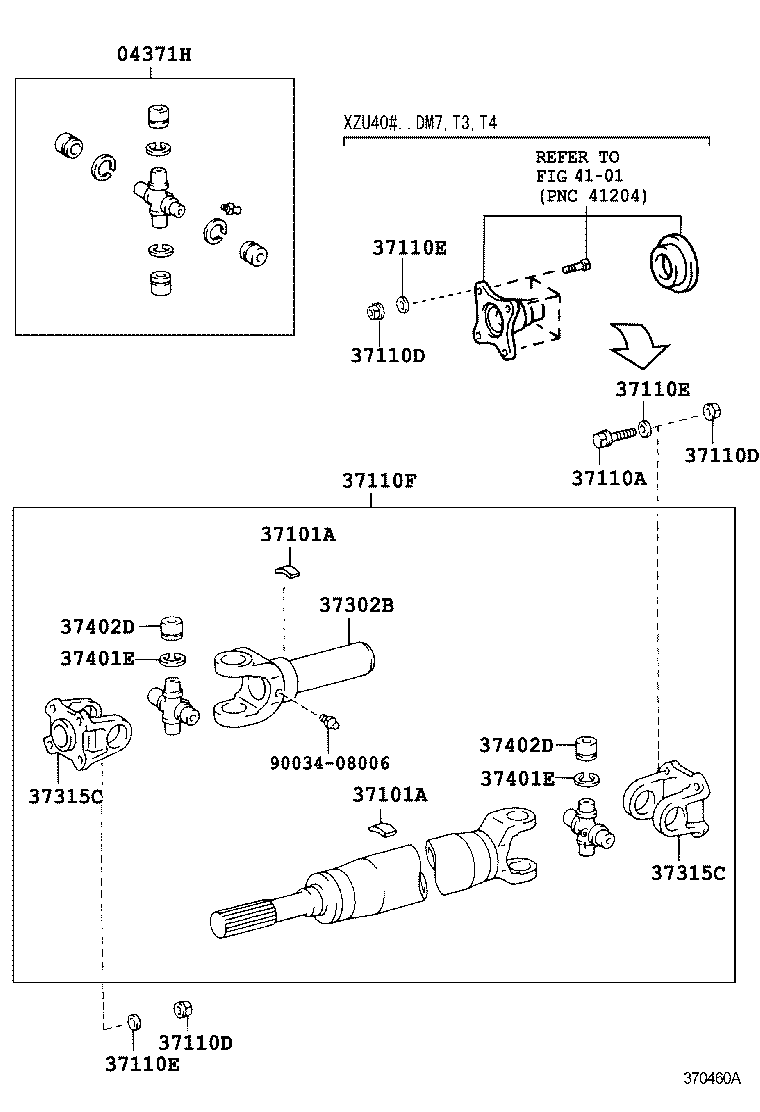

XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
(0406-0610)XZU40#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL |
3 | ||
| 04371-37011 |
BU400,XZU40# |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90039-13001 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 6G |
1 | ||
| 90039-13003 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 25G |
1 | ||
| 90039-13005 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 75G |
1 | ||
| 90039-13002 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 12G |
1 | ||
| 90039-13004 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 50G |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37860 |
XZU404 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU411..DCB..T5;XZU411..T2,T3,T4;XZU388,40#,413,414,415,42#,433..DCRL,DSL,DSLL |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
BU400,XZU40# |
2 | ||
| 37315-37021 |
XZU404 NO.1 |
1 | ||
| 37315-37031 |
XZU404 NO.2 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37020 |
BU400,XZU40# |
2 | ||
| 37315-37021 |
XZU404 NO.1 |
1 | ||
| 37315-37031 |
XZU404 NO.2 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21022 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.50 |
8 | ||
| 90035-21023 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.55 |
8 | ||
| 90035-21024 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.60 |
8 | ||
| 90035-21025 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.65 |
8 | ||
| 90035-21026 |
XZU388,40#,41#,42#,433..DCRL,DSL,DSLL 厚さ=1.70 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU40# |
8 | ||
| 37402-37020 |
XZU382,40# |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
XZU40# |
8 | ||
| 37402-37020 |
XZU382,40# |
8 | ||
| Common parts | ||||
| 90034-08006 | ||||
| Linked diagrams | ||||
| 4101 | ||||
