Toyota Dyna/toyoace XZU404 POWER TAKE-OFF LEVER & LINK

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU404A-TMFSW3 (2004)
3605 - POWER TAKE-OFF LEVER & LINK

XZU404A-TMFSW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0406- )XZU404..40T..DCRL..IV3 ; (0406- )XZU414..T3..35T,40T..DCRL..IV3 ; (06

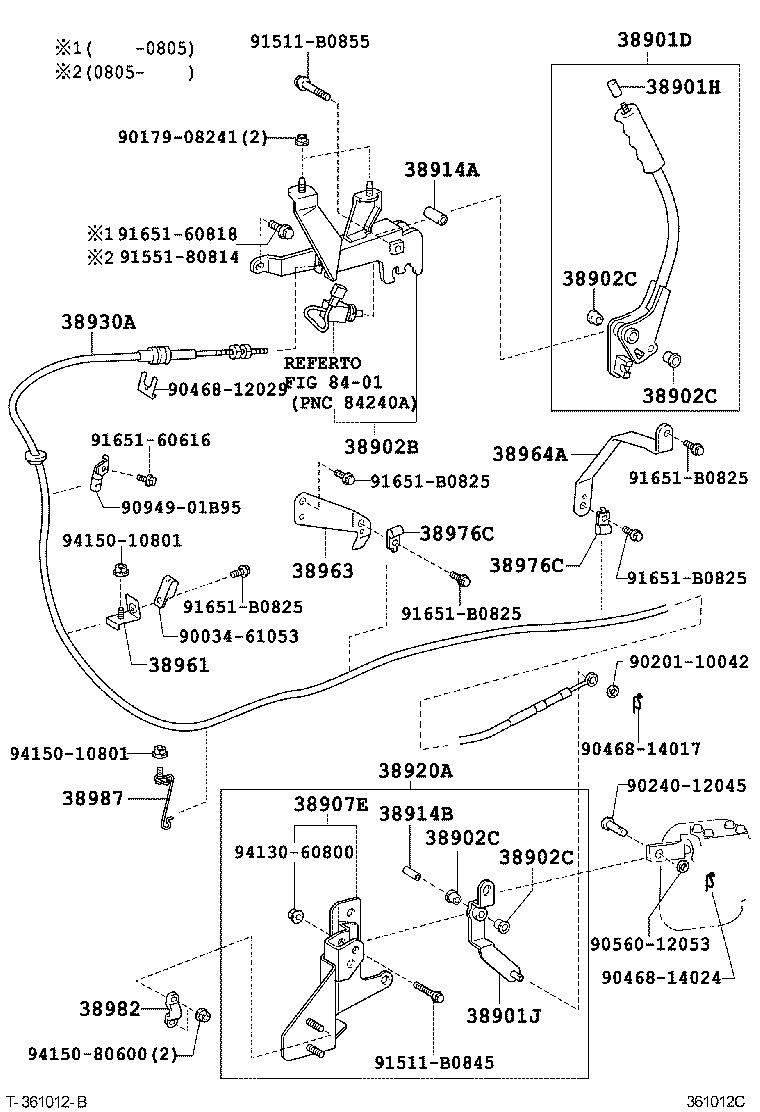

Click highlighted areas on diagram

ﾌﾞﾝﾘﾀｲﾌﾟ20KG

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901J - LEVER SUB-ASSY, VALVE CONTROL
38901-37100	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38907E - STAY SUB-ASSY, POWER TEKE-OFF CONTROL
38907-37050	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38914B - PIPE, VALVE CONTROL LEVER, NO.2
38914-37030	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-37040	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38930A - CABLE ASSY, PUSH PULL
38930-37411	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38961 - BRACKET, CABLE CLAMP, NO.1
38962-37090	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37450	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38964A - BRACKET, CABLE CLAMP, NO.4
38962-37471	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	2
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	2
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38987 - CLAMP, CABLE PUSH PULL
38976-37080	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
Common parts
90034-61053
90179-08241
90201-10042
90240-12045
90468-12029
90468-14017
90468-14024
90560-12053
90949-01B95
91511-B0845
91511-B0855
91551-80814
91651-60616
91651-60818
91651-B0825
94130-60800
94150-10801
94150-80600
Linked diagrams
8401

(0406- )XZU404,414..40T..DCRL..IV3 ; (0610-)40T..DCRTK..IV3

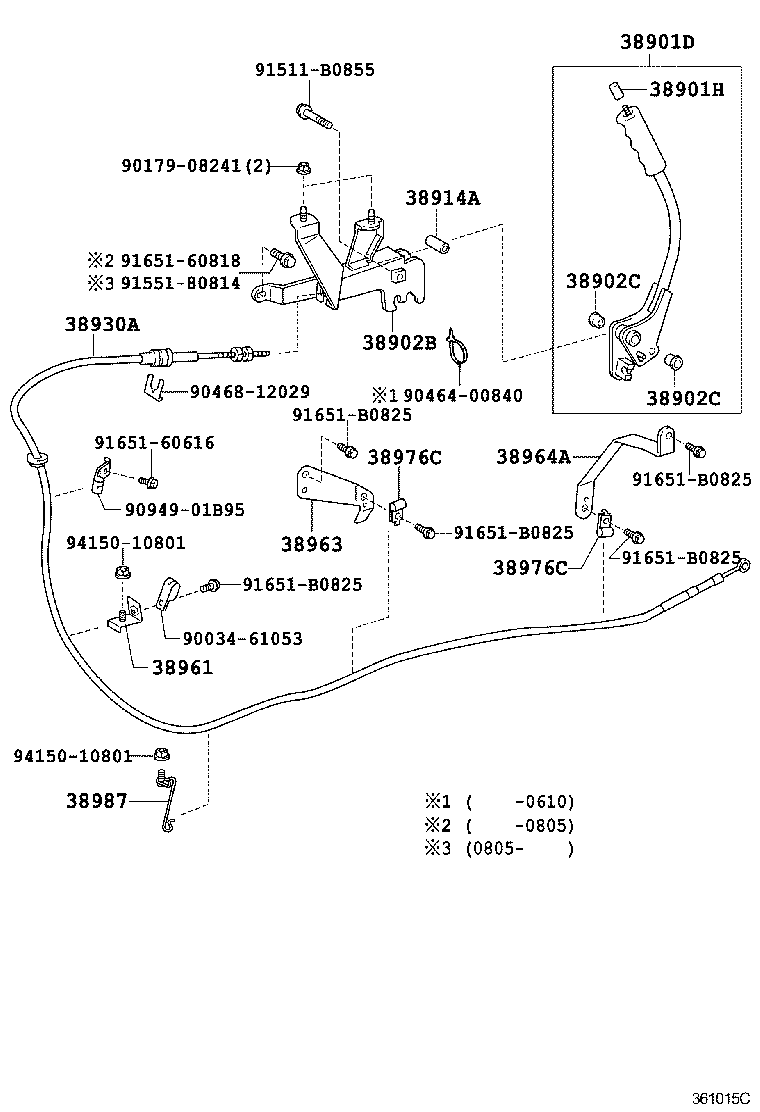

Click highlighted areas on diagram

ﾅｼ(PTO),ﾀﾞﾝﾌﾟﾚﾊﾞ+ｹｰﾌﾞﾙ

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38930A - CABLE ASSY, PUSH PULL
38930-37411	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38961 - BRACKET, CABLE CLAMP, NO.1
38962-37090	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37450	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
38964A - BRACKET, CABLE CLAMP, NO.4
38962-37471	XZU404,414..40T..IV3	06/2004 - 10/2006	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	2
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	2
38987 - CLAMP, CABLE PUSH PULL
38976-37080	XZU413,423,433;XZU404,414..40T..IV3	06/2004 - 10/2006	1
Common parts
90034-61053
90179-08241
90464-00840
90468-12029
90949-01B95
91511-B0855
91551-80814
91651-60616
91651-60818
91651-B0825
94150-10801

(0406-0610)30T..DSLL ; (0406-0610)XZU413..T5..IV3 ; (0406-0610)XZU388,404..20T,30T,

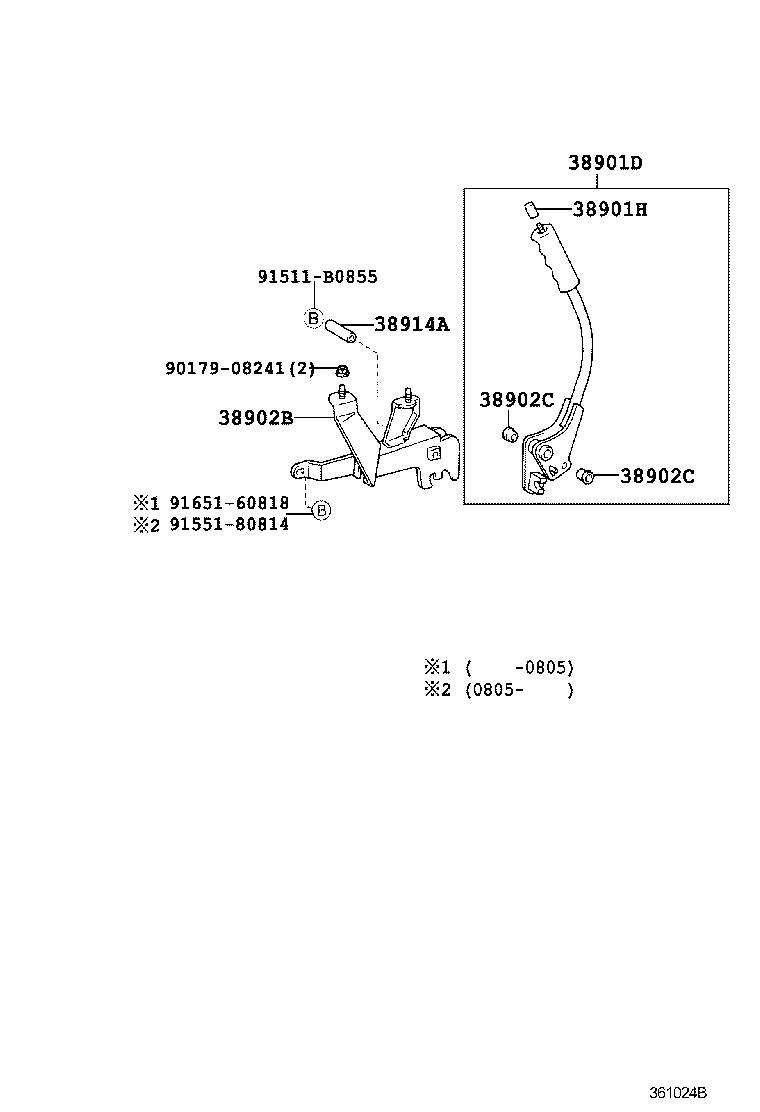

Click highlighted areas on diagram

ﾀﾞﾝﾌﾟﾚﾊﾞｰﾉﾐ

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
Common parts
90179-08241
91511-B0855
91551-80814
91651-60818

(0406-0610)XZU411,414..T3,T5..MTM..DCRL,DSL..IV3; (0610- )XZU404..40T ; (0610-

Click highlighted areas on diagram

ﾀﾞﾝﾌﾟﾚﾊﾞｰﾉﾐ

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37110B0	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ),MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901-37030B0	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
46217-20020B1	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3 MD.CHARCOAL,TRIM1#	06/2004 - 10/2006	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37040	XZU388,404..20T,30T,40T;XZU411..(T3,T5)..5F..IV3;XZU411..T4..5F..30T..IV3;XZU413,414..T5..DCRL..IV3;XZU414..T3..(DCRL,DSLL)..IV3	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902-37120	XZU413,423,433;XZU404,414..40T..IV3 ｱﾘ(ﾊﾟﾜｰﾃｰｸｵﾌｲﾝｼﾞｹﾞｰﾀｽｲｯﾁ)	06/2004 - 10/2006	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
90386-12034	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
38914-37010	XZU413,423,433;XZU414..30T..DSLL;XZU388,404..20T,30T,40T;XZU411..T4..5F..30T..IV3;XZU411,414..(T3,T5)..MTM..(DCRL,DSL)..IV3	06/2004 - 10/2006	1
Common parts
90179-08241
91511-B0855
91551-80814
91651-60818

XZU404A-TMFSW3 (2004)

(0406- )XZU404..40T..DCRL..IV3 ; (0406- )XZU414..T3..35T,40T..DCRL..IV3 ; (06

(0406- )XZU404,414..40T..DCRL..IV3 ; (0610-)40T..DCRTK..IV3

(0406-0610)30T..DSLL ; (0406-0610)XZU413..T5..IV3 ; (0406-0610)XZU388,404..20T,30T,

(0406-0610)XZU411,414..T3,T5..MTM..DCRL,DSL..IV3; (0610- )XZU404..40T ; (0610-
