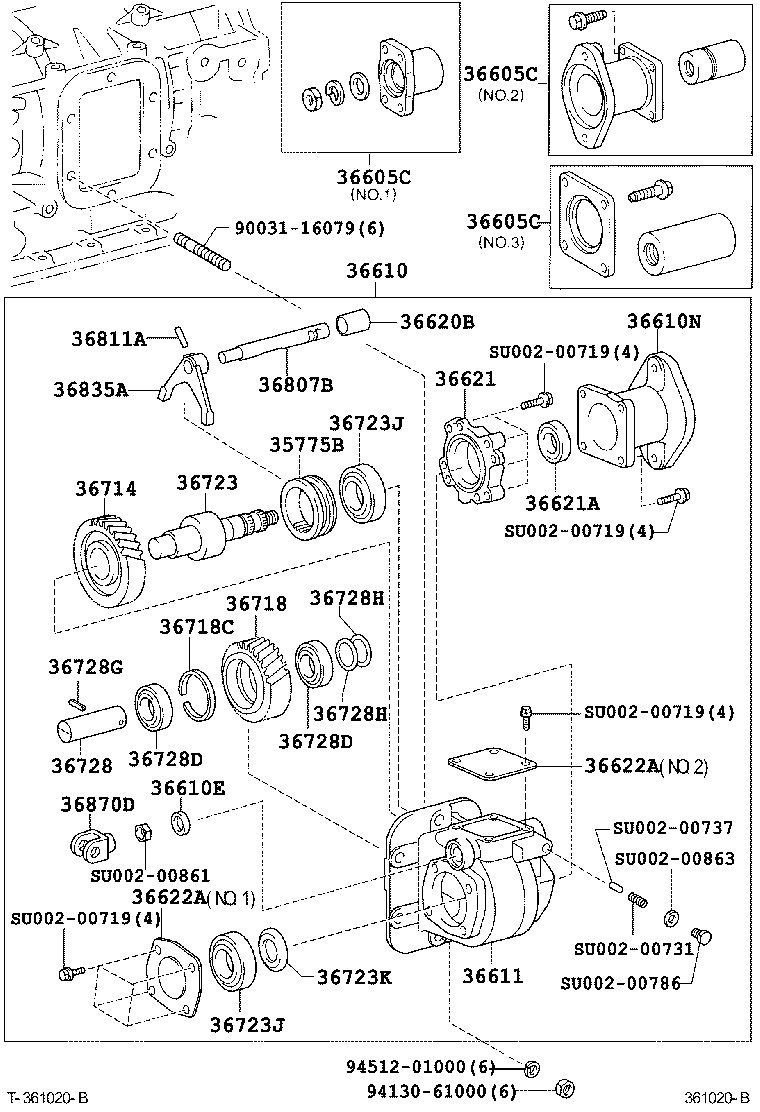

XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
(0406-0610)XZU404,414..40T..IV3 ; (0501-0610)XZU414..T3..35T..IV3 ; (0610- )DM7,
ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ20KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| SU002-00751 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37350 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36610-37290 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-00727 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36610N - ADAPTER, POWER TAKE-OFF SOLENOID | ||||
| SU002-00781 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ｿﾞｳｿｸｶﾞﾀﾃﾞﾝｷｼｷ, 40KG |
1 | ||
| SU002-00792 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| SU002-00779 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| SU002-00758 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36620B - PLUG(FOR POWER TAKE-OFF) | ||||
| SU002-00821 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00788 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36621-93200 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| SU002-00752 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| SU002-00784 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00796 |
XZU404,414..40T..IV3 NO.1 |
1 | ||
| SU002-00837 |
XZU404,414..40T..IV3 NO.2 |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| SU002-00784 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00796 |
XZU404,414..40T..IV3 NO.1 |
1 | ||
| SU002-00837 |
XZU404,414..40T..IV3 NO.2 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-00759 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00762 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| SU002-00747 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) |
2 | ||
| 90364-28020 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) |
2 | ||
| 90364-28020 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00834 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 90254-04002 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.2 |
1 | ||
| 90564-25001 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.05 |
1 | ||
| 90564-25004 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.5 |
1 | ||
| 90564-25002 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.1 |
1 | ||
| SU002-00841 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.70 |
2 | ||
| SU002-00838 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.50 |
2 | ||
| SU002-00842 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.80,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00843 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.85 |
2 | ||
| SU002-00839 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.60,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00840 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.65 |
2 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.2 |
1 | ||
| 90564-25001 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.05 |
1 | ||
| 90564-25004 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.5 |
1 | ||
| 90564-25002 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.1 |
1 | ||
| SU002-00841 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.70 |
2 | ||
| SU002-00838 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.50 |
2 | ||
| SU002-00842 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.80,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00843 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.85 |
2 | ||
| SU002-00839 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.60,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00840 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.65 |
2 | ||
| 36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT | ||||
| SU002-00780 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| SU002-00777 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36811A - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT FORK) | ||||
| SU002-00851 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36835A - ARM, POWER TAKE-OFF SHIFT | ||||
| SU002-00750 |
XZU404..40T..IV3;XZU414..T3..(35T,40T)..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| SU002-00828 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36870D - CONNECTOR, POWER TAKE-OFF CONTROL CABLE | ||||
| SU002-00799 |
XZU404,414..40T..IV3 |
1 | ||
| Common parts | ||||
| 90031-16079 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| SU002-00719 | ||||
| SU002-00731 | ||||
| SU002-00737 | ||||
| SU002-00786 | ||||
| SU002-00861 | ||||
| SU002-00863 | ||||

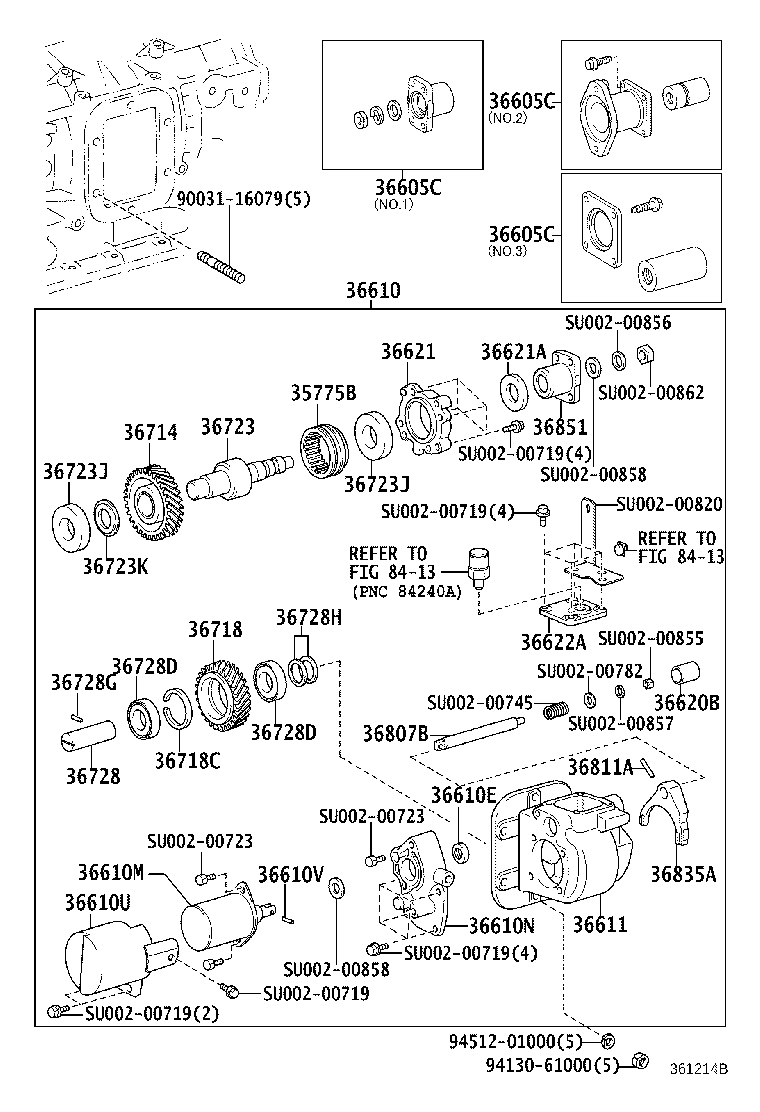

(0406-0610)XZU404,414,424..6F..DCRL,DSLL ; (0610- )6F..DCRTK,DCRUE
ﾃﾞﾝｷｼｷ20KG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35775B - SLEEVE, OUTPUT SHAFT | ||||
| 35775-37010 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| SU002-00751 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36605C - POWER TAKE-OFF SET | ||||
| 36605-37030 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.1 |
1 | ||
| 36605-37040 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.2 |
1 | ||
| 36605-37050 |
XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) NO.3 |
1 | ||
| 36610 - POWER TAKE-OFF ASSY | ||||
| 36610-37350 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36610-37290 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36610E - SEAL, OIL (FOR POWER TAKE-OFF) | ||||
| SU002-00727 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36610M - SOLENOID ASSY, POWER TAKE-OFF | ||||
| SU002-00789 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36610N - ADAPTER, POWER TAKE-OFF SOLENOID | ||||
| SU002-00781 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ｿﾞｳｿｸｶﾞﾀﾃﾞﾝｷｼｷ, 40KG |
1 | ||
| SU002-00792 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36610U - COVER, POWER TAKE-OFF DUST | ||||
| SU002-00766 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36610V - PIN ASSY, SPRING (FOR POWER TAKE-OFF SOLENOID) | ||||
| SU002-00736 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36611 - CASE, POWER TAKE-OFF | ||||
| SU002-00779 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| SU002-00758 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36620B - PLUG(FOR POWER TAKE-OFF) | ||||
| SU002-00821 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36621 - RETAINER, POWER TAKE-OFF BEARING | ||||
| SU002-00788 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36621-93200 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER) | ||||
| 90311-25110 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| SU002-00752 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36622A - COVER, POWER TAKE-OFF | ||||
| SU002-00784 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| SU002-00796 |
XZU404,414..40T..IV3 NO.1 |
1 | ||
| SU002-00837 |
XZU404,414..40T..IV3 NO.2 |
1 | ||
| 36714 - GEAR, POWER TAKE-OFF OUTPUT | ||||
| SU002-00759 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36718 - GEAR, POWER TAKE-OFF IDLER | ||||
| SU002-00762 |
XZU404,414,424..6F..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36718C - RING, HOLE SNAP(FOR POWER TAKE-OFF IDLER GEAR) | ||||
| SU002-00747 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1 | ||||
| SU002-00831 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) |
2 | ||
| 90364-28020 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
2 | ||
| 36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00740 |
XZU388,404,413,414,423,424,433..MTM..(DCRL,DSLL) |
2 | ||
| 90364-28020 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
2 | ||
| 36723K - COLLAR (FOR POWER TAKE-OFF OUTPUT SHAFT) | ||||
| SU002-00834 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36728 - SHAFT, POWER TAKE-OFF IDLER | ||||
| SU002-00850 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
1 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
2 | ||
| 36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00743 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
2 | ||
| 36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| SU002-00725 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 90254-04002 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT) | ||||
| 90564-25003 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.2 |
1 | ||
| 90564-25001 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.05 |
1 | ||
| 90564-25004 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.5 |
1 | ||
| 90564-25002 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL 厚さ=0.1 |
1 | ||
| SU002-00841 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.70 |
2 | ||
| SU002-00838 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.50 |
2 | ||
| SU002-00842 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.80,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00843 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.85 |
2 | ||
| SU002-00839 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.60,ﾃﾞﾝｷｼｷ, 20KG OR ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ, 20KG |
2 | ||
| SU002-00840 |
XZU388,404,414,424..MTM..(DCRL,DSLL) 厚さ=1.65 |
2 | ||
| 36807B - ROD SUB-ASSY, POWER TAKE-OFF SHIFT | ||||
| SU002-00780 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| SU002-00777 |
XZU404,414..40T..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| 36811A - PIN, SLOTTED SPRING (FOR POWER TAKE-OFF SHIFT FORK) | ||||
| SU002-00851 |
XZU388,404,414,424..MTM..(DCRL,DSLL) |
1 | ||
| 36835A - ARM, POWER TAKE-OFF SHIFT | ||||
| SU002-00750 |
XZU404..40T..IV3;XZU414..T3..(35T,40T)..IV3 ﾏﾆﾕｱﾙ ﾚﾊﾞｰｼｷ 20KG |
1 | ||
| SU002-00828 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| 36851 - RETAINER, POWER TAKE-OFF JOINT | ||||
| 36851-37010 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| SU002-00798 |
XZU388,404,414,424..MTM..(DCRL,DSLL) ﾃﾞﾝｷｼｷ, 20KG |
1 | ||
| Common parts | ||||
| 90031-16079 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||
| SU002-00719 | ||||
| SU002-00723 | ||||
| SU002-00745 | ||||
| SU002-00782 | ||||
| SU002-00820 | ||||
| SU002-00855 | ||||
| SU002-00856 | ||||
| SU002-00857 | ||||
| SU002-00858 | ||||
| SU002-00862 | ||||
| Linked diagrams | ||||
| 8413 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
