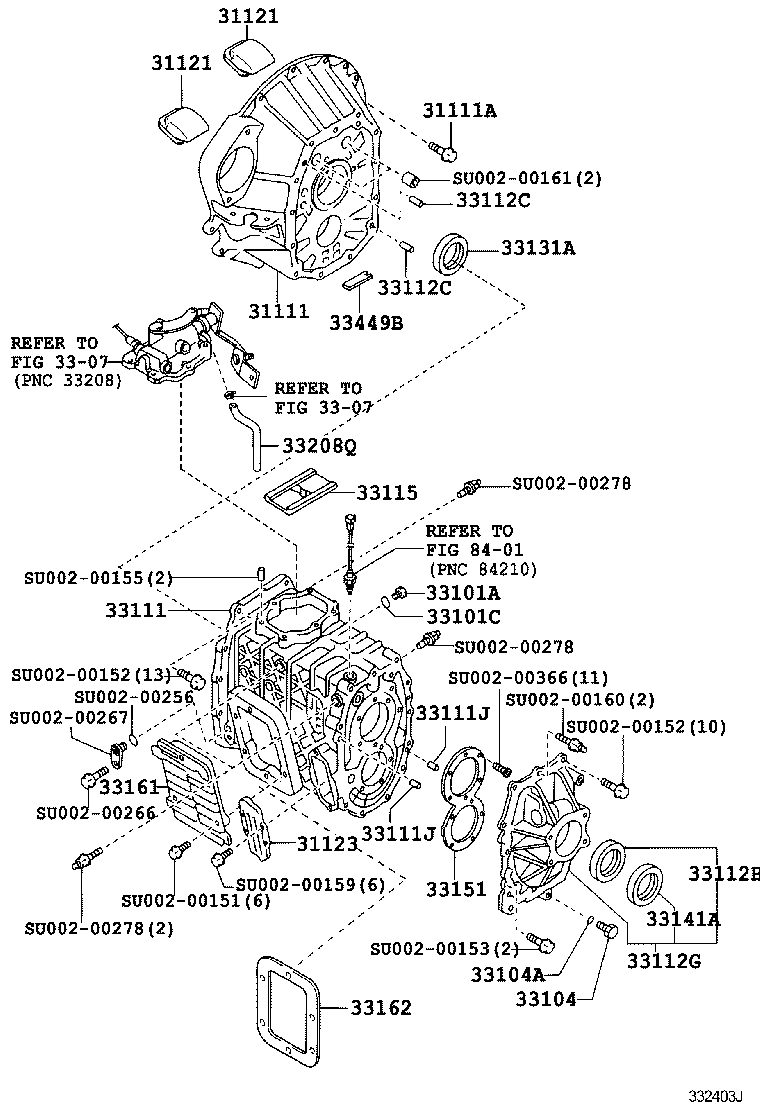

XZU404A-TMFSW3 (2004)
Toyota Dyna/Toyoace
(0406-0610)XZU404,414,415,424..6F..DCRL,DSLL ; (0406-0705)DCR
MYY6P
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-37060 |
XZU40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,412,421,430..6F..(295T,30T,35T,40T) |
1 | ||
| SU002-00667 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 31111A - BOLT(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING) | ||||
| 90119-10898 |
XZU382,40#,410,420..MTM;XZU411,412,421..5F..(DSL,DSLL);XZU411,412,421,430..6F..(295T,30T,35T,40T) |
12 | ||
| 90119-10898 |
XZU40#,41#,42#,433..MTM..(DCRL,DSL,DSLL) |
12 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 31121-28041 |
BU400,410,420,430,XZU382,40#,41#,42#,430..MTM |
2 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-28041 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
2 | ||
| 31121-28041 |
BU400,410,420,430,XZU382,40#,41#,42#,430..MTM |
2 | ||
| 31123 - COVER, CLUTCH HOUSING, NO.2 | ||||
| SU002-00158 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| SU002-00162 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| SU002-00149 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| SU002-00164 |
XZU404,413,414,415,423,424,433..6F..(DCRL,DSLL) |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| SU002-00149 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| SU002-00367 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| SU002-00337 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 33112H - BEARING, TRANSMISSION CASE NEEDLE | ||||
| SU002-00341 |
XZU404,414,415,424..6F..(DCRL,DSLL) |
1 | ||
| 33115 - PLATE, TRANSMISSION OIL FILTER | ||||
| SU002-00275 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| SU002-00148 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| SU002-00168 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 33161 - COVER, MANUAL TRANSMISSION POWER TAKE-OFF | ||||
| SU002-00150 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 33162 - GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER | ||||
| SU002-00147 |
XZU388,404,414,415,424..MTM..(DCRL,DSLL) |
1 | ||
| 33208Q - HOSE, BREATHER | ||||
| SU002-00265 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| SU002-00157 |
XZU388,404,413,414,415,423,424,433..MTM..(DCRL,DSLL) |
1 | ||
| Common parts | ||||
| SU002-00151 | ||||
| SU002-00152 | ||||
| SU002-00153 | ||||
| SU002-00155 | ||||
| SU002-00159 | ||||
| SU002-00160 | ||||
| SU002-00161 | ||||
| SU002-00256 | ||||
| SU002-00266 | ||||
| SU002-00267 | ||||
| SU002-00278 | ||||
| SU002-00366 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 8401 | ||||
