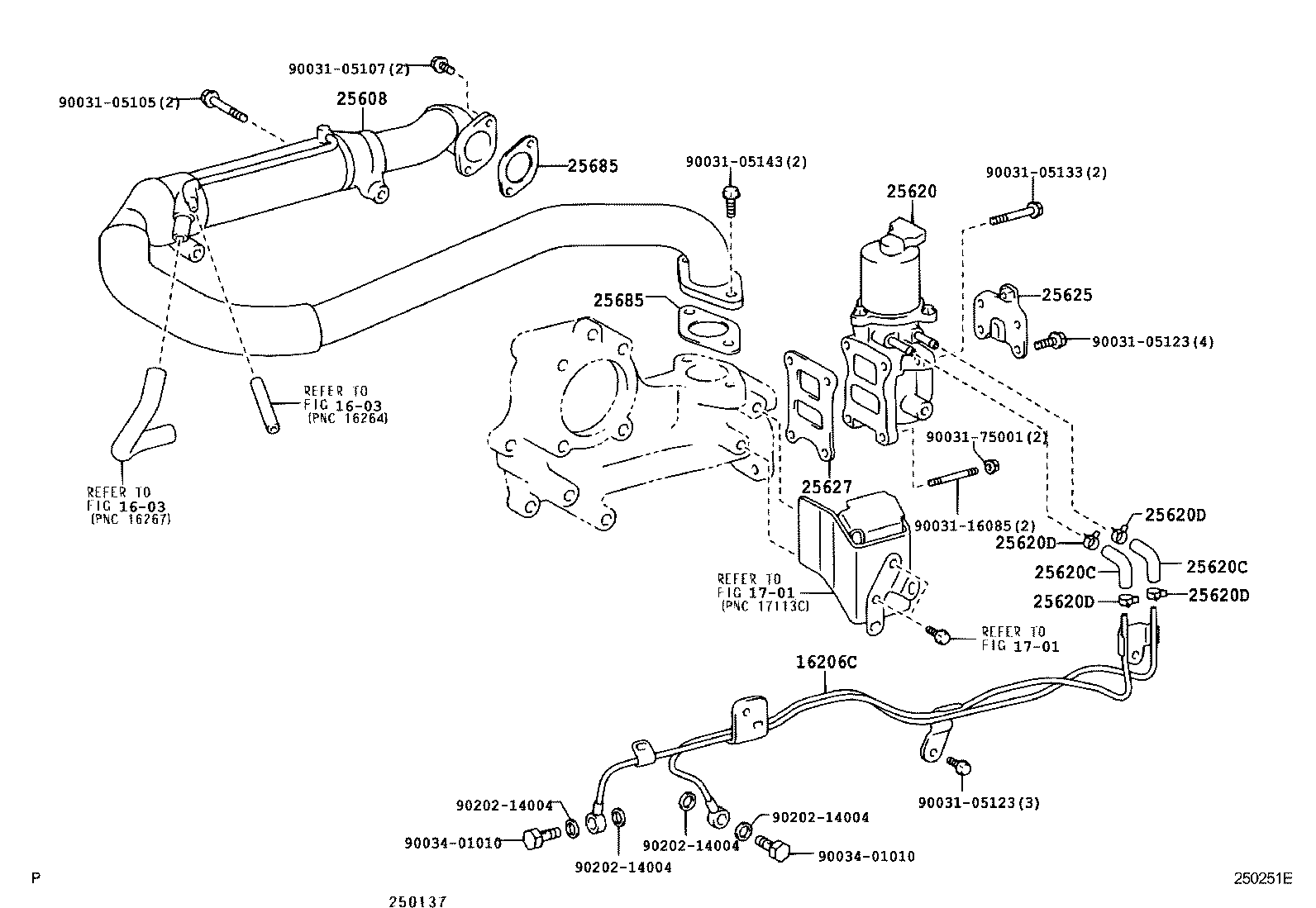

Toyota Dyna/toyoace XZU404 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
16206C - PIPE SUB-ASSY, WATER BY-PASS
16206-78012	N04C..XZU388,404,414,415,424	05/2005 - 10/2006	1
16206-78011	N04C..XZU388,404,414,415,424	06/2004 - 05/2005	1
25608 - COOLER SUB-ASSY, EGR
25608-78010	N04C..XZU388,404,414,424..DCRL,DSLL	06/2004 - 10/2006	1
25620 - VALVE ASSY, EGR
25620-78020	N04C..XZU388,404,414,415,424	06/2004 - 08/2005	1
25620-78022	N04C..XZU388,404,414,415,424..DCRL,DSLL	08/2006 - 10/2006	1
25620-78021	N04C..XZU388,404,414,415,424	08/2005 - 08/2006	1
25620C - HOSE, WATER BY-PASS, NO.1
90034-45101	J05D,N04C..XZU388,404,413,414,415,423,424,433	05/2005 - 10/2006	2
90034-45094	J05D,N04C..XZU388,404,413,414,415,423,424,433	06/2004 - 05/2005	2
25620C - HOSE, WATER BY-PASS, NO.1
90034-45101	J05D,N04C..XZU388,404,413,414,415,423,424,433	05/2005 - 10/2006	2
90034-45094	J05D,N04C..XZU388,404,413,414,415,423,424,433	06/2004 - 05/2005	2
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027	J05D,N04C..XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027	J05D,N04C..XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027	J05D,N04C..XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	4
25620D - CLIP(FOR WATER BY-PASS HOSE, NO.1)
90034-67027	J05D,N04C..XZU388,404,413,414,415,423,424,433..DCRL,DSLL	06/2004 - 10/2006	4
25625 - BRACKET, EGR VALVE
17455-78130	N04C..XZU388,404,414,415,424..DCRL,DSLL	06/2004 - 10/2006	1
25627 - GASKET, EGR VALVE
17173-78060	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
25685 - GASKET, EGR COOLER, NO.1
25685-78020	N04C..XZU388,404,414,415,424..DCRL,DSLL	06/2004 - 10/2006	2
25685 - GASKET, EGR COOLER, NO.1
25685-78020	N04C..XZU388,404,414,415,424..DCRL,DSLL	06/2004 - 10/2006	2
Common parts
90031-05105
90031-05107
90031-05123
90031-05133
90031-05143
90031-16085
90031-75001
90034-01010
90202-14004
Linked diagrams
1603
1701

XZU404A-TMFSW3 (2004)

(0406- )N04C..XZU388,404,414,424..DCRL,DSLL
