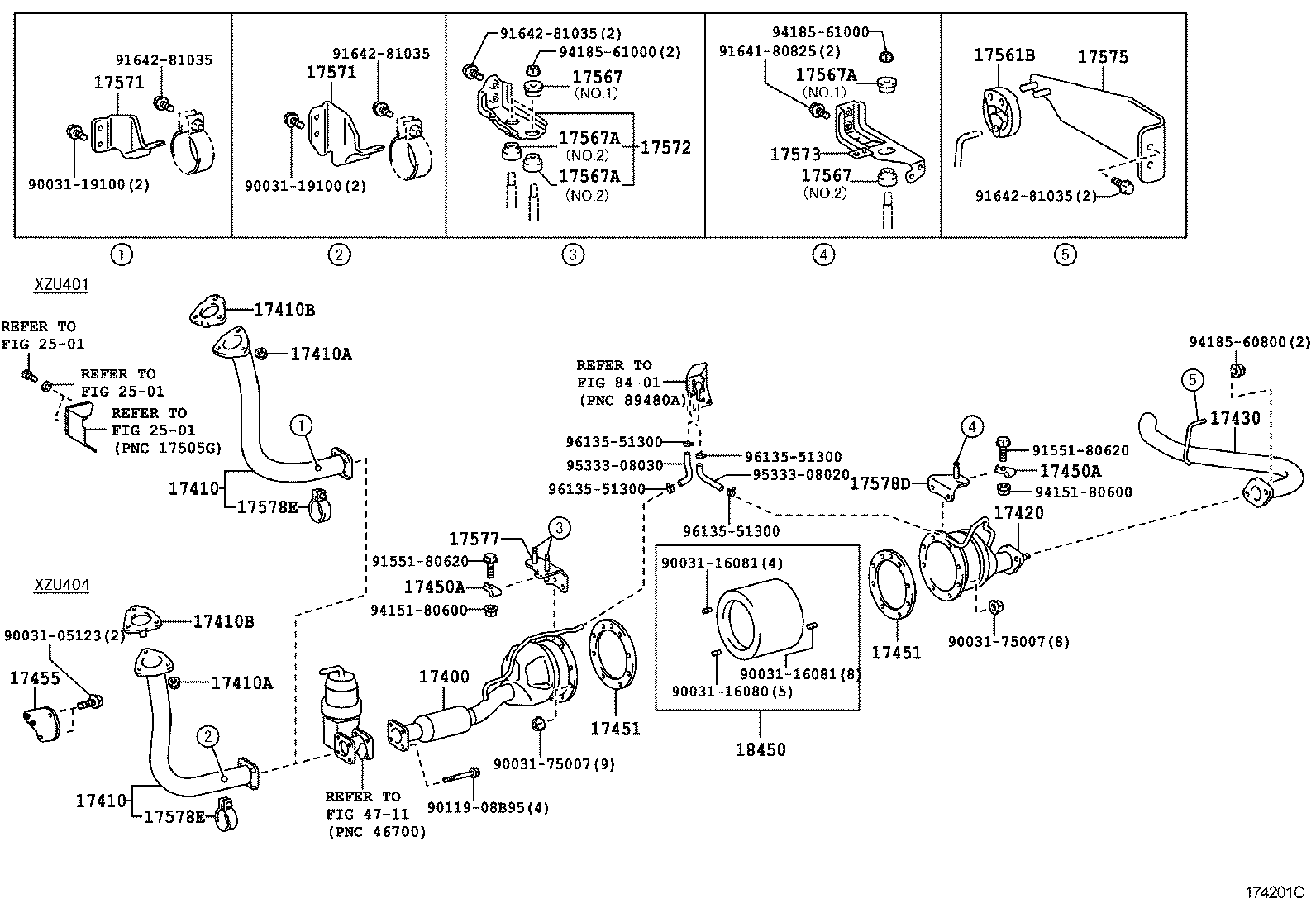

Toyota Dyna/toyoace XZU404 EXHAUST PIPE

Part #	Description	Period	Qty
17400 - CONVERTER ASSY, W/CATALYST
17406-78070	N04C..XZU404,414,424..DCRL,DSLL	06/2004 - 10/2006	1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78190	N04C..XZU404,414,424..DCRL	06/2004 - 10/2006	1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-78190	N04C..XZU404,414,424..DCRL	06/2004 - 10/2006	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	3
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070	J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	3
17410B - GASKET, EXHAUST PIPE
90917-06087	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17410B - GASKET, EXHAUST PIPE
90917-06087	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17420 - PIPE ASSY, EXHAUST, CENTER
17403-78610	N04C..XZU404,414,424..DCRL,DSLL	06/2004 - 10/2006	1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-78890	N04C,S05D..XZU40#..30T,35T,40T	06/2004 - 10/2006	1
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433	06/2004 - 08/2004	2
17589-78021	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	08/2004 - 10/2006	2
17450A - CLAMP, EXHAUST PIPE, NO.5
17589-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433	06/2004 - 08/2004	2
17589-78021	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	08/2004 - 10/2006	2
17451 - GASKET, EXHAUST PIPE
17451-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	2
17451 - GASKET, EXHAUST PIPE
17451-78020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	2
17455 - BRACKET, EXHAUST PIPE
17455-78120	N04C..XZU388,404,414,424..DCRL	06/2004 - 10/2006	1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.1	06/2004 - 10/2006	2
17567-78040	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
17567 - CUSHION, EXHAUST PIPE SUPPORT
17567-78030	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.1	06/2004 - 10/2006	2
17567-78040	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78040	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	2
17567-78030	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.1	06/2004 - 10/2006	1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78040	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	2
17567-78030	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.1	06/2004 - 10/2006	1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78040	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.2	06/2004 - 10/2006	2
17567-78030	J05D,N04C,S05D..XZU388,40#,41#,42#,433..DCRL,DSL,DSLL NO.1	06/2004 - 10/2006	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050	N04C..XZU404,414,424..DCRL,DSLL	06/2004 - 10/2006	1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-78050	N04C..XZU404,414,424..DCRL,DSLL	06/2004 - 10/2006	1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78210	J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-78230	N04C,S05D..XZU40#	06/2004 - 10/2006	1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-78230	J05D,N04C,S05D..XZU40#,41#,42#,433	06/2004 - 07/2004	1
17575-78231	J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL	08/2004 - 10/2006	1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-78060	J05D,N04C,S05D..XZU40#,41#,42#,433..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8
17578-78120	N04C,S05D..XZU40#,411,414,415,421,424..DCRL,DSL,DSLL	06/2004 - 10/2006	1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010	J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL	06/2004 - 10/2006	1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010	J05D,N04C,S05D..XZU388,40#,411,413,414,42#,433..DCRL,DSL	06/2004 - 10/2006	1
18450 - CONVERTER ASSY, MONOLITHIC
18450-78020	N04C,S05D..XZU388,40#,411,414,421,424..DCRL,DSL,DSLL	06/2004 - 10/2006	1
Common parts
90031-05123
90031-16080
90031-16081
90031-19100
90031-75007
90119-08B95
91551-80620
91641-80825
91642-81035
94151-80600
94185-60800
94185-61000
95333-08020
95333-08030
96135-51300
Linked diagrams
2501
4711
8401

XZU404A-TMFSW3 (2004)

(0406- )N04C,S05D..XZU40#..DCRL,DSL
