XZU404A-TMFSD3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )RU2#,3#

Click highlighted areas on diagram

diagram 88460 88470 88470B 88472 88479 88711 88712 88713 8871414010 8871495401 8871495401 8871495402 8871495403 88716A 8871822170 8871895400 8871895402 8871895403 8871895404 8871895406 8889995405 9095001060 9331514012 9331516016 9331540616 9338518016 9338518020 9338518020 9338540820 9411040800 9411040800 9411040800 9461210601 9461210800
Part # Description Qty Price
Common parts
88714-14010
88714-95401
88714-95402
88714-95403
88718-22170
88718-95400
88718-95402
88718-95403
88718-95404
88718-95406
88899-95405
90950-01060
93315-14012
93315-16016
93315-40616
93385-18016
93385-18020
93385-40820
94110-40800
94612-10601
94612-10800

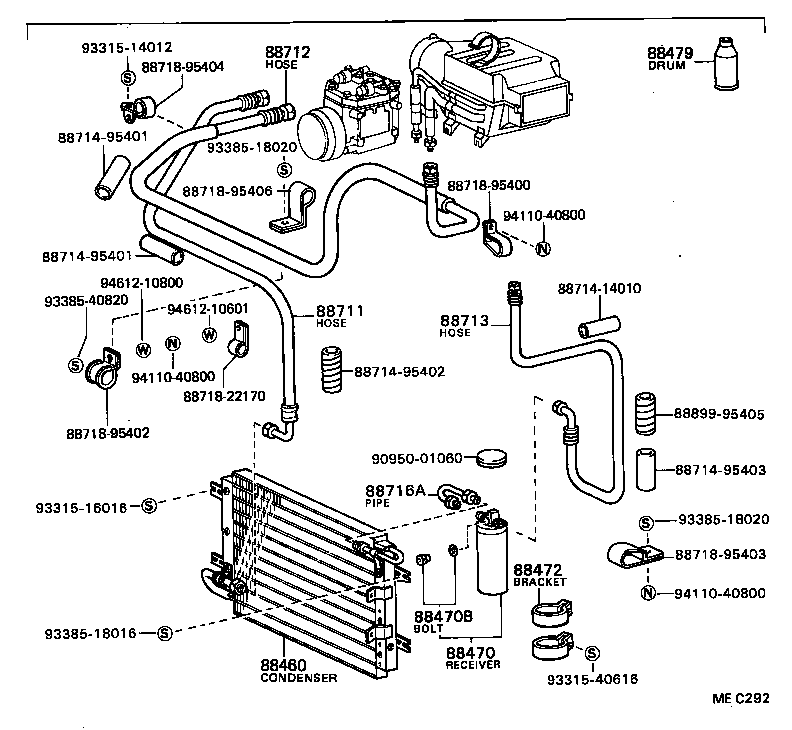

ILLUST NO. 3 OF 3(9905- )

Click highlighted areas on diagram

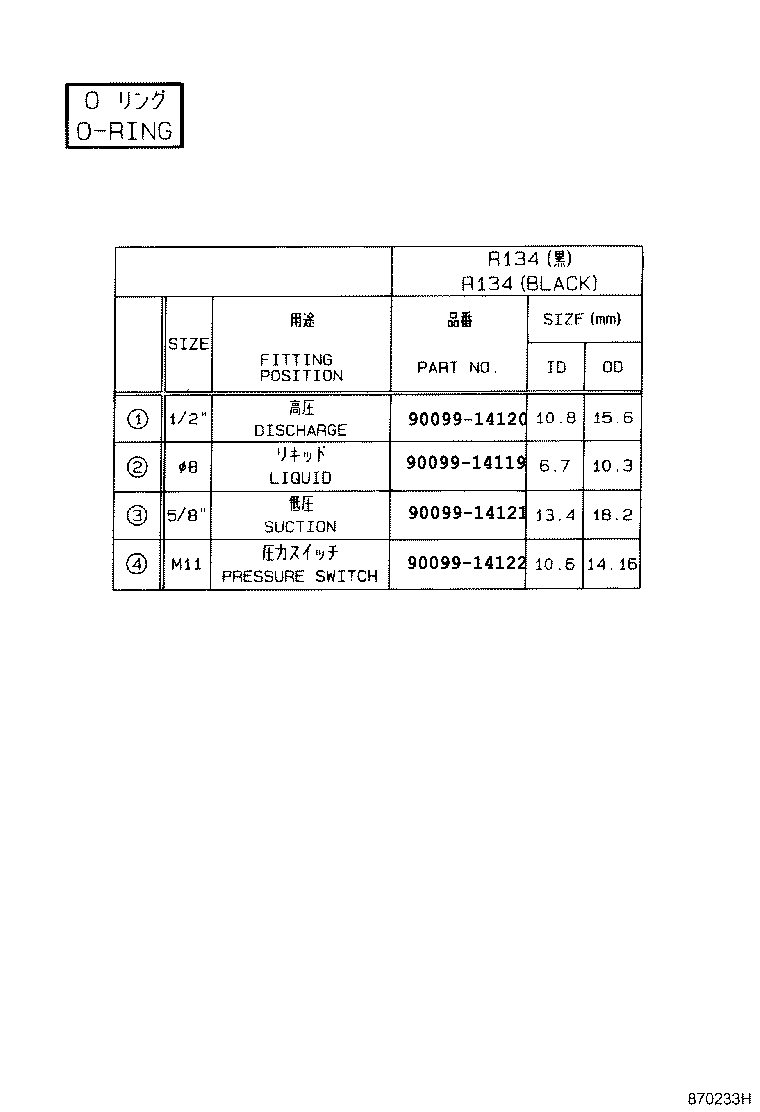

O ﾘﾝｸﾞ

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

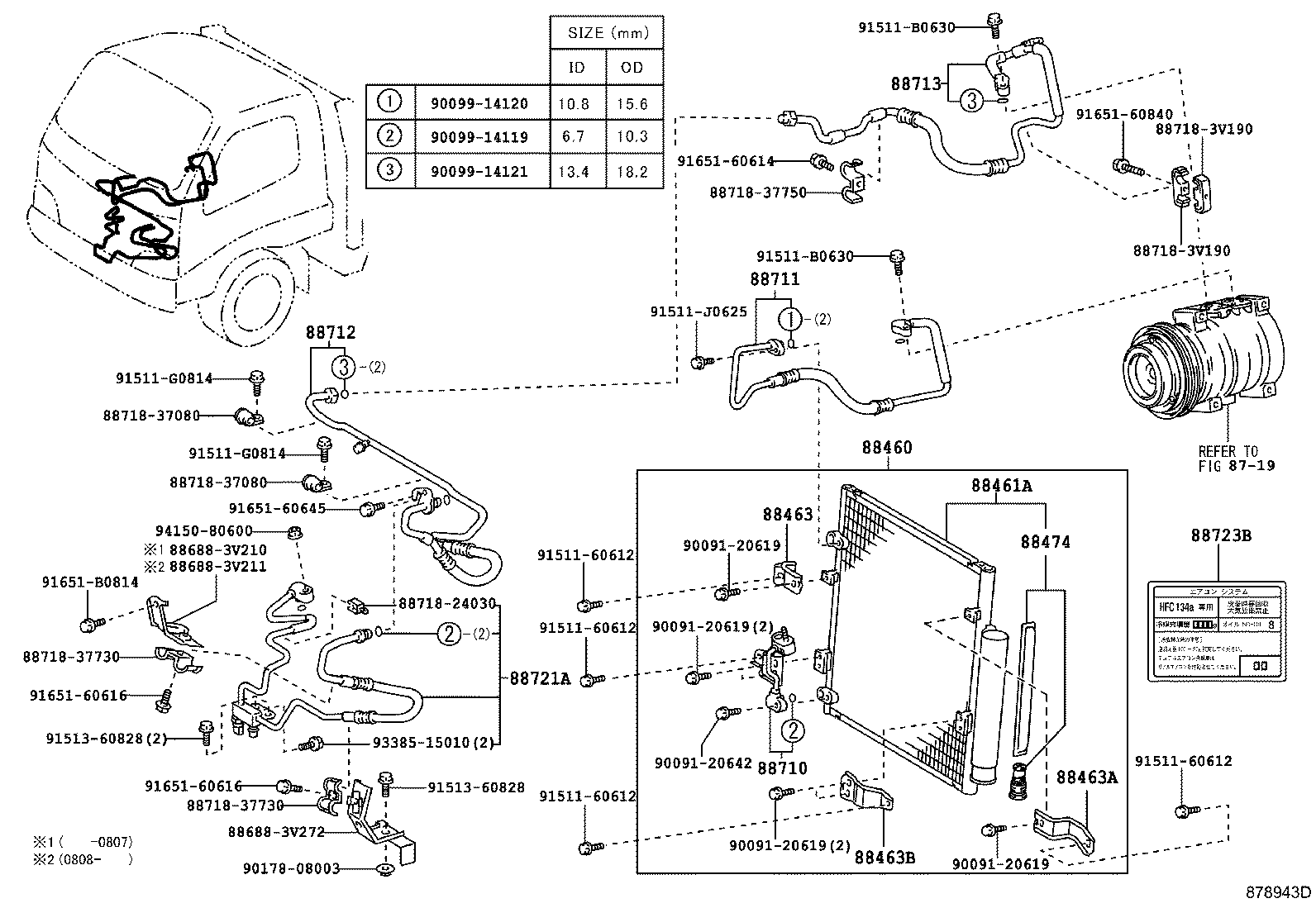

ILLUST NO. 1 OF 3(0610- )XZU404,414,424,454..SCB..DCRTJ,DCRTK,DCRTM,DCRUE

Click highlighted areas on diagram

diagram 8719 88460 88461A 88463 88463A 88463B 88474 886883V210 886883V211 886883V272 88710 88711 88712 88713 8871824030 8871837080 8871837080 8871837730 8871837730 8871837750 887183V190 887183V190 88721A 88723B 9009120619 9009120619 9009120619 9009120619 9009120642 9009914119 9009914120 9009914121 9017808003 9151160612 9151160612 9151160612 9151160612 91511B0630 91511B0630 91511G0814 91511G0814 91511J0625 9151360828 9151360828 9165160614 9165160616 9165160616 9165160645 9165160840 91651B0814 9338515010 9415080600
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-37700

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88461A - CORE, COOLER CONDENSER
88461-37100

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463-37490

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37500

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88463-37280

BU400,410,420,430,XZU40#,41#,42#,430

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-37510

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88474 - DRYER, COOLER
88474-12030

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-37500

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3V150

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88711-3V151

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890

BU400,410,420,430,XZU40#,41#,42#,430

 1
88712-3V680

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-3V660

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
88721A - HOSE, LIQUID, A
88721-3V091

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88721-3V090

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430

 1
88733-21020

XZU404,414,424,454..SCB..(DCRTJ,DCRTK,DCRTM,DCRUE)

 1
Common parts
88688-3V210
88688-3V211
88688-3V272
88718-24030
88718-37080
88718-37730
88718-37750
88718-3V190
90091-20619
90091-20642
90099-14119
90099-14120
90099-14121
90178-08003
91511-60612
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60614
91651-60616
91651-60645
91651-60840
91651-B0814
93385-15010
94150-80600
