XZU404A-TMFSD3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI

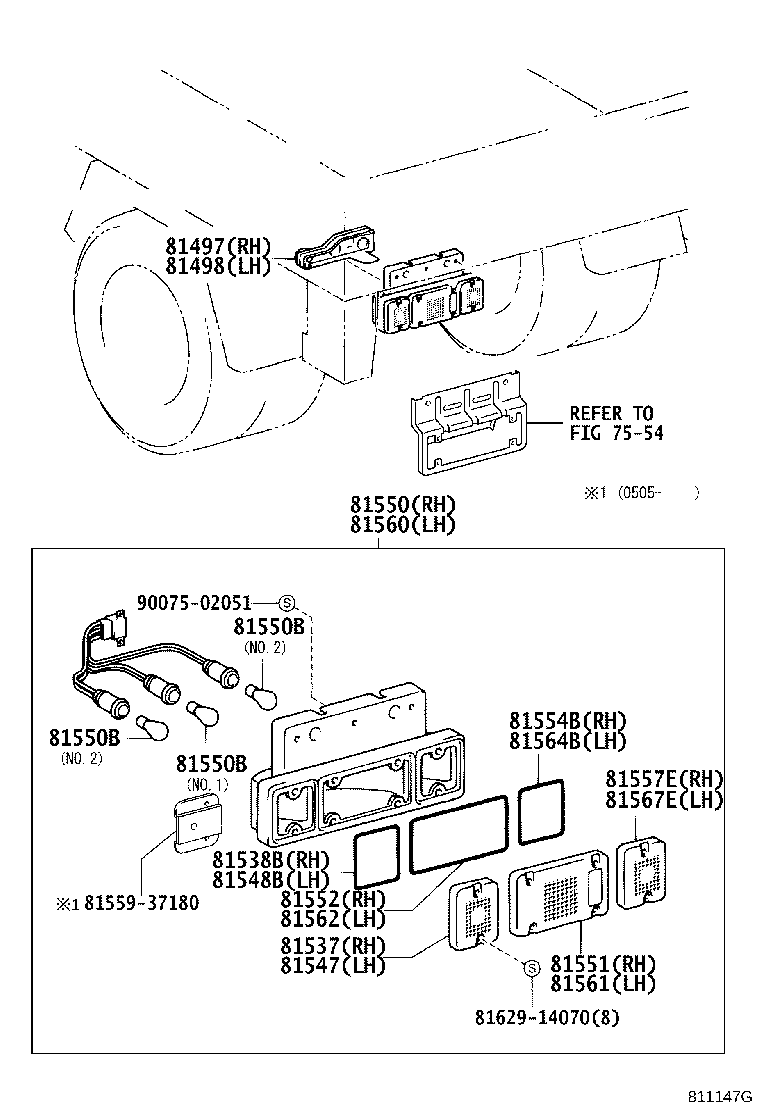

Click highlighted areas on diagram

TYPE B

diagram 7554 81497 81498 81537 81538B 81547 81548B 81550 81550B 81550B 81550B 81551 81552 81554B 81557E 8155937180 81560 81561 81562 81564B 81567E 8162914070 9007502051
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-37260

XZU404..40T..CBU;XZU404,414,424,434,454,488..IV3

TYPE A:ｲﾗｽﾄ参照

 1
81550-37240

XZU404..40T..CBU;XZU404,414,424,434,454,488..(DCRTJ,DCRTK,DCRTL,DCRTM)..IV3

TYPE A:ｲﾗｽﾄ参照

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16014

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21W,NO.2

 4
90981-16015

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21/5W,NO.1

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16014

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21W,NO.2

 4
90981-16015

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21/5W,NO.1

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-16014

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21W,NO.2

 4
90981-16015

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

24V 21/5W,NO.1

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-60442

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TYPE A:ｲﾗｽﾄ参照

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95400

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TYPE A:ｲﾗｽﾄ参照

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-37270

XZU404..40T..CBU;XZU404,414,424,434,454,488..IV3

TYPE A:ｲﾗｽﾄ参照

 1
81560-37240

XZU404..40T..CBU;XZU404,414,424,434,454,488..(DCRTJ,DCRTK,DCRTL,DCRTM)..IV3

TYPE A:ｲﾗｽﾄ参照

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-60372

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TYPE A:ｲﾗｽﾄ参照

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-95400

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
81559-37180
81629-14070
90075-02051
Linked diagrams
7554
