XZU404A-TMFSD3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )

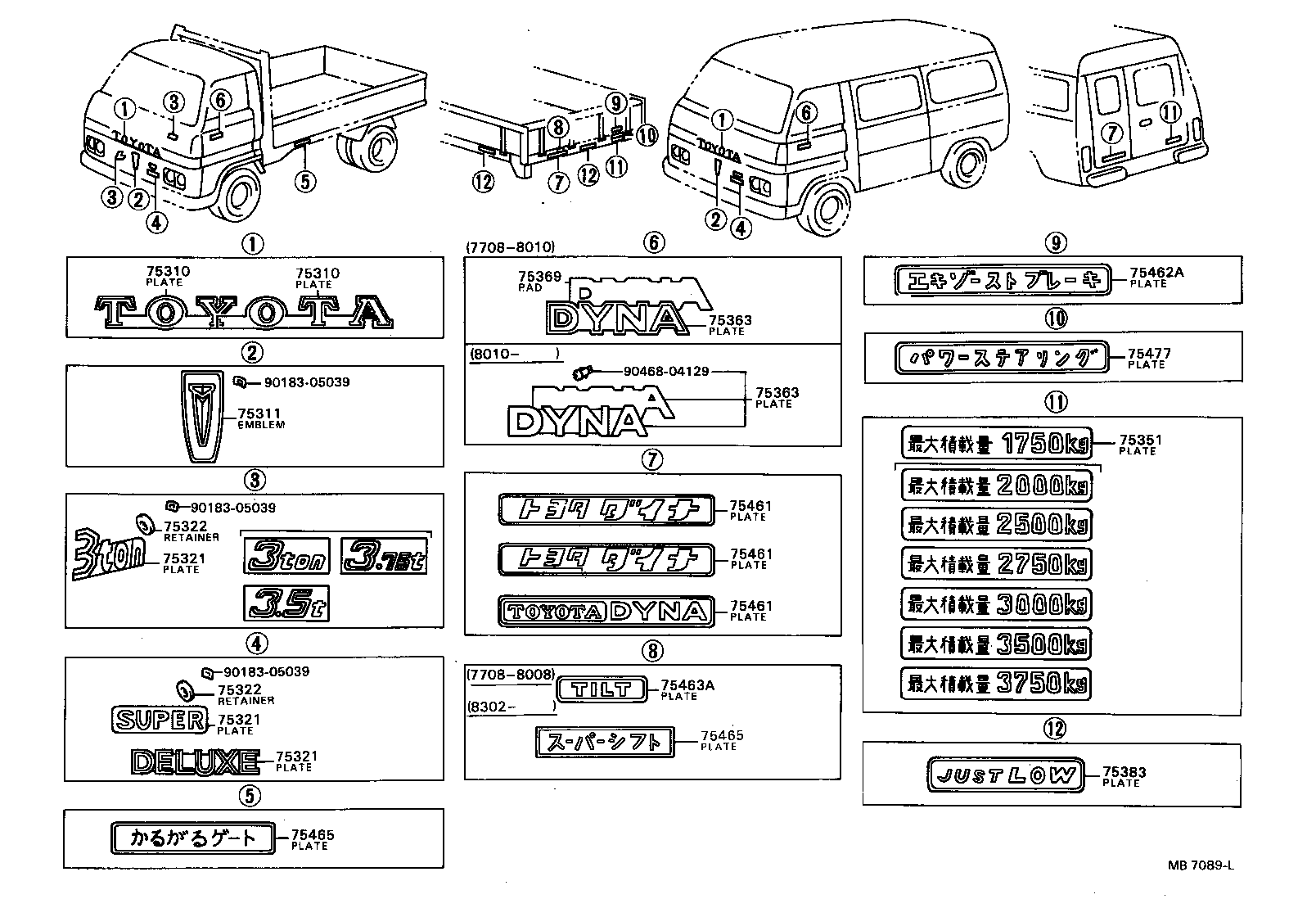

Click highlighted areas on diagram

diagram 75310 75310 75311 75321 75321 75321 75322 75322 75351 75363 75363 75369 75383 75461 75461 75461 75462A 75463A 75465 75465 75477 9018305039 9018305039 9018305039 9046804129
Part # Description Qty Price
Common parts
90183-05039
90468-04129

(9905- )

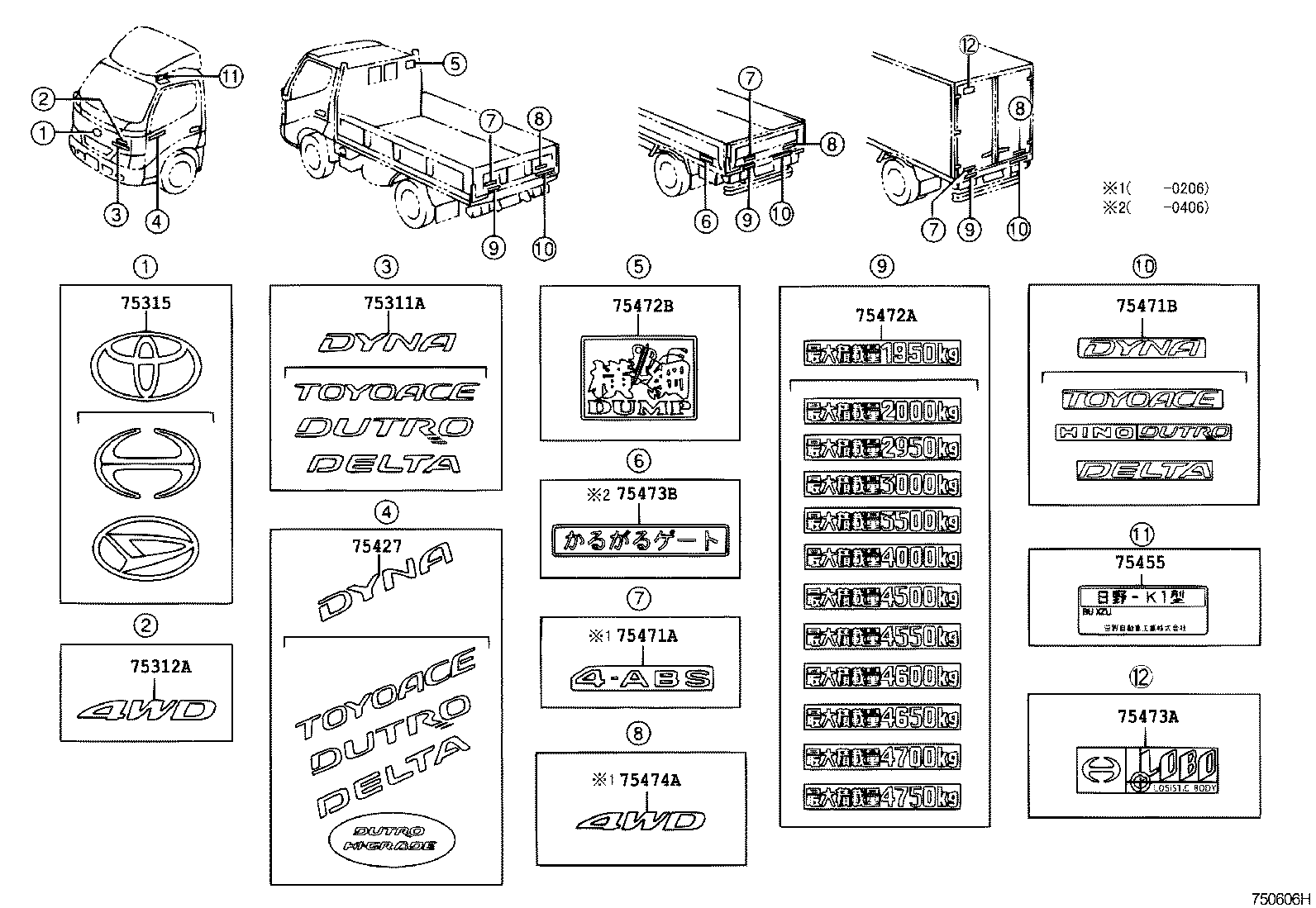

Click highlighted areas on diagram

diagram 75311A 75312A 75315 75427 75455 75471A 75471B 75472A 75472B 75473A 75473B 75474A
Part # Description Qty Price
75311A - PLATE, FRONT NAME, NO.1
75311-37060

BU400,410,420,430,XZU382,40#,41#,42#,430

TOYOACE

 1
75311-37050

BU400,410,420,430,XZU382,40#,41#,42#,430

DYNA

 1
75311-37070

BU400,410,420,430,XZU382,40#,41#,42#,430

DUTRO

 1
75311-37170

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TOYOACE

 1
75311-37130

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

DYNA

 1
75311-37140

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

DUTRO

 1
75315 - ORNAMENT, RADIATOR GRILLE
75315-37020

BU400,410,420,430,XZU382,40#,41#,42#,430

HINO

 1
75315-37010

BU400,410,420,430,XZU382,40#,41#,42#,430

TOYOTA

 1
75315-37011

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TOYOTA

 1
75315-37021

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

HINO

 1
75315-37022

XZU404,414,424,434,454,488

HINO

 1
75427 - PLATE, FRONT DOOR NAME
75427-37130

XZU40#,41#,42#,430..CBU,IV3

DUTRO HI-GRADE

 2
75427-37120

BU400,410,420,430,XZU382,40#,41#,42#,430

DELTA

 2
75427-37100

BU400,410,420,430,XZU382,40#,41#,42#,430

TOYOACE

 2
75427-37090

BU400,410,420,430,XZU382,40#,41#,42#,430

DYNA

 2
75427-37110

BU400,410,420,430,XZU382,40#,41#,42#,430

DUTRO

 1
75427-37130

XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRUE)

DUTRO HI-GRADE,右側

 1
75428-37010

XZU404,414,424,434,454,488..SCB..(DCRTJ,DCRTK,DCRTL,DCRUE)

DUTRO HI-GRADE,左側

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-37050

BU400,410,420,430,XZU382,40#,41#,42#,430

DYNA

 1
75471-37060

BU400,410,420,430,XZU382,40#,41#,42#,430

TOYOACE

 1
75471-25030

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

DYNA

 1
75471-25060

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

TOYOACE

 1
75471-37070

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

DUTRO

 1
75472A - PLATE, REAR BODY NAME, NO.2
75472-37040

XZU404,414,424,434..40T

4000KG

 1
75472B - PLATE, REAR BODY NAME, NO.2
75474-37010

XZU404..40T..IV3

 1
