XZU404A-TMFSD3 (2006)
Toyota Dyna/Toyoace

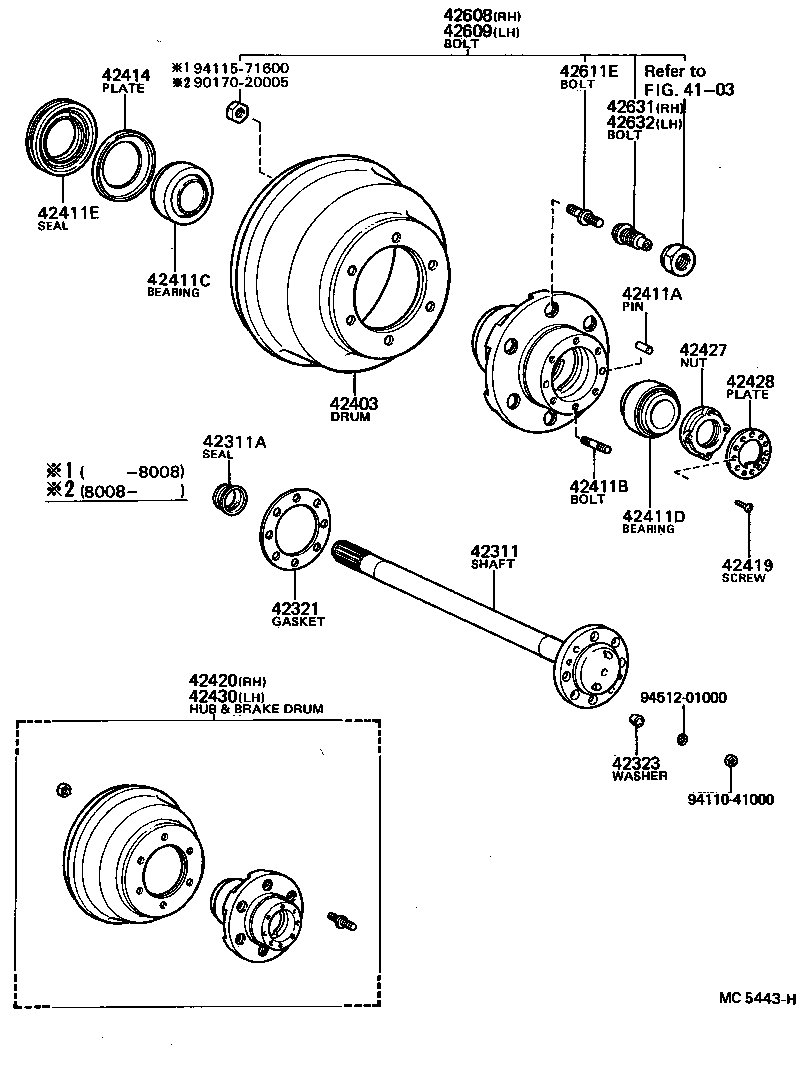

(7708- )HU30,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-20005 | ||||
| 94110-41000 | ||||
| 94115-71600 | ||||
| 94512-01000 | ||||
| Linked diagrams | ||||
| 4103 | ||||

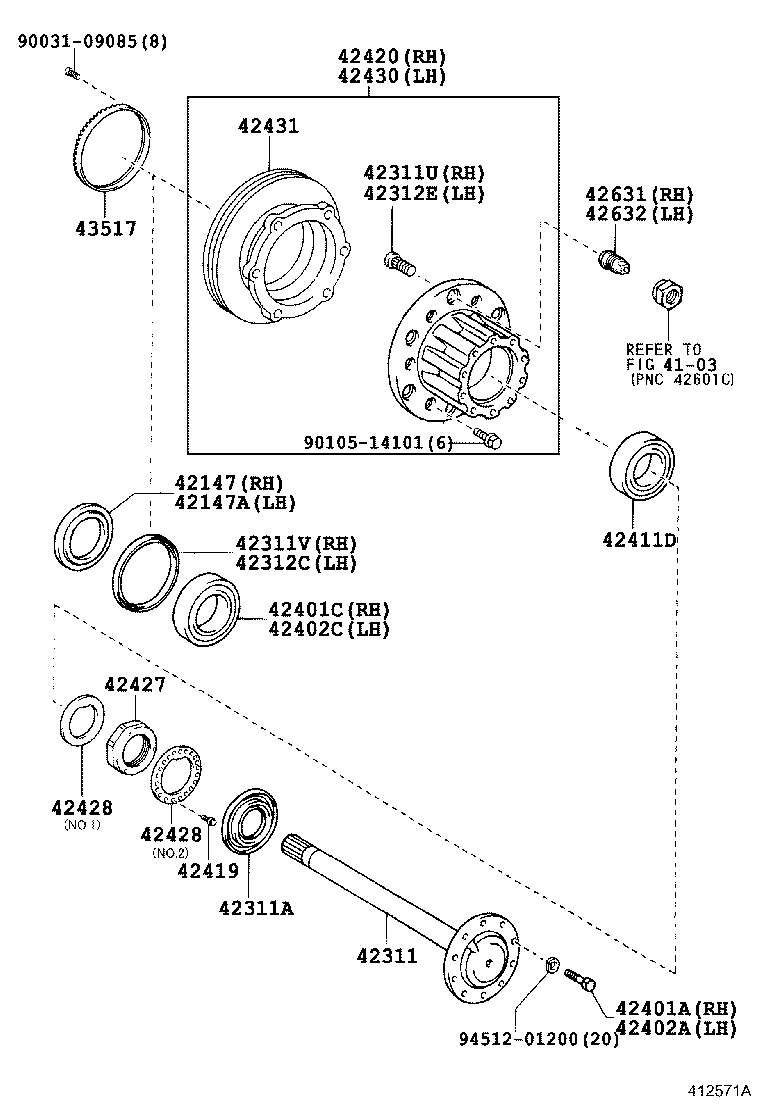

(0610- )XZU404,414,424,434..30T,35T,40T..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42147 - GUIDE, REAR AXLE OIL SEAL, RH | ||||
| 42147-37010 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42147A - GUIDE, REAR AXLE OIL SEAL, LH | ||||
| 42147-37010 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-37150 |
XZU404,414..40T;XZU424,434..T3..DCRTL |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90033-11032 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02071 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90033-11031 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90033-11031 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02072 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
6 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90031-01163 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
10 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90033-66030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90031-01163 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
10 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90033-66030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90033-66031 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 90119-06199 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
6 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42430-39175 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-37030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.1 |
2 | ||
| 42428-37030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-37010 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.1 |
2 | ||
| 42428-37030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) NO.2 |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-39185 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-37040 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-37020 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-37020 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
6 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-37030 |
XZU404,414,424,434..(30T,35T,40T)..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE) |
2 | ||
| Common parts | ||||
| 90031-09085 | ||||
| 90105-14101 | ||||
| 94512-01200 | ||||
| Linked diagrams | ||||
| 4103 | ||||
