XZU404A-TMFSD3 (2006)
Toyota Dyna/Toyoace

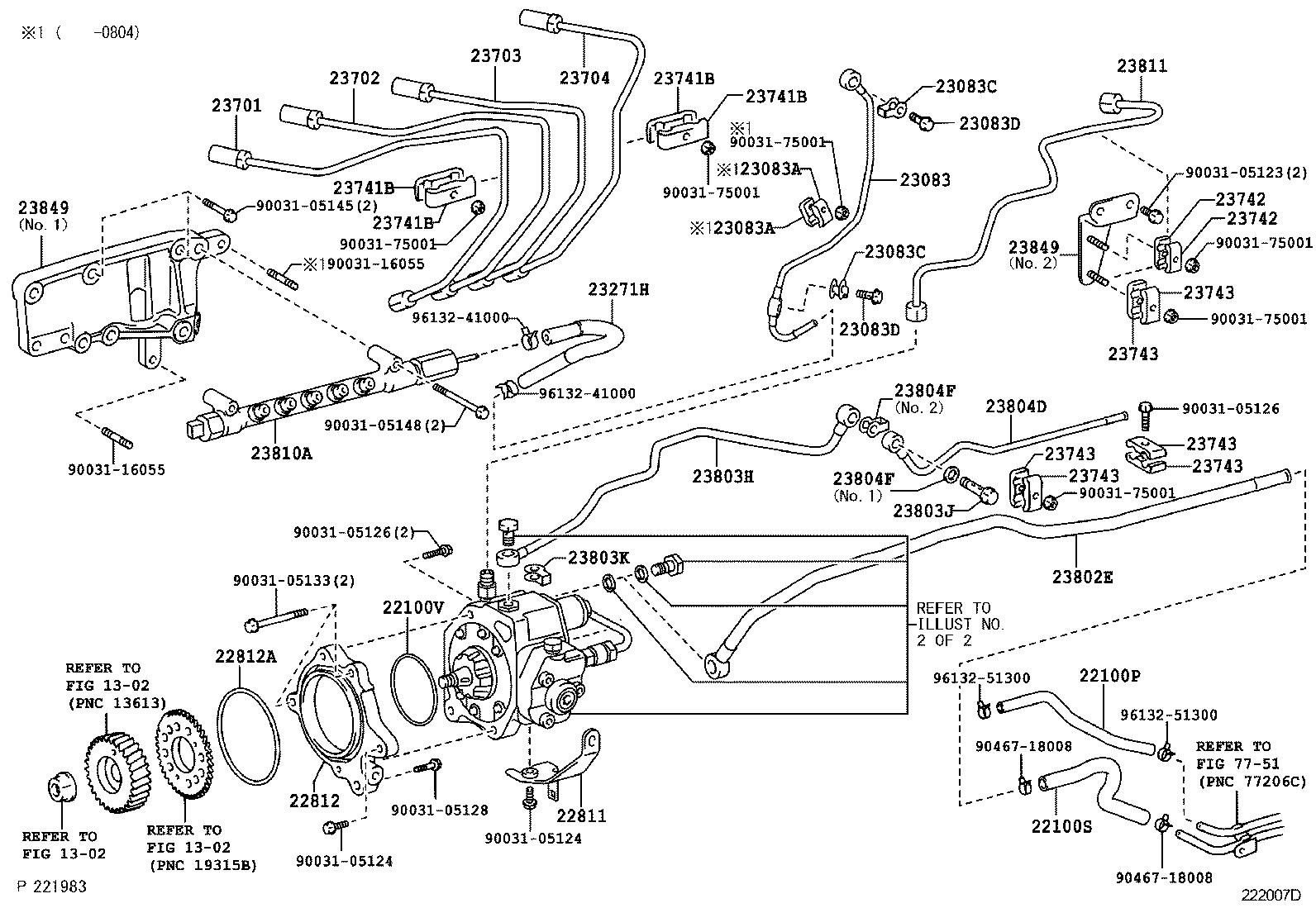

ILLUST NO. 1 OF 2(0610- )N04C..DCRTJ,DCRTK,DCRTL,DCRUE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE) | ||||
| 23273-78410 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | ||||
| 23271-78370 |
N04C..XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 90033-01075 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 82702-37350 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22812 - RETAINER, INJECTION PUMP | ||||
| 22811-78110 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22812A - RING, O | ||||
| 90033-01076 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3 | ||||
| 23816-78010 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23816-E0011 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23083A - CLAMP, NOZZLE LEAKAGE | ||||
| 90034-68024 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23083C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90032-09020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01019 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 90034-01009 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23083D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90034-01019 |
N04C..XZU404,414,424,434,454,488 |
2 | ||
| 90034-01009 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-78430 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-E0012 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23701-78131 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-78131 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23702-E0012 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-78121 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23703-E0012 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-78121 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23704-E0012 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 23741B - CLAMP, INJECTION PIPE | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-66020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
2 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23743 - CLAMP, INJECTION PIPE, NO.3 | ||||
| 90034-68033 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
6 | ||
| 23802E - PIPE SUB-ASSY, FUEL | ||||
| 23811-78191 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23803H - PIPE SUB-ASSY, FUEL RETURN | ||||
| 23816-78020 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23803J - BOLT, UNION(FOR FUEL RETURN PIPE) | ||||
| 90401-10017 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23803K - GASKET(FOR FUEL RETURN PIPE) | ||||
| 90032-09021 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23804D - PIPE SUB-ASSY, FUEL, NO.4 | ||||
| 23816-78030 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90202-10011 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 90032-09021 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| 23804F - GASKET(FOR FUEL PIPE NO.4) | ||||
| 90202-10011 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 90032-09021 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-78041 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23810-78040 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23801-E0021 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 23801-78040 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-78150 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 23849-78160 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| 23849 - SUPPORT, FUEL | ||||
| 23849-78150 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.1 |
1 | ||
| 23849-78160 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE NO.2 |
1 | ||
| Common parts | ||||
| 90031-05123 | ||||
| 90031-05124 | ||||
| 90031-05126 | ||||
| 90031-05128 | ||||
| 90031-05133 | ||||
| 90031-05145 | ||||
| 90031-05148 | ||||
| 90031-16055 | ||||
| 90031-75001 | ||||
| 90467-18008 | ||||
| 96132-41000 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 7751 | ||||

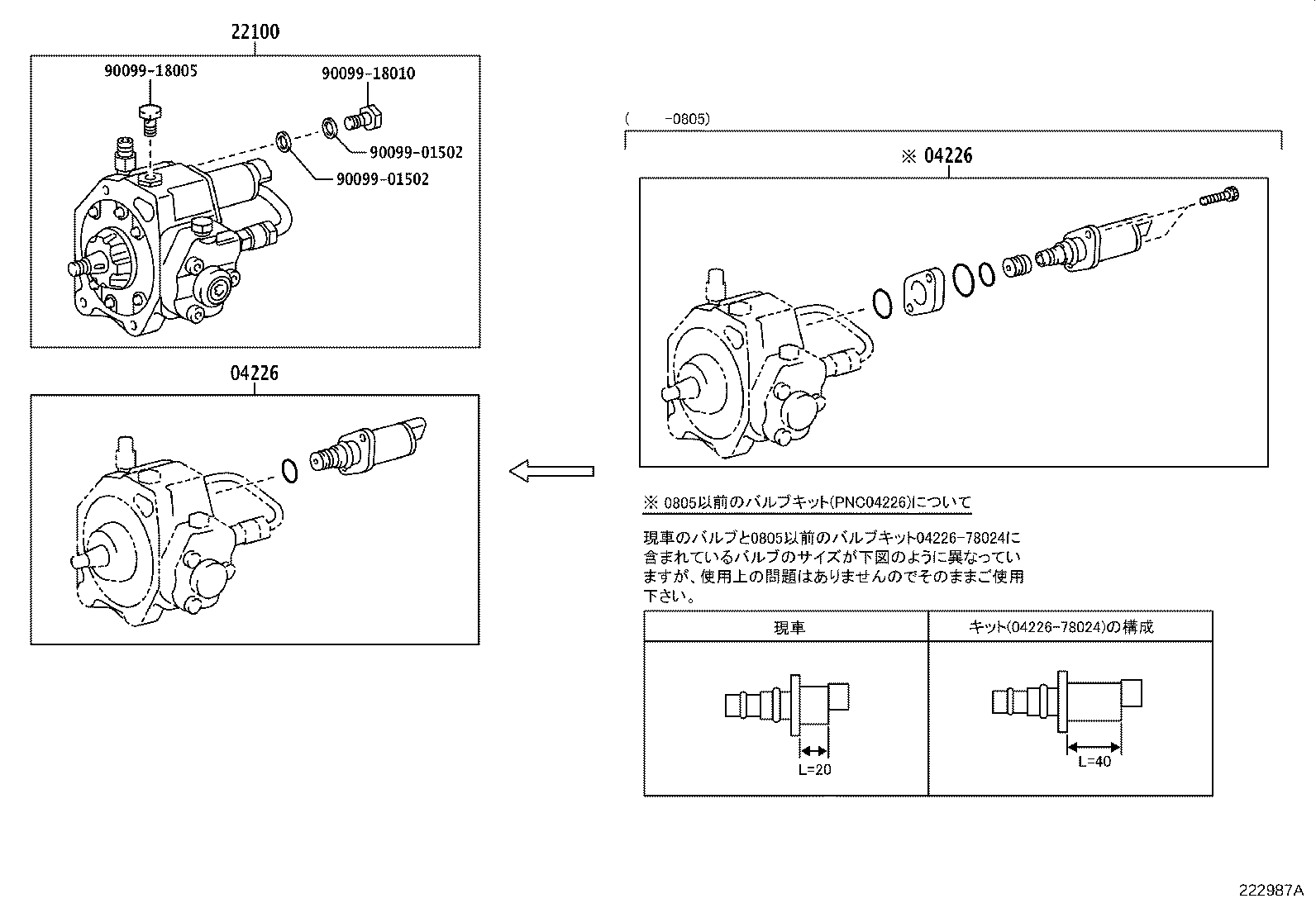

ILLUST NO. 2 OF 2(0610- )N04C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-78033 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 04226-78024 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-78033 |
N04C..XZU404,414,424,434,454,488 |
1 | ||
| 04226-78024 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-78230 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL |
1 | ||
| 22100-78231 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL |
1 | ||
| 22100-78233 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 22100-78232 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 22100-78236 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 22100-78237 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 22100-78234 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| 22100-78235 |
N04C..XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRUE |
1 | ||
| Common parts | ||||
| 90099-01502 | ||||
| 90099-18005 | ||||
| 90099-18010 | ||||
