XZU404-TQTMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7708- )

Click highlighted areas on diagram

diagram 87104 87105 87107 87110 87114 8711612190 87121 87138 8715 87188 87230A 87245F 87246F 9009900932 9009902133 9009902134 9009902135 9009902210 9009905164 9011906191 9017908123 9017908123 9095001004 9095001006 9095001047 9095001269 9161141014 9354015025 9411540500 9611110250
Part # Description Qty Price
Common parts
87116-12190
90099-00932
90099-02133
90099-02134
90099-02135
90099-02210
90099-05164
90119-06191
90179-08123
90950-01004
90950-01006
90950-01047
90950-01269
91611-41014
93540-15025
94115-40500
96111-10250
Linked diagrams
8715

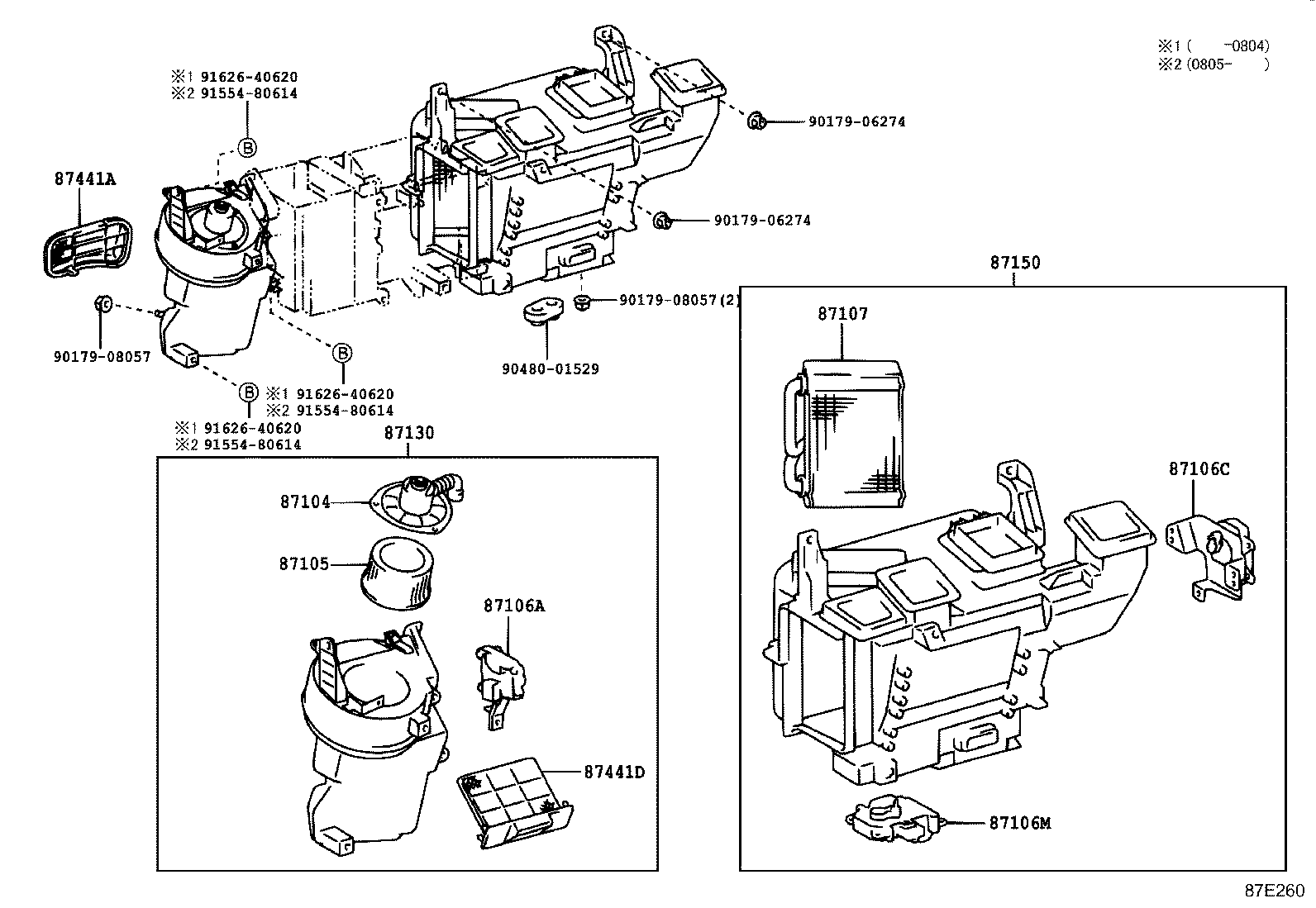

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ﾏﾆｭｱﾙｴｱｺﾝ

diagram 87104 87105 87106A 87106C 87106M 87107 87130 87150 87441A 87441D 9017906274 9017906274 9017908057 9017908057 9048001529 9155480614 9155480614 9155480614 9162640620 9162640620 9162640620
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87105-37030

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87107-25050

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37101

XZU404,414,424,434,454,488

 1
87130-37100

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87150 - RADIATOR ASSY, HEATER
87150-37310

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441A - FILTER, HEATER AIR
87441-37010

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37031

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441-37030

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
Common parts
90179-06274
90179-08057
90480-01529
91554-80614
91626-40620

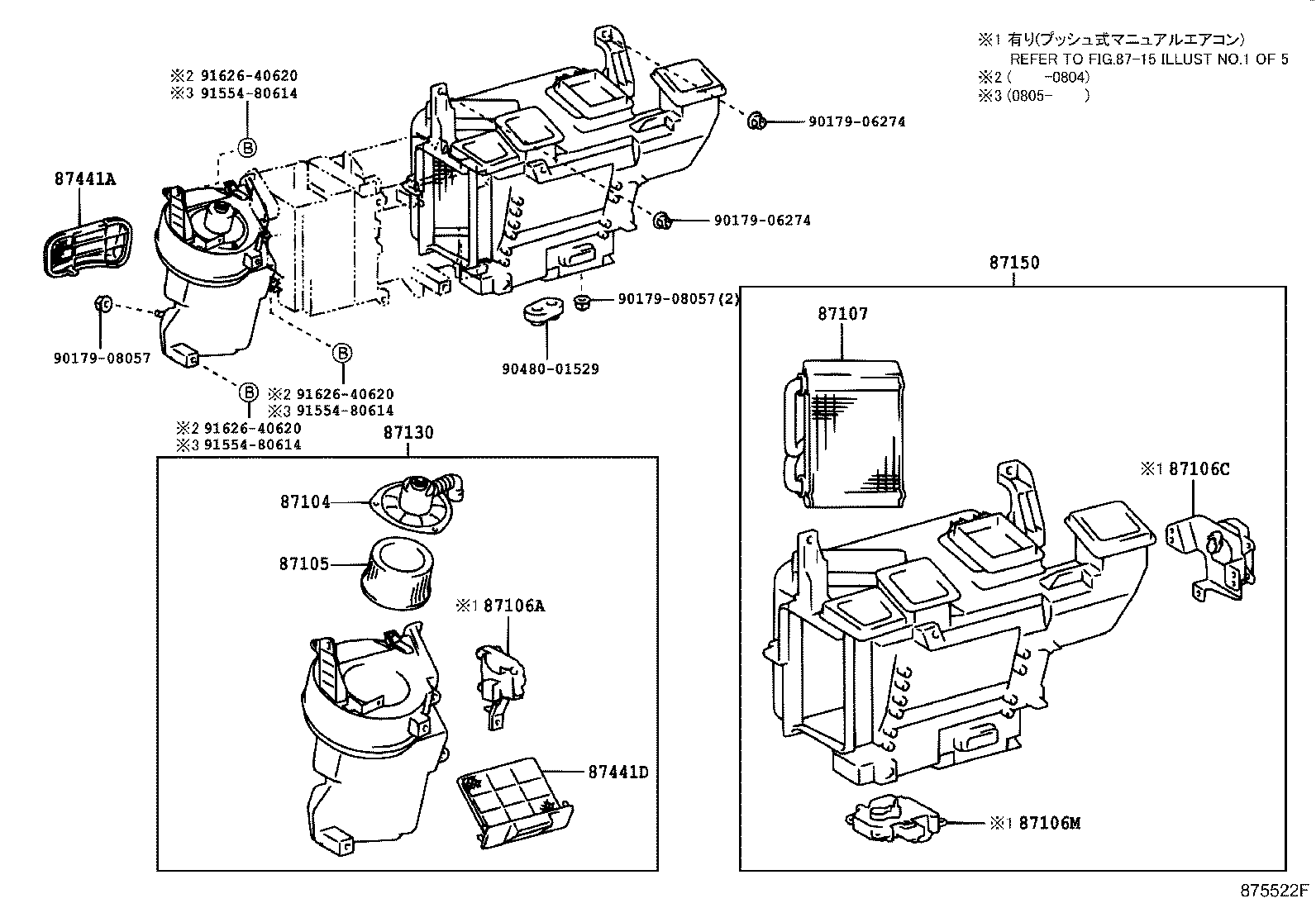

ILLUST NO. 1 OF 2(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ - ｵｰﾄｴｱｺﾝ

diagram 87104 87105 87106A 87106C 87106M 87107 87130 87150 87441A 87441D 9017906274 9017906274 9017908057 9017908057 9048001529 9155480614 9155480614 9155480614 9162640620 9162640620 9162640620
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37140

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37030

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87105-37030

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-37040

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87107-25050

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37101

XZU404,414,424,434,454,488

 1
87130-37100

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87150 - RADIATOR ASSY, HEATER
87150-37310

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441A - FILTER, HEATER AIR
87441-37010

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441D - FILTER, HEATER AIR, NO.2
87441-37031

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87441-37030

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
Common parts
90179-06274
90179-08057
90480-01529
91554-80614
91626-40620
