XZU404-TQTMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7708- )HU30,RU2#,3#

Click highlighted areas on diagram

diagram 42611B 43501 43510 43510A 43510B 43510C 43510D 43510E 43510E 43514 43520 43525 9017020005 9411571600 9538105040
Part # Description Qty Price
Common parts
90170-20005
94115-71600
95381-05040

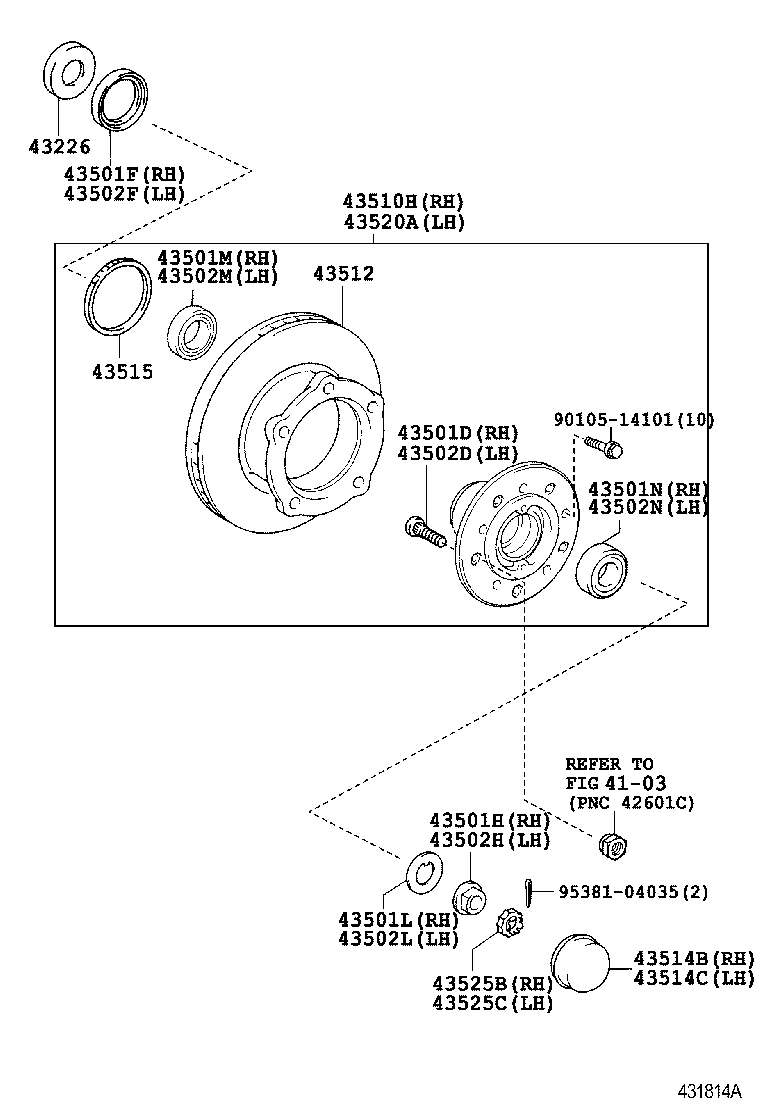

(0610- )XZU404,414,424,454..20T

Click highlighted areas on diagram

diagram 4103 43226 43501D 43501F 43501H 43501L 43501M 43501N 43502D 43502F 43502H 43502L 43502M 43502N 43510H 43512 43514B 43514C 43515 43520A 43525B 43525C 9010514101 9538104035
Part # Description Qty Price
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02071

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-68003

XZU404,414,424,454..20T

 1
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90178-28001

XZU404,414,424,454..20T

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-29001

XZU404,414,424,454..20T

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90366-50069

XZU404,414,424,454..20T

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90366-35105

XZU404,414,424,454..20T

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02072

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-68003

XZU404,414,424,454..20T

 1
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90178-28001

XZU404,414,424,454..20T

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-29001

XZU404,414,424,454..20T

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90366-50069

XZU404,414,424,454..20T

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90366-35105

XZU404,414,424,454..20T

 1
43510H - HUB & DISC(DRUM) ASSY, FRONT AXLE, RH
43510-39205

XZU404,414,424,454..20T

 1
43512 - DISC, FRONT
43512-37090

XZU488;XZU404,414,424,454..20T

 2
43514B - CAP, FRONT AXLE HUB GREASE, RH
43514-37030

XZU404,414,424,454..20T

 1
43514C - CAP, FRONT AXLE HUB GREASE, LH
43514-37030

XZU404,414,424,454..20T

 1
43515 - ROTOR, SKID CONTROL, FRONT
43515-37010

XZU404,414,424,454..20T

 2
43520A - HUB & DISC(DRUM) ASSY, FRONT AXLE, LH
43520-39185

XZU404,414,424,454..20T

 1
43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH
43525-37010

XZU404,414,424,454..20T

 1
43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH
43525-37010

XZU404,414,424,454..20T

 1
Common parts
90105-14101
95381-04035
Linked diagrams
4103
