XZU404-TQTMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0610- )6FC

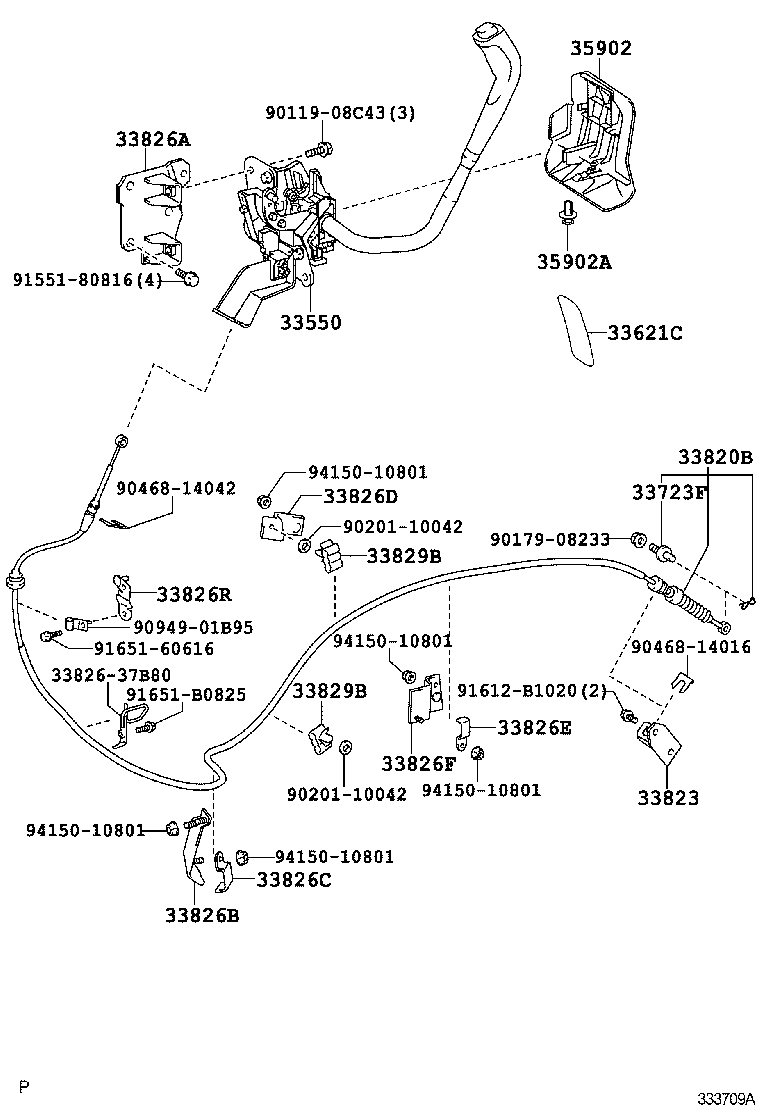

Click highlighted areas on diagram

diagram 33550 33621C 33723F 33820B 33823 3382637B80 33826A 33826B 33826C 33826D 33826E 33826F 33826R 33829B 33829B 35902 35902A 9011908C43 9017908233 9020110042 9020110042 9046814016 9046814042 9094901B95 9155180816 91612B1020 9165160616 91651B0825 9415010801 9415010801 9415010801 9415010801 9415010801
Part # Description Qty Price
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37230B0

XZU404,414,424,454..6FC

MD.CHARCOAL,TRIM1#

 1
33621C - LABEL, CONTROL LEVER INFORMATION
33621-37050

XZU404,414,424,454..6FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-28010

XZU404,414,424,454..6FC

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37G40

XZU404,414,424,454..6FC

 1
33820-37G41

XZU404,414,424,454..6FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37760

XZU404,414,424,454..6FC

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37B30

XZU404,414,424,454..6FC

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37320

BU400,410,420,430,XZU40#,41#,42#,430

 1
33826-37A50

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33826-37580

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37160

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33826-37580

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37170

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
33826R - BRACKET, TRANSMISSION CONTROL CABLE, NO.8
33826-37B20

XZU404,414,424,454..6FC

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XZU404,414,424,454..6FC

 2
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XZU404,414,424,454..6FC

 2
35902 - COVER SUB-ASSY, POSITION INDICATOR HOUSING
35902-37060B0

XZU404,414,424,454..6FC

MD.CHARCOAL,TRIM1#

 1
35902A - CLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING
90467-07191B0

XZU404,414,424,454..6FC

DK.CHARCOAL,TRIM1#

 1
Common parts
33826-37B80
90119-08C43
90179-08233
90201-10042
90468-14016
90468-14042
90949-01B95
91551-80816
91612-B1020
91651-60616
91651-B0825
94150-10801
