XZU404-TQMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

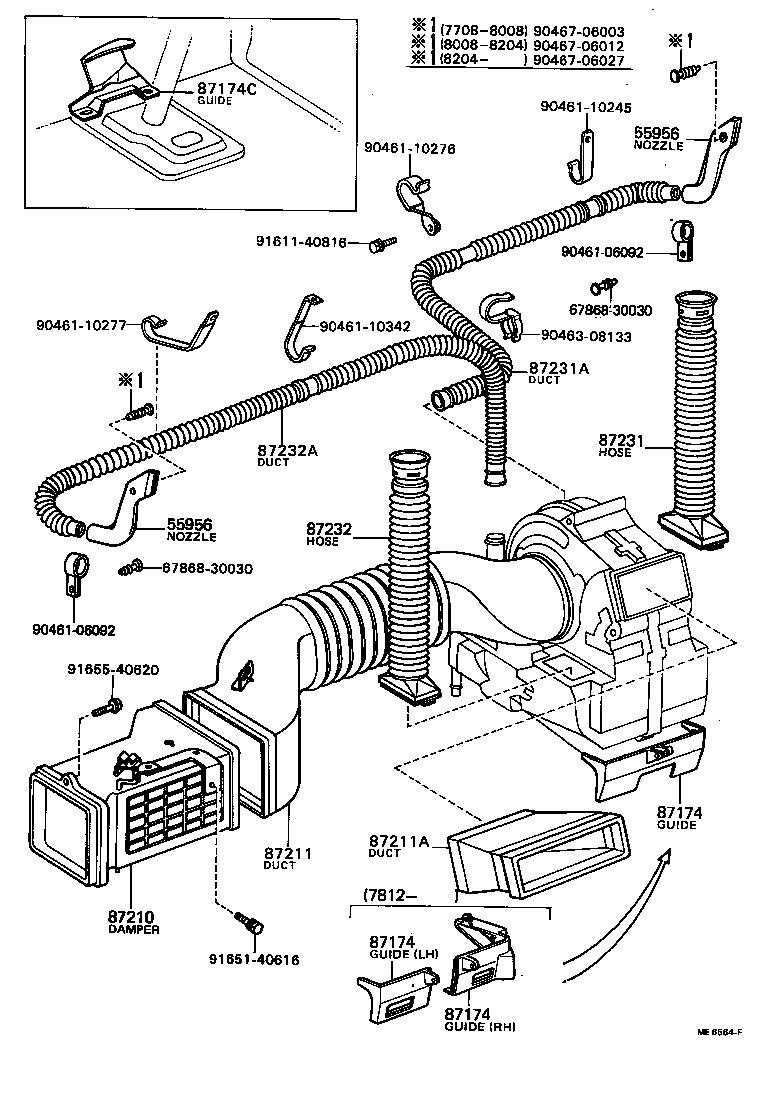

ILLUST NO. 2 OF 3(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 55956 55956 6786830030 6786830030 87174 87174 87174 87174C 87210 87211 87211A 87231 87231A 87232 87232A 9046106092 9046106092 9046110245 9046110276 9046110277 9046110342 9046308133 9046706003 9046706012 9046706027 9161140816 9165140616 9165540620
Part # Description Qty Price
Common parts
67868-30030
90461-06092
90461-10245
90461-10276
90461-10277
90461-10342
90463-08133
90467-06003
90467-06012
90467-06027
91611-40816
91651-40616
91655-40620

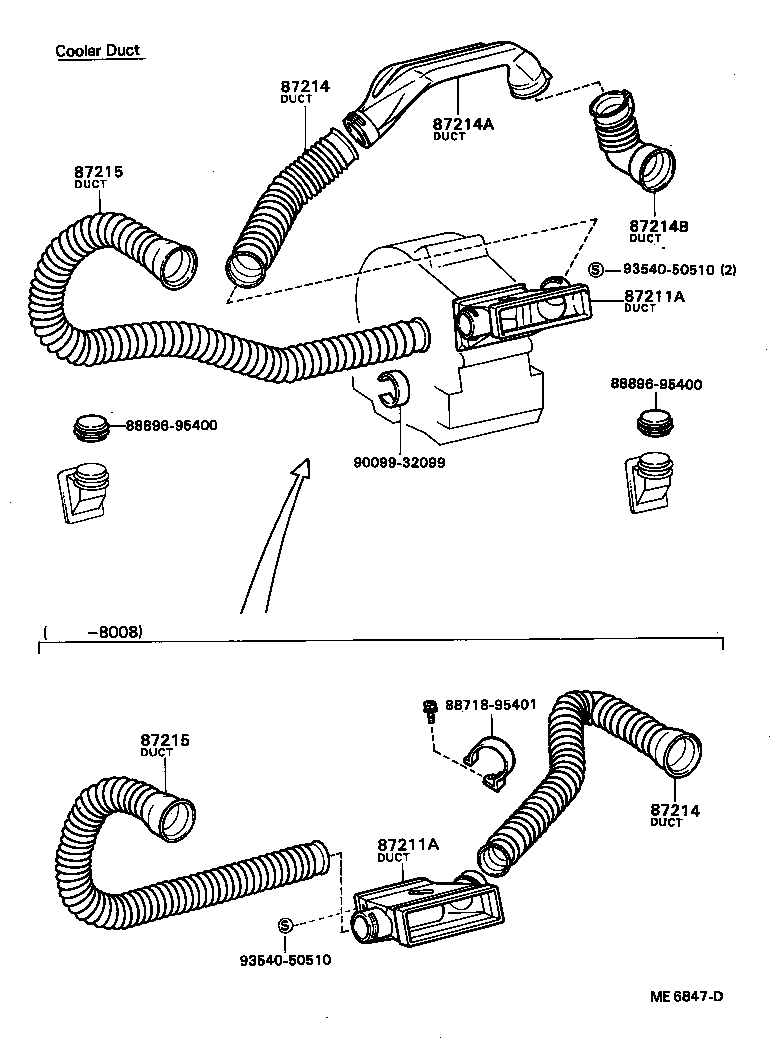

ILLUST NO. 3 OF 3(7708- )

Click highlighted areas on diagram

diagram 87211A 87211A 87214 87214 87214A 87214B 87215 87215 8871895401 8889695400 8889695400 9009932099 9354050510 9354050510
Part # Description Qty Price
Common parts
88718-95401
88896-95400
90099-32099
93540-50510

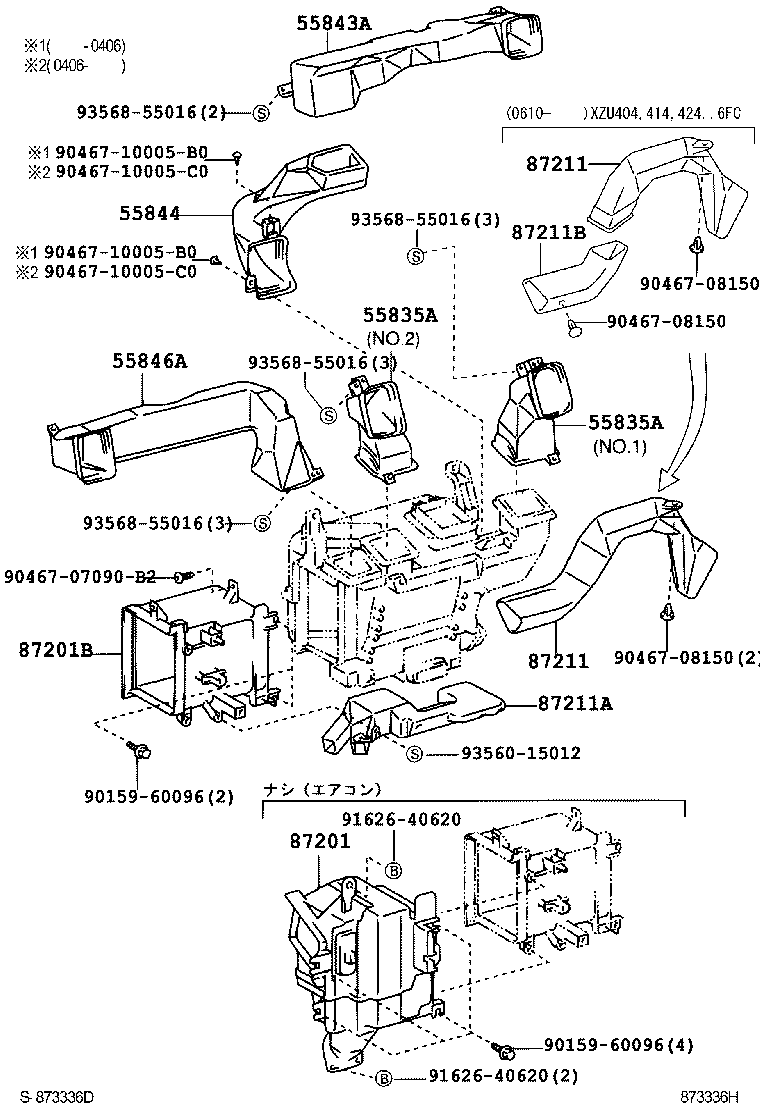

ILLUST NO. 2 OF 4(9905- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ

diagram 55835A 55835A 55843A 55844 55846A 87201 87201B 87211 87211 87211A 87211B 9015960096 9015960096 9046707090B2 9046708150 9046708150 9046708150 9046710005B0 9046710005B0 9046710005C0 9046710005C0 9162640620 9162640620 9356015012 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37010

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1

 1
55835-37090

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-37010

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1

 1
55835-37090

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-37110

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-37031

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-37080

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87211-37120

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87201-37030

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87201-37031

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
87211 - DUCT, AIR, NO.1
87212-37010

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87212-37010

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
87211 - DUCT, AIR, NO.1
87212-37010

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87212-37010

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
87211A - DUCT, AIR, NO.2
87213-37020

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
87213-37020

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
Common parts
90159-60096
90467-07090B2
90467-08150
90467-10005B0
90467-10005C0
91626-40620
93560-15012
93568-55016
