XZU404-TQMMB3 (2006)

Toyota Dyna/Toyoace

Production Oct 2006 - Jun 2011
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#

Click highlighted areas on diagram

diagram 44601 44608 44610 44610K 44626 44629 44642 44643 44645 44657A 44662 44662A 44662B 44662C 44662E 44662F 44662G 44669 44696 44697 44697A 44730 44758 4702 9017908146 9331914008 9411070600 9412041000
Part # Description Qty Price
Common parts
90179-08146
93319-14008
94110-70600
94120-41000
Linked diagrams
4702

ILLUST NO. 2 OF 2(7708- )

Click highlighted areas on diagram

diagram 44704 44730 44730A 44730A 44730F 44738 44738 44743 44743 44754 44754 44764 44764 44764A 44764A 44764F 44765 44765 44765B 44773 44774 44774 44774 44786 44786 9011908126 9011908126 9011908126 9017908146 9046108050 9046110376 9046112090 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9046716141 9161140610 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140816 9165140816 9165140816 9165140816 9165140816 9165140820 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90119-08126
90179-08146
90461-08050
90461-10376
90461-12090
90467-16141
91611-40610
91611-40820
91651-40816
91651-40820
94110-40800

ILLUST NO. 1 OF 2(0610- )XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

Click highlighted areas on diagram

diagram 44610 44621V 44730B 44730J 44734B 44763B 44763B 44764A 44768 44775C 44775E 44776 44776A 44778D 44778D 44799 4702 47264D 4737137040 4737137040 4737137040 4737137040 4737137040 4737137040 4737137040 4737137040 8414 8414 8414 9017908038 9017910065 9046400549 9046615003 9046615003 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 91611B0816 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37151

XZU488;XZU404,414,424,454..20T

 1
44621V - SEAL, BOOSTER BODY
44621-36070

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44730B - CLAMP, VACUUM HOSE
44597-37010

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
44597-37021

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37010

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
44734-37011

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37690

XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44764-37690

XZU404,414,424,434,454..SCB..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
44764A - HOSE, BOOSTER VACUUM
44776-37090

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
44776-37251

XZU404,414,424,434,454,488

 1
44776-37250

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44768 - TUBE, BOOSTER VACUUM
44768-37170

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44775C - HOSE, CONNECTOR TO WAY
44775-37020

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37240

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44776 - HOSE, BRAKE BOOSTER
44776-37260

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37160

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37170

BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T)

 1
44778-37170

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
44778-37171

XZU404,414,424,434,454,488..MTM

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37170

BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T)

 1
44778-37170

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
44778-37171

XZU404,414,424,434,454,488..MTM

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37010

BU420..6F..(20T,35T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,412,421,430..6F..(295T,30T,35T,40T)

 1
44799-37010

XZU404,414,424,434,454,488..MTM..(DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
Common parts
47371-37040
90179-08038
90179-10065
90464-00549
90466-15003
90480-22022
91551-80814
91611-B0816
96132-40700
96133-41500
Linked diagrams
4702
8414

ILLUST NO. 2 OF 2(0610- )XZU404,414,424,434,454..SCB..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

Click highlighted areas on diagram

TYPE A

diagram 27690K 44704 44730P 44756 44757B 44761 44771 44771K 44771K 44773L 44774 44778 44781C 44912G 4737137040 8401 9011908830 9046108385 9164580825 9164580825 9164580825 9164580825 91651B0820 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78140

N04C..XZU434,454,488;N04C..XZU404..MTM..30T;N04C..XZU404..20T,35T,40T;N04C..XZU414,424..SCB..CBU;N04C..XZU414..6FC..20T..DCRTJ..IV3;N04C..XZU414..(35T,40T)..DCRTL..IV3;N04C..XZU424..(20T,30T)..DCRTK..IV3;N04C..XZU414,424..T3..35T..DCRTK..IV3;N04C..XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;N04C..XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;N04C..XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37240

XZU404..5F..30T;XZU414..SCB..CBU;XZU414..T3..35T..IV3;XZU424..MTM..(30T,35T);XZU424..6FC..(20T,30T);XZU424..T5..DCRTK..IV3;XZU404,434,454..20T,35T,40T;XZU424..T4..20T..DCRTK..CBU;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..MTM..20T..(DCRTJ,DCRTL,DCRUE);XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(T3,T5)..(20T,40T)..(DCRTK,DCRTL)..CBU;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44704-37241

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU414..(20T,30T)..(DCRTK,DCRTL,DCRTM)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44756 - BRACKET, VACUUM RESERVOIR
44756-37100

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37091

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU414..T3..DCRUE..IV3;XZU404,434,454..20T,35T,40T;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414..(T2,T3,T5)..DCRTJ..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3;XZU414..SCB..T4..(6F,6FC)..20T..(DCRTJ,DCRUE)..IV3

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
95446-09300

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
44771-37A30

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2:ｲﾗｽﾄ参照

 1
95446-09120

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1:ｲﾗｽﾄ参照

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
95446-09300

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
44771-37A30

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2:ｲﾗｽﾄ参照

 1
95446-09120

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1:ｲﾗｽﾄ参照

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37270

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37081

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37430

BU420..6F..(20T,35T);XZU411,412,421..SCB..5F..DSL;BU410,430,XZU40#,410,420..MTM..(CBU,IV3);XZU411,412,421,430..6F..(295T,30T,35T,40T)

ｱﾘ(PTO)

 1
44912-37A10

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
Common parts
47371-37040
90119-08830
90461-08385
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
8401

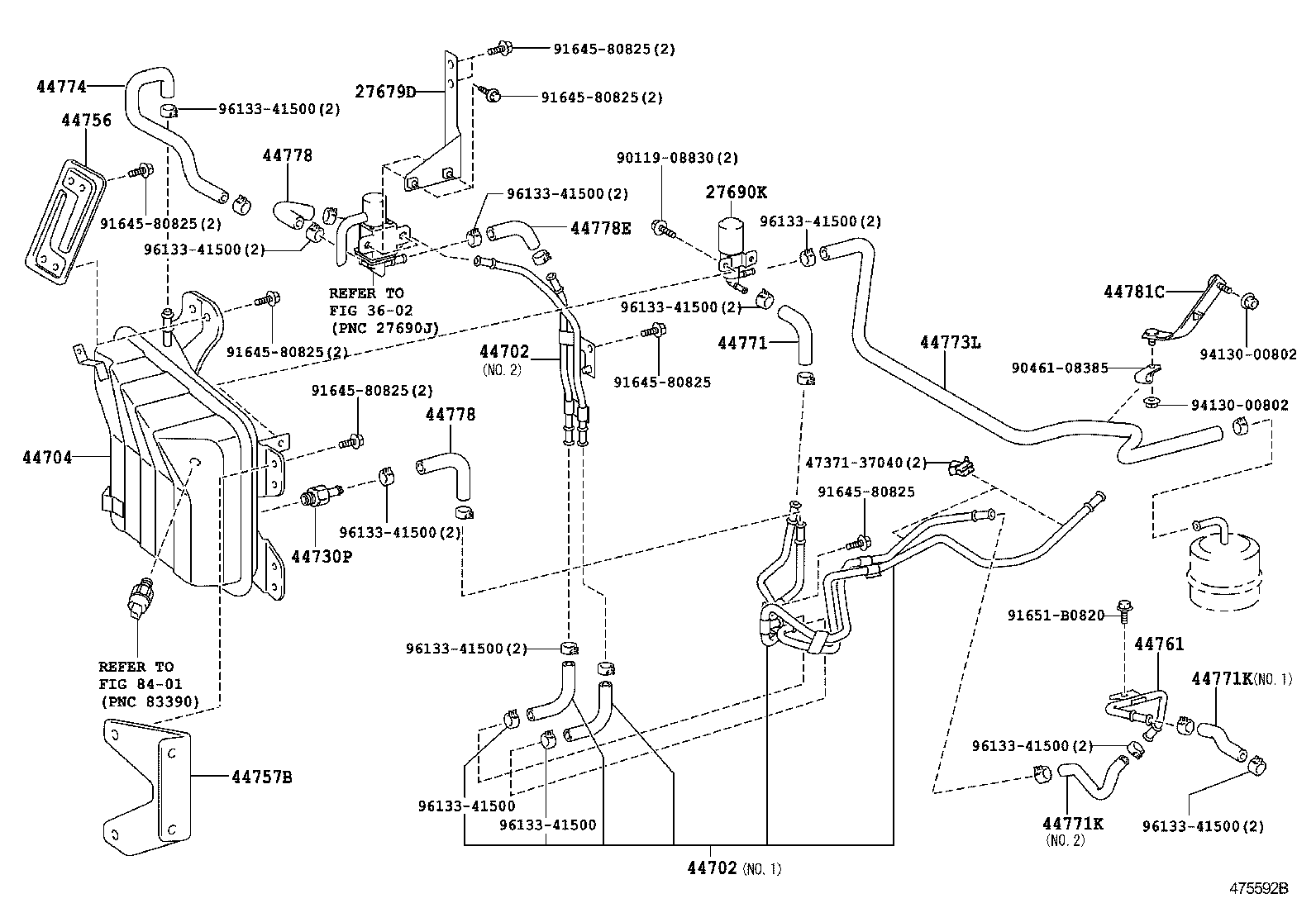

ILLUST NO. 2 OF 2(0610- )XZU404,414,424,454..SCB..5F

Click highlighted areas on diagram

ｱﾘ(PTO)

diagram 27679D 27690K 3602 44702 44702 44704 44730P 44756 44757B 44761 44771 44771K 44771K 44773L 44774 44778 44778 44778E 44781C 4737137040 8401 9011908830 9046108385 9164580825 9164580825 9164580825 9164580825 9164580825 9164580825 9164580825 91651B0820 9413000802 9413000802 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
27679D - BRACKET, EXHAUST BRAKE SOLENOID
27679-78260

N04C..XZU404,414,424,454..SCB..5F

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78140

N04C..XZU434,454,488;N04C..XZU404..MTM..30T;N04C..XZU404..20T,35T,40T;N04C..XZU414,424..SCB..CBU;N04C..XZU414..6FC..20T..DCRTJ..IV3;N04C..XZU414..(35T,40T)..DCRTL..IV3;N04C..XZU424..(20T,30T)..DCRTK..IV3;N04C..XZU414,424..T3..35T..DCRTK..IV3;N04C..XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;N04C..XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;N04C..XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44702 - TUBE SUB-ASSY, AIR, NO.1
44702-37220

XZU404,414,424,454..SCB..5F

NO.1

 1
44702-37240

XZU404,414,424,454..SCB..5F

NO.2

 1
44702 - TUBE SUB-ASSY, AIR, NO.1
44702-37220

XZU404,414,424,454..SCB..5F

NO.1

 1
44702-37240

XZU404,414,424,454..SCB..5F

NO.2

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37240

XZU404..5F..30T;XZU414..SCB..CBU;XZU414..T3..35T..IV3;XZU424..MTM..(30T,35T);XZU424..6FC..(20T,30T);XZU424..T5..DCRTK..IV3;XZU404,434,454..20T,35T,40T;XZU424..T4..20T..DCRTK..CBU;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..MTM..20T..(DCRTJ,DCRTL,DCRUE);XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(T3,T5)..(20T,40T)..(DCRTK,DCRTL)..CBU;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44704-37241

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU414..(20T,30T)..(DCRTK,DCRTL,DCRTM)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44756 - BRACKET, VACUUM RESERVOIR
44756-37100

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44757B - BRACKET, VACUUM TANK CLAMP, NO.2
44757-37091

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37540

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU414..T3..DCRUE..IV3;XZU404,434,454..20T,35T,40T;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414..(T2,T3,T5)..DCRTJ..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3;XZU414..SCB..T4..(6F,6FC)..20T..(DCRTJ,DCRUE)..IV3

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
95446-09300

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
44771-37A30

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2:ｲﾗｽﾄ参照

 1
95446-09120

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1:ｲﾗｽﾄ参照

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
95446-09300

XZU40#,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)

 1
44771-37A30

XZU404,414,424,434,454..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.2:ｲﾗｽﾄ参照

 1
95446-09120

XZU404,414,424,434,454,488..DCRTJ,DCRTK,DCRTL,DCRTM,DCRUE

NO.1:ｲﾗｽﾄ参照

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37270

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-37320

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37060

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
95446-09120

XZU404,414,424,454..SCB..5F

 1
44781C - BRACKET, HOSE CLAMP, NO.2
44781-37081

XZU404..MTM..30T;XZU414,424..SCB..CBU;XZU404,434,454..20T,35T,40T;XZU414..6FC..20T..DCRTJ..IV3;XZU414..(35T,40T)..DCRTL..IV3;XZU424..(20T,30T)..DCRTK..IV3;XZU414,424..T3..35T..DCRTK..IV3;XZU414..(T2,T3,T5)..(DCRTJ,DCRUE)..IV3;XZU424..(20T,30T,35T)..(DCRTJ,DCRTL,DCRUE)..IV3;XZU414..(20T,30T)..(DCR,DCRTK,DCRTL,DCRTM)..IV3

 1
Common parts
47371-37040
90119-08830
90461-08385
91645-80825
91651-B0820
94130-00802
96133-41500
Linked diagrams
3602
8401
