XZU404-TKFQG (2010)

Toyota Dyna/Toyoace

Production Mar 2010 - Jun 2011
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

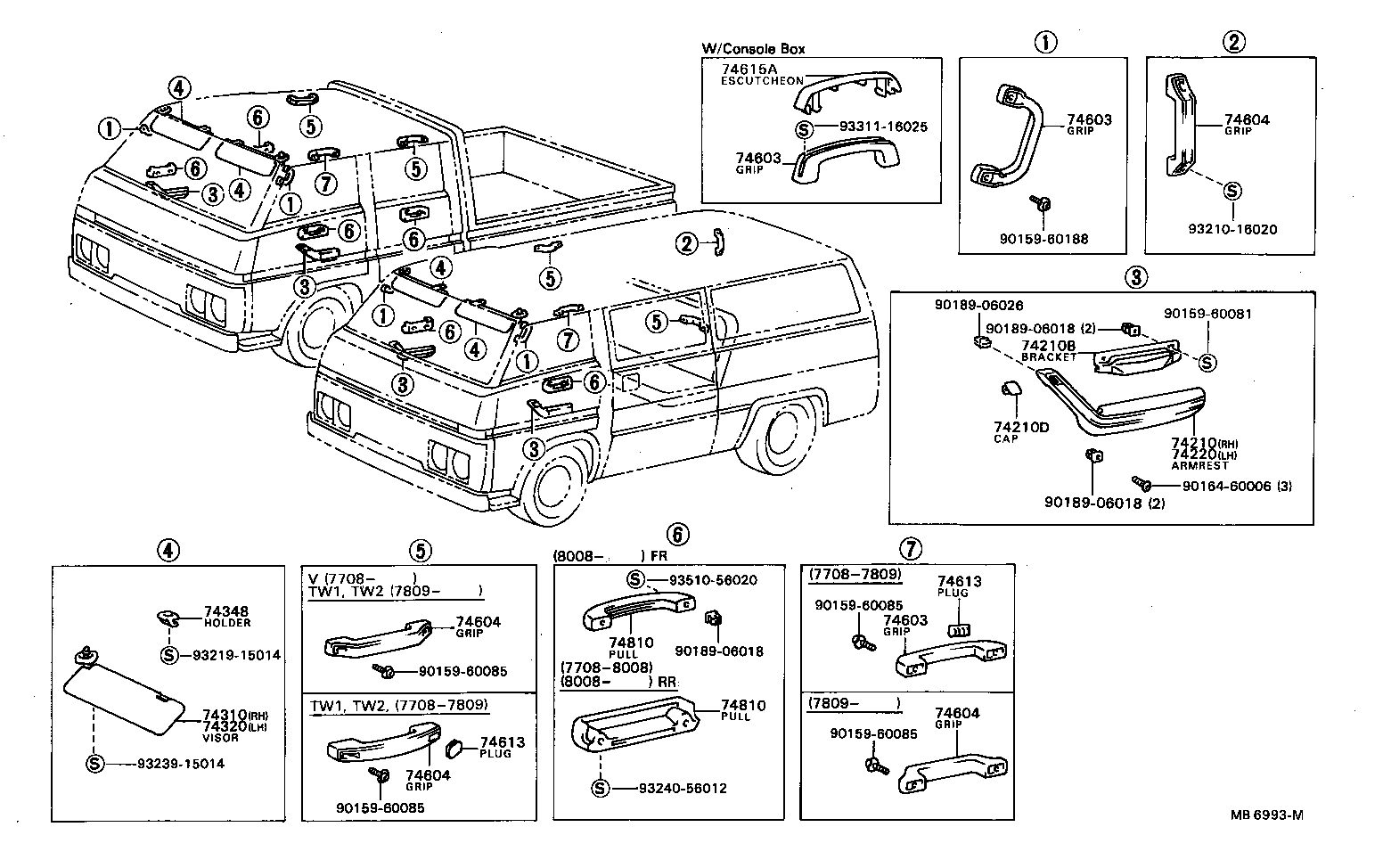

(7708- )

Click highlighted areas on diagram

diagram 74210 74210B 74210D 74220 74310 74320 74348 74603 74603 74603 74604 74604 74604 74604 74613 74613 74615A 74810 74810 9015960081 9015960085 9015960085 9015960085 9015960085 9015960188 9016460006 9018906018 9018906018 9018906018 9018906026 9321016020 9321915014 9323915014 9324056012 9331116025 9351056020
Part # Description Qty Price
Common parts
90159-60081
90159-60085
90159-60188
90164-60006
90189-06018
90189-06026
93210-16020
93219-15014
93239-15014
93240-56012
93311-16025
93510-56020

(9905- )

Click highlighted areas on diagram

diagram 6777137020 74230 74231 74231 74232 74232 74240 74257 74257 74257 74310 74320 74330 74348 74351A 74352 74603B 74610A 74610B 74610K 74617C 74620B 74630C 74631C 74640C 74645A 74646 74710 74710A 74711A 74715D 74811B 9015960243 9015960515 9016460021 9018906045 91651B0820 9353015020 9353015020 9353015020 9354054012 9356054025 9413060830 9453130800 9461230800
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37010B0

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37020B0

XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-37010B0

XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74231-37020B0

XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74231-37020B0

XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU410,420..CBU,IV3;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,40#..20T,30T,35T

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.CHARCOAL,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-37080B0

BU400,410,420,430,XZU382,40#,41#,42#,430

MD.CHARCOAL,TRIM1#

 1
74310-37090B0

BU400,410,420,430,XZU382,40#,41#,42#,430

ｱﾘ(*80),MD.CHARCOAL,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-37040B0

BU400,410,420,430,XZU382,40#,41#,42#,430

MD.CHARCOAL,TRIM1#

 1
74320-37050B0

BU400,410,420,430,XZU382,40#,41#,42#,430

ｱﾘ(*80,ｳﾝﾃﾝｾｷ & ｼﾞﾖｼﾕｾｷ),MD.CHARCOAL,TRIM1#

 1
74710 - EXTINGUISHER ASSY
74711-37031

XZU404,414,424,434,454,488..SCB

 1
Common parts
67771-37020
90159-60243
90159-60515
90164-60021
90189-06045
91651-B0820
93530-15020
93540-54012
93560-54025
94130-60830
94531-30800
94612-30800
