XZU402-TGPMS (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine S05C
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9905- )XZU401,402..T2

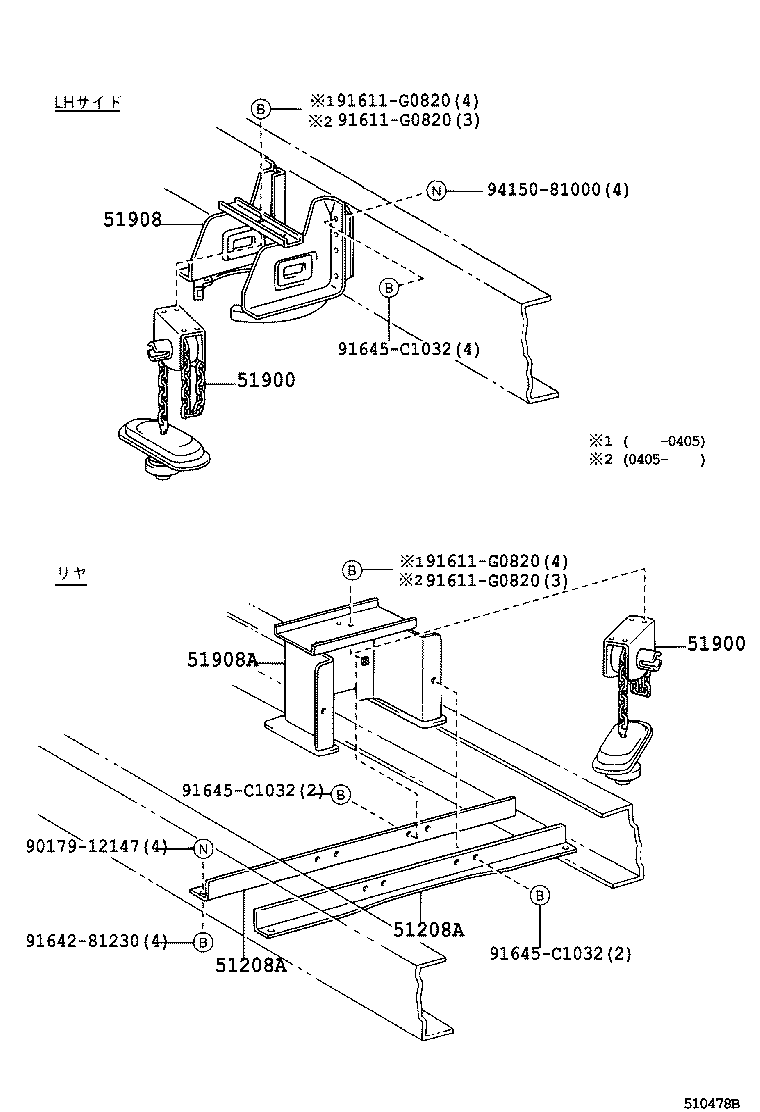

Click highlighted areas on diagram

diagram 51208A 51208A 51900 51900 51908 51908A 9017912147 91611G0820 91611G0820 91611G0820 91611G0820 9164281230 91645C1032 91645C1032 91645C1032 9415081000
Part # Description Qty Price
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37080

XZU402..T2

 2
51208A - MEMBER SUB-ASSY, SPARE WHEEL SET
51261-37080

XZU402..T2

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030

XZU402,411,412..T2..(4FC,5F)

 2
51900 - CARRIER ASSY, SPARE WHEEL
51900-37030

XZU402,411,412..T2..(4FC,5F)

 2
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37210

XZU40#..20T,30T,35T

 1
51908A - BRACKET SUB-ASSY, SPARE WHEEL MOUNTING
51908-37180

XZU402..T2

 1
Common parts
90179-12147
91611-G0820
91642-81230
91645-C1032
94150-81000
