XZU401-TQPQS (2002)
Toyota Dyna/Toyoace
(9905-0406)XZU382,401,402,410,420..4FC,5F ; (9905-0406)XZU411,412,414,415,421..DCR,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

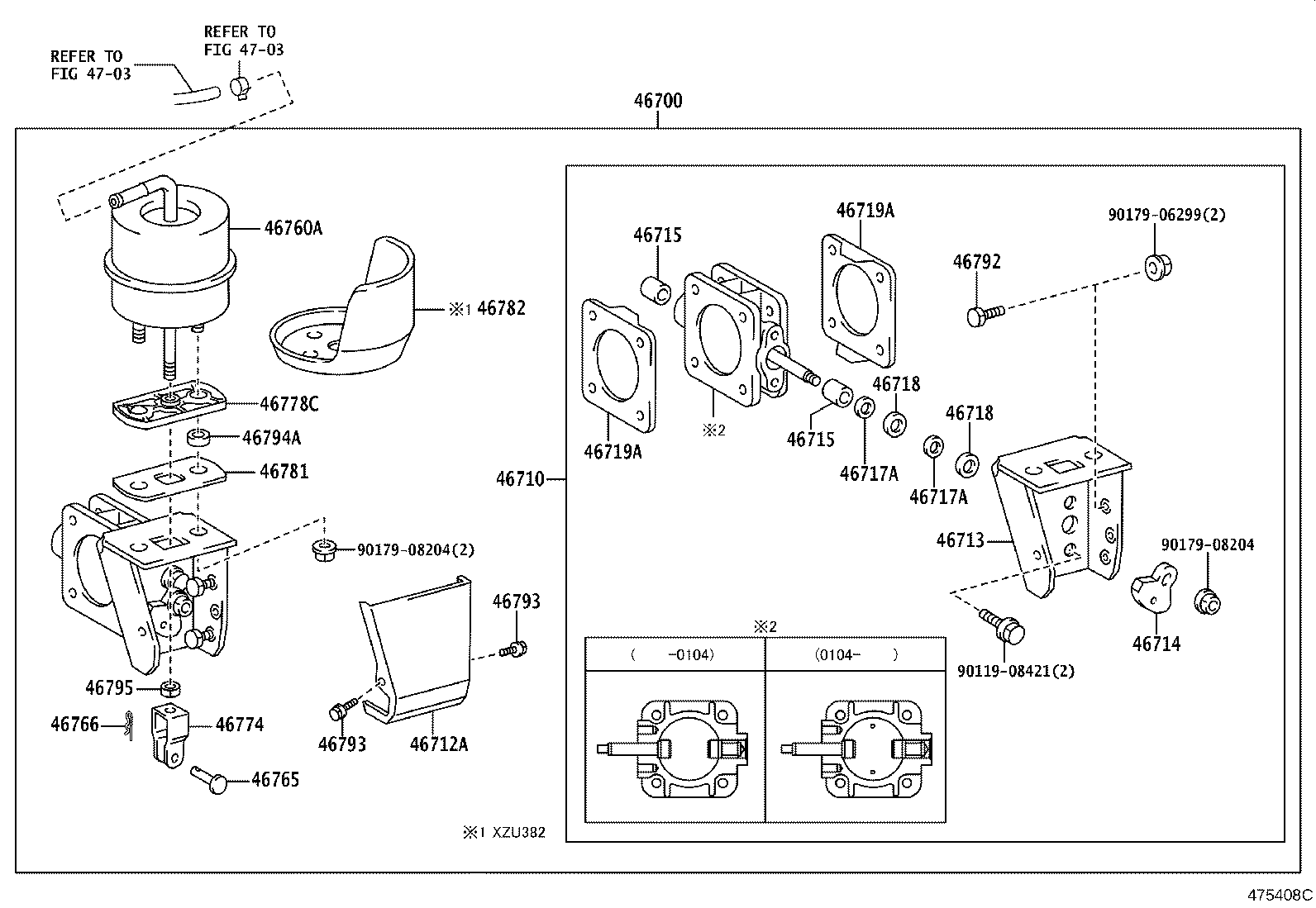

| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-37070 |
XZU411,412,421..DSL,DSLL;XZU401,402,410,420..4FC,5F |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F 長さ=14,外径=18 |
2 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F 長さ=14,外径=18 |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46719A - GASKET, EXHAUST RETARDER | ||||
| 46719-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-37040 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46774-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46778C - GUIDE, EXHAUST RETARDER ACTUATOR ROD | ||||
| 46778-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-37030 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU382,401,402,410,420..4FC,5F |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU401,402,410,420..4FC,5F |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 93381-16008 |
XZU412,421..DSL;XZU411..T3..DSL;XZU411..T2,T4,T5;XZU401,402,410,420..4FC,5F |
2 | ||
| 46794A - COLLAR, ACTUATOR ROD GUIDE | ||||
| 46794-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-37030 |
XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU382,401,402,410,420..4FC,5F;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412..(295T,30T,35T)..(DSL,DSLL) |
1 | ||
| Common parts | ||||
| 90119-08421 | ||||
| 90179-06299 | ||||
| 90179-08204 | ||||
| Linked diagrams | ||||
| 4703 | ||||
