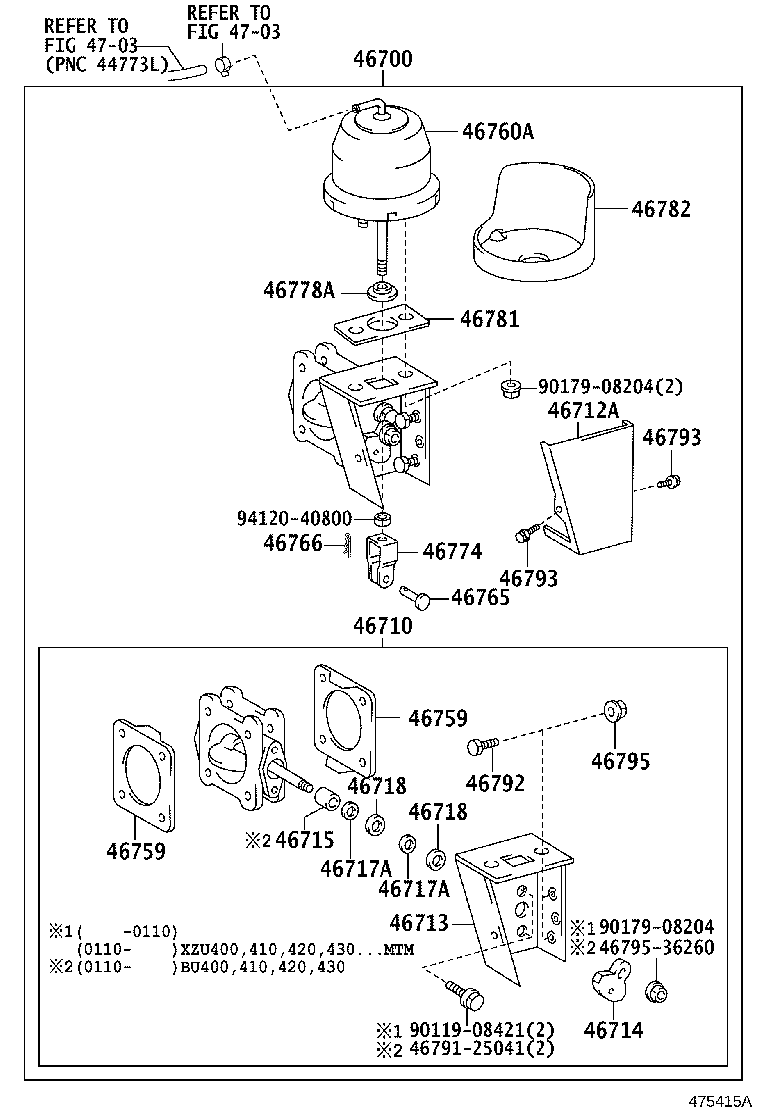

XZU400A-TMMSS6 (1999)
Toyota Dyna/Toyoace
(9905-0406)XZU410,420..6F ; (9905-0406)BU400,410,420,430,XZU400,430
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46700 - RETARDER ASSY, EXHAUST | ||||
| 46700-37110 |
XZU430..35T,40T;XZU400,410,420..MTM |
1 | ||
| 46710 - VALVE ASSY, EXHAUST BRAKE | ||||
| 46710-37050 |
XZU400,410,420,430..MTM |
1 | ||
| 46712A - COVER, EXHAUST BRAKE BRACKET | ||||
| 46712-36060 |
XZU430..35T,40T;XZU400,410,420..MTM |
1 | ||
| 46713 - BRACKET, EXHAUST VALVE | ||||
| 46713-36060 |
XZU400,410,420,430..MTM |
1 | ||
| 46714 - LEVER, EXHAUST VALVE | ||||
| 46714-36010 |
XZU400,410,420,430..MTM |
1 | ||
| 46715 - BUSH, EXHAUST VALVE, NO.1 | ||||
| 46715-36010 |
XZU400,410,420,430..MTM 長さ=16.0 |
1 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
XZU400,410,420,430..MTM |
2 | ||
| 46717A - RING, EXHAUST VALVE SEAL, NO.1 | ||||
| 46717-36010 |
XZU400,410,420,430..MTM |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
XZU400,410,420,430..MTM |
2 | ||
| 46718 - RING, EXHAUST VALVE SEAL, NO.2 | ||||
| 46718-36010 |
XZU400,410,420,430..MTM |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
2 | ||
| 46759 - GASKET, EXHAUST RETARDER | ||||
| 46759-36040 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
2 | ||
| 46760A - CHAMBER ASSY, EXHAUST BRAKE | ||||
| 46760-36093 |
XZU430..35T,40T;XZU400,410,420..MTM |
1 | ||
| 46765 - PIN, VACUUM CYLINDER CLEVIS | ||||
| 46765-36010 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
1 | ||
| 46766 - PIN, VACUUM CYLINDER CLEVIS SNAP | ||||
| 46766-36010 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
1 | ||
| 46774 - CLEVIS, EXHAUST BRAKE ROD | ||||
| 46744-25010 |
XZU430..35T,40T;XZU400,410,420..MTM |
1 | ||
| 46778A - BEARING, EXHAUST BRAKE CHAMBER ROD | ||||
| 46778-36060 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
1 | ||
| 46781 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.1 | ||||
| 46781-28010 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
1 | ||
| 46782 - INSULATOR, EXHAUST BRAKE CHAMBER, NO.2 | ||||
| 46782-36130 |
XZU430..35T,40T;XZU400,410,420..MTM;BU410,420,430..20T,30T,35T |
1 | ||
| 46792 - BOLT, EXHAUST VALVE STOPPER | ||||
| 46792-36010 |
XZU400,410,420,430..MTM |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
XZU410,420..6F;BU400,410,420,430,XZU400,430 |
2 | ||
| 46793 - BOLT, EXHAUST VALVE LINK COVER | ||||
| 46793-36010 |
XZU410,420..6F;BU400,410,420,430,XZU400,430 |
2 | ||
| 46795 - NUT, EXHAUST VALVE BRACKET | ||||
| 46795-36010 |
XZU430..35T,40T;XZU400,410,420..MTM |
2 | ||
| Common parts | ||||
| 46791-25041 | ||||
| 46795-36260 | ||||
| 90119-08421 | ||||
| 90179-08204 | ||||
| 94120-40800 | ||||
| Linked diagrams | ||||
| 4703 | ||||
