XZU400A-TMMSS3 (1999)
Toyota Dyna/Toyoace

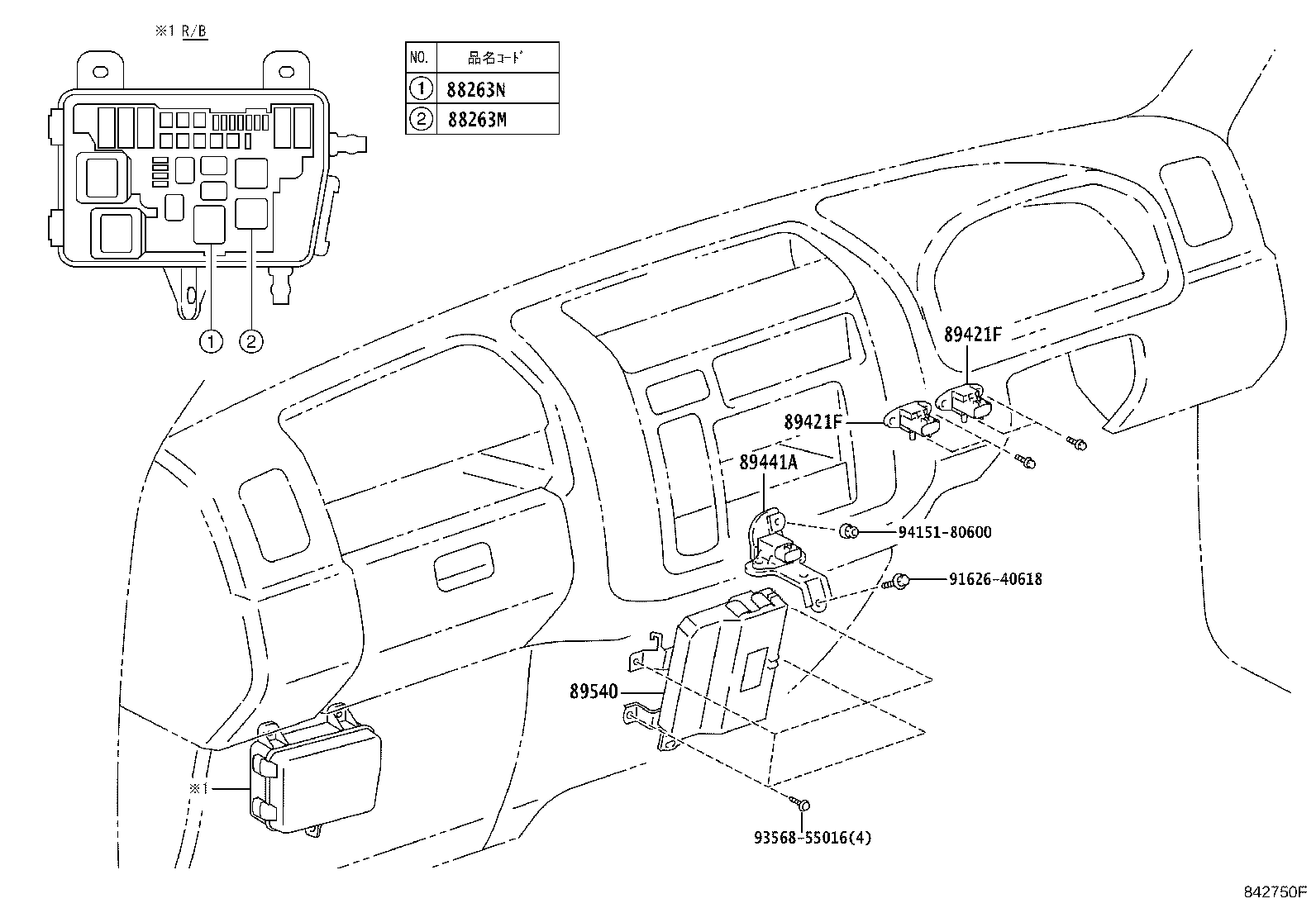

ILLUST NO. 1 OF 3(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88263M - RELAY, ABS SOLENOID | ||||
| 88263-36050 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430..DSL,TDEFI |
1 | ||
| 88263N - RELAY, ABS MOTOR | ||||
| 88263-36040 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430..DSL,TDEFI |
1 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
2 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
2 | ||
| 89540 - COMPUTER ASSY, SKID CONTROL | ||||
| 89540-37050 |
XZU400,401 |
1 | ||
| 89540-37051 |
XZU400,401 |
1 | ||
| 89540-37052 |
XZU400,401 |
1 | ||
| Common parts | ||||
| 91626-40618 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 3(9905- )
ﾌﾛﾝﾄ ｽﾋﾟ-ﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37080 |
XZU421..T3..6F;XZU411,421..T4..(295T,30T);BU410,420,430,BZU410,XZU401..30T,35T;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU400,410,412,420..(30T,35T,40T,40TOV)..DSL |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80614 | ||||
| 91551-80620 | ||||
| 91651-B0616 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
