XZU400A-TMMSS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004
Engine J05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(7708- )

Click highlighted areas on diagram

diagram 78166A 78184B 9046108008 9046108109 9046108240 9046108269 9046108271 9046108279 9046108280 9046108523 9046110128 9046110310 9046110317 9046110318 9046110332 9046110383 9046110866 9046210046 9046210062 9046310337 9046312005 9046312011 9046315298 9046400020 9046400034 9046808001 9048001053 9095901024 9095901026 9161140816 9161140816 9161140816 9161140816 9161140816 9161140816 9161540816 9165140614 9165140614 9165140614 9165140614 9165140820 9338516016 9338516016 9338516016 9338615014 9338615014 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90461-08008
90461-08109
90461-08240
90461-08269
90461-08271
90461-08279
90461-08280
90461-08523
90461-10128
90461-10310
90461-10317
90461-10318
90461-10332
90461-10383
90461-10866
90462-10046
90462-10062
90463-10337
90463-12005
90463-12011
90463-15298
90464-00020
90464-00034
90468-08001
90480-01053
90959-01024
90959-01026
91611-40816
91615-40816
91651-40614
91651-40820
93385-16016
93386-15014
94110-40800

ILLUST NO. 1 OF 3(7708- )

Click highlighted areas on diagram

diagram 78111 78181 78406A 78410 78410 78410C 9038608077 9038608077 9054106008 9054111001 9113140660 9161140614 9161140614 9411040600 9461110800 9538102015
Part # Description Qty Price
Common parts
90386-08077
90541-06008
90541-11001
91131-40660
91611-40614
94110-40600
94611-10800
95381-02015

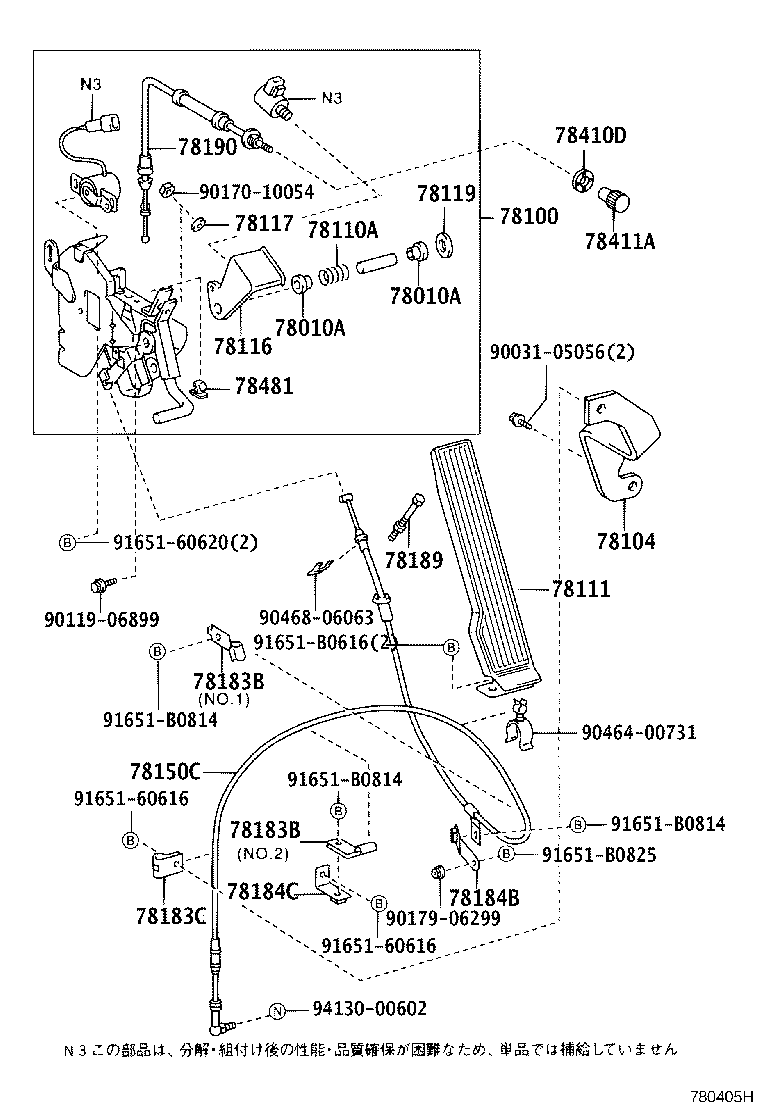

ILLUST NO. 1 OF 2(9905- )XZU400,410,420,430

Click highlighted areas on diagram

diagram 78010A 78010A 78100 78104 78110A 78111 78116 78117 78119 78150C 78183B 78183B 78183C 78184B 78184C 78189 78190 78410D 78411A 78481 9003105056 9011906899 9017010054 9017906299 9046400731 9046806063 9165160616 9165160616 9165160620 91651B0616 91651B0814 91651B0814 91651B0814 91651B0825 9413000602
Part # Description Qty Price
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 2
90386-08065

BZU410,XZU400,410,420,430

 2
78010A - BUSH (FOR ACCELERATOR LINK)
90386-08065

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 2
90386-08065

BZU410,XZU400,410,420,430

 2
78100 - LINK ASSY, ACCELERATOR
78100-37640

XZU400,410,420,430

 1
78100-37641

XZU400,410,420;XZU430..35T,40T

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
26608-78011

XZU400,410,420;XZU430..35T,40T

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03243

XZU400,410,420,430

 1
78214-37020

XZU400,410,420;XZU430..35T,40T

 1
78111 - PEDAL, ACCELERATOR
78110-95410

XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T

 1
78116 - COVER, ACCELERATOR PEDAL ROD
78116-37010

BZU410,XZU400,410,420,430

 1
78116-37010

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 1
78117 - CUSHION (FOR ACCELERATOR ROD)
90541-06038

XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU382,401,402..20T,30T,35T

 1
90541-06036

BU400,410,420,430,XZU382,40#,41#,42#,430

 1
90541-06038

BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430

 1
78119 - STOPPER, ACCELERATOR PEDAL ROD
78119-95J00

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 1
78119-95J00

BZU410,XZU400,410,420,430

 1
78150C - WIRE ASSY, ACCELERATOR FLEXIBLE
78150-37530

XZU400,410,420;XZU430..35T,40T

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37300

XZU400,410,420;XZU430..35T,40T

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 2
78183-37310

XZU400,410,420;XZU430..35T,40T

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-37300

XZU400,410,420;XZU430..35T,40T

NO.2:ｲﾗｽﾄｻﾝｼﾖｳ

 2
78183-37310

XZU400,410,420;XZU430..35T,40T

NO.1:ｲﾗｽﾄｻﾝｼﾖｳ

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-37330

XZU400,410,420;XZU430..35T,40T

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-37090

XZU400,410,420;XZU430..35T,40T

 1
78184C - BRACKET, ACCELERATOR CONTROL CABLE
78184-37100

XZU400,410,420;XZU430..35T,40T

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-37070

XZU400,410,420;XZU430..35T,40T

 1
78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE
78190-37010

BZU410,XZU400,410,420,430

 1
78190-37010

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 1
78410D - NUT, THROTTLE
78314-95010

XZU400,410,420;XZU430..35T,40T

 1
78411A - KNOB, THROTTLE CONTROL CABLE
78411-95J01

XZU430..35T,40T;BZU410,XZU400,410,420

 1
78481 - CLAMP, THROTTLE WIRE
78481-37010

XZU400,410,420;XZU412..CNG,LPG;XZU430..35T,40T

 1
78481-37010

BZU410,XZU400,410,420,430

 1
Common parts
90031-05056
90119-06899
90170-10054
90179-06299
90464-00731
90468-06063
91651-60616
91651-60620
91651-B0616
91651-B0814
91651-B0825
94130-00602

ILLUST NO. 2 OF 2(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430..SCB

Click highlighted areas on diagram

diagram 78130 78130 78130 78130 78180P 78183D 78184E 9017906204 91511B0816 9645101000 9645601000 9645601000
Part # Description Qty Price
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37050

XZU410,420,430;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130-37051

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37050

XZU410,420,430;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130-37051

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37050

XZU410,420,430;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130-37051

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130 - BELLCRANK ASSY, ACCELERATOR
78130-37050

XZU410,420,430;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78130-37051

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-37030

XZU410,420,430;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78180-37031

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78183D - CLAMP, ACCELERATOR CONTROL CABLE
78183-37330

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
78184E - BRACKET, ACCELERATOR CONTROL CABLE
78184-37110

XZU410,420;XZU430..35T,40T;XZU400..IV3,IV6;XZU400..35T..CBU

 1
Common parts
90179-06204
91511-B0816
96451-01000
96456-01000
