Toyota Dyna/toyoace XZU400 INJECTION PUMP ASSEMBLY

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU400A-TMMSS3 (1999)
2202 - INJECTION PUMP ASSEMBLY

XZU400A-TMMSS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine J05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

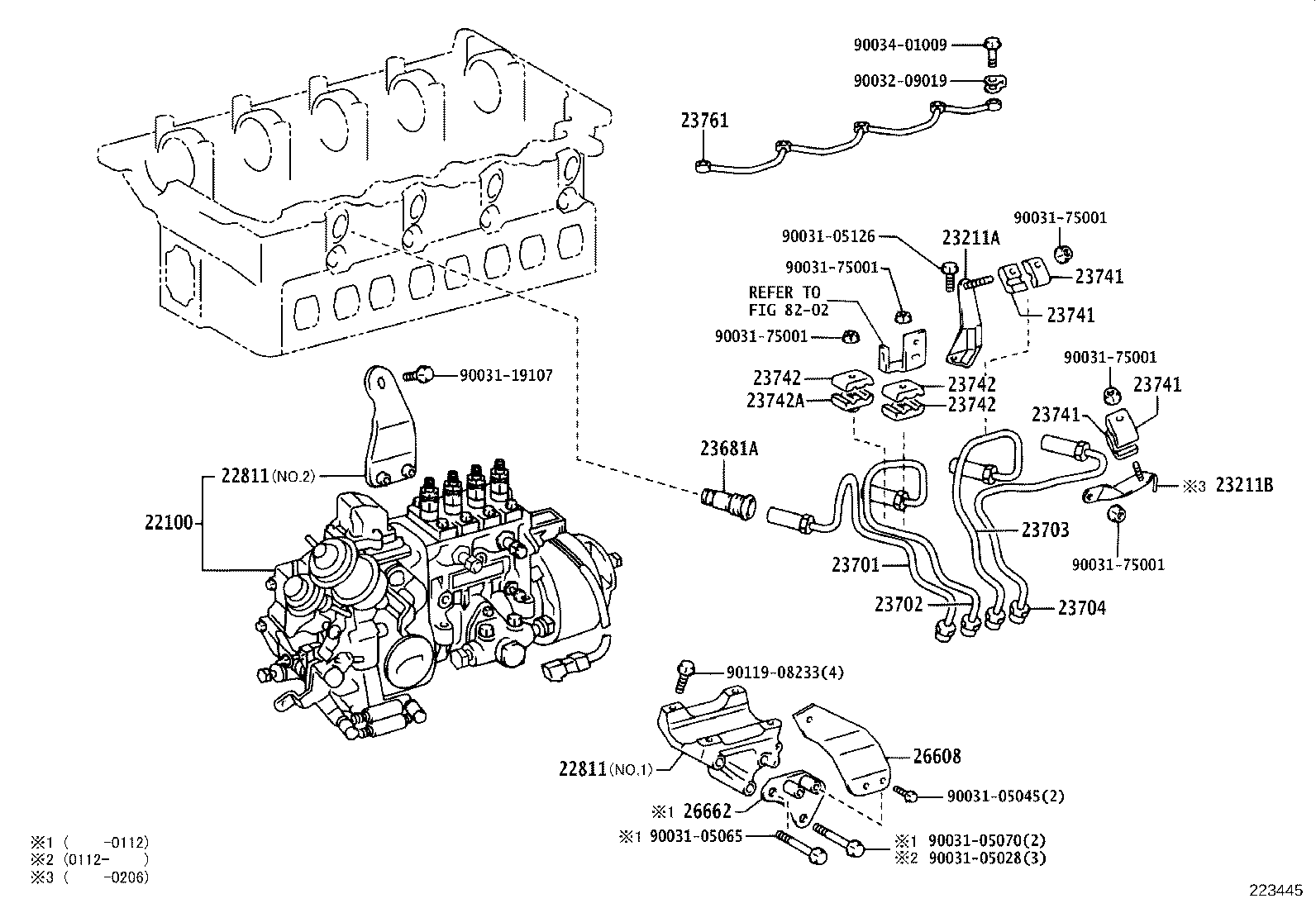

ILLUST NO. 1 OF 2(9905-0406)J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty
22100 - PUMP ASSY, INJECTION OR SUPPLY
22010-78230	J05C..XZU400,410,420,430 ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	05/1999 - 12/1999	1
22010-78220	J05C..XZU400,410,420,430	05/1999 - 12/1999	1
22010-78231	J05C..XZU400,410,420,430..MTM ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	12/1999 - 05/2000	1
22010-78221	J05C..XZU400,410,420,430..MTM	12/1999 - 05/2000	1
22010-78232	J05C..XZU400,410,420,430..MTM ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	05/2000 - 06/2000	1
22010-78222	J05C..XZU400,410,420,430..MTM	05/2000 - 06/2000	1
22010-78260	J05C..XZU400,410,420,430..MTM	06/2000 - 10/2003	1
22010-78271	J05C..XZU400,410,420,430..MTM ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	10/2003 - 06/2004	1
22010-78261	J05C..XZU400,410,420,430..MTM	10/2003 - 06/2004	1
22010-78270	J05C..XZU400,410,420,430..MTM ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	06/2000 - 10/2003	1
22811 - STAY, INJECTION PUMP, NO.1
22811-78020	J05C..XZU400,410,420,430 NO.1	05/1999 - 12/2001	1
22811-78030	J05C..XZU400,410,420,430..MTM NO.2	05/1999 - 06/2000	1
22811-78070	J05C..XZU400,410,420,430 NO.1	12/2001 - 06/2004	1
22811 - STAY, INJECTION PUMP, NO.1
22811-78020	J05C..XZU400,410,420,430 NO.1	05/1999 - 12/2001	1
22811-78030	J05C..XZU400,410,420,430..MTM NO.2	05/1999 - 06/2000	1
22811-78070	J05C..XZU400,410,420,430 NO.1	12/2001 - 06/2004	1
23211A - BRACKET(FOR INJECTION PIPE NO.3)
23211-78040	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23211B - BRACKET(FOR INJECTION PIPE NO.4)
23211-78030	J05C,S05#..XZU382,40#,41#,42#,430..DSL	05/1999 - 06/2002	1
23681A - SEAL, NOZZLE HOLDER
23681-78010	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-78030	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-78030	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-78030	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-78030	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	6
23741 - CLAMP, INJECTION PIPE, NO.1
90034-68024	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	6
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	5
23742 - CLAMP, INJECTION PIPE, NO.2
23742-66020	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	5
23742A - CLAMP, INJECTION PIPE, NO.3
23742-78040	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23761 - PIPE, NOZZLE LEAKAGE, NO.1
23761-78020	S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;S05D..XZU421..T4..(4FC,5F);J05C,S05#..XZU382,40#,410,420;S05#..XZU411,412..(4FC,5F)..20T;J05C,S05#..XZU411,412,430..295T,30T,35T,40T	05/1999 - 06/2004	1
26608 - BRACKET SUB-ASSY, ACCELERATOR WIRE
26608-78030	J05C..XZU410,420;J05C..XZU430..35T,40T;J05C..XZU400..IV3,IV6;J05C..XZU400..35T..CBU	07/1999 - 06/2004	1
26662 - BRACKET, ACCELERATOR WIRE
26662-78010	J05C..XZU400,410,420,430	05/1999 - 12/2001	1
Common parts
90031-05028
90031-05045
90031-05065
90031-05070
90031-05126
90031-19107
90031-75001
90032-09019
90034-01009
90119-08233
Linked diagrams
8202

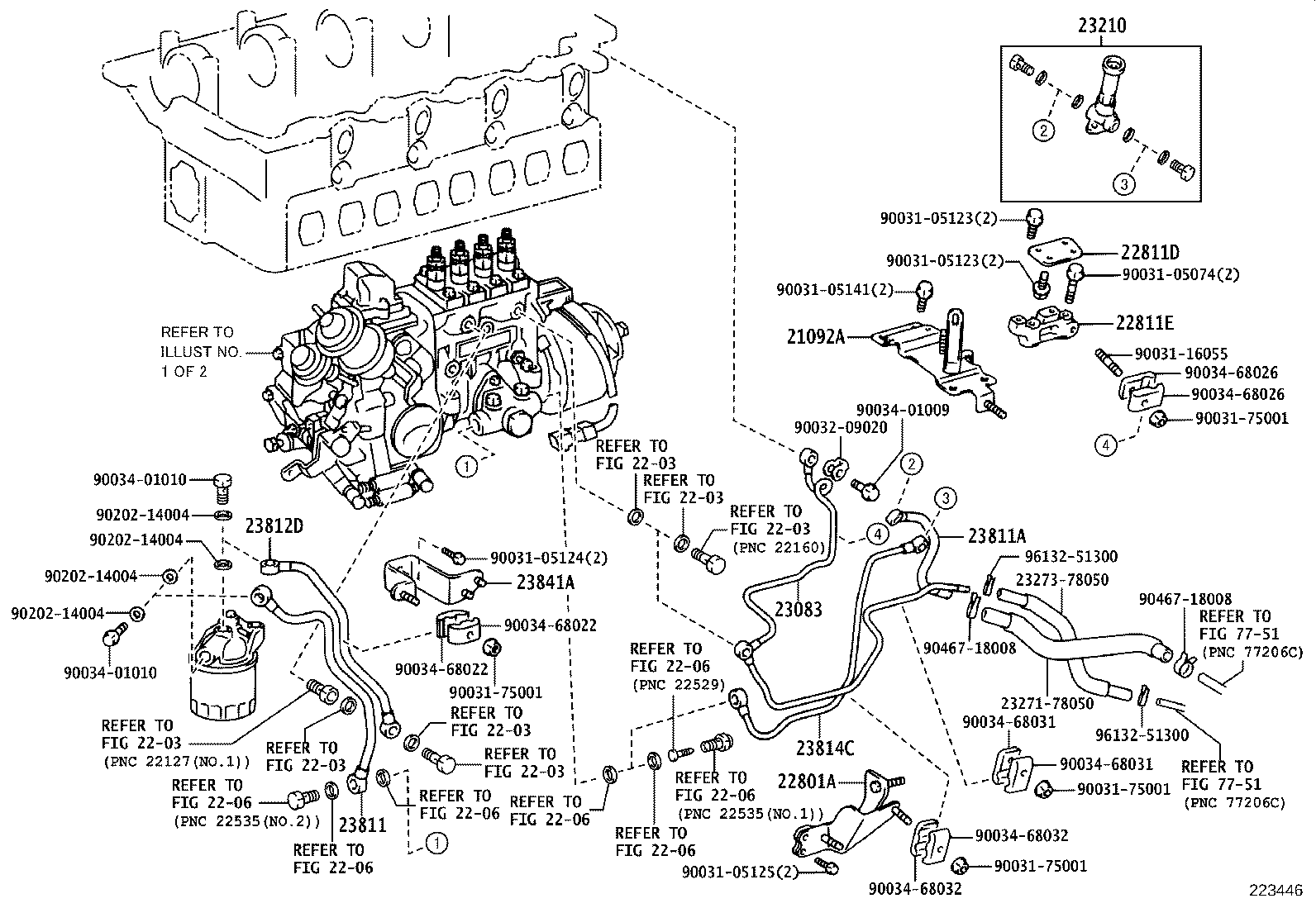

ILLUST NO. 2 OF 2(9905-0406)J05C

Click highlighted areas on diagram

Part #	Description	Period	Qty
21092A - BRACKET SUB-ASSY, SOLENOID VALVE
21092-78010	J05C..XZU430..35T,40T;J05C..XZU400,410,420..CBU,IV3	05/1999 - 06/2004	1
22801A - BRACKET SUB-ASSY, INJECTION PUMP
22801-78040	J05C..XZU400,410,420,430	12/1999 - 07/2001	1
22801-78030	J05C..XZU400,410,420,430	05/1999 - 12/1999	1
22801-78041	J05C..XZU400,410,420;J05C..XZU430..35T,40T	07/2001 - 06/2004	1
22801-78070	J05C..XZU400,410,420;J05C..XZU430..35T,40T ｱﾘ(ｱｲﾄﾞﾙｱﾂﾌﾟﾂｷﾌﾛﾝﾄﾋ-ﾀ)	05/1999 - 06/2004	1
22811D - STAY, INJECTION PUMP, NO.2
22811-78040	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
22811E - STAY, INJECTION PUMP, NO.3
22811-78050	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23083 - PIPE SUB-ASSY, NOZZLE LEAKAGE, NO.3
23803-78010	J05C..XZU430..35T,40T;J05C..XZU400,410,420..CBU,IV3	05/1999 - 06/2004	1
23210 - PUMP ASSY, FUEL(FOR DIESEL)
23210-78010	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-78010	J05C..XZU400,410,420,430	05/1999 - 06/2004	1
23811A - PIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23811-78050	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23812D - PIPE, FUEL, NO.2
23812-78010	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
23814C - PIPE, FUEL DELIVERY
23814-78020	J05C..XZU430..35T,40T;J05C..XZU400,410,420..CBU,IV3	05/1999 - 06/2004	1
23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23841-78010	J05C..XZU400,410,420;J05C..XZU430..35T,40T	05/1999 - 06/2004	1
Common parts
23271-78050
23273-78050
90031-05074
90031-05123
90031-05124
90031-05125
90031-05141
90031-16055
90031-75001
90032-09020
90034-01009
90034-01010
90034-68022
90034-68026
90034-68031
90034-68032
90202-14004
90467-18008
96132-51300
Linked diagrams
2203
2206
7751
