Toyota Dyna/toyoace XZU400 ALTERNATOR

XZU400A-TMMSS3 (1999)

Toyota Dyna/Toyoace

Production May 1999 - Jun 2004

Engine J05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9905-0406)J05C,S05#..XZU40#,410,411,412,42#,430; (0406-0610)S05D..SCB..IV3

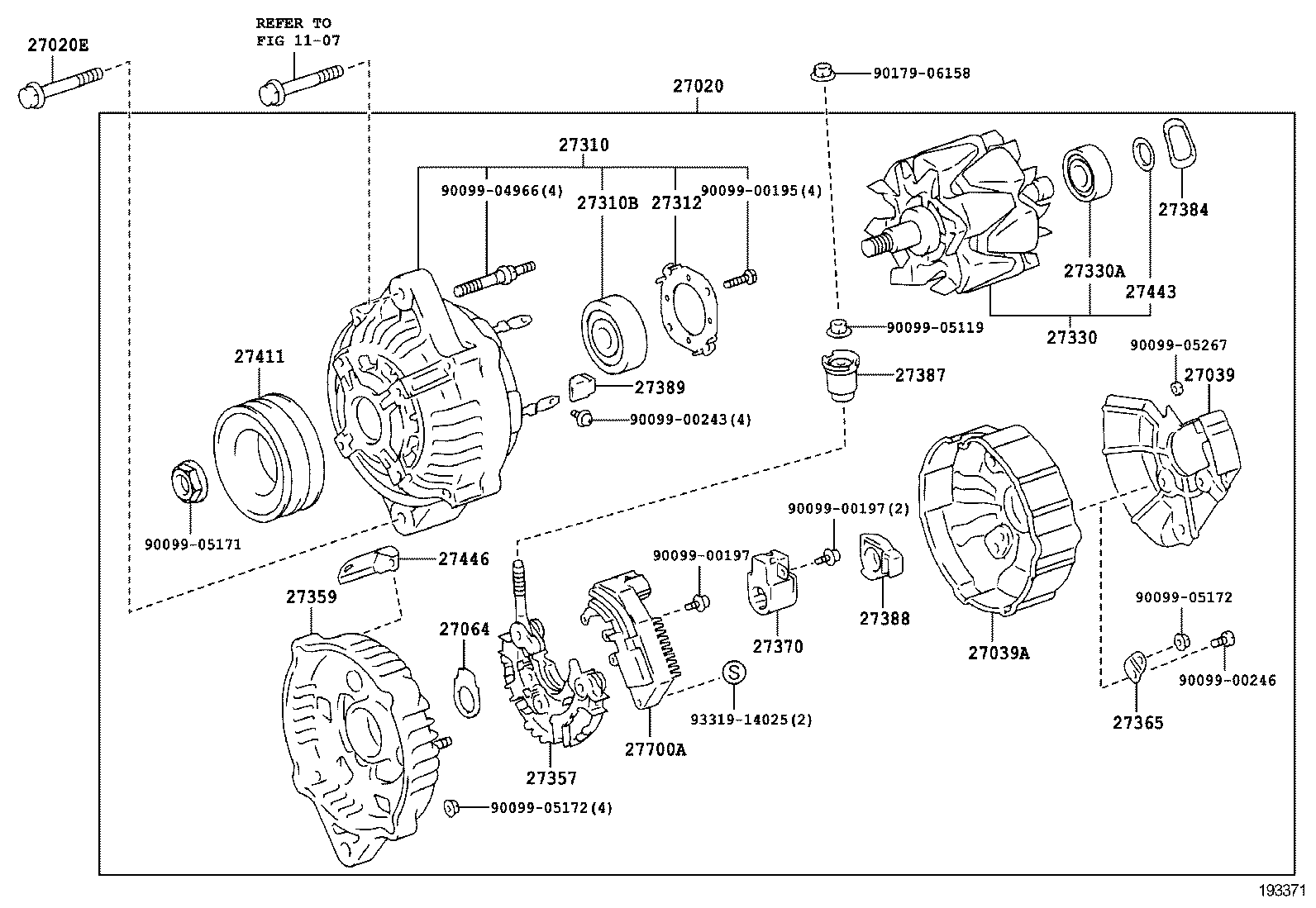

Click highlighted areas on diagram

24V 85A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-78010	S05C..XZU412..30T;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05D..XZU411..T4..(295T,30T);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05D..XZU411,430..T3..(295T,30T,35T,40T)..DSL 24V 50A	05/1999 - 06/2004	1
27060-78031	J05C..XZU410..T4..6F..IV3;S05D..XZU421..T5..5F..IV3;S05D..XZU411..(4FC,5F)..20T..IV3;S05D..XZU421..T4..(4FC,5F)..20T..IV3;S05D..XZU411,421..T4..(295T,30T)..IV3;J05C,S05D..XZU410,421..T3..6F..30T..IV3;J05C,S05#..XZU40#,412..SCB..(4FC,5F)..IV3;J05C,S05C..XZU412,420..6F..(30T,35T,40T,40TOV)..IV3;J05C,S05D..XZU411,430..T3..(295T,30T,35T,40T)..DSL..IV3 24V 85A	05/1999 - 06/2004	1
27020E - BOLT(FOR ALTERNATOR)
90031-05027	S05D..XZU411..30T..DSLL;J05C..XZU400,410,420,430;S05D..XZU421..(T3,T5)..4FC;S05#..XZU411,412,421..6F..20T	05/1999 - 06/2002	1
90031-05046	J05C..XZU400,410,420,430..IV3,IV6 80A	05/1999 - 06/2002	1
90031-05170	J05C..XZU400,410,420,430..MTM..IV3 24V 85A	06/2002 - 06/2004	1
90031-05093	J05C..XZU400,410,420,430	06/2002 - 06/2004	1
27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR
27036-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27036-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27036-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27036-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27039 - COVER, ALTERNATOR REAR END
27039-50090	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27039-89101	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27039-50090	J05C,S05#..XZU382,40#,410,411,412,42#,430 24V 50A	10/2002 - 06/2004	1
27039-50090	J05C,S05#..XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27039-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27039-89101	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27039-50090	J05C,S05#..XZU382,40#,41#,42#,430..DSL 24V 50A	06/2002 - 10/2002	1
27039-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-89103	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27310-58080	J05C,S05#..XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27310-58080	J05C,S05#..XZU382,40#,41#,42#,430..DSL 24V 50A	06/2002 - 10/2002	1
27310-58080	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27310-89103	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27310-58080	J05C,S05#..XZU382,40#,410,411,412,42#,430 24V 50A	10/2002 - 06/2004	1
27310-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27310-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
90099-10192	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
90099-10188	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
90099-10188	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
90099-10188	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
90099-10192	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
90099-10188	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME)
27412-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27412-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27412-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27412-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27310E - COLLAR(FOR ALTERNATOR DRIVE END FRAME)
27412-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27412-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27412-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27412-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27312 - PLATE, RETAINER
27312-56070	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27312-42010	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27312-42010	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27312-56070	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27312-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27312-42010	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27312-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27315 - COVER, ALTERNATOR FELT, INNER NO.1
27315-56070	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27315-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27315-56070	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27315-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58050	J05C..XZU400,410,420,430 24V 60A	05/1999 - 06/2002	1
27330-58050	J05C..XZU400,410,420,430 24V 60A	06/2002 - 06/2004	1
27330-89103	J05C..XZU410..T4..6F..IV3;J05C..XZU400,420..MTM..IV3;J05C..XZU410..T3..30T..IV3;J05C..XZU430..(35T,40T)..IV3	05/1999 - 06/2004	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
90099-10140	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
90099-10141	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
90099-10141	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
90099-10140	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
90099-10141	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
90099-10141	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27350 - FRAME ASSY, RECTIFIER END
27350-89103	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27350-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27350-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27350-89103	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27351-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27351-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27351-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR
27353-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27353-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27353-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27353-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR
27356-89101	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27356-89101	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27356-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27356-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27371 - BRUSH, ALTERNATOR
27371-54412	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27371-54412	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27371-54412	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27371-54412	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27371 - BRUSH, ALTERNATOR
27371-54412	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27371-54412	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27371-54412	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27371-54412	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27372-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27372-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27372-56070	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27372 - SPRING, ALTERNATOR BRUSH
27372-56070	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27372-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27372-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27372-56070	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27373 - HOLDER, ALTERNATOR BRUSH, A
27373-58010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27373-58010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27373-58010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27373-58010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27378 - INSULATOR, ALTERNATOR, NO.1
27378-45020	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27378-45020	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27378-45020	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27378-45020	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27378 - INSULATOR, ALTERNATOR, NO.1
27378-45020	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27378-45020	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27378-45020	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27378-45020	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27378A - INSULATOR, ALTERNATOR, NO.2
27378-54010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27378-54010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27378-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27378-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27378A - INSULATOR, ALTERNATOR, NO.2
27378-54010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	2
27378-54010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	2
27378-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	2
27378-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	2
27387 - INSULATOR, TERMINAL
27387-54010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	2
27387-42021	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27387-42021	J05C..XZU400,410,420,430 24V 50A, 85A	05/1999 - 06/1999	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	2
27387-54010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	2
27387-42021	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	2
27387 - INSULATOR, TERMINAL
27387-54010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	2
27387-42021	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27387-42021	J05C..XZU400,410,420,430 24V 50A, 85A	05/1999 - 06/1999	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	2
27387-54010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	2
27387-42021	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	2
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-54310	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27387-54310	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27387-54310	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27387-54310	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27388 - COVER, ALTERNATOR BRUSH
27388-46220	J05C..XZU400,410,420,430 24V 50A, 85A	05/1999 - 06/1999	1
27388-46220	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27388-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27388-46220	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27388-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27388-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27388-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27410 - STATOR ASSY, ALTERNATOR
27410-58010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27410-58010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27410-58010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27410-58010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27411 - PULLEY, ALTERNATOR
27411-89104	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;S05D..XZU411..T3..DSL..IV3;S05C..XZU412..DCB..6F..IV3;J05C..XZU410..T3..30T..IV3;S05D..XZU411..(T2,T4,T5)..IV3;J05C,S05#..XZU40#,412,421,430..SCB..IV3 24V 85A	05/1999 - 06/2004	1
27411-89102	S05D..XZU411..T3..DSL;S05D..XZU411..T2,T4,T5;J05C,S05#..XZU40#,410,412,42#,430 24V 50A	05/1999 - 06/2004	1
27441 - FAN, ALTERNATOR
27441-57030	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3	06/2002 - 10/2002	1
27441-57030	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6	05/2000 - 06/2002	1
27441-57030	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6	05/1999 - 05/2000	1
27441-57030	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3	10/2002 - 06/2004	1
27700A - REGULATOR ASSY, GENERATOR
27700-58010	S05D..XZU401..4FC..IV3;J05C..XZU410..T4..6F..IV3;J05C..XZU410..T3..30T..IV3;S05D..XZU411..T4..30T..DSLL;J05C..XZU400,420,430..MTM..IV3;S05#..XZU411,412,421..SCB..5F..IV3 24V 85A	05/1999 - 06/2004	1
27700-58060	S05D..XZU411..T3..DSL;S05D..XZU411..T2,T4,T5;J05C,S05#,15BFTE..BU400,410,420,430,XZU40#,410,412,42#,430	05/1999 - 06/2004	1
Common parts
90099-00197
90099-04568
90099-04916
90099-05118
90099-05185
90099-34013
90179-06158
Linked diagrams
1107

(9905-0406)J05C,S05#..XZU40#,410,411,412,42#,430

Click highlighted areas on diagram

24V 50A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-78010	S05C..XZU412..30T;S05D..XZU421..T5..5F;S05D..XZU421..6F..30T;J05C,S05#..XZU40#,410,420;S05D..XZU421..T4..(4FC,5F);S05D..XZU411..T4..(295T,30T);S05#..XZU411,412..(4FC,5F)..20T;J05C,S05D..XZU411,430..T3..(295T,30T,35T,40T)..DSL 24V 50A	05/1999 - 06/2004	1
27060-78031	J05C..XZU410..T4..6F..IV3;S05D..XZU421..T5..5F..IV3;S05D..XZU411..(4FC,5F)..20T..IV3;S05D..XZU421..T4..(4FC,5F)..20T..IV3;S05D..XZU411,421..T4..(295T,30T)..IV3;J05C,S05D..XZU410,421..T3..6F..30T..IV3;J05C,S05#..XZU40#,412..SCB..(4FC,5F)..IV3;J05C,S05C..XZU412,420..6F..(30T,35T,40T,40TOV)..IV3;J05C,S05D..XZU411,430..T3..(295T,30T,35T,40T)..DSL..IV3 24V 85A	05/1999 - 06/2004	1
27020E - BOLT(FOR ALTERNATOR)
90031-05027	S05D..XZU411..30T..DSLL;J05C..XZU400,410,420,430;S05D..XZU421..(T3,T5)..4FC;S05#..XZU411,412,421..6F..20T	05/1999 - 06/2002	1
90031-05046	J05C..XZU400,410,420,430..IV3,IV6 80A	05/1999 - 06/2002	1
90031-05170	J05C..XZU400,410,420,430..MTM..IV3 24V 85A	06/2002 - 06/2004	1
90031-05093	J05C..XZU400,410,420,430	06/2002 - 06/2004	1
27039 - COVER, ALTERNATOR REAR END
27039-50090	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27039-89101	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27039-50090	J05C,S05#..XZU382,40#,410,411,412,42#,430 24V 50A	10/2002 - 06/2004	1
27039-50090	J05C,S05#..XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27039-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27039-89101	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27039-50090	J05C,S05#..XZU382,40#,41#,42#,430..DSL 24V 50A	06/2002 - 10/2002	1
27039-89101	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27039A - COVER, ALTERNATOR REAR END, NO.2
27039-58330	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27039-58330	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27039-58330	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430..CNG,DSL	06/2002 - 10/2002	1
27039-58330	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430	10/2002 - 06/2003	1
27039-58330	J05C,S05#..XZU382,40#,410,411,412,42#,430	06/2003 - 06/2004	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	J05C,S05#..XZU40#,410,411,412,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	06/2003 - 06/2004	1
27064-42010	J05C,S05#,15BCNG..XZU40#,41#,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	10/2002 - 06/2003	1
27064-42010	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27064-42010	J05C,S05#,15B#..BU400,410,420,430,XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27064-42010	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,15BCNG..XZU40#,41#,42#,430..CNG,DSL	06/2002 - 10/2002	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-89103	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27310-58080	J05C,S05#..XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27310-58080	J05C,S05#..XZU382,40#,41#,42#,430..DSL 24V 50A	06/2002 - 10/2002	1
27310-58080	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27310-89103	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27310-58080	J05C,S05#..XZU382,40#,410,411,412,42#,430 24V 50A	10/2002 - 06/2004	1
27310-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27310-89103	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
90099-10192	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
90099-10188	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
90099-10188	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
90099-10188	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
90099-10192	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
90099-10188	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27312 - PLATE, RETAINER
27312-56070	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27312-42010	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
27312-42010	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27312-56070	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27312-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27312-42010	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27312-56070	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58050	J05C..XZU400,410,420,430 24V 60A	05/1999 - 06/2002	1
27330-58050	J05C..XZU400,410,420,430 24V 60A	06/2002 - 06/2004	1
27330-89103	J05C..XZU410..T4..6F..IV3;J05C..XZU400,420..MTM..IV3;J05C..XZU410..T3..30T..IV3;J05C..XZU430..(35T,40T)..IV3	05/1999 - 06/2004	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	J05C..XZU400,410,420,430 24V 50A	05/1999 - 06/1999	1
90099-10140	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
90099-10141	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
90099-10141	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
90099-10140	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
90099-10141	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
90099-10141	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-17080	S05D..XZU411..T3..DSL;S05D..XZU411..T2,T4,T5;J05C,S05#,15BFTE..BU400,410,420,430,XZU40#,410,412,42#,430	05/1999 - 06/2004	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-58050	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27359-58050	J05C,S05#..XZU382,40#,410,411,412,42#,430	06/2003 - 06/2004	1
27359-58050	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430..CNG,DSL	06/2002 - 10/2002	1
27359-58050	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430	10/2002 - 06/2003	1
27359-58050	J05C,S05#,15BCNG..XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27365 - PLATE, TERMINAL
27365-55080	J05C,S05#,15B#..BU400,410,420,430,XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27365-55080	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27365-55080	J05C,S05#..XZU40#,410,411,412,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	06/2003 - 06/2004	1
27365-55080	J05C,S05#,15BCNG..XZU40#,41#,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	10/2002 - 06/2003	1
27365-55080	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,15BCNG..XZU40#,41#,42#,430..CNG,DSL	06/2002 - 10/2002	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;S05D..XZU411..T3..DSL..IV3;S05C..XZU412..DCB..6F..IV3;J05C..XZU410..T3..30T..IV3;S05D..XZU411..(T2,T4,T5)..IV3;J05C,S05#..XZU40#,412,421,430..SCB..IV3 24V 85A	05/1999 - 06/2004	1
27370-75060	J05C,15BFTE,15BCNG..BU400,410,420,430,XZU400,410,412,420,430 24V 60A	05/1999 - 06/2004	1
27384 - WASHER
27384-50030	S05D..XZU401..4FC;S05#..XZU411,412,421..5F;J05C,15BCNG..XZU400,410,412,420,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	06/2002 - 10/2002	1
27384-50030	S05D..XZU401..4FC;S05D..XZU411..DSLL;S05#..XZU411,412,421..5F..DSL;J05C,15BCNG..XZU400,410,412,420,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	10/2002 - 06/2003	1
27384-50030	S05D..XZU401..4FC;S05D..XZU411..DSLL;J05C..XZU400,410,420,430;S05#..XZU411,412,421..5F..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	06/2003 - 06/2004	1
27384-50030	S05D,15BCNG..XZU411,412..CNG,DSLL;J05C,S05C,15BFTE..BU400,410,420,430,XZU382,400,410,420,430	05/1999 - 06/2002	1
27387 - INSULATOR, TERMINAL
27387-54010	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	2
27387-42021	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27387-42021	J05C..XZU400,410,420,430 24V 50A, 85A	05/1999 - 06/1999	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	2
27387-54010	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	2
27387-42021	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27387-54010	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	2
27388 - COVER, ALTERNATOR BRUSH
27388-46220	J05C..XZU400,410,420,430 24V 50A, 85A	05/1999 - 06/1999	1
27388-46220	J05C,S05#,15BFTE..BU400,410,420,430,XZU382,40#,41#,42#,430 24V 50A	06/1999 - 06/2002	1
27388-89102	J05C..XZU410..T4..IV3;S05#..XZU401,402,411,412,421;J05C..XZU400,420,430..IV3,IV6 24V 85A	05/1999 - 05/2000	1
27388-46220	J05C,S05C..XZU402,420;J05C..XZU410..30T,35T,40T;J05C,S05D..XZU400,401,430..MTM;S05#..XZU411,412,421..(4FC,6F)..DSL;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5 24V 50A, 60A	06/2002 - 06/2004	1
27388-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..DSL..IV3 24V 85A	06/2002 - 10/2002	1
27388-89102	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;J05C,S05#..XZU40#,411,412,421,430..SCB..IV3 24V 85A	10/2002 - 06/2004	1
27388-89102	J05C..XZU410..T4..IV3;J05C,S05#..XZU40#,411,412,42#,430..IV3,IV6 24V 85A	05/2000 - 06/2002	1
27389 - INSULATOR, TERMINAL
27389-42010	J05C,S05#,15B#..BU400,410,420,430,XZU382,40#,41#,42#,430	05/1999 - 06/2002	4
27389-42010	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,15BCNG..XZU40#,41#,42#,430..CNG,DSL	06/2002 - 10/2002	4
27389-42010	J05C,S05#,15BCNG..XZU40#,41#,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	10/2002 - 06/2003	4
27389-42010	J05C,S05#..XZU40#,410,411,412,42#,430;S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5	06/2003 - 06/2004	4
27411 - PULLEY, ALTERNATOR
27411-89104	J05C..XZU420..6F..IV3;J05C..XZU410..T4..6F..IV3;S05D..XZU411..T3..DSL..IV3;S05C..XZU412..DCB..6F..IV3;J05C..XZU410..T3..30T..IV3;S05D..XZU411..(T2,T4,T5)..IV3;J05C,S05#..XZU40#,412,421,430..SCB..IV3 24V 85A	05/1999 - 06/2004	1
27411-89102	S05D..XZU411..T3..DSL;S05D..XZU411..T2,T4,T5;J05C,S05#..XZU40#,410,412,42#,430 24V 50A	05/1999 - 06/2004	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,15BCNG,15BLPG..XZU40#,41#,42#,430..CNG,DSL,LPG	06/2002 - 10/2002	1
27443-63020	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27443-63020	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,15BCNG,15BLPG..XZU40#,41#,42#,430	10/2002 - 06/2003	1
27443-63020	S05C,15BFTE..BU410,420,430,XZU382..CBU,IV5;J05C,S05#,1BZ#..BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
27443-63020	J05C,S05#,15B#..BU400,410,420,430,XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27446 - CLIP, ALTERNATOR CORD
27446-50260	J05C..XZU400,410,420,430	05/1999 - 06/1999	1
27446-50260	J05C,S05#..XZU382,40#,41#,42#,430..DSL	06/2002 - 10/2002	1
27446-50260	J05C,S05#..XZU382,40#,410,411,412,42#,430	10/2002 - 06/2004	1
27446-50260	J05C,S05#..XZU382,40#,41#,42#,430	06/1999 - 06/2002	1
27700A - REGULATOR ASSY, GENERATOR
27700-58010	S05D..XZU401..4FC..IV3;J05C..XZU410..T4..6F..IV3;J05C..XZU410..T3..30T..IV3;S05D..XZU411..T4..30T..DSLL;J05C..XZU400,420,430..MTM..IV3;S05#..XZU411,412,421..SCB..5F..IV3 24V 85A	05/1999 - 06/2004	1
27700-58060	S05D..XZU411..T3..DSL;S05D..XZU411..T2,T4,T5;J05C,S05#,15BFTE..BU400,410,420,430,XZU40#,410,412,42#,430	05/1999 - 06/2004	1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90099-05267
90179-06158
93319-14025
Linked diagrams
1107

XZU400A-TMMSS3 (1999)

(9905-0406)J05C,S05#..XZU40#,410,411,412,42#,430; (0406-0610)S05D..SCB..IV3

(9905-0406)J05C,S05#..XZU40#,410,411,412,42#,430

Part Price Details
