Toyota Dyna/toyoace XZU388 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU388-TQMMW5 (2004)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

XZU388-TQMMW5 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0406- )5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06204
90468-14017
91641-80818
91651-B0820
94120-41000
94130-61000
94531-01000
Linked diagrams
8401
8413

ILLUST NO. 2 OF 2(0406- )XZU30#,31#,321,33#,34#,35#,368,378,388

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-08676
90468-08035
94130-00802
Linked diagrams
3105
4708

ILLUST NO. 1 OF 2(9905-0705)MTM..CNG,DCR,DCRL,DSL,DSLL,LPG,TDEFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-37170	XZU404..40T..IV3;XZU388,40#,41#,42#,433..(T2,T3,T4,T5)..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31301-37161	XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL) ｱﾘ(PTO ｸﾗﾂﾁｽｲﾂﾁ)	06/2004 - 10/2006	1
31301A - SPRING(FOR CLUTCH PEDAL)
90959-03344	BZU410,XZU388,40#,41#,42#,433..MTM	06/2004 - 05/2005	1
90959-03394	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2005 - 10/2006	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	2
31321 - PAD, CLUTCH PEDAL
31321-14020	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31323 - BRACKET, CLUTCH PEDAL
31302-37011	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31324 - SHAFT, CLUTCH PEDAL
91112-61070	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10004	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL) 長さ=23.5	06/2004 - 10/2006	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
38979A - BRACKET, POWER TAKE-OFF CLUTCH SWITCH
38979-37011	XZU388,40#,411,414,421,424..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
Common parts
90179-06204
90468-14017
91111-41035
91651-B0820
94120-41000
94130-61000
94531-01000
Linked diagrams
3103
8401
8413

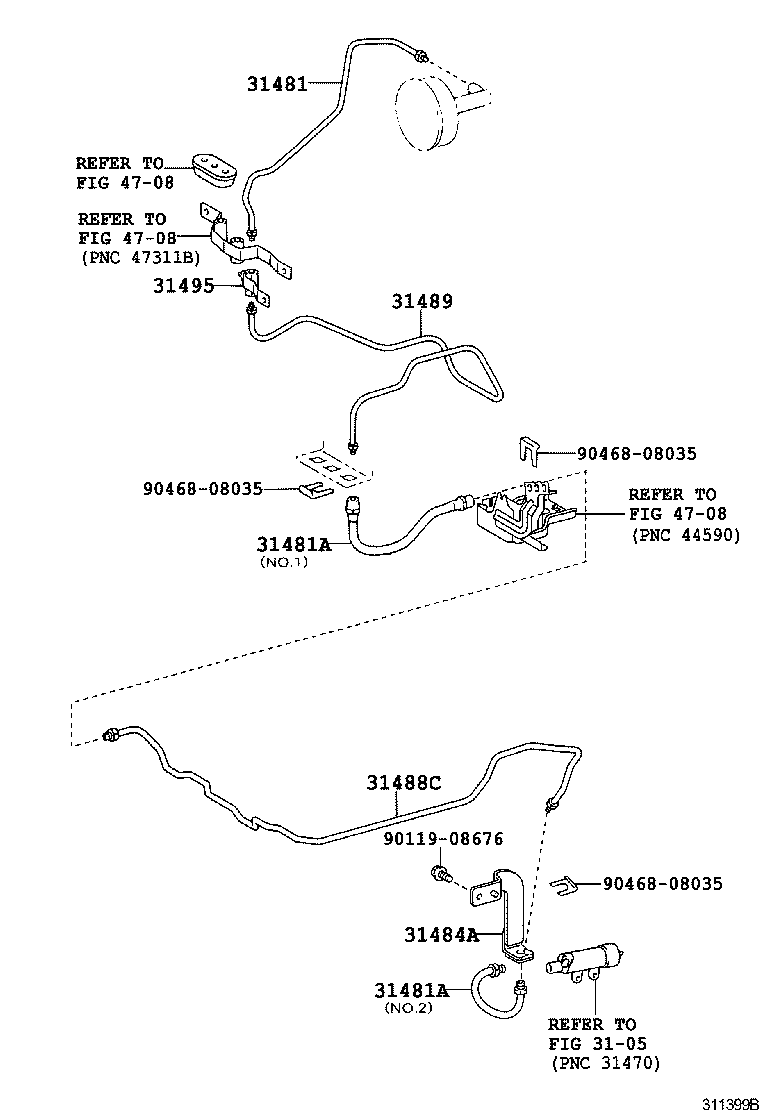

ILLUST NO. 2 OF 2(0406-0610)XZU388 ; (0610- )XZU488

Click highlighted areas on diagram

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-37121	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
31481A - HOSE, CLUTCH, NO.1
90931-01143	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL) NO.1	06/2004 - 10/2006	1
90931-01149	XZU388 NO.2	06/2004 - 02/2006	1
31486-37050	XZU388 NO.2	03/2006 - 10/2006	1
31481A - HOSE, CLUTCH, NO.1
90931-01143	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL) NO.1	06/2004 - 10/2006	1
90931-01149	XZU388 NO.2	06/2004 - 02/2006	1
31486-37050	XZU388 NO.2	03/2006 - 10/2006	1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37270	XZU388	06/2004 - 10/2006	1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37180	XZU388	06/2004 - 10/2006	1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37160	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	03/2006 - 10/2006	1
31481-37160	BZU410,XZU388,40#,41#,42#,433..MTM	06/2004 - 02/2006	1
31495 - WAY, CLUTCH TUBE
31495-37020	XZU388,40#,41#,42#,433..MTM..(DCRL,DSL,DSLL)	06/2004 - 10/2006	1
Common parts
90119-08676
90468-08035
Linked diagrams
3105
4708
