XZU388-TQMMW3 (2004)
Toyota Dyna/Toyoace
Production
Jun 2004
-
Oct 2006
Engine
N04C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

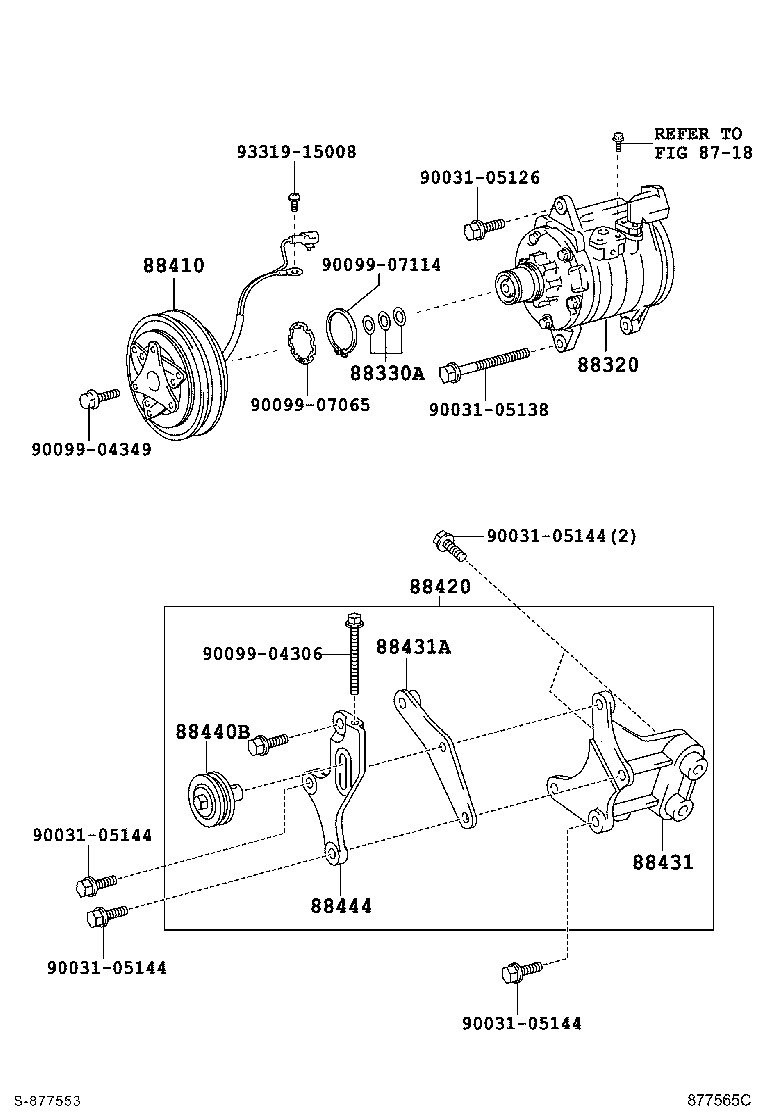

(0406- )XZU368,378,388
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37120 |
XZU368,378,388 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37140 |
XZU368,378,388 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37240 |
XZU368,378,388 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-37140 |
XZU368,378,388 |
1 | ||
| 88431A - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88431-37150 |
XZU368,378,388 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| S8836-01380 |
XZU368,378,388 |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-37160 |
XZU304,305,308,314,334,338,344,348,354,368,378,388 |
1 | ||
| Common parts | ||||
| 90031-05126 | ||||
| 90031-05138 | ||||
| 90031-05144 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
(0406-0610)XZU388
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05126 | ||||
| 90031-05138 | ||||
| 90031-05144 | ||||
| 90099-04306 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8718 | ||||
