XZU388-TQMMW3 (2004)
Toyota Dyna/Toyoace

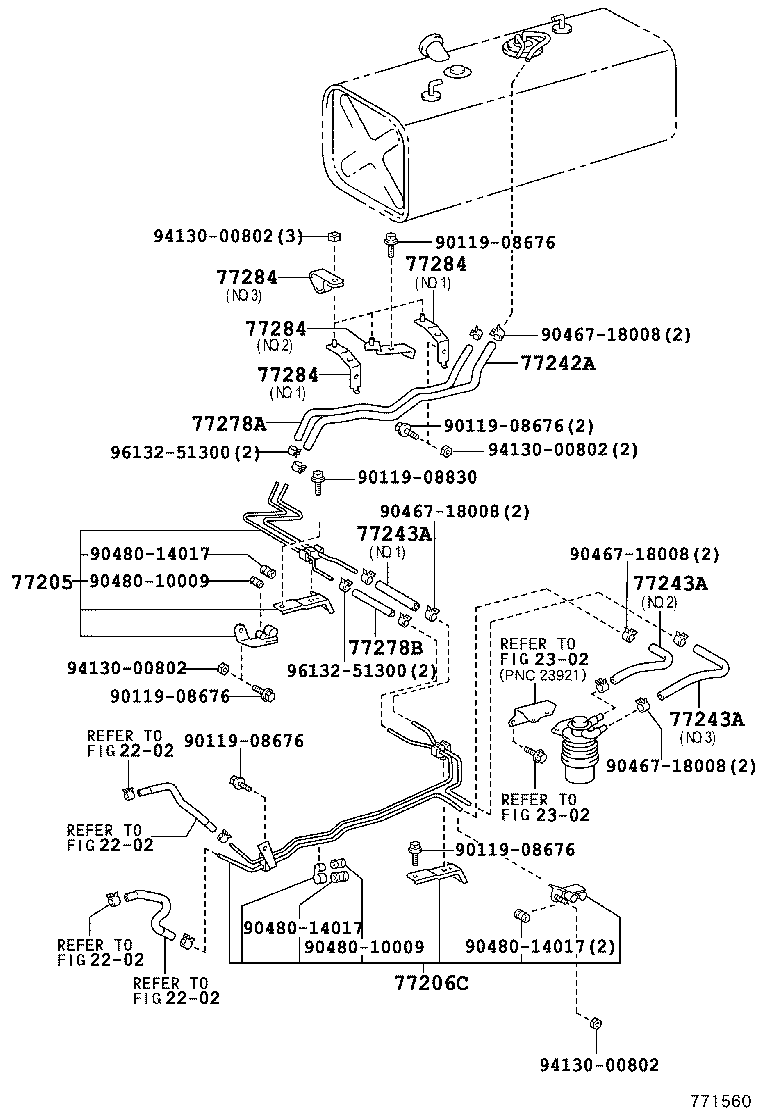

ILLUST NO. 2 OF 2(0406- )XZU388..SCB
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37820 |
XZU388 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A50 |
XZU368,378,388..SCB |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12085 |
XZU388 *H,L=850,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08100 |
XZU388 *H,L=850,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37150 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.2 |
1 | ||
| 90034-61051 |
XZU34#;XZU388..SCB;XZU388..T3..20T..IV3 NO.3 |
3 | ||
| 77281-37140 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.1 |
2 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37150 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.2 |
1 | ||
| 90034-61051 |
XZU34#;XZU388..SCB;XZU388..T3..20T..IV3 NO.3 |
3 | ||
| 77281-37140 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.1 |
2 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37150 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.2 |
1 | ||
| 90034-61051 |
XZU34#;XZU388..SCB;XZU388..T3..20T..IV3 NO.3 |
3 | ||
| 77281-37140 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.1 |
2 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37150 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.2 |
1 | ||
| 90034-61051 |
XZU34#;XZU388..SCB;XZU388..T3..20T..IV3 NO.3 |
3 | ||
| 77281-37140 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.1 |
2 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 2(0406- )6FC..30T..4NO ; (0406- )XZU33#,34#,388..T3,T4..CBU,IV3
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37221 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77001-37222 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4) |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T) |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7) |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91626-40616 | ||||
| 91642-81025 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||

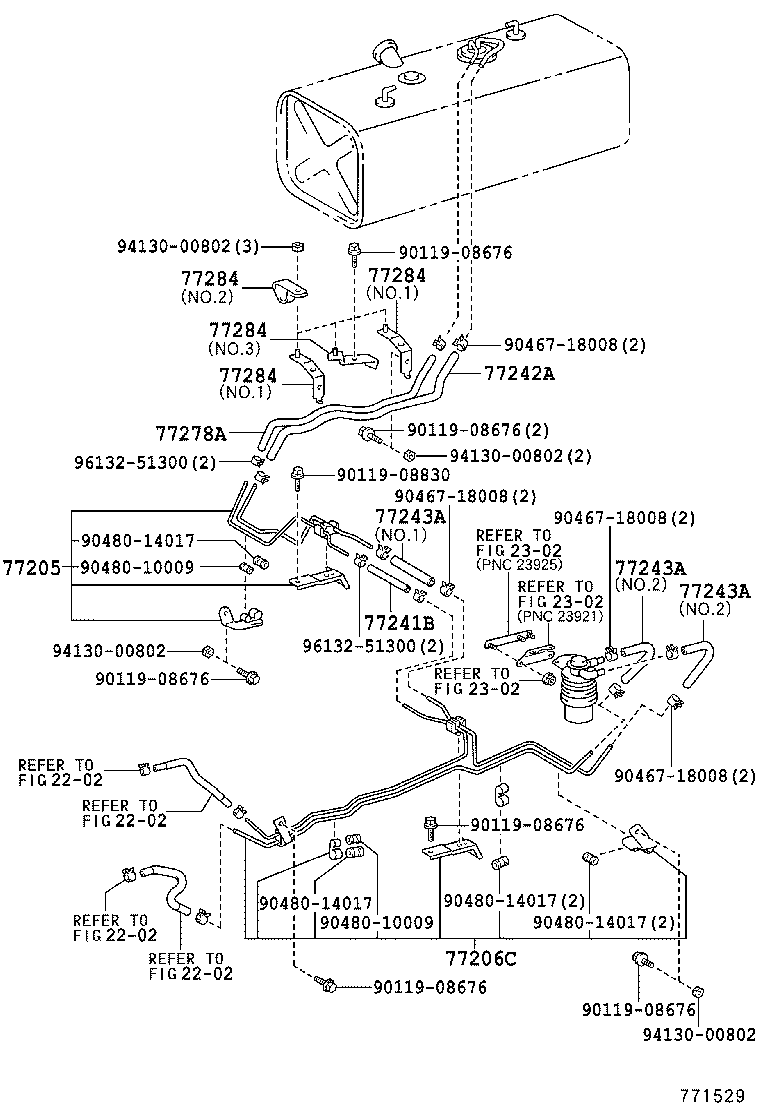

ILLUST NO. 2 OF 2(0406- )XZU308,33#,354..SCB..T3,T4 ; (0406-)XZU301..6FC..20T..IV3..1NO ; (04
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37820 |
XZU388 |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37820 |
XZU388 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A50 |
XZU368,378,388..SCB |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37A50 |
XZU368,378,388..SCB |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12085 |
XZU388 *H,L=850,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12085 |
XZU388 *H,L=850,内径=12 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-12085 |
XZU388 *H,L=850,内径=12 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-12020 |
XZU368,378,388..SCB *H,L=200,内径=12,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12016 |
XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV4,IV7) *H,L=160,内径=12,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 95332-12026 |
XZU368,378,388..SCB *H,L=260,内径=12,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08100 |
XZU388 *H,L=850,内径=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08100 |
XZU388 *H,L=850,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-08020 |
XZU30#,31#,321,33#,34#,35#,368,378,388 *H,L=160,内径=7.6 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77281-37150 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.2 |
1 | ||
| 90034-61051 |
XZU34#;XZU388..SCB;XZU388..T3..20T..IV3 NO.3 |
3 | ||
| 77281-37140 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 NO.1 |
2 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 1 OF 2(0406- )XZU306,308,378..SCB..T3,T4,T5..CBU,IV3 ; (0406- )XZU31#,321,33#,34#,3
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-37010 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T) |
1 | ||
| 77017-37010 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU33#,34#,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..(DM3,DM5,DM6,DM7,T1,T2,T3,T5)..(20T,30T) |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-37050 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5 |
1 | ||
| 77018-37050 |
XZU378..SCB;XZU306,378..IV4,IV6;XZU301,304..T4..30T;XZU346,348,368..DM5,T3,T4;XZU33#,341,344,35#,388..DM2,T2,T3,T4;XZU30#,31#,321..DM3,DM5,DM6,DM7,T2,T3,T5 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 95333-08030 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T *H,L=280,内径=7.6 |
2 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90105-12116 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 90430-12245 |
RZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..DCRL,DSL,DSLL,EFI |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37221 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77001-37221 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77001-37222 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77001-37222 |
XZU378..SCB;XZU33#,34#,388..(T3,T4)..(CBU,IV3) 960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L) |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77135-37071 |
XZU346..IV3;XZU388..SCB;XZU341,344..T3..IV3;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU341,344,348..T2,T4 |
1 | ||
| 77197 - ORIFICE, FUEL VAPOR | ||||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 90977-02001 |
XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 77244C - JOINT, FUEL TUBE, NO.2 | ||||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77244-37010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-36150 |
XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4) |
2 | ||
| 77601-36150 |
XZU346..IV3;XZU378..IV4;XZU378,388..SCB;XZU334..20T,40T;XZU346..(T2,T4)..CBU;XZU388..T3..20T..IV3;XZU304..T4..DCRL..CBU;XZU334..30T..(IV3,IV4);XZU304,351..(DM5,T5)..5F..IV3;XZU304..(DM6,T3,T4)..DCRL..(IV3,IV7);XZU301,306,308,331,341,344,354..(T3,T5)..(IV3,IV6);XZU304,351..(DM2,DM6,T1,T3,T4)..(20T,30T)..(DSL,DSLL);XZU301,305,306,308,31#,321,331,336,338,341,344,348,368..SCB..(DM3,DM5,DM6,DM7,T2,T4) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77629-36010 |
XZU378..IV4;XZU306,308,378..SCB;XZU301,304,305,31#,321,33#,34#,35#,368,388..20T,30T,35T,40T |
2 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T) |
2 | ||
| 77616-36030 |
XZU306..IV6;XZU378..SCB;RZU300,XZU378..(DM5,T3)..(DSLL,EFI);RZU340,XZU305,31#,321,33#,34#,368,388;RZU300,XZU301,304..T4..30T..(DSL,DSLL,EFI);XZU301,304,306,308,35#..(DM2,DM3,DM6,T1,T2,T3,T5)..(20T,30T,40T) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7) |
2 | ||
| 77501-37080 |
XZU306..IV6;XZU346..IV3;XZU341,344..T4;XZU334..20T,40T;XZU304..T5..IV3;XZU301..DM3,DM6;XZU304,331..T4..30T;XZU301..T4..30T..CBU;XZU346..(T2,T4)..CBU;XZU304..SCB..(DM6,T1,T3)..(DSL,DSLL);XZU301,334..(T3,T4,T5)..30T..(IV3,IV6);XZU306,308,35#..(DM2,T2,T3)..(CBU,IV6);XZU305,31#,321,336,338,348,378,388..SCB;XZU301,306,308,388..(T2,T3,T5)..20T..IV3;XZU304,331,341,344..(DM6,T3)..(DCRL,DSL)..(IV3,IV7) |
2 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06040 |
XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400 |
1 | ||
| 95333-06040 |
XZU378..IV4;XZU351..5F..IV3;XZU346,348..T3,T4;XZU306,308,35#,378..SCB..(DM2,T2,T3,T4,T5);XZU301,304,305,31#,321,33#,341,344,368,388..DM3,DM5,DM6,DM7,T2,T3,T4,T5 *H,L=400 |
1 | ||
| Common parts | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91642-81025 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 1 OF 2(0406-0610)DCR ; (0406- )DCRL,DSL,DSLL
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08249 | ||||
| 90179-10015 | ||||
| 91611-B0616 | ||||
| 91626-40616 | ||||
| 91641-80825 | ||||
| 91642-81030 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 2(0406- )XZU388,488
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90467-18008 | ||||
| 90480-10009 | ||||
| 90480-14017 | ||||
| 94130-00802 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
