XZU388-TQMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0406- )BZU300,340,XZU334..5F..CNG,DSLL ; (0406- )RZU301,XZU301,304,331,334,3

Click highlighted areas on diagram

diagram 51436B 51473A 51474 51480 9046709189 91651B0814 91651B0825 91651B0825 91651B0825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368

 2
51436-37080

XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37200

XZU378,388..SCB;XZU306,308,336,338,346,348,368

 1
51473-37200

XZU378,388..SCB;XZU306,308,336,338,346,348,368

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37091

XZU306,308,336,338,346,348,368,378,388

 1
51474-37091

XZU306,308,336,338,346,348,368,378,388

 1
Common parts
90467-09189
91651-B0814
91651-B0825

ILLUST NO. 2 OF 2(0406- )

Click highlighted areas on diagram

ﾌﾂｸ

diagram 51961C 51962 51962 51963B 51964B 51968C 9017814007 91645C1032 9167201460 9167201460 9167201460 9413001002 9413001402 9413001432 9462241400
Part # Description Qty Price
51961C - HOOK, FRONT
51961-37070

BZU340,RZU30#,XZU378,388..(DM5,T2,T4)..20T;BZU300,RZU340,XZU301,304,306,308,321,334,336,338,34#,35#,368..(03S,06S,DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(175T,20T)

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
51962 - HOOK, NO.2
51961-36040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51962 - HOOK, NO.2
51961-36040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-37030

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-37040

BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388

 1
Common parts
90178-14007
91645-C1032
91672-01460
94130-01002
94130-01402
94130-01432
94622-41400

ILLUST NO. 1 OF 2(0406- )XZU368,378,388..DCRL

Click highlighted areas on diagram

diagram 51436B 51473A 51474 51480 53343B 53343B 53345C 55827A 9011908C42 9011908C42 9017908113 9017908113 9046709189 91651B0814 91651B0825 91651B0825
Part # Description Qty Price
51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH
51436-37080

XZU378,388..SCB;BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37200

XZU378,388..SCB;XZU306,308,336,338,346,348,368

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37091

XZU306,308,336,338,346,348,368,378,388

 1
53343B - BRACKET, AIR DEFLECTOR, NO.1
53343-37020

XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)

 2
53343B - BRACKET, AIR DEFLECTOR, NO.1
53343-37020

XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)

 2
53345C - BRACKET, AIR DEFLECTOR, NO.2
53345-37030

XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)

 1
55827A - DUCT, VENTILATOR AIR GUIDE
55827-37050

XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)

 1
55827-37051

XZU304,305,314,334,344,354,368,378,388..(DCRL,DSLL)..(CBU,IV3,IV6,IV7)

 1
Common parts
90119-08C42
90179-08113
90467-09189
91651-B0814
91651-B0825

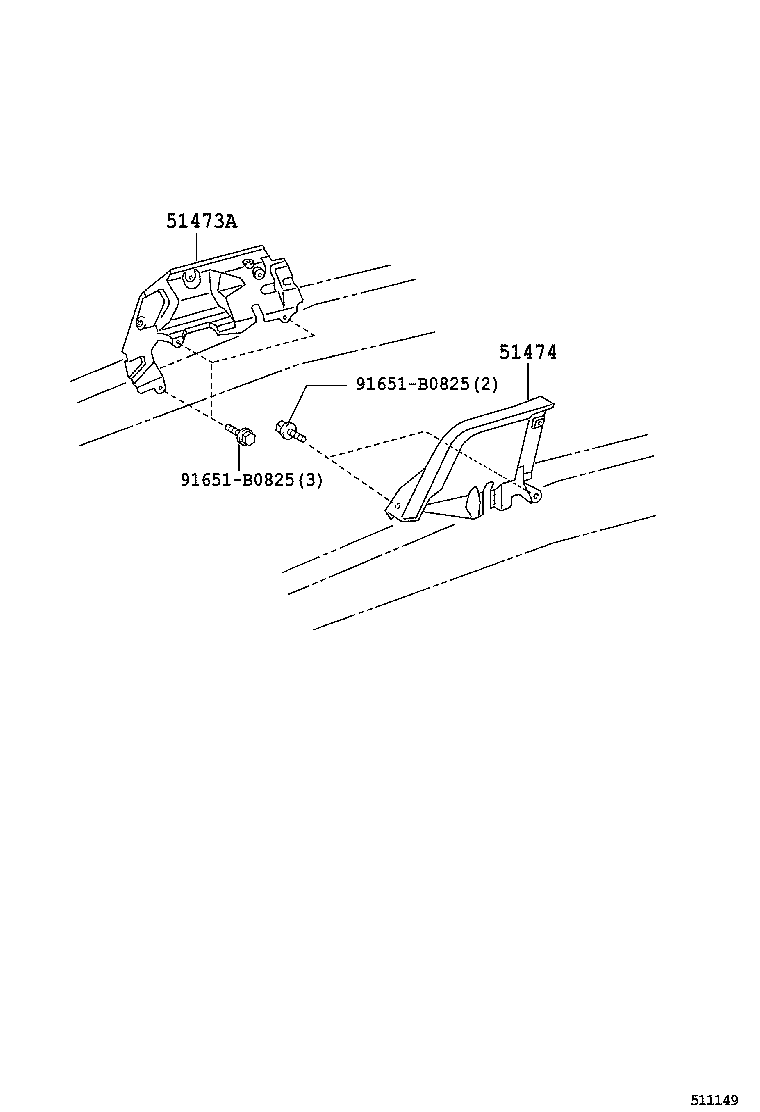

ILLUST NO. 1 OF 2(0406- )XZU388,488

Click highlighted areas on diagram

diagram 51473A 51474 91651B0825 91651B0825
Part # Description Qty Price
Common parts
91651-B0825
