Toyota Dyna/toyoace XZU388 BRAKE BOOSTER & VACUUM TUBE

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU388-TQMMW3 (2004)
4703 - BRAKE BOOSTER & VACUUM TUBE

XZU388-TQMMW3 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

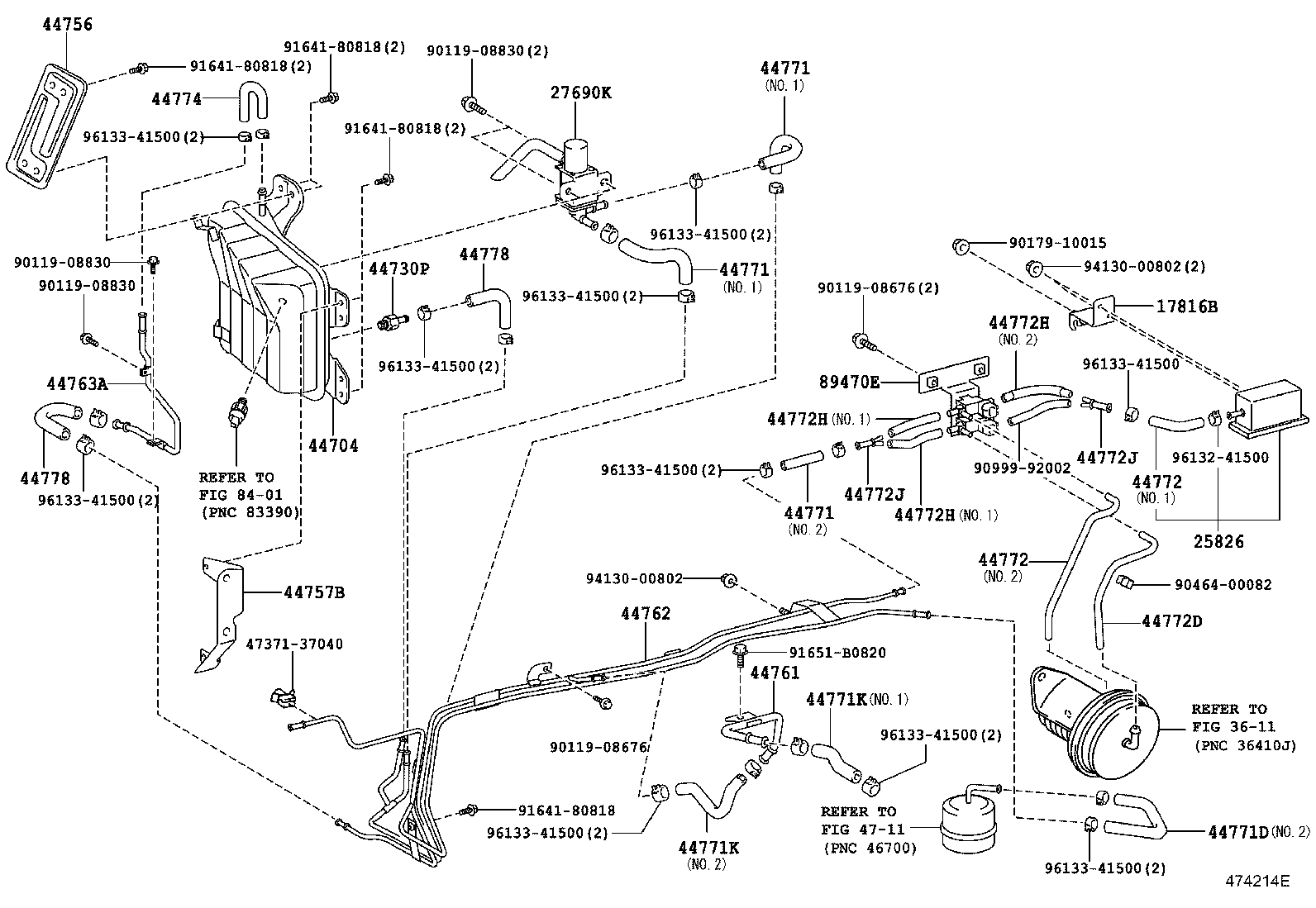

ILLUST NO. 2 OF 2(0406- )XZU368,378,388..SCB

Click highlighted areas on diagram

Part #	Description	Period	Qty
17816B - BRACKET, AIR FILTER, NO.1
17816-78010	N04C..XZU368,378,388	06/2004 - 10/2006	1
25826 - FILTER, NO.1
25826-78011	N04C..XZU368,378,388	06/2004 - 10/2006	1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78023	N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37161	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 07/2006	1
44704-37162	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	08/2006 - 10/2006	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 07/2006	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37271	XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6	06/2004 - 09/2006	1
44762 - TUBE, BOOSTER VACUUM
44702-37170	XZU368,378,388..SCB	06/2004 - 10/2006	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-37520	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XZU368,378,388..SCB	06/2004 - 10/2006	2
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XZU368,378,388..SCB	06/2004 - 10/2006	2
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37650	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37120	XZU368,378,388 NO.2	06/2004 - 10/2006	1
44772-37080	XZU368,378,388 NO.1	06/2004 - 10/2006	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-37120	XZU368,378,388 NO.2	06/2004 - 10/2006	1
44772-37080	XZU368,378,388 NO.1	06/2004 - 10/2006	1
44772D - HOSE, CHECK VALVE TO ACTUATOR
44772-37130	XZU368,378,388	06/2004 - 10/2006	1
44772H - HOSE, CHECK VALVE TO 3 WAY
44772-37140	XZU368,378,388 NO.1	06/2004 - 10/2006	2
44772-37160	XZU368,378,388 NO.2	06/2004 - 10/2006	1
44772H - HOSE, CHECK VALVE TO 3 WAY
44772-37140	XZU368,378,388 NO.1	06/2004 - 10/2006	2
44772-37160	XZU368,378,388 NO.2	06/2004 - 10/2006	1
44772H - HOSE, CHECK VALVE TO 3 WAY
44772-37140	XZU368,378,388 NO.1	06/2004 - 10/2006	2
44772-37160	XZU368,378,388 NO.2	06/2004 - 10/2006	1
44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
90413-05007	XZU368,378,388	06/2004 - 10/2006	2
44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE)
90413-05007	XZU368,378,388	06/2004 - 10/2006	2
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44771-37600	XZU368,388	06/2004 - 10/2006	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44771-37730	XZU368,378,388	06/2004 - 10/2006	1
89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1
89470-37091	XZU368,378,388	06/2004 - 10/2006	1
Common parts
47371-37040
90119-08676
90119-08830
90179-10015
90464-00082
90999-92002
91641-80818
91642-K1020
91651-B0820
94130-00802
96132-41500
96133-41500
Linked diagrams
3611
4711
8401

ILLUST NO. 1 OF 2(0406- )XZU368,378,388

Click highlighted areas on diagram

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-37171	BZU300,340,RZU30#,340,XZU30#,321,334,336,338,34#,35#,368,378,388..175T,20T ｱﾘ(ABS)	06/2004 - 12/2999	1
44621V - SEAL, BOOSTER BODY
44621-36070	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	1
44730B - CLAMP, VACUUM HOSE
44597-37020	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 03/2005	1
44597-37021	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	04/2005 - 12/2999	1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388	06/2004 - 12/2999	1
44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR
44762-37290	XZU368,378,388	06/2004 - 10/2006	1
44768 - TUBE, BOOSTER VACUUM
44768-37110	XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB	06/2004 - 12/2999	1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37170	XZU304,306,308,334,346,378,388;BZU300,340,RZU30#,340,XZU301,305,31#,321,331,336,338,341,344,348,35#,368..SCB 長さ=380	06/2004 - 12/2999	1
44799 - WAY, BRAKE VACUUM HOSE
44799-37010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..5F	06/2004 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010	BZU300,340,RZU30#,340,XZU30#,31#,321,33#,34#,35#,368,378,388..175T,20T,30T	06/2004 - 12/2999	1
Common parts
47371-37040
90179-08038
90179-10065
90464-00549
90480-22022
91611-B0816
96132-40700
96133-41500
Linked diagrams
3104
4702
8414

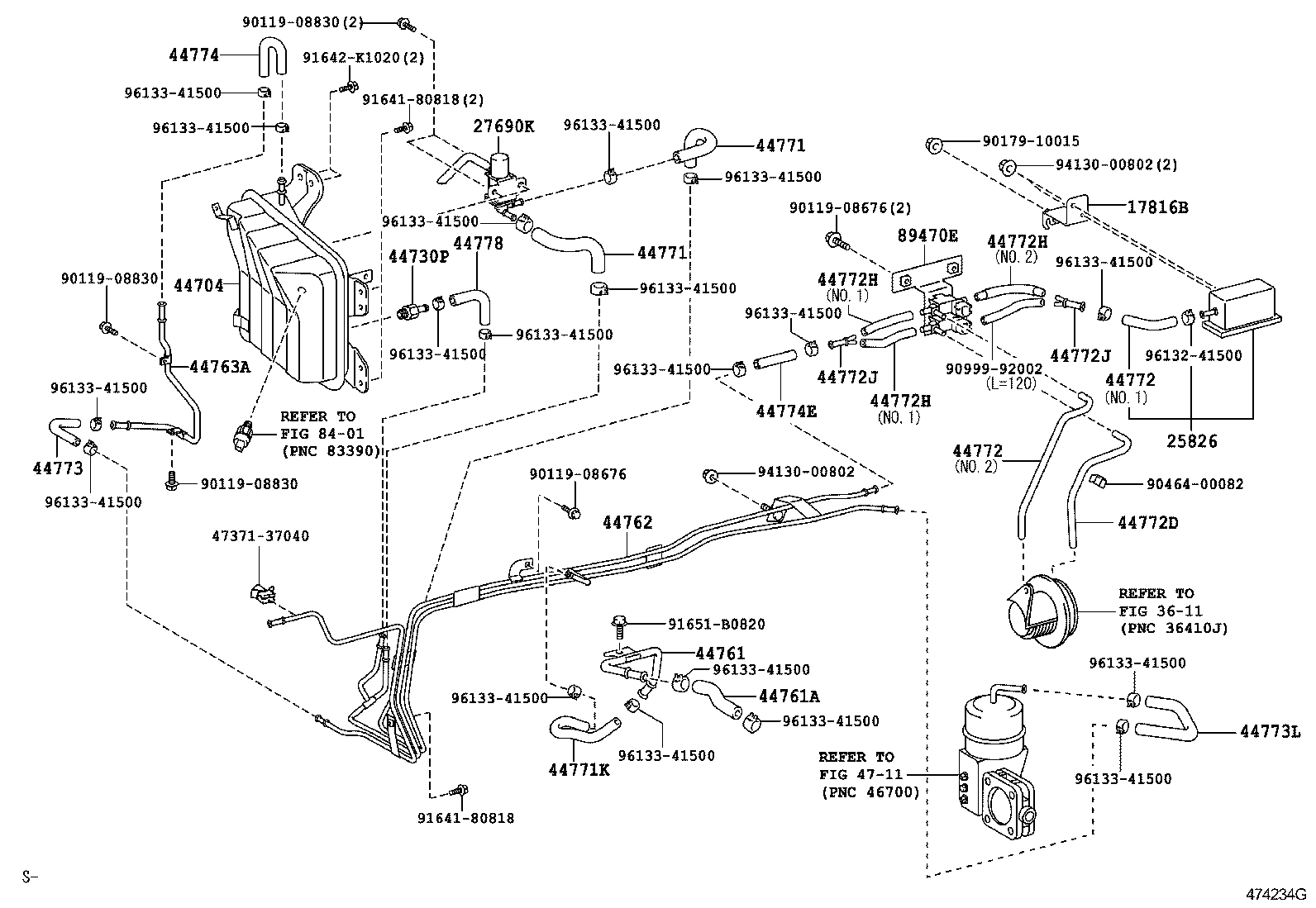

ILLUST NO. 2 OF 2(0406- )XZU304..T4..20T..IV3 ; (0406- )XZU341..T4..30T..IV3 ; (0406- )XZU3

Click highlighted areas on diagram

ﾀﾞﾝﾌﾟ OR ﾚｲﾄｳｼｬ OR ﾎﾞﾄﾙｶｰ

Part #	Description	Period	Qty
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78023	N04C,S05D..XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37161	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 07/2006	1
44704-37162	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	08/2006 - 10/2006	1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050	BZU300,340,XZU30#,31#,321,33#,34#,35#,368,378,388..SCB	06/2004 - 07/2006	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37271	XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6	06/2004 - 09/2006	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37271	XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6	06/2004 - 09/2006	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37271	XZU304,305,308,314,334,338,344,348,354,368,378,388..CBU,IV3,IV6	06/2004 - 09/2006	1
44762 - TUBE, BOOSTER VACUUM
44702-37170	XZU368,378,388..SCB	06/2004 - 10/2006	1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-37520	XZU301,304,306,308,31#,321,33#,34#,35#,368,378,388..SCB..(DM2,DM3,DM5,DM7,T1,T2,T3,T4,T5)..(CBU,IV3,IV7)	06/2004 - 10/2006	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37540	XZU368,378,388..SCB	06/2004 - 10/2006	2
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37650	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37650	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37650	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44771-37600	XZU368,388	06/2004 - 10/2006	1
Common parts
90034-68028
90119-08676
90119-08830
91641-80818
91642-K1020
91651-B0820
94130-00802
96133-41500
Linked diagrams
4711
8401

ILLUST NO. 1 OF 2(0406- )CNG,DCR,DCRL,DSL,DSLL,LPG

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
90179-08038
90179-10065
90461-08642
90464-00549
90466-15003
90480-22022
91611-B0816
94130-00802
96132-40700
96133-41500

ILLUST NO. 2 OF 2(0406- )SCB..MTM..CNG,DCR,DCRL,DSL,DSLL,LPG

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90034-68028
90119-08830
90461-08385
91641-80818
91651-B0820
94130-00802
96133-41500
Linked diagrams
8401

ILLUST NO. 2 OF 2(0406- )XZU388

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
47371-37040
90119-08676
90119-08830
90179-10015
90464-00082
90999-92002
91641-80818
91651-B0820
94130-00802
96132-41500
96133-41500
Linked diagrams
3611
4711
8401
