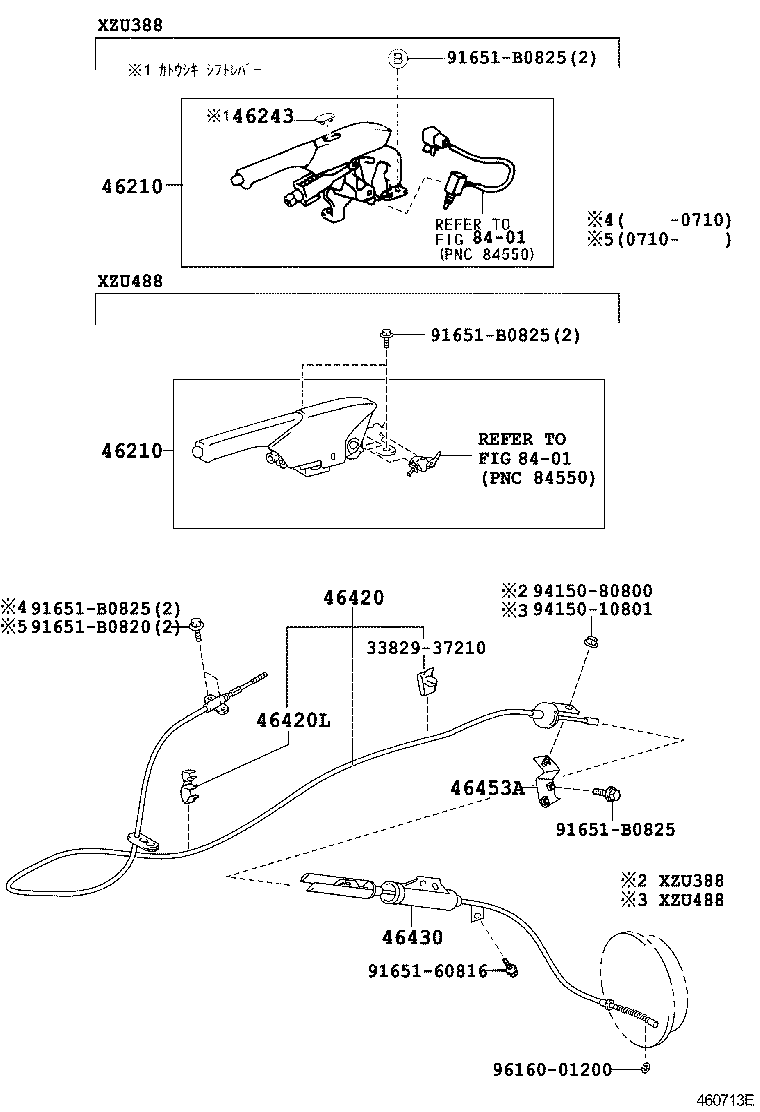

Toyota Dyna/toyoace XZU388 PARKING BRAKE & CABLE

Part #	Description	Period	Qty
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-37510	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-37740	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37220	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-37220	XZU368,378,388..CBU,IV3	06/2004 - 10/2006	1
Common parts
33829-37210
91651-60816
91651-B0825
94150-80800
Linked diagrams
8401

Part #	Description	Period	Qty
46405A - SCREW SET, SHOE ADJUSTING, RH
SU002-00289	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46501 - DRUM SUB-ASSY, PARKING BRAKE
46511-37080	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM)
SU002-00302	XZU368,378,388	06/2004 - 10/2006	4
46503C - PLATE SUB-ASSY, PARKING BRAKE
SU002-00296	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46524 - COVER, PARKING BRAKE DUST
46524-37030	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
SU002-00286	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
SU002-00286	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
SU002-00287	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	2
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
SU002-00287	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	2
46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE)
SU002-00299	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
SU002-00288	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN)
SU002-00291	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46555 - SPRING, BRAKE SHOE HOLD DOWN
SU002-00290	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	2
46556 - PIN, SHOE HOLD DOWN SPRING
SU002-00297	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	2
46557 - CUP, BRAKE SHOE HOLD DOWN
SU002-00303	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	4
46557 - CUP, BRAKE SHOE HOLD DOWN
SU002-00303	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	4
46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE
SU002-00293	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46612 - STRUT, PARKING BRAKE SHOE LEVER
SU002-00294	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
SU002-00295	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
SU002-00292	XZU31#,321,35#,368,378,388..5F..(20T,30T)	06/2004 - 10/2006	1
Common parts
90119-06931
90177-12003
96160-01200
Linked diagrams
3305
3609
3701

XZU388-TQMMW3 (2004)

ILLUST NO. 1 OF 2(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T

ILLUST NO. 2 OF 2(0406- )XZU31#,321,35#,368,378,388..5F..20T,30T

ILLUST NO. 2 OF 2(0406- )BZU410,XZU401,411,414,421,424..5F,6FC..30T,35T..CNG,DCRL,DSL,LPG ; (0610

ILLUST NO. 1 OF 2(0406- )XZU388,488

ILLUST NO. 2 OF 2(0406- )XZU388,404,414,415,424..MTM..DCR,DCRL,DSLL ; (0610- )XZU404,414,424,4
