XZU388-TQMMW3 (2004)
Toyota Dyna/Toyoace

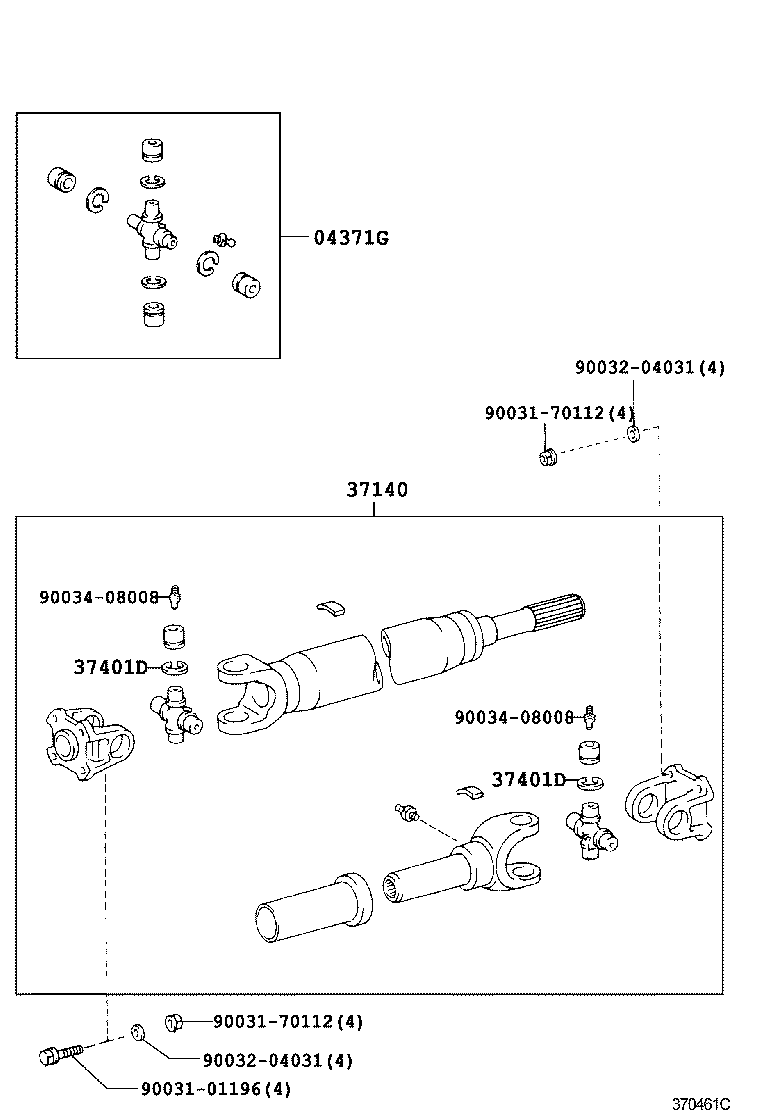

(0406- )XZU368,378,388..IV3
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371G - SPIDER KIT, FRONT PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04375-37010 |
XZU368,378,388 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37110-37A50 |
XZU368,378,388..CBU,IV3 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-01196 |
XZU368,378,388 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZU368,378,388 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90031-70112 |
XZU368,378,388 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZU368,378,388 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90032-04031 |
XZU368,378,388 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZU368,378,388 厚さ=1.53 |
8 | ||
| 90035-21033 |
XZU368,378,388 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZU368,378,388 厚さ=1.59 |
8 | ||
| 90035-21036 |
XZU368,378,388 厚さ=1.62 |
8 | ||
| 90035-21037 |
XZU368,378,388 厚さ=1.68 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90035-21034 |
XZU368,378,388 厚さ=1.53 |
8 | ||
| 90035-21033 |
XZU368,378,388 厚さ=1.50 |
8 | ||
| 90035-21035 |
XZU368,378,388 厚さ=1.59 |
8 | ||
| 90035-21036 |
XZU368,378,388 厚さ=1.62 |
8 | ||
| 90035-21037 |
XZU368,378,388 厚さ=1.68 |
8 | ||
| Common parts | ||||
| 90034-08008 | ||||

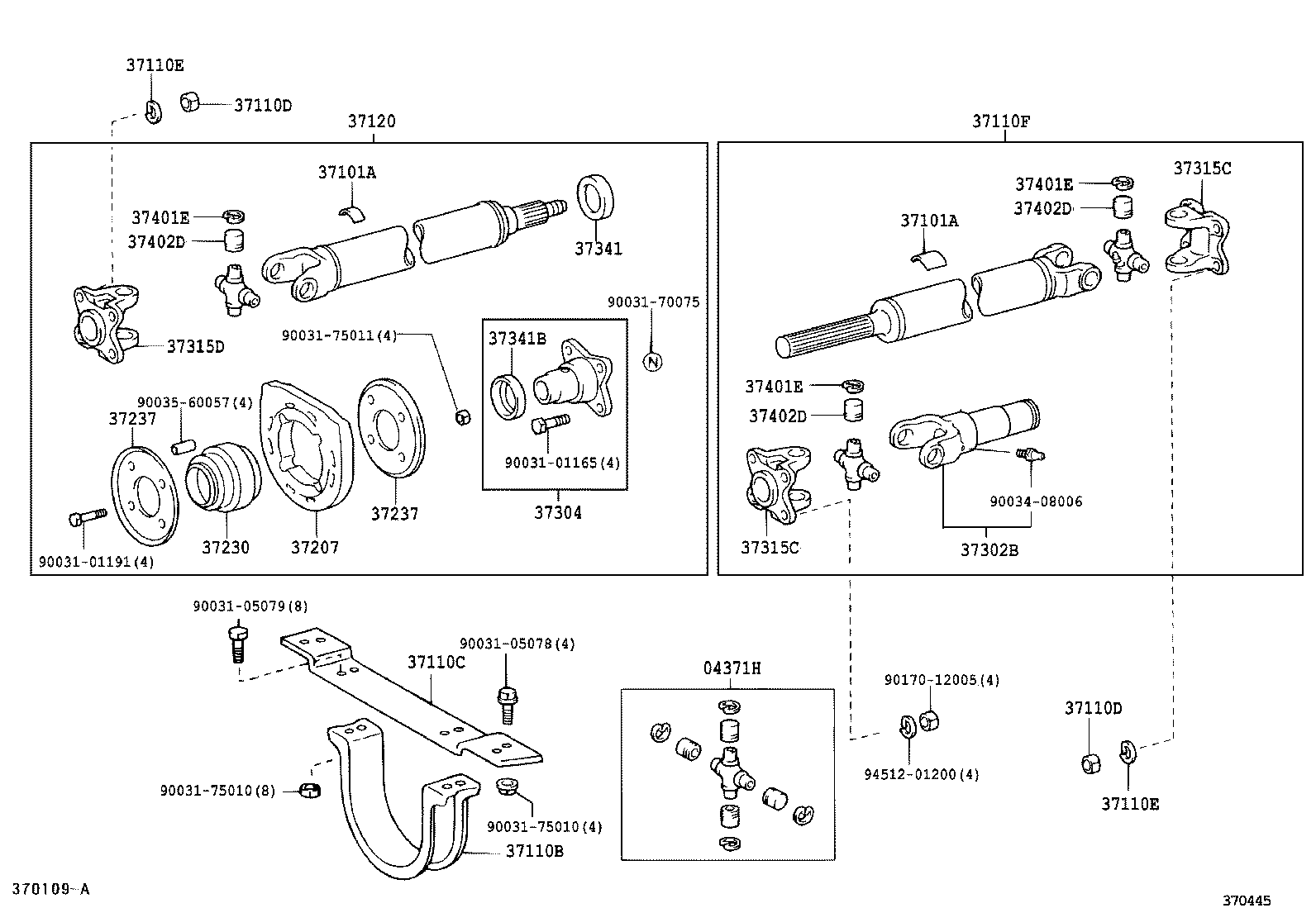

(0406- )BZU340,XZU341,344,346,388
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51241-37060 |
BZU340,XZU344,388 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37880 |
XZU388 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37400 |
XZU388 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37010 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
BZU340,XZU341,344,346,388 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37010 |
BZU340,XZU341,344,346,388 厚さ=3.0 |
2 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37020 |
BZU340,XZU341,344,346,388 |
1 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05078 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 94512-01200 | ||||

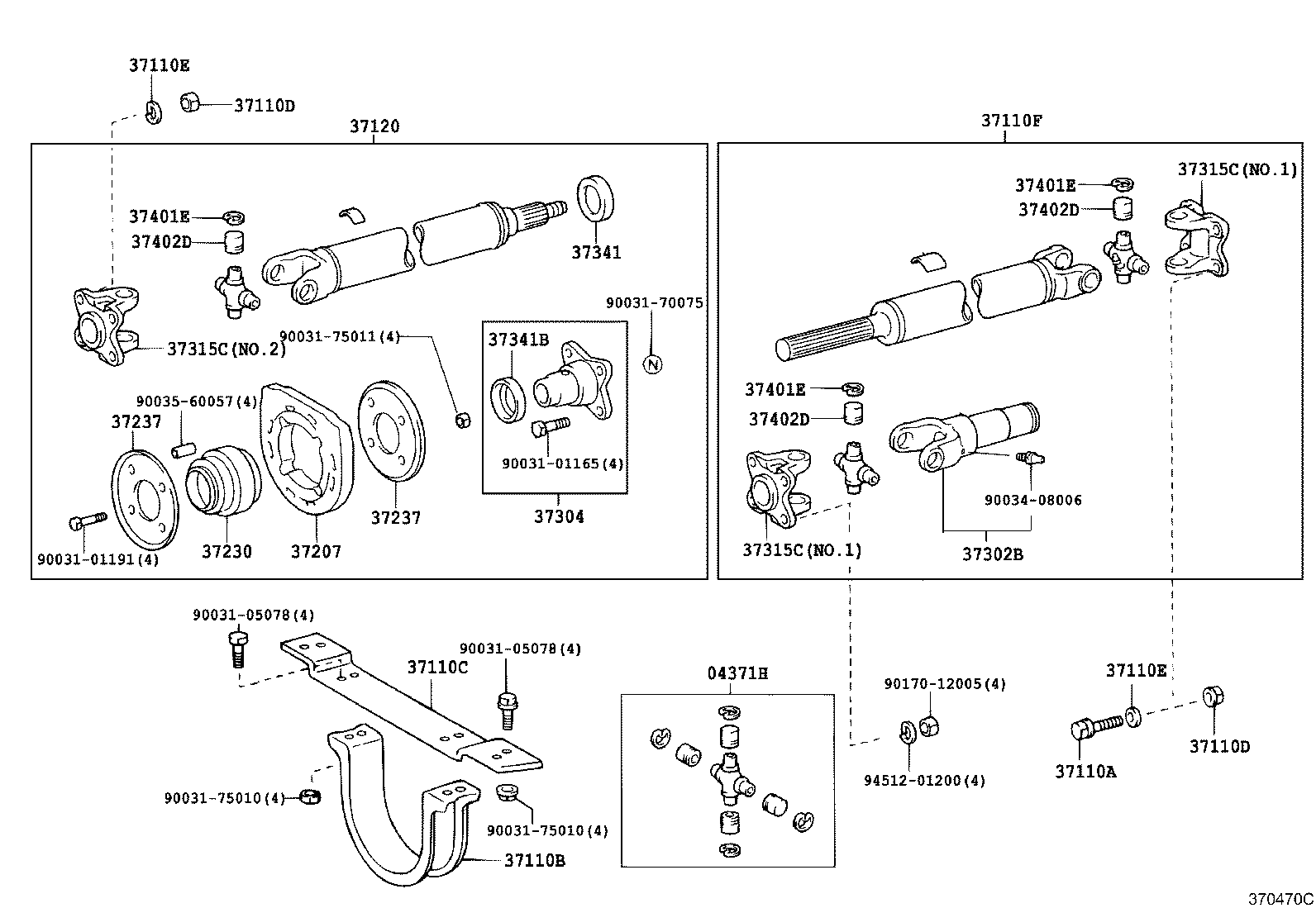

(0406- )XZU301..T4..30T ; (0406- )XZU301..6FC..20T..4NO ; (0406- )XZU306,3
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 04371-37011 |
XZU301..DM3..20T..CBU;XZU301..6FC..20T..4NO;XZU301..30T..(CBU,IV6);XZU301..(DM6,T5)..20T..WT;XZU306,336..(03S,T2)..6FC;XZU301..(T3,T4,T5)..30T..IV3;XZU306,336..(T4,T5)..(CBU,IV3);XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
3 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 90170-12005 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 94512-01200 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37880 |
XZU388 |
1 | ||
| 37110-37880 |
XZU388 |
1 | ||
| 37302B - YOKE SUB-ASSY, RR PROPELLER SHAFT UNIVERSAL J0INT SLEEV | ||||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37302-37021 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37031 |
XZU31#,321,35#,368,378,388..5F..(20T,30T) NO.2 |
1 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37315-37021 |
XZU368,388 NO.1 |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21024 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.60 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21023 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.55 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21026 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.70 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21025 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.65 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 90035-21022 |
XZU301..T4..30T;XZU306,336..T4,T5;XZU301..6FC..20T..4NO;XZU306,336..(03S,T2)..6FC;XZU301..(DM3,DM6,T3,T5)..WT;XZU311,321,331,341,346,351,368,378,388;BZU300,340,XZU304,305,314,334,344,354..CNG,DCRL,DSLL,LPG 厚さ=1.50 |
8 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402D - BEARING, REAR PROPELLER SHAFT UNIVERSAL JOINT SPIDER | ||||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| 37402-37020 |
BZU340,XZU341,344,346,388 |
12 | ||
| Common parts | ||||
| 90034-08006 | ||||
(0406-0610)XZU388,42#
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-05078 | ||||
| 90031-05079 | ||||
| 90031-70075 | ||||
| 90031-75010 | ||||
| 90031-75011 | ||||
| 90034-08006 | ||||
| 90035-60057 | ||||
| 90170-12005 | ||||
| 94512-01200 | ||||
(0406-0610)XZU388 ; (0610- )XZU488
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-01196 | ||||
| 90031-70112 | ||||
| 90032-04031 | ||||
| 90034-08008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
