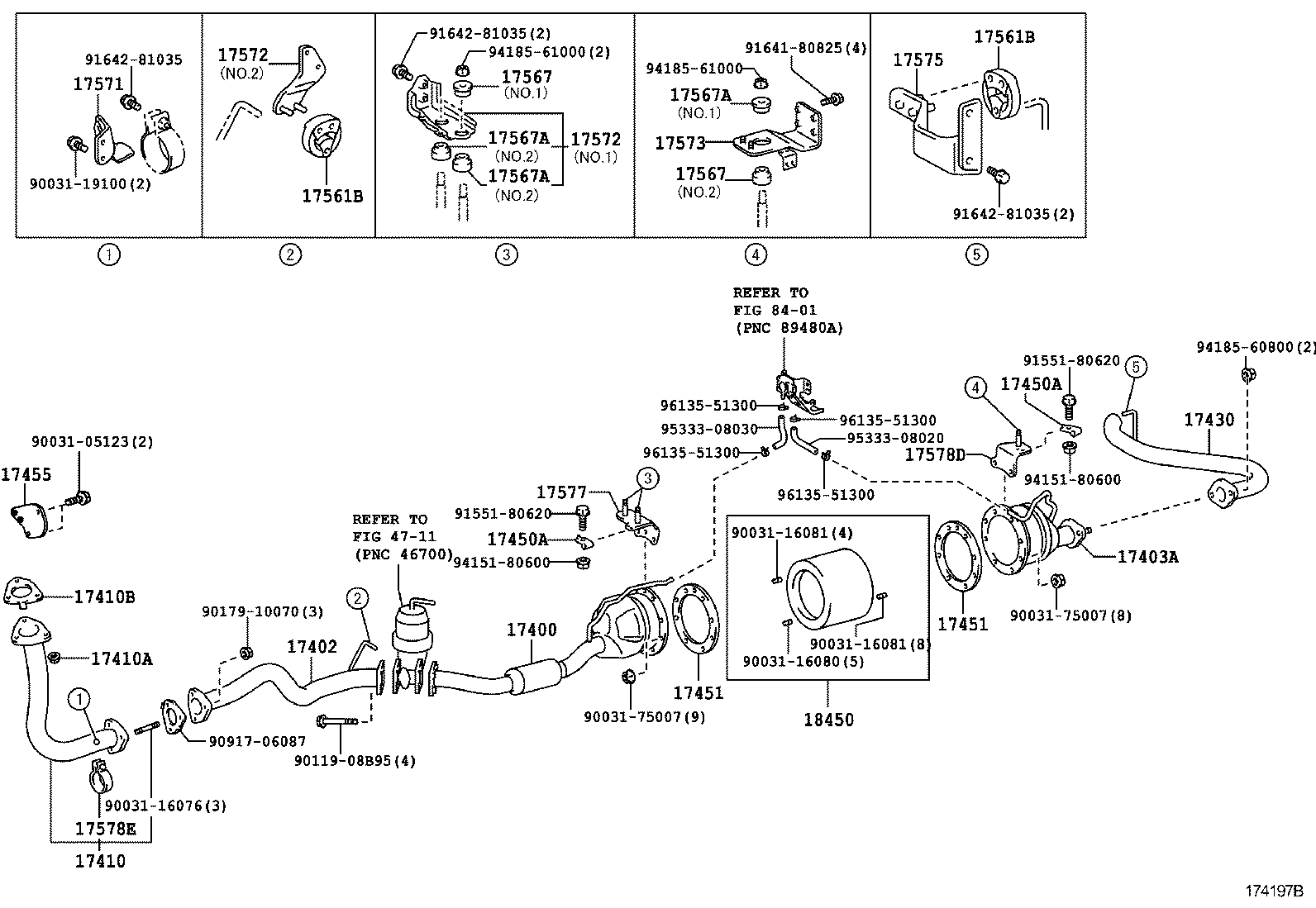

XZU388-TQMMW3 (2004)
Toyota Dyna/Toyoace
(0406- )N04C..XZU388
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 17406-78190 |
N04C..XZU388..DCRL |
1 | ||
| 17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2 | ||||
| 17402-78010 |
N04C..XZU368,388 |
1 | ||
| 17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2 | ||||
| 17403-78580 |
N04C..XZU304..SCB..DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C..XZU314,334,344,354,388..(DCRL,DSLL)..(CBU,IV3) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-78240 |
N04C..XZU368,378,388..DCRL |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#,3RZ#..BZU300,340,RZU30#,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06087 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78840 |
N04C,S05D..XZU301,304,388..(T3,T4)..(CBU,IV3,IV7)..1NO |
1 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17450A - CLAMP, EXHAUST PIPE, NO.5 | ||||
| 17589-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17589-78021 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-78020 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388 |
2 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388 |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
S05D..XZU301..20T..IV6;N04C,S05D..XZU301,354..CBU,IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,368,378,388 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.1 |
2 | ||
| 17567-78040 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.2 |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78030 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.1 |
2 | ||
| 17567-78040 |
N04C..XZU354;N04C..XZU378..IV4;S05D..XZU301..CBU,IV6;S05D..XZU301..(DM6,T3,T4,T5)..IV3;N04C,S05D..XZU304,305,306,308,31#,321,33#,34#,351,388..CBU,IV3,IV7 NO.2 |
1 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17567-78030 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.1 |
1 | ||
| 17567-78040 |
N04C..XZU378..IV4;N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..CBU,IV3,IV6,IV7 NO.2 |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-78080 |
N04C..XZU368,378,388 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78250 |
N04C..XZU388 NO.2 |
1 | ||
| 17572-78210 |
N04C..XZU388 NO.1 |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-78250 |
N04C..XZU388 NO.2 |
1 | ||
| 17572-78210 |
N04C..XZU388 NO.1 |
1 | ||
| 17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER | ||||
| 17573-78200 |
N04C,S05D..XZU30#,354,388..(03S,06S,DM3,DM6,T2,T3,T4,T5)..WT |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-78210 |
N04C,S05D..XZU34#,388;N04C,S05D..XZU301,304..T5..ST;N04C..XZU304..(T1,T3)..(CBU,IV3,IV7);N04C,S05D..XZU301,331,334..(30T,40T)..(CBU,IV3)..1NO |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78070 |
N04C..XZU388;N04C..XZU378..IV4;S05D..XZU301,306,331,336,341,346,351..6FC |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78100 |
N04C,S05D..XZU30#,31#,321,33#,34#,35#,388..(4FC,5F)..(CBU,IV3,IV6,IV7) |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D,1BZ#..BZU300,340,XZU301,306,308,31#,321,33#,34#,35#,368,378,388 |
1 | ||
| 18450 - CONVERTER ASSY, MONOLITHIC | ||||
| 18450-78020 |
N04C..XZU378..IV4;N04C..XZU304..DSL,DSLL;N04C..XZU304..(T3,T4,T5)..DCRL;N04C,S05D..XZU301,306,308,31#,321,33#,34#,35#,388 |
1 | ||
| Common parts | ||||
| 90031-16076 | ||||
| 90031-16080 | ||||
| 90031-16081 | ||||
| 90031-19100 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 90179-10070 | ||||
| 90917-06087 | ||||
| 91551-80620 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||

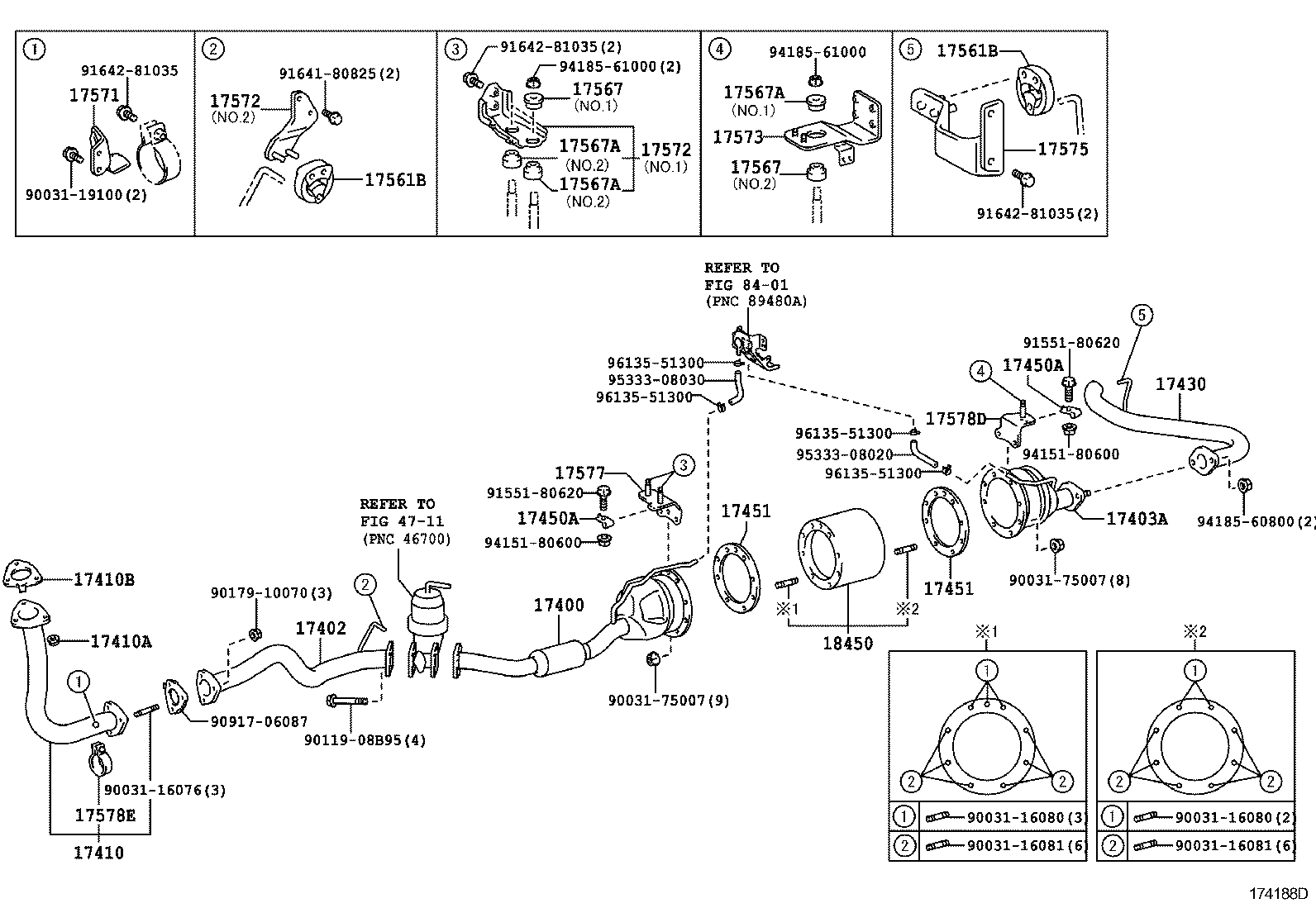

(0406- )N04C..XZU388
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05123 | ||||
| 90031-16076 | ||||
| 90031-16080 | ||||
| 90031-16081 | ||||
| 90031-19100 | ||||
| 90031-75007 | ||||
| 90119-08B95 | ||||
| 90179-10070 | ||||
| 90917-06087 | ||||
| 91551-80620 | ||||
| 91641-80825 | ||||
| 91642-81035 | ||||
| 94151-80600 | ||||
| 94185-60800 | ||||
| 94185-61000 | ||||
| 95333-08020 | ||||
| 95333-08030 | ||||
| 96135-51300 | ||||
| Linked diagrams | ||||
| 4711 | ||||
| 8401 | ||||
