XZU388-TKMQW5 (2004)

Toyota Dyna/Toyoace

Production Jun 2004 - Oct 2006
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0406- )XZU388,488

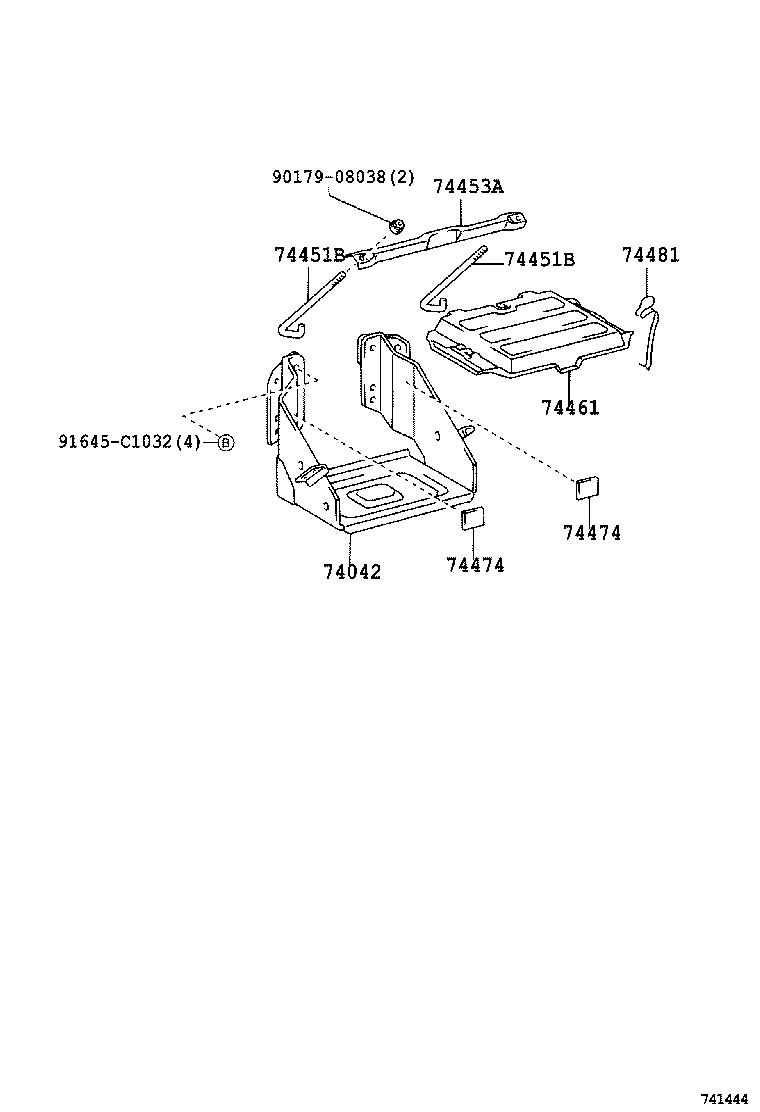

Click highlighted areas on diagram

diagram 74042 74451B 74451B 74453A 74461 74474 74474 74481 9017908038 91645C1032
Part # Description Qty Price
74042 - BRACKET SUB-ASSY, BATTERY
74042-37040

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=55D23L OR 80D26L

 1
74042-37050

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=95D31L

 1
74451B - BOLT, BATTERY CLAMP
74451-37011

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=55D23L OR 80D26L

 2
74451-37021

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=95D31L

 2
74451B - BOLT, BATTERY CLAMP
74451-37011

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=55D23L OR 80D26L

 2
74451-37021

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=95D31L

 2
74453A - BAR, BATTERY SET PLATE
74453-36070

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 1
74461 - COVER, BATTERY
74461-37040

XZU423..40T..IV3;XZU421..5F..30T..IV3;XZU424..T4..6F..35T..IV3;XZU388,411,415..SCB..(IV3,IV5);XZU414,424..T3..30T..(DCRL,DSLL)..IV3

ﾊﾞﾂﾃﾘ=80D26L

 1
74461-37030

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=95D31L

 1
74461-37020

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

ﾊﾞﾂﾃﾘ=55D23L

 1
74474 - PAD, BATTERY
74475-36040

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
74474 - PAD, BATTERY
74475-36040

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
74481 - CLAMP, BATTERY HOLD DOWN
74481-36030

XZU388,40#,41#,42#,433..DCRL,DSL,DSLL

 2
Common parts
90179-08038
91645-C1032
