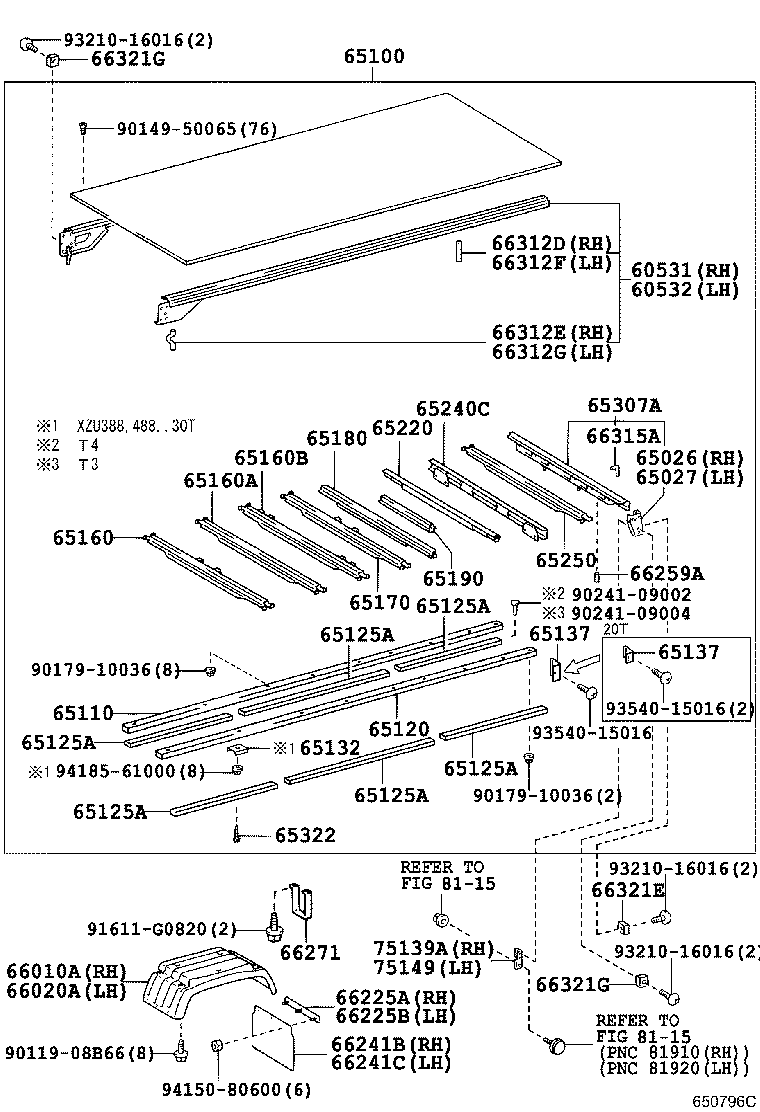

XZU388-TKMQW5 (2004)
Toyota Dyna/Toyoace
(0406- )BZU410,XZU388,488..CBU,IV5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-3V180 |
XZU388,411,413,414..SCB..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-3V180 |
XZU388,411,413,414..SCB..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37030 |
XZU388,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37030 |
XZU388,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37E40 |
XZU388..30T *** |
1 | ||
| 65100-37N40 |
XZU388..30T *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37C00 |
XZU388..30T |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37C00 |
XZU388..30T |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37430 |
XZU388 ﾘﾔ右側 |
1 | ||
| 65127-37370 |
XZU388 ｾﾝﾀ |
2 | ||
| 65127-37430 |
XZU388 ﾌﾛﾝﾄ & ﾘﾔ 左側 |
3 | ||
| 65132 - REINFORCEMENT, MAIN SILL | ||||
| 65132-37020 |
XZU388..30T |
8 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37350 |
XZU388..30T |
1 | ||
| 65160A - SILL ASSY, CROSS, NO.2 | ||||
| 65240-37110 |
XZU388..30T |
2 | ||
| 65160B - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37350 |
XZU388..30T |
2 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65220-37210 |
XZU388..30T |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37520 |
XZU388..30T |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37040 |
XZU388 |
1 | ||
| 65220 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37580 |
XZU388..30T |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37110 |
XZU388..30T |
2 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65250-37350 |
XZU388..30T |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37320 |
XZU388..30T |
1 | ||
| 65307-37590 |
XZU388..30T 長さ=2092 |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU388 |
15 | ||
| 66010A - FENDER ASSY, REAR NO.2 RH | ||||
| 65349-37010 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66020A - FENDER ASSY, REAR NO.2 LH | ||||
| 65349-37010 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37230 |
XZU388,404..(T3,T4)..(CBU,IV5);XZU401,411,413,414..(30T,35T)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37230 |
XZU388,404..(T3,T4)..(CBU,IV5);XZU401,411,413,414..(30T,35T)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-3V250 |
XZU388;XZU40#,411,413,414..T3..(30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
XZU388;XZU411,413,414..SCB..T5..CBU ｱﾘ(3 ｶｲﾎｳ ﾀｲﾌﾟ),HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-3V250 |
XZU388;XZU40#,411,413,414..T3..(30T,35T)..CBU TOYOTA |
1 | ||
| 66241-3V410 |
XZU388;XZU40#,411,413,414..T3..(30T,35T)..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU388,411,413,414..SCB..(20T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU388,411,413,414..SCB..(20T,30T,35T)..(CBU,IV5) |
9 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
XZU388,40#,411,413,414..(20T,30T,35T)..(CBU,IV5) |
4 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37040 |
XZU388,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37020 |
XZU388,411,413,414..(20T,30T,35T)..(CBU,IV5) |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||
| Linked diagrams | ||||
| 8115 | ||||
