XZU388-PKMMS (2004)
Toyota Dyna/Toyoace
(0406- )XZU346,388..DCB..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60531 - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 60531-37650 |
XZU346,388..DCB..CBU |
1 | ||
| 60532 - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 60532-37650 |
XZU346,388..DCB..CBU |
1 | ||
| 65026 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, RH | ||||
| 65026-37020 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
1 | ||
| 65027 - BRACKET SUB-ASSY, GATE RUBBER BUMPER, LH | ||||
| 65027-37020 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
1 | ||
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-37D60 |
XZU346,388..DCB..T3..CBU *** |
1 | ||
| 65100-37L80 |
XZU346,388..DCB..T3..CBU *** |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37B80 |
XZU346,388..DCB..T3..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37B80 |
XZU346,388..DCB..T3..CBU |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65125A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65125-37490 |
XZU346,388..DCB..T3..CBU ﾌﾛﾝﾄ |
2 | ||
| 65127-37410 |
XZU346,388..DCB..T3..CBU ｾﾝﾀ |
2 | ||
| 65127-37370 |
XZU346,388..DCB..T3..CBU ﾘﾔ左側 |
1 | ||
| 65127-37370 |
XZU388..CBU;BZU340..CNG;BZU340,XZU341,344,346..T3..CBU ﾘﾔ右側 |
1 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37030 |
BZU300,340..T4..CNG;BZU300,340,XZU334..30T..CBU;RZU300,XZU301,304,306,308,331,341,344,346,378,388..(T3,T5)..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
XZU378..SCB..CBU;XZU346,388..DCB..CBU;BZU300,RZU300..T3..CBU;XZU301,304,331,334..30T..CBU..1NO |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37260 |
BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388..(T3,T4)..CBU..1NO |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65190-37040 |
BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388..(T3,T4)..CBU..1NO |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65240-37230 |
XZU378..CBU;XZU346,388..DCB..CBU |
1 | ||
| 65250 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37140 |
BZU340..CNG;BZU300,RZU300,XZU334..T3..CBU;BZU340,RZU340,XZU301,304,331,34#,378,388..(T3,T4)..CBU..1NO |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37220 |
BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
1 | ||
| 65307-37540 |
BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU346,388..DCB..T3..CBU |
15 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37010 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
2 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37220 |
BZU340..CNG;BZU300,RZU300..T3..CBU;BZU340,RZU340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37220 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..WT..CBU 長さ=330 |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-3V200 |
XZU331,334,341,344,346,378,388..T3..CBU TOYOTA |
1 | ||
| 66241-3V360 |
XZU331,334,341,344,346,378,388..T3..CBU HINO |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-3V200 |
BZU340..CNG;BZU340,XZU331,334,341,344,346,378,388..T3..CBU TOYOTA |
1 | ||
| 66241-3V360 |
BZU340..CNG;BZU340,XZU331,334,341,344,346,378,388..T3..CBU HINO |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
BZU340..CNG;BZU340,RZU301,340,XZU336,338,34#,388..CBU;BZU300,RZU300,XZU334,378..(T2,T3,T4)..20T..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU346,388..DCB..CBU |
7 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU346,388..DCB..CBU |
7 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
BZU340..CNG;BZU300,340,RZU300,XZU301,304,331,334,341,344,346,378,388..T3..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-92803 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
2 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-92805 |
RZU300..LPG;BZU300,340..T4..CNG;BZU300,340,RZU30#,340,XZU301,304,306,308,33#,34#,368,378,388..(T2,T3,T4,T5)..CBU |
4 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94184-01001 | ||||
(0406- )BZU410,XZU388,488..CBU,IV5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B66 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 90241-09002 | ||||
| 90241-09004 | ||||
| 91611-G0820 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| 94185-61000 | ||||

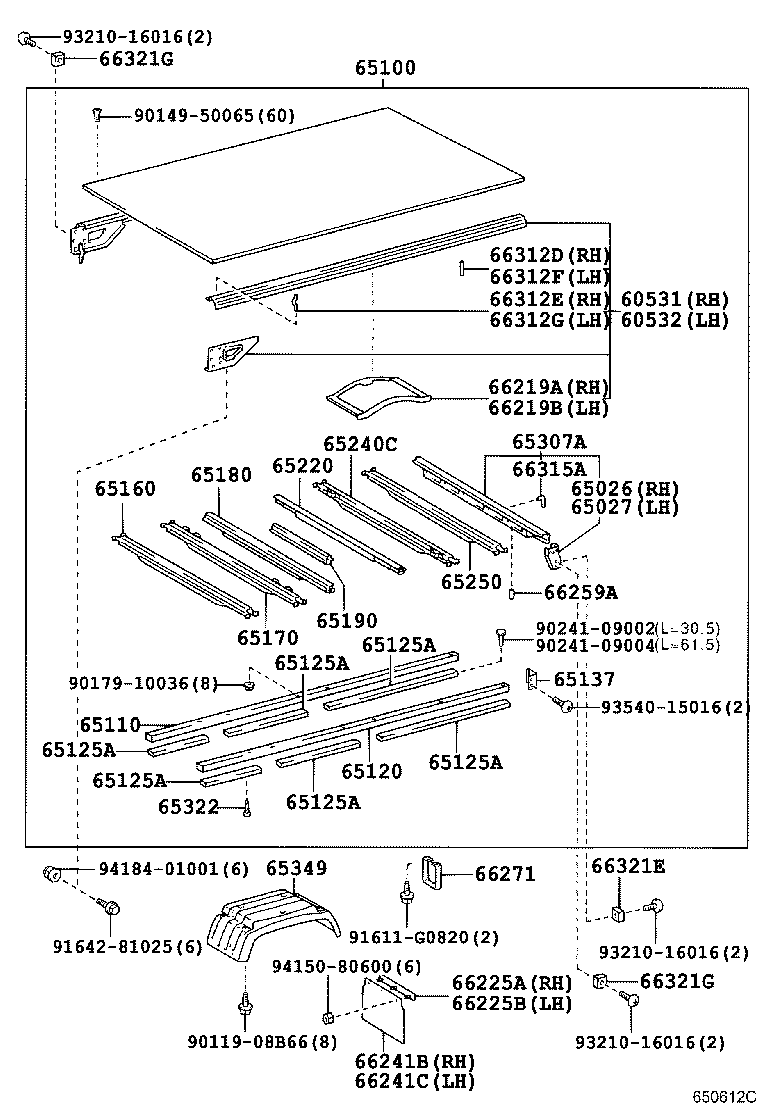

| Linked diagrams | ||||
| 8115 | ||||
