XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace
(9905-0406)XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-37020 |
XZU362,37#,382 |
1 | ||
| 88412-37020 |
XZU362,37#,382 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-60090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 88411-60090 |
XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88320-37070 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88335-14020 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88403-16011 |
XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU306..4FC..DSLL..IV3;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-37090 |
XZU362,37#,382 |
1 | ||
| 88410-37090 |
XZU362,37#,382 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37030 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88345-37030 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88345-37110 |
XZU362,37#,382 |
1 | ||
| 88345-37110 |
XZU362,37#,382 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-37020 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;XZU300,307,330,337,340,342,350,352,362,37#,382..DSL |
1 | ||
| 88440-37020 |
XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;XZU300,307,330,337,340,342,350,352,362,37#,382..DSL |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V180 |
XZU362,37#,382 |
1 | ||
| 88688-3V180 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10480 | ||||
| 90105-10481 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||

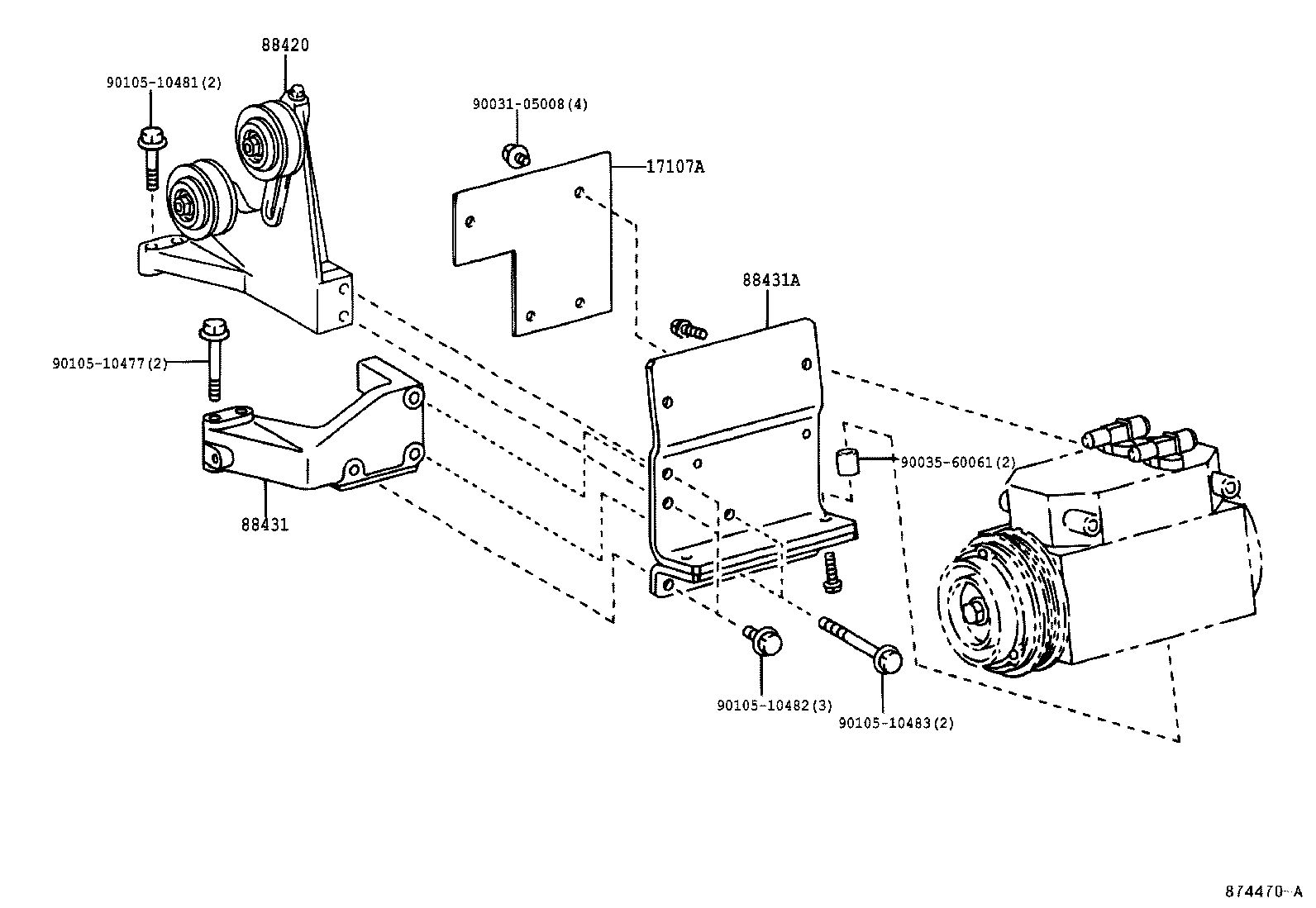

(9907-0406)XZU362,372,382
ﾚｲﾄｳｼｬ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17107A - INSULATOR SUB-ASSY, EXHAUST MANIFOLD HEAT | ||||
| 17107-78020 |
S05C..XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37110 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88345-37030 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 88345-37110 |
XZU362,37#,382 |
1 | ||
| 88431A - BRACKET, COMPRESSOR MOUNTING, NO.2 | ||||
| 88345-37050 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| Common parts | ||||
| 90031-05008 | ||||
| 90035-60061 | ||||
| 90105-10477 | ||||
| 90105-10481 | ||||
| 90105-10482 | ||||
| 90105-10483 | ||||
(9905-0406)XZU382,40#,410,411,412,42#,430 ; (0406-0610)XZU401,411,413,421,423,433
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90105-10480 | ||||
| 90105-10481 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
(9908-0406)XZU382
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05008 | ||||
| 90035-60061 | ||||
| 90105-10477 | ||||
| 90105-10481 | ||||
| 90105-10482 | ||||
| 90105-10483 | ||||
