DYNA/TOYOACE
XZU382-TQMMS3 (1999)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

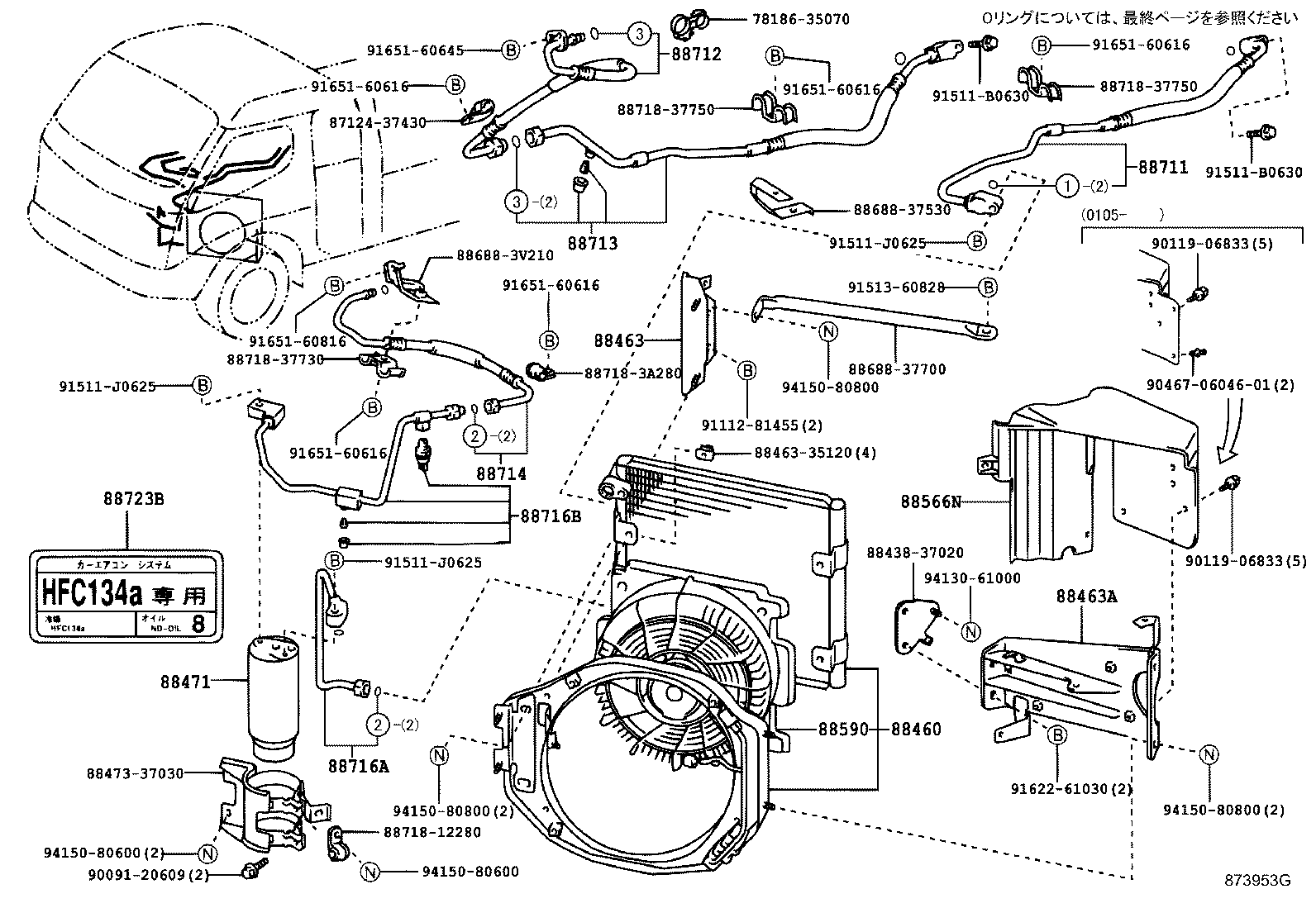

ILLUST NO. 1 OF 2(9905-0406)XZU300,302,306,31#,32#,330,337,340,342,346,347,350,362,37#,382..CNG,DSL,

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88462A - HOLDER, CONDENSER
88462-37080	XZU362..4NO;XZU382..SCB..IV3	06/2000 - 06/2004	1
88462-37080	XZU362..4NO;XZU382..SCB..IV3	06/2000 - 06/2004	1
88462-37080	XZU362..4NO;XZU382..SCB..IV3	06/2000 - 06/2004	1
88462-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2000	1
88462-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2000	1
88462-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2000	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37600	XZU362,37#,382..1NO	07/1999 - 06/2004	1
88711-37600	XZU362,37#,382..1NO	07/1999 - 06/2004	1
88711-37600	XZU362,37#,382..1NO	07/1999 - 06/2004	1
88711-37460	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88711-37460	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88711-37460	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37470	XZU362,37#,382	07/1999 - 08/2001	1
88716-37470	XZU362,37#,382	07/1999 - 08/2001	1
88716-37470	XZU362,37#,382	07/1999 - 08/2001	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
88438-37010
88463-35120
88472-37170
88688-37420
88688-3V150
88718-26410
88718-37350
88718-37380
88718-37390
88718-37420
88718-37730
88718-37750
88718-3A270
90041-79141
90091-20512
90099-04119
90119-10522
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-60816
93385-16016
94130-60600
94150-80800

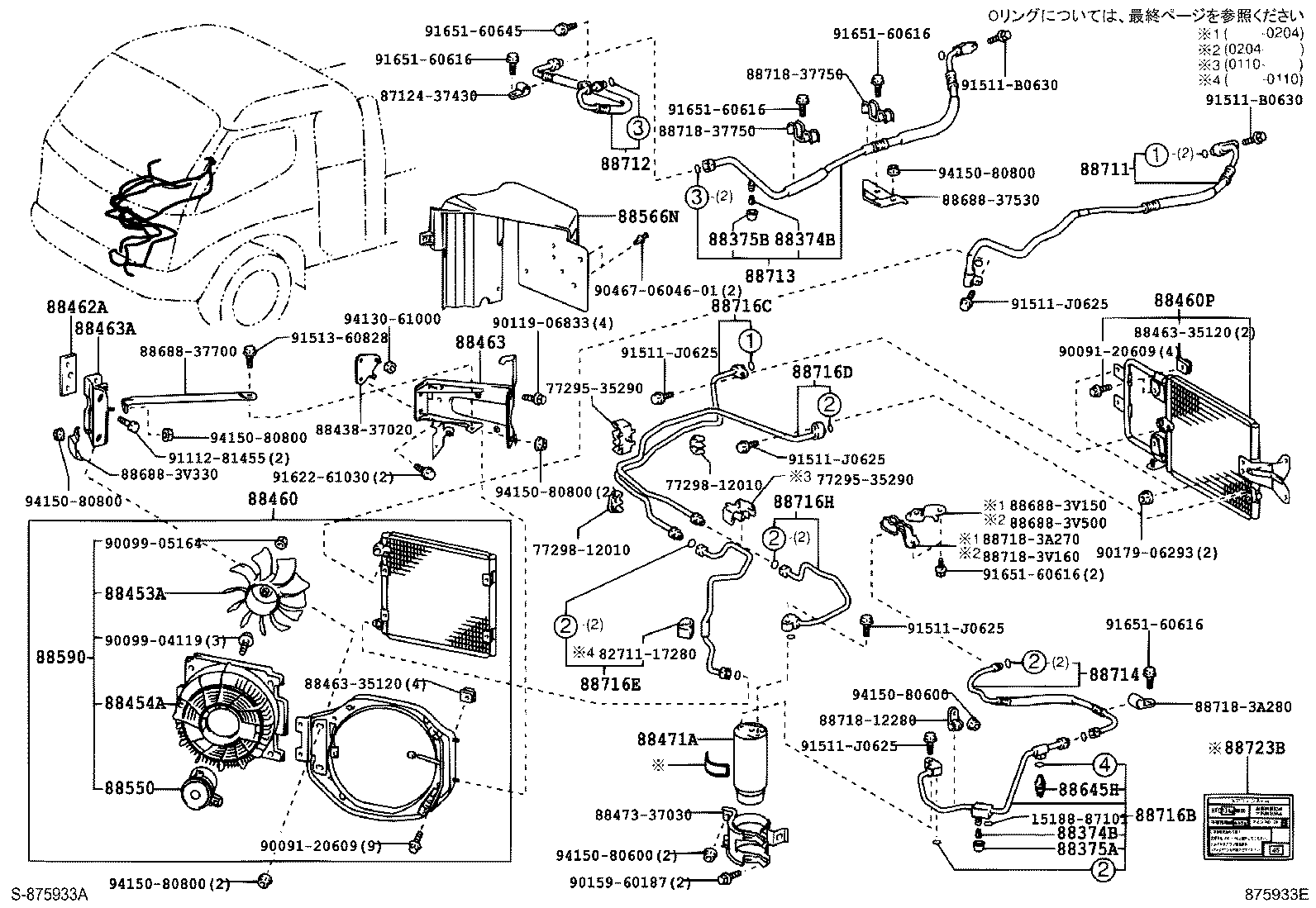

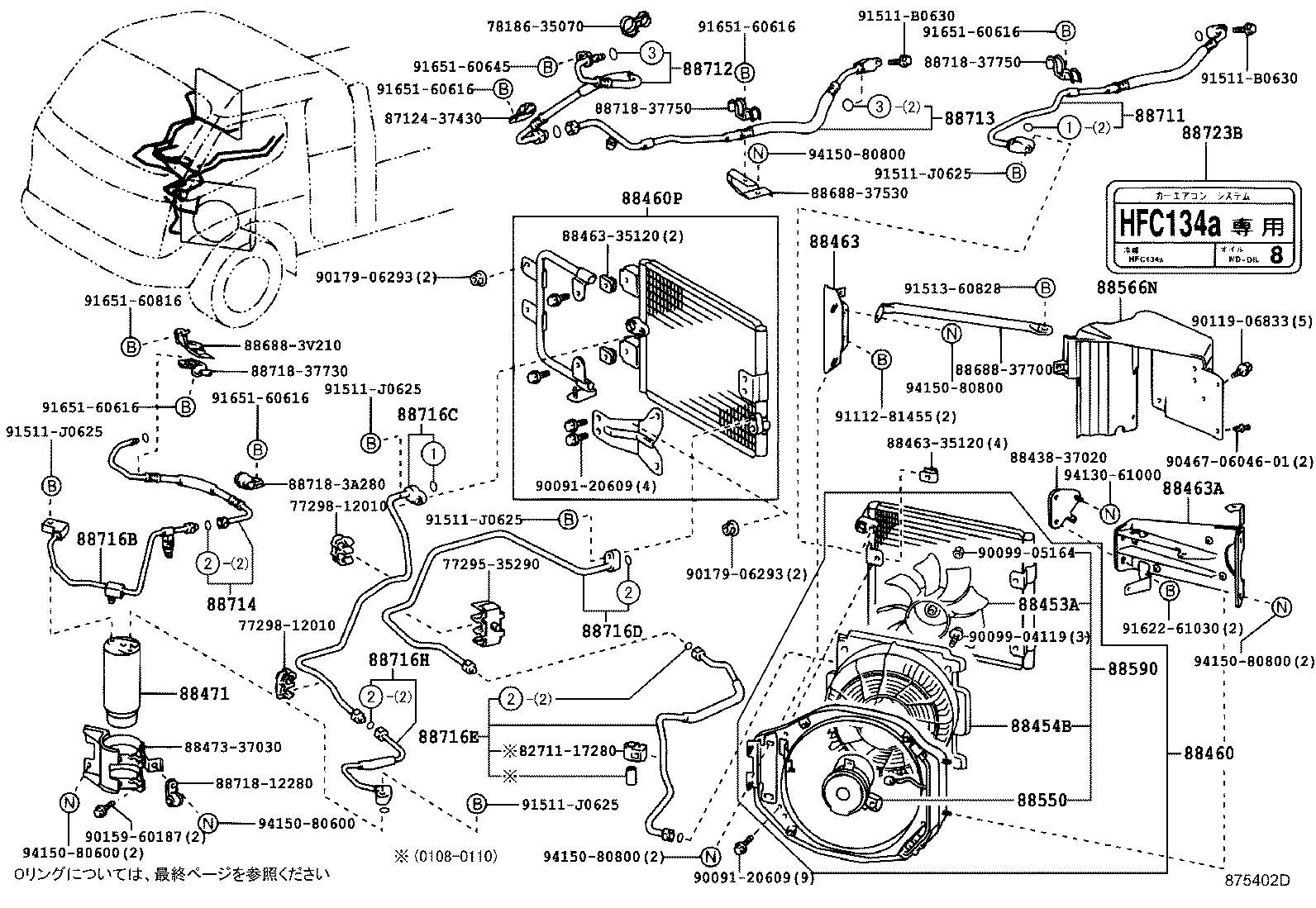

ILLUST NO. 1 OF 2(9907-0108)XZU362,37#,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88462A - HOLDER, CONDENSER
88462-37080	XZU362..4NO;XZU382..SCB..IV3	06/2000 - 06/2004	1
88462-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2000	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88566N - DUCT, COOLER AIR, NO.1
88566-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 05/2001	1
88566-37081	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	05/2001 - 06/2004	1
88566-37090	XZU362,37#,382..1NO	07/1999 - 05/2001	1
88566-37091	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88566N - DUCT, COOLER AIR, NO.1
88566-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 05/2001	1
88566-37081	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	05/2001 - 06/2004	1
88566-37090	XZU362,37#,382..1NO	07/1999 - 05/2001	1
88566-37091	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37750	XZU362,37#,382	07/1999 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37470	XZU362,37#,382	07/1999 - 08/2001	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37760	XZU362,37#,382	07/1999 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
87124-37430
88438-37020
88473-37030
88688-3V150
88688-3V330
88718-37730
88718-3A270
88718-3A280
90041-79141
90091-20609
90099-04119
90119-06833
90467-0604601
91112-81455
91511-B0630
91511-J0625
91513-60828
91622-61030
91651-60616
91651-60645
94150-80600
94150-80800

ILLUST NO. 1 OF 2(9907-0406)XZU362..4NO ; (9907-0406)XZU382..SCB..IV3

Click highlighted areas on diagram

2 SEAT

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37540	XZU362,37#,382	08/2001 - 06/2004	1
88462A - HOLDER, CONDENSER
88462-37080	XZU362..4NO;XZU382..SCB..IV3	06/2000 - 06/2004	1
88462-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2000	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88566N - DUCT, COOLER AIR, NO.1
88566-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 05/2001	1
88566-37081	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	05/2001 - 06/2004	1
88566-37090	XZU362,37#,382..1NO	07/1999 - 05/2001	1
88566-37091	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37600	XZU362,37#,382..1NO	07/1999 - 06/2004	1
88711-37460	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37750	XZU362,37#,382	07/1999 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37760	XZU362,37#,382	07/1999 - 06/2004	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-3V450	XZU362,37#,382	08/2001 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-3V460	XZU362,37#,382	08/2001 - 06/2004	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V490	XZU362,37#,382..1NO	08/2001 - 10/2001	1
88716-3V470	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	07/1999 - 10/2001	1
88716-3V471	XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	06/2002 - 06/2004	1
88716-3V491	XZU362,37#,382..1NO	10/2001 - 06/2004	1
88716-3V471	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	10/2001 - 06/2002	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-3V480	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	08/2001 - 06/2002	1
88716-3V480	XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	08/2001 - 06/2004	1
88716-3V500	XZU362,37#,382..1NO	08/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
15188-87101
77295-35290
77298-12010
82711-17280
87124-37430
88438-37020
88463-35120
88473-37030
88688-37530
88688-37700
88688-3V150
88688-3V330
88688-3V500
88718-12280
88718-37750
88718-3A270
88718-3A280
88718-3V160
90091-20609
90099-04119
90099-05164
90119-06833
90159-60187
90179-06293
90467-0604601
91112-81455
91511-B0630
91511-J0625
91513-60828
91622-61030
91651-60616
91651-60645
94130-61000
94150-80600
94150-80800

ILLUST NO. 1 OF 2(9907-0406)XZU362,37#,382..1NO

Click highlighted areas on diagram

3 SEAT

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU322..DM7,DM8;XZU301..4FC..20T;XZU341..6F..295T;XZU312,347..DCB..5F;XZU347..DCB..T4..4FC;XZU302..(DM3,T3,T5)..30T;XZU301..SCB..(T3,T5)..4FC;XZU306..T4..5F..DSLL..IV3;XZU302,347..SCB..20T..DSL;XZU306,321..(DM7,T4)..DSL..4NO;XZU301..SCB..(DM3,DM6,T3,T5)..5F..(DSL,DSLL);BU301,XZU306,322,330,35#,371..(DM2,T1,T3,T5)..5F..DSL;XZU301,302,31#..(DM5,T4)..(295T,30T)..DSL..(CBU,IV3)..4NO;BU306,346,XZU300,307,331,337,340,341,342,346,362,372,382..(20T,30T,35T,40T)..DSL..(CBU,IV3) NO.2	09/2001 - 06/2004	2
88374-30010	BU30#,346,XZU30#,31#,32#,33#,34#,35#,362,37#,382..DSL,DSLL NO.2	05/1999 - 09/2001	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	XZU312..DCB;XZU322..DM7,DM8;XZU302..20T..DSL;XZU301..T4..4FC..4NO;XZU301,331..4FC..DSLL;XZU301..4FC..20T..4NO;XZU306,322..T5..5F..DSL;XZU302..(DM3,T3,T5)..30T;XZU301..(DM6,T3,T5)..DSL;XZU306,321..(DM7,T4)..4NO;XZU301..(DM3,T4)..5F..4NO;XZU301..5F..DSLL..IV3..1NO;RZU300,XZU312,331..30T..(DSL,LPG);XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU306,346,BZU300,340,RZU301,340,XZU300,307,330,337,340,346,347,35#,362..SCB,VAN;BU301,RZU300,XZU341,342,37#,382..(T1,T2,T3,T4,T5)..(20T,295T,30T)..(DSL,DSLL,EFI)	05/1999 - 06/2004	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382	06/2003 - 06/2004	1
88375-30290	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU306..T5..4FC;XZU306..T5..DSLL;XZU301..CNG,DSL,LPG;XZU331,362..DSL..1NO;BU306,XZU307,347..DCB;XZU301..DSLL..IV3..4NO;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,37#,382	05/1999 - 06/2004	1
88454A - SHROUD, FAN
88454-37031	XZU362,372,382..1NO	07/1999 - 08/1999	1
88454-37031	XZU362..4NO;XZU382..SCB..IV3	08/1999 - 06/2004	1
88460 - CONDENSER ASSY, COOLER
88460-37331	XZU362,37#,382 ﾅｼ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/1999 - 08/2001	1
88460-37330	XZU362,372,382	07/1999 - 08/1999	1
88460-37551	XZU362,37#,382	10/2001 - 04/2002	1
88460-37550	XZU362,37#,382 ｱﾘ(ｸ-ﾗｺﾝﾃﾞﾝｻASSY NO.2:PNC.88460P)	08/2001 - 10/2001	1
88460-37552	XZU362,37#,382	04/2002 - 06/2004	1
88460P - CONDENSER ASSY, COOLER NO.2
88460-37540	XZU362,37#,382	08/2001 - 06/2004	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37170	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37171	XZU362,37#,382..1NO	08/1999 - 06/2004	1
88463-37250	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	07/1999 - 05/2001	1
88463-37251	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ STD ﾙ-ﾌ)	05/2001 - 06/2004	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37040	XZU362,372,382..1NO	07/1999 - 08/1999	1
88463-37041	XZU362,37#,382..1NO	08/1999 - 05/2001	1
88463-37042	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88463-37180	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88471A - TANK, RECEIVER
88471-34010	RZU300,XZU301,31#,331,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	08/2001 - 02/2002	1
88471-34010	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	05/1999 - 08/2001	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
88471-34010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	02/2002 - 06/2002	1
88471-34010	RZU300..30T..LPG;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU30#,346,BZU300,340,RZU301,340,XZU300,306,307,31#,32#,33#,340,346,347,35#,362,37#,382	10/2002 - 06/2004	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU362,37#,382..1NO	05/1999 - 06/2004	1
88566N - DUCT, COOLER AIR, NO.1
88566-37080	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 05/2001	1
88566-37081	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	05/2001 - 06/2004	1
88566-37090	XZU362,37#,382..1NO	07/1999 - 05/2001	1
88566-37091	XZU362,37#,382..1NO	05/2001 - 06/2004	1
88590 - BLOWER ASSY, W/SHROUD
88590-37050	BU30#,346,XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,372,382..SCB,VAN	05/1999 - 08/1999	1
88590-37051	XZU302..ST;XZU306..T5..4FC;XZU341..6F..295T;XZU302..(295T,30T)..1NO;XZU331,341,362,372,382..SCB..(20T,30T)..DSL;XZU301,311,321..30T..DSL..(CBU,IV3,IV7)..1NO;XZU301,302,31#..SCB..(DM3,DM5,DM6,T3)..(20T,295T)..DSL;BU301,XZU321,322,351,352..(DM2,DM6,DM7,DM8,T1,T5)..20T	08/1999 - 06/2004	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU341..6F..295T;XZU351,352,371..DM2,T3;XZU301..T4..DSL..(CBU,IV3);XZU301..SCB..(DM3,DM6,T3,T5)..DSL;BU30#,XZU307,311,341,347..(SCB,VAN)..(20T,30T)..DSL;BU346,RZU300,340,XZU300,302,306,312,32#,33#,340,342,346,350,362,372,382..(DSL,DSLL,EFI)..(CBU,IV3,IV6)	10/2002 - 06/2004	1
88645-60030	XZU342..DSL;XZU302..CNG,DSL;RZU300,XZU31#,37#,382;BU30#,346,RZU340,XZU300,301,306,307,32#,33#,340,341,346,347,35#,362..SCB,VAN	09/2001 - 06/2002	1
88645-60030	XZU342..DSL;RZU300,XZU301,31#,331,341,37#,382;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,346,347,35#,362..(SCB,VAN)..(CNG,DSL,DSLL,EFI)	05/1999 - 09/2001	1
88645-60030	XZU341..20T,30T;XZU301..IV6..1NO;XZU341..6F..295T;RZU300,XZU312,342,37#,382..DSL,EFI;XZU301,351,352..(DM2,DM3,DM6,T3,T4,T5)..(CNG,DSL,LPG)..(CBU,IV3,IV7);BU30#,346,RZU340,XZU300,302,306,307,311,32#,33#,340,346,347,350,362..(SCB,VAN)..(CNG,DSL,EFI)	06/2002 - 10/2002	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37600	XZU362,37#,382..1NO	07/1999 - 06/2004	1
88711-37460	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37770	XZU362,37#,382..1NO ﾊｲﾙ-ﾌ	07/1999 - 06/2004	1
88712-37760	XZU382..SCB..IV3	07/1999 - 06/2004	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37750	XZU362,37#,382	07/1999 - 06/2004	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37390	XZU382..SCB..IV3 ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=02S ﾖｳ)	07/1999 - 06/2004	1
88721-37400	XZU362,37#,382..1NO ｱﾘ(ﾌﾛﾝﾄｼ-ﾄ=03S ﾖｳ)	07/1999 - 06/2004	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-37760	XZU362,37#,382	07/1999 - 06/2004	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-3V450	XZU362,37#,382	08/2001 - 06/2004	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-3V460	XZU362,37#,382	08/2001 - 06/2004	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-3V490	XZU362,37#,382..1NO	08/2001 - 10/2001	1
88716-3V470	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	07/1999 - 10/2001	1
88716-3V471	XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	06/2002 - 06/2004	1
88716-3V491	XZU362,37#,382..1NO	10/2001 - 06/2004	1
88716-3V471	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	10/2001 - 06/2002	1
88716H - PIPE, COOLER REFRIGERANT LIQUID, H
88716-3V480	XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄｷﾔﾌﾞ)	08/2001 - 06/2002	1
88716-3V480	XZU382..SCB..IV3 ｱﾘ(ｺﾝｿ-ﾙﾎﾞﾂｸｽ)	08/2001 - 06/2004	1
88716-3V500	XZU362,37#,382..1NO	08/2001 - 06/2004	1
88723B - LABEL, COOLER SERVICE CAUTION
88733-27010	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	03/2002 - 06/2002	1
88723-20030	BU30#,346,RZU300,340,XZU30#,31#,32#,33#,34#,35#,362,37#,382	05/1999 - 02/2002	1
88733-27010	RZU300..30T..LPG;BU306,XZU307,347..DCB,VAN;RZU300,XZU301,302,341,342..DSL,DSLL,EFI;BU301,BZU300,340,RZU301,340,XZU300,31#,32#,330,331,340,35#,362,37#,382	10/2002 - 06/2004	1
88723-20030	XZU301,31#,331,37#,382;BU30#,346,RZU300,340,XZU300,302,306,307,32#,330,337,34#,35#,362..SCB,VAN	02/2002 - 03/2002	1
88733-27010	BU306,XZU307,347..DCB,VAN;BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382..CNG,DSL,EFI,LPG	06/2002 - 10/2002	1
Common parts
15188-87101
77295-35290
77298-12010
87124-37430
88438-37020
88463-35120
88473-37030
88688-37530
88688-37700
88688-3V150
88688-3V500
88718-12280
88718-37750
88718-3A270
88718-3A280
88718-3V160
90091-20609
90099-04119
90099-05164
90119-06833
90159-60187
90179-06293
90467-0604601
91112-81455
91511-B0630
91511-J0625
91513-60828
91622-61030
91651-60616
91651-60645
94130-61000
94150-80600
94150-80800

ILLUST NO. 1 OF 3(9908-0108)XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
78186-35070
87124-37430
88438-37020
88463-35120
88473-37030
88688-37530
88688-37700
88688-3V210
88718-12280
88718-37730
88718-37750
88718-3A280
90091-20609
90119-06833
90467-0604601
91112-81455
91511-B0630
91511-J0625
91513-60828
91622-61030
91651-60616
91651-60645
91651-60816
94130-61000
94150-80600
94150-80800

ILLUST NO. 1 OF 3(0108-0406)XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
77295-35290
77298-12010
78186-35070
82711-17280
87124-37430
88438-37020
88463-35120
88473-37030
88688-37530
88688-37700
88688-3V210
88718-12280
88718-37730
88718-37750
88718-3A280
90091-20609
90099-04119
90099-05164
90119-06833
90159-60187
90179-06293
90467-0604601
91112-81455
91511-B0630
91511-J0625
91513-60828
91622-61030
91651-60616
91651-60645
91651-60816
94130-61000
94150-80600
94150-80800

XZU382-TQMMS3 (1999)

ILLUST NO. 1 OF 2(9905-0406)XZU300,302,306,31#,32#,330,337,340,342,346,347,350,362,37#,382..CNG,DSL,

ILLUST NO. 1 OF 2(9907-0108)XZU362,37#,382

ILLUST NO. 1 OF 2(9907-0406)XZU362..4NO ; (9907-0406)XZU382..SCB..IV3

ILLUST NO. 1 OF 2(9907-0406)XZU362,37#,382..1NO

ILLUST NO. 1 OF 3(9908-0108)XZU382

ILLUST NO. 1 OF 3(0108-0406)XZU382

Part Price Details
