Toyota Dyna/toyoace XZU382 ABS & VSC

XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-36040	XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL	05/1999 - 06/2004	1
88263E - RELAY, SKID CONTROL NO.2
88263-36050	XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL	05/1999 - 06/2004	1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
89441A - SENSOR, DECELERATION
89440-37010	XZU362,37#,382	07/1999 - 06/2004	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-37100	XZU382	07/1999 - 11/2001	1
89540-37101	XZU382	11/2001 - 06/2004	1
Common parts
90178-06002
91621-40616
91626-40618
93568-55016

ILLUST NO. 2 OF 3(9905-0406)BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,3

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾋﾟ-ﾄﾞｾﾝｻ

Part #	Description	Period	Qty
89542 - SENSOR, SPEED, FRONT RH
89542-37040	XZU362,37#,382	07/1999 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-37040	XZU362,37#,382	07/1999 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-37040	XZU362,37#,382	07/1999 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-37040	XZU362,37#,382	07/1999 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-37040	XZU362,37#,382	07/1999 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-37040	XZU362,37#,382	07/1999 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-37040	XZU362,37#,382	07/1999 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-37040	XZU362,37#,382	07/1999 - 06/2004	1
Common parts
90129-08007
91651-B0618
91651-B0620
91651-B0825
94130-00802

ILLUST NO. 3 OF 3(9905-0406) ; (0406- )

Click highlighted areas on diagram

ﾘﾔｽﾋﾟ-ﾄﾞｾﾝｻ

Part #	Description	Period	Qty
89544 - SENSOR, SKID CONTROL
89544-36030	XZU311..SCB;XZU301..DM3..30T;XZU306..T5..DSLL;XZU321..DM7..4NO;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..5F..DSLL..(CBU,IV4);BU30#,346,XZU301,306,331..(03S,06S,DM6,T1,T2,T3,T4,T5)..(CNG,DSL,LPG);BZU300,340,RZU30#,340,XZU300,302,307,312,320,322,330,337,340,341,342,346,347,351,352,362,37#,382..20T,295T,30T	05/1999 - 06/2004	2
Common parts
42141-37010
42141-37030
82715-3V690
90129-08007
91511-B0816
91651-B0620
94130-00802

ILLUST NO. 2 OF 3(0310-0406)XZU304,305,344 ; (0406- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾋﾟ-ﾄﾞｾﾝｻ

Part #	Description	Period	Qty
89542 - SENSOR, SPEED, FRONT RH
89542-37040	XZU362,37#,382	07/1999 - 06/2004	1
89543 - SENSOR, SPEED, FRONT LH
89543-37040	XZU362,37#,382	07/1999 - 06/2004	1
Common parts
82711-37210
90129-08007
91651-B0620
94130-00802

ILLUST NO. 1 OF 3(0310-0406)

Click highlighted areas on diagram

Part #	Description	Period	Qty
88263A - RELAY, SKID CONTROL
88263-36040	XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL	05/1999 - 06/2004	1
88263E - RELAY, SKID CONTROL NO.2
88263-36050	XZU301..295T;XZU322..T5..5F;XZU322..DM7,DM8;XZU301..IV6..4NO;XZU306..T4..DSLL;XZU301..4FC..DSLL;XZU347..DCB..T4..4FC;XZU301..DSL..(IV4,IV7);XZU301..SCB..(T3,T5)..4FC;XZU302,347..SCB..20T..DSL;XZU302..T4..(295T,30T)..4NO;XZU312,331,347..DCB..5F..DSL;XZU301,321..(DM7,T4)..4FC..4NO;XZU301,351..(DM2,DM3)..5F..IV3;XZU331,341..(4FC,6F)..(DSL,DSLL);XZU302,312..(DM3,DM5,T3,T5)..30T;XZU301,311,346,351..SCB..5F..DSLL;XZU301,306..(DM3,DM6,T4)..4FC..20T..DSL;BU30#,346,XZU300,307,330,337,340,342,350,352,362,37#,382..(03S,06S,DM2,DM5,DM7,T1,T2,T3,T4,T5)..DSL	05/1999 - 06/2004	1
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
89421F - SENSOR, VACUUM (FOR SKID CONTROL)
89421-37010	XZU322..DM7,DM8;XZU306..DSLL..CBU;XZU312,347..DCB..5F;XZU301..T4..4FC..4NO;XZU347..DCB..T4..4FC;XZU301..4FC..20T..4NO;XZU306..4FC..DSLL..IV3;XZU306,322..T5..5F..DSL;XZU301..(DM6,T3,T5)..DSL;XZU302..(DM3,T3,T5)..30T;XZU302,347..SCB..20T..DSL;XZU301..(DM3,T4)..5F..4NO;RZU300,XZU312..30T..(DSL,LPG);XZU306,321..(DM7,T4)..DSL..4NO;XZU302,311..(DM5,T4)..(295T,30T)..4NO;BU301,RZU300,XZU341,342,346,351..(DM2,DM5,T1,T2,T3,T4,T5)..(DSL,DSLL,EFI);BU306,346,BZU300,340,RZU301,340,XZU300,307,33#,340,350,352,362,37#,382..CNG,DSL,EFI,LPG	05/1999 - 06/2004	2
89540 - COMPUTER ASSY, SKID CONTROL
89540-37100	XZU382	07/1999 - 11/2001	1
89540-37101	XZU382	11/2001 - 06/2004	1
Common parts
91621-40616
93568-55016

ILLUST NO. 1 OF 3(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
91626-40618
93568-55016
94151-80600

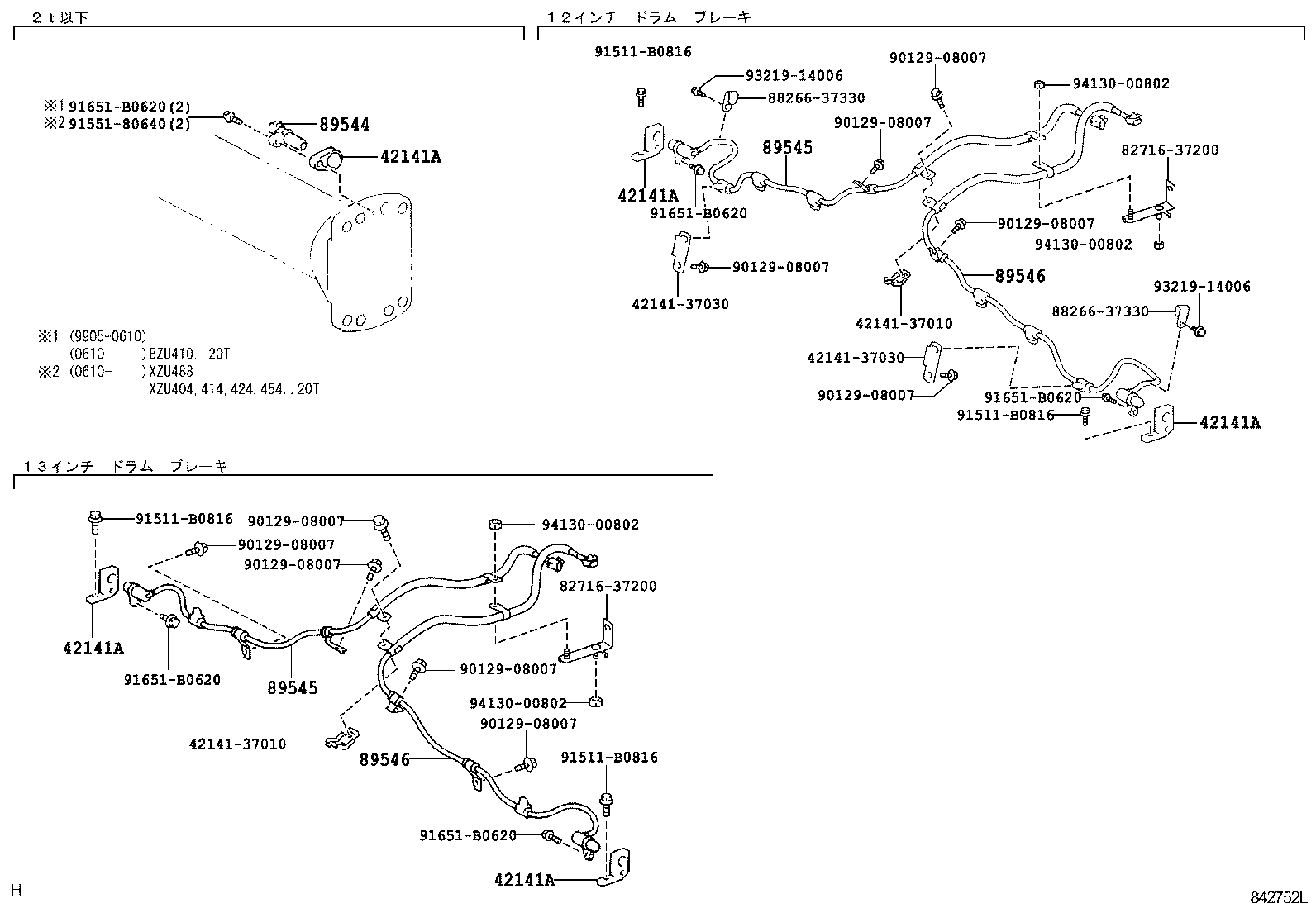

ILLUST NO. 3 OF 3(9905-0406)XZU414..20T ; (9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412

Click highlighted areas on diagram

ﾘﾔｽﾋﾟ-ﾄﾞｾﾝｻ

Part #	Description	Period	Qty	Price
Common parts
42141-37010
42141-37030
82716-37200
88266-37330
90129-08007
91511-B0816
91551-80640
91651-B0620
93219-14006
94130-00802
