XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace
(0310- )XZU304..T4..DCRL..CBU ; (0310- )XZU304..30T..DCRL..4NO ; (0310- )X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37611 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37610 |
XZU301,302,306,307,31#,321,322,331,337,341,346,347,351,352,362,37#,382 |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78100-37612 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78110-95410 |
BU30#,346,BZU300,340,RZU30#,340,XZU300,301,302,306,307,31#,32#,33#,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 78130 - BELLCRANK ASSY, ACCELERATOR | ||||
| 78130-37020 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37020 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37020 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37021 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37021 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37021 |
XZU372,382;XZU362..IV3;XZU362..T4..CBU;XZU31#..DCB..IV3;XZU301,307,331,347,371..DCB |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..(DSL,DSLL) |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78130-37021 |
XZU302,322,362..DSL..IV3;XZU302,322,362..(T3,T4,T5)..CBU;XZU301,31#,321,351,352..SCB..(DM2,DM3,DM5,DM7)..IV3;XZU301,306,307,331,337,341,342,346,347,37#,382..(DM6,T2,T3,T4,T5)..DSL |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| 78208-37080 |
XZU301,302,306,307,31#,321,322,331,337,341,342,346,347,351,352,362,37#,382..DSL,DSLL |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
| 90950-01865 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||

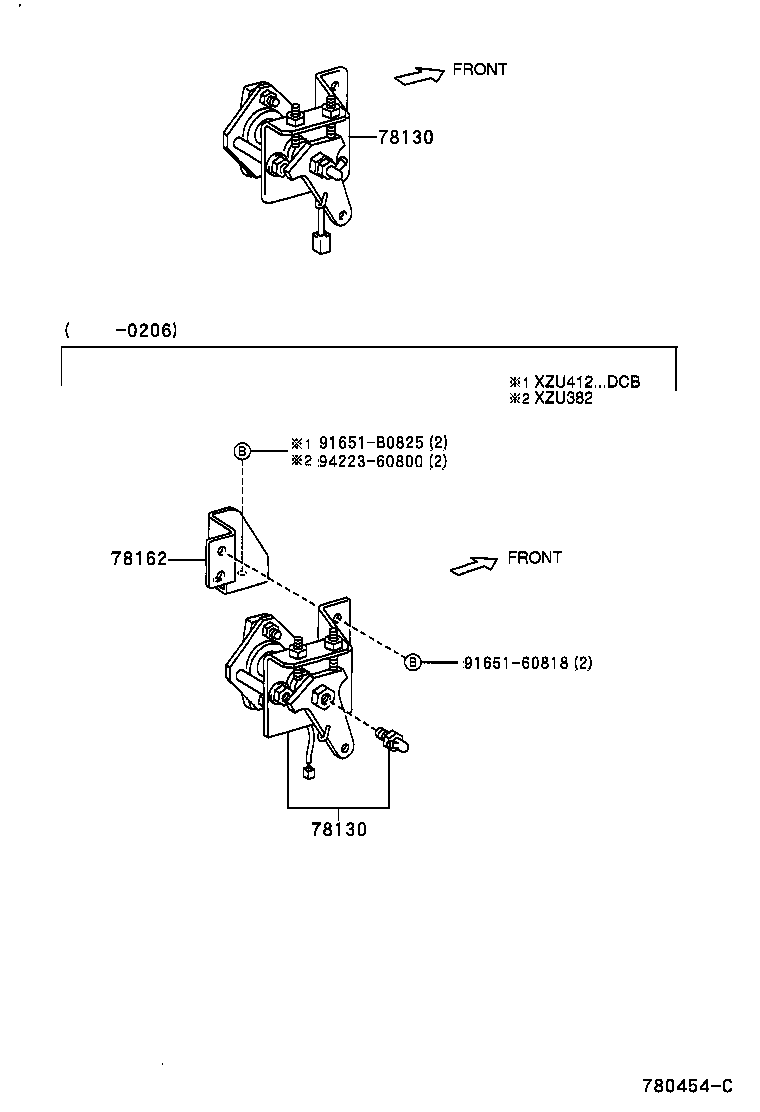

ILLUST NO. 2 OF 2(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430..SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06204 | ||||
| 91511-B0816 | ||||
| 96451-01000 | ||||
| 96456-01000 | ||||
ILLUST NO. 2 OF 2(9905-0406)XZU382 ; (9905- )XZU412..DCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91651-60818 | ||||
| 91651-B0825 | ||||
| 94223-60800 | ||||
(0310-0406)XZU414,415 ; (0406- )DCR,DCRL,DSL,DSLL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06264 | ||||
| 91631-J0612 | ||||
| 91651-B0616 | ||||
