XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004
Engine S05C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ(ｻﾌﾞﾀﾝｸｱﾘ)

diagram 77017B 77018 77018H 77022A 77022A 77022C 77022C 77100A 77100B 77100U 77100V 77100V 77100Z 77135A 77168A 77168A 77169A 77169A 77197 77197C 77244C 77601A 77601E 77611 77611A 77611E 77616C 77633 77633B 77651B 77651B 77701U 77701V 77710 77712 77713 77714 9017910015 9017910015 9017910015 9020209047 9025003031 9038608164 9040112007 9040112007 9040510008 9040510008 9046107033 9046715012 9048014006 9162640616 9164281035 9164281040 91645C1032 91645C1032 9331915010 93319A4010 93319A4010 9413000802 9413000802 9413000802 9413000802 9413000802 9613251100 9613251300 9671319017 9671319017 9671319017 9671324011
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37010

XZU347,382;XZU31#..30T;XZU352..DM2..CBU;BU30#,346,XZU362..SCB;XZU312,352..SCB..5F..20T..IV3;XZU300,301,302,306,307,32#,33#,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

ｱﾘ(ﾌﾕｰｴﾙﾀﾝｸ=70L OR 80L OR 100L)

 1
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-37050

XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,352..5F..DSL..IV3;XZU306,331..(T3,T5)..5F..DSLL;BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;XZU301,352..(DM2,DM3,DM6,T3,T4,T5)..5F..(CBU,IV4,IV6,IV7);BU30#,XZU300,302,307,32#,330,337,340,341,342,346,350,351,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL)

*H,L=280,内径=7.6

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95333-08030

XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU306,331,347,37#,382..DSL;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(DSL,DSLL)

*H,L=280,内径=7.6

 2
77100A - PLUG(FOR FUEL TANK)
90105-12116

BU301..175T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU306,346,RZU300,340,XZU300,302,306,331..DSL,EFI;BU301,XZU307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..(03S,DM2,DM5,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,RZU300,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL,EFI

 1
77100U - TANK SUB-ASSY, FUEL
77001-37220

XZU372..SCB;BU346,XZU33#,34#,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3)

960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)

 1
77001-37221

XZU372..SCB;BU346,XZU33#,340,341,342,346,347,382..(T3,T4)..(DSL,DSLL)..(CBU,IV3)

960X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)

 1
77135A - PROTECTOR, FUEL TANK SIDE
77135-37070

XZU382..SCB;XZU347,382..DCB..5F..IV3;XZU341,342..T3..DSL..IV3;XZU347..DCB..T4..4FC..IV3;XZU341,342..T4..(DSL,DSLL);BU346,XZU340,346,347..SCB..IV3;BU346,XZU340,346,347..(T2,T4)..CBU

ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=100L)

 1
77135-37071

XZU382..SCB;XZU341,342..T4;XZU341,342..T3..IV3;XZU382..T3..20T..IV3;BU346,XZU340,346,347..IV3;BU346,XZU340,346,347..(T2,T4)..CBU

 1
77197 - ORIFICE, FUEL VAPOR
90977-02001

XZU306,331..DSL;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301..5F..(CBU,IV4,IV6,IV7);XZU306,331..(T3,T5)..5F..DSLL;BU30#,346,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382..DSL,DSLL

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-36150

XZU307..SCB..IV3;XZU347..(T2,T4)..CBU;XZU31#,320,350,371..30T,40T;XZU312,352..SCB..5F..20T..IV3;XZU301,382..(DM6,T3)..20T..(DSL,DSLL)..(IV3,IV6);BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..(IV3,IV4);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,330,340,346,347,362..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV4,IV6,IV7)

ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZU301,331,347,37#,382..CNG,DSL,DSLL;BU30#,346,BZU300,340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,35#,362..SCB..(CNG,DSL,DSLL)

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..(DSL,DSLL);BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,DSLL,EFI)

 2
77616-36030

XZU312..SCB..5F..20T..IV3;RZU300,XZU31#..30T..(DSL,EFI);XZU301,331,347,371,382..DSL,DSLL;BU30#,346,RZU340,XZU300,302,306,307,32#,330,337,340,341,342,346,35#,362,372..SCB..(DSL,DSLL,EFI)

 2
77616-36030

RZU300..30T..CBU;XZU352..DM2..CBU;RZU300,XZU352..SCB..(DM2,DM5,T3,T4)..5F..(DSL,EFI)..IV3;XZU301,331,347,351,371,382..(DM2,DM3,DM6,T2,T3,T4,T5)..DSL;BU30#,346,RZU340,XZU300,302,306,307,31#,32#,330,337,340,341,342,346,350,362,372..SCB..(DSL,EFI)

 2
77633 - STAY, FUEL TANK
77501-37080

XZU347..IV3;XZU312..5F..IV3;XZU347..(T2,T4)..CBU;XZU311,320,337,350,372,382..1NO;BU30#,XZU306..SCB..(DM6,T1,T2,T4);BU346,XZU307,340,346..SCB..(T2,T4)..CBU;BU306,XZU300,301,302,306,331,341..(T3,T5)..(IV3,IV7);BU301,346,XZU307,330,340,346,362..SCB..(DM5,DM7,T2,T3,T4,T5)..IV3;XZU300,301,302,321,322,331,341,351,352..(DM2,DM3,DM6,DM7,DM8,T4,T5)..WT..(CBU,IV3,IV6)

ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310

 2
77501-37080

XZU312..SCB..5F;XZU347..(T2,T4)..CBU;XZU311,320,350..30T,40T;XZU352,382..(DM2,DM5,T3)..5F..20T..IV3;XZU301,347..20T..(DSL,DSLL)..(IV3,IV6)..1NO;BU346,XZU301,307,340,346,352..SCB..(DM2,DM3,T2,T4)..CBU;BU30#,XZU300,302,306,331,341,342..(T3,T5)..(DSL,DSLL)..IV3;XZU321,322,337,351,372,382..SCB..(DM2,DM7,DM8,T2,T3,T4,T5);BU30#,XZU300,302,306,331,341,342..SCB..(DM3,DM6,T1,T2,T4)..(DSL,DSLL);BU346,XZU301,307,330,340,346,362..SCB..(DM3,DM5,DM7,T2,T3,T4,T5)..(DSL,DSLL)..(IV3,IV6,IV7)

ﾌﾕ-ｴﾙ ﾀﾝｸ=385X310

 2
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZU31#..30T;XZU301..4FC..DSL;XZU306..DSLL..CBU;XZU301..5F..DSL..IV3;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU312..SCB..5F..20T..IV3;XZU306,331..(T3,T5)..5F..DSLL;XZU301..5F..(CBU,IV4,IV6,IV7);BU346,XZU306,331,347,362,371,382..(DM5,DM7,T3,T4,T5)..DSL;BU30#,XZU300,302,307,32#,330,337,340,341,342,346,35#,372..SCB..(DM2,DM3,DM6,DM7,DM8,T2,T3,T4,T5)..(DSL,DSLL)

*H,L=400

 1
Common parts
90179-10015
90202-09047
90250-03031
90386-08164
90401-12007
90405-10008
90461-07033
90467-15012
90480-14006
91626-40616
91642-81035
91642-81040
91645-C1032
93319-15010
93319-A4010
94130-00802
96132-51100
96132-51300
96713-19017
96713-24011

ILLUST NO. 2 OF 3(9905-0406)XZU307,337..DCB,SCB..4FC ; (9905-0406)XZU31#,346..SCB..DM5,T4..DSL ; (99

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(LH ﾌﾚ-ﾑｾｼﾞﾒﾝﾀ)

diagram 2302 77205 77206C 77242A 77243A 77243A 77243A 77278A 77278B 9046718008 9046718008 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77207-37120

XZU362,372,382..SCB..(T3,T4)

 1
77207-37120

XZU362,372,382..SCB..(T3,T4)

 1
77207-37120

XZU362,372,382..SCB..(T3,T4)

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08100

XZU382

*H,L=950,内径=7.6

 1
95333-08100

XZU382

*H,L=950,内径=7.6

 1
95333-08100

XZU382

*H,L=950,内径=7.6

 1
95333-08100

XZU382..SCB

*H,L=1000,内径=7.6

 1
95333-08100

XZU382..SCB

*H,L=1000,内径=7.6

 1
95333-08100

XZU382..SCB

*H,L=1000,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 2 OF 3(9905-0406)XZU382 ; (9905-0406)XZU321,322,362,372..SCB

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

diagram 2302 77205 77206C 77207B 77242A 77242A 77242A 77243A 77278A 77278B 9046718008 9046718008 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77207-37120

XZU362,372,382..SCB..(T3,T4)

 1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-37160

XZU382..SCB

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08100

XZU382

*H,L=950,内径=7.6

 1
95333-08100

XZU382..SCB

*H,L=1000,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 3 OF 3(9905-0406)

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ

diagram 77284 9011908676 9011908830 9011908A33 9012908007 9162660816 9164180816 9164281025 9165160816
Part # Description Qty Price
77284 - CLAMP, FUEL TUBE
77281-37390

XZU382..SCB

TYPE S:ｲﾗｽﾄｻﾝｼﾖｳ

 1
77281-37140

XZU382..SCB

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,TYPE A:ｲﾗｽﾄ参照

 2
77281-37150

XZU382..SCB

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90034-61051

XZU382..SCB

TYPE O:ｲﾗｽﾄｻﾝｼﾖｳ

 3
Common parts
90119-08676
90119-08830
90119-08A33
90129-08007
91626-60816
91641-80816
91642-81025
91651-60816

ILLUST NO. 2 OF 3(9907-0406)XZU362,372,382..SCB

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

diagram 2302 77206C 77207B 77241 77243A 77259E 77259F 77259K 77277 77278A 77278B 9046718008 9046718008 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77207-37120

XZU362,372,382..SCB..(T3,T4)

 1
77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3
77207-37160

XZU382..SCB

 1
77241 - TUBE, FUEL MAIN, NO.1
77205-37250

XZU362,372,382..SCB..(T3,T4)

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-12022

XZU320,362,37#,382

*H,L=220,内径=12

 1
77259E - HOSE, FUEL
77259-37130

XZU362,372,382..SCB

 1
77259F - HOSE, FUEL
77259-37110

XZU362,372,382..SCB

 1
77259K - HOSE, FUEL
95332-12100

XZU382..SCB

 1
77277 - TUBE, FUEL RETURN, NO.1
77206-37590

XZU382..SCB

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95333-08100

XZU382

*H,L=950,内径=7.6

 1
95333-08100

XZU382..SCB

*H,L=1000,内径=7.6

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95333-08020

XZU371;BU30#,346,XZU30#,32#,33#,34#,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU307..03S,T2,T5;XZU306..DSLL..CBU;XZU306,371..IV3,IV4;XZU307..T4..4FC..IV3;XZU306..4FC..DSL..CBU;XZU307..DCB..4FC..CBU;BU30#,346,XZU300,301,302,32#,33#,340,341,342,346,347,350,362,372,382..(DSL,DSLL)..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
95333-08020

XZU307..T4..5F;XZU306..T5..CBU;XZU306..4FC..CBU;XZU307..03S,T2,T5;XZU307..T4..4FC..IV3;XZU307..DCB..4FC..CBU;XZU306,371..DSL..(IV3,IV4);BU30#,346,XZU300,301,302,32#,33#,34#,350,362,372,382..DSL..(CBU,IV3,IV6,IV7)

*H,L=200,内径=7.6

 1
Common parts
90467-18008
96132-51300
Linked diagrams
2302

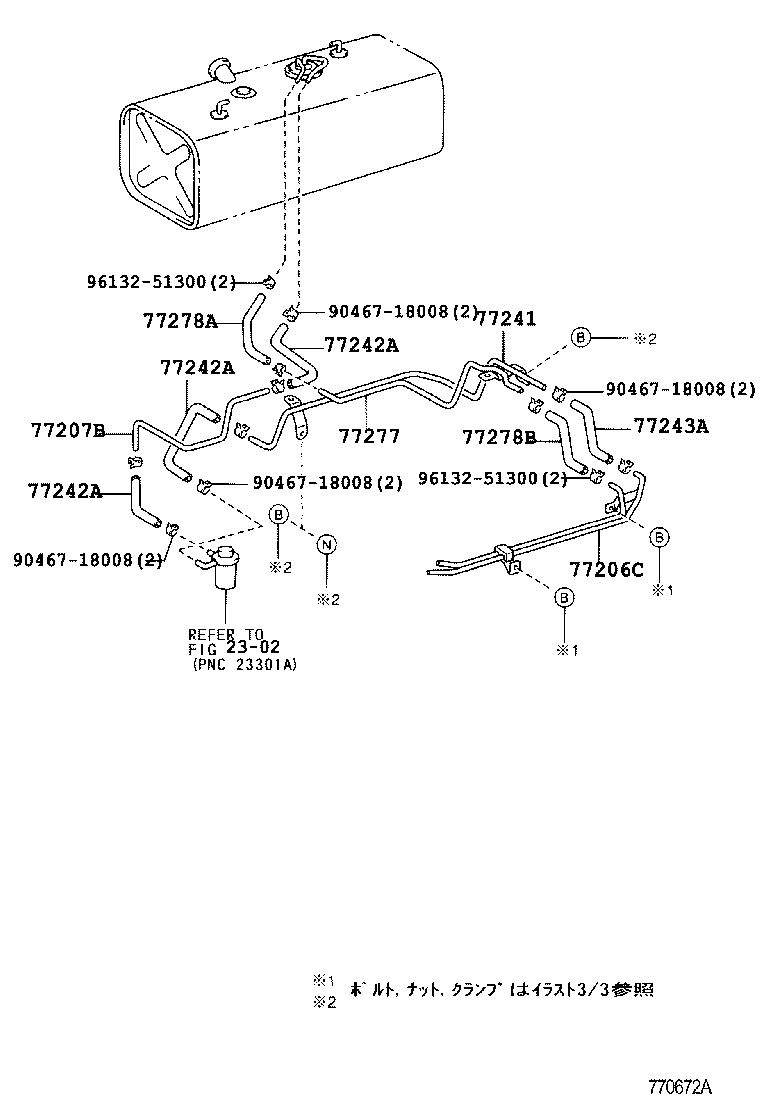

ILLUST NO. 2 OF 3(9905-0406)XZU382

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾁﾕ-ﾌﾞ(RH ﾌﾚ-ﾑ ﾌﾛﾝﾄｾｼﾞﾒﾝﾀ)

diagram 2302 77206C 77207B 77241 77242A 77242A 77242A 77243A 77277 77278A 77278B 9046718008 9046718008 9046718008 9046718008 9613251300 9613251300
Part # Description Qty Price
Common parts
90467-18008
96132-51300
Linked diagrams
2302

ILLUST NO. 1 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ﾀﾝｸ

diagram 77017B 77018 77022A 77022A 77100A 77100B 77100U 77135A 77168A 77197 77275B 77601A 77611A 77616C 77633 77701U 9017910015 9017910015 91611B0616 9162640616 91645C1032 91645C1032 93319A4010 9413000802 9413000802 9613251100 9613251300
Part # Description Qty Price
Common parts
90179-10015
91611-B0616
91626-40616
91645-C1032
93319-A4010
94130-00802
96132-51100
96132-51300

ILLUST NO. 3 OF 3(9905-0406)BU400,410,420,430,XZU382,40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾌﾕ-ｴﾙ ｸﾗﾝﾌﾟ

diagram 77284 9011908676 9011908830 9017908233 9017908249 9164180825 9164180830 9164281025 9164281030
Part # Description Qty Price
Common parts
90119-08676
90119-08830
90179-08233
90179-08249
91641-80825
91641-80830
91642-81025
91642-81030
