XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace

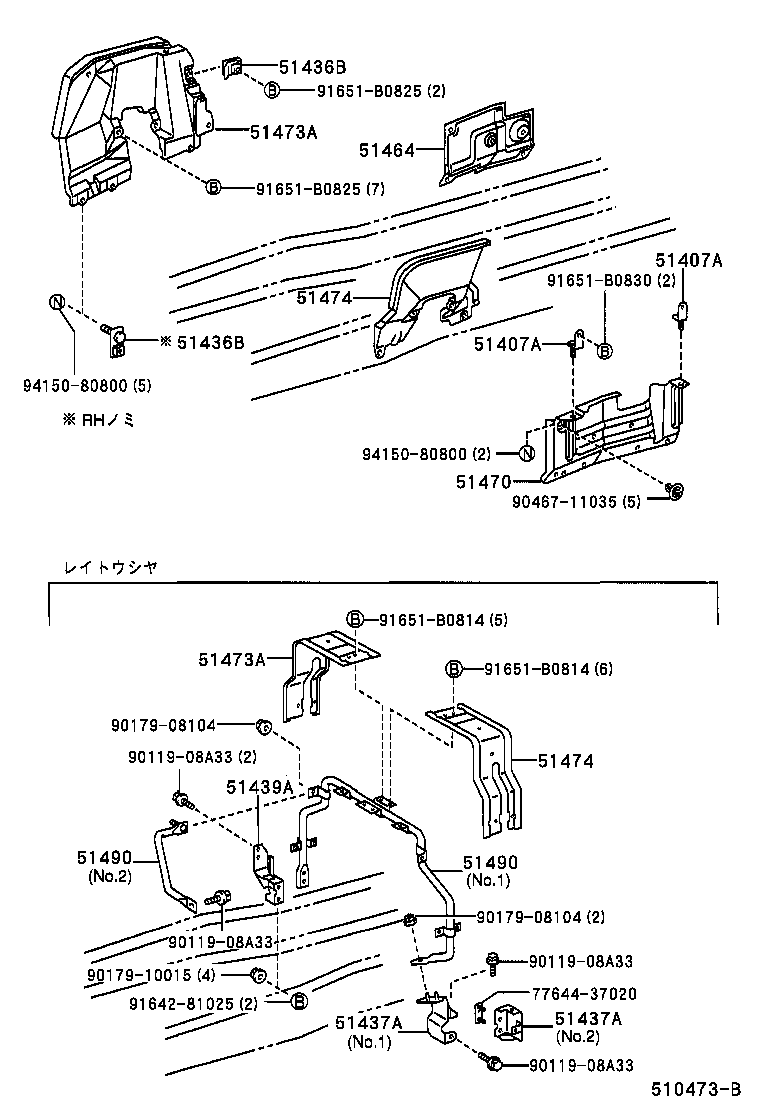

ILLUST NO. 1 OF 2(9907-0206)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407A - COVER SUB-ASSY, ENGINE UNDER, NO.3 | ||||
| 51407-37050 |
XZU362,37#,382 |
1 | ||
| 51407B - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37140 |
XZU362,37#,382 |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 51464 - SILENCER, TRANSMISSION UNDER, LH | ||||
| 51464-37060 |
XZU362,37#,382 |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37080 |
XZU362,37#,382 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37100 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51473-37090 |
XZU362,37#,382..1NO |
1 | ||
| 51473-37191 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37110 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51474-37100 |
XZU362,37#,382..1NO |
1 | ||
| 51474-37161 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| Common parts | ||||
| 90467-11020 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 94150-80800 | ||||
ILLUST NO. 2 OF 2(9905-0406)
ﾌﾂｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51961C - HOOK, FRONT | ||||
| 51961-37040 |
XZU302..ST;XZU382..T4..IV3;BU301,XZU301,31#,321,322,351,352,362..4NO TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51961-37070 |
XZU302..ST;XZU362..4NO;XZU382..T4..IV3;XZU301,302,351,352..(DM2,DM3)..20T;BU301,XZU31#,321,322,341..(DM5,DM7,DM8,T1,T3,T5)..(175T,20T) TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51961-37060 |
XZU362,37#,382..1NO TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51963B - HOOK, TRANSPORT, FRONT RH | ||||
| 51963-37030 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| 51964B - HOOK, TRANSPORT, FRONT LH | ||||
| 51964-37040 |
XZU306..T5..DSLL;XZU306..4FC..DSLL;XZU301..DSLL..IV3..4NO;XZU301,306,331..CNG,DSL,LPG;XZU301,306,331..5F..DSLL..(CBU,IV4);BU30#,346,BZU300,340,RZU30#,340,XZU300,302,307,31#,32#,330,337,340,341,342,346,347,35#,362,37#,382 |
1 | ||
| Common parts | ||||
| 90178-14007 | ||||
| 91112-81460 | ||||
| 91645-C1032 | ||||
| 91672-01460 | ||||
| 94130-01002 | ||||
| 94130-01402 | ||||
| 94130-01432 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 2(9905-0406)BU306,346 ; (0406- )XZU378..IV4 ;(0406- )XZU306,308,336,338,346,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37100 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51473-37090 |
XZU362,37#,382..1NO |
1 | ||
| 51473-37191 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37110 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51474-37100 |
XZU362,37#,382..1NO |
1 | ||
| 51474-37161 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| Common parts | ||||
| 90467-09189 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||

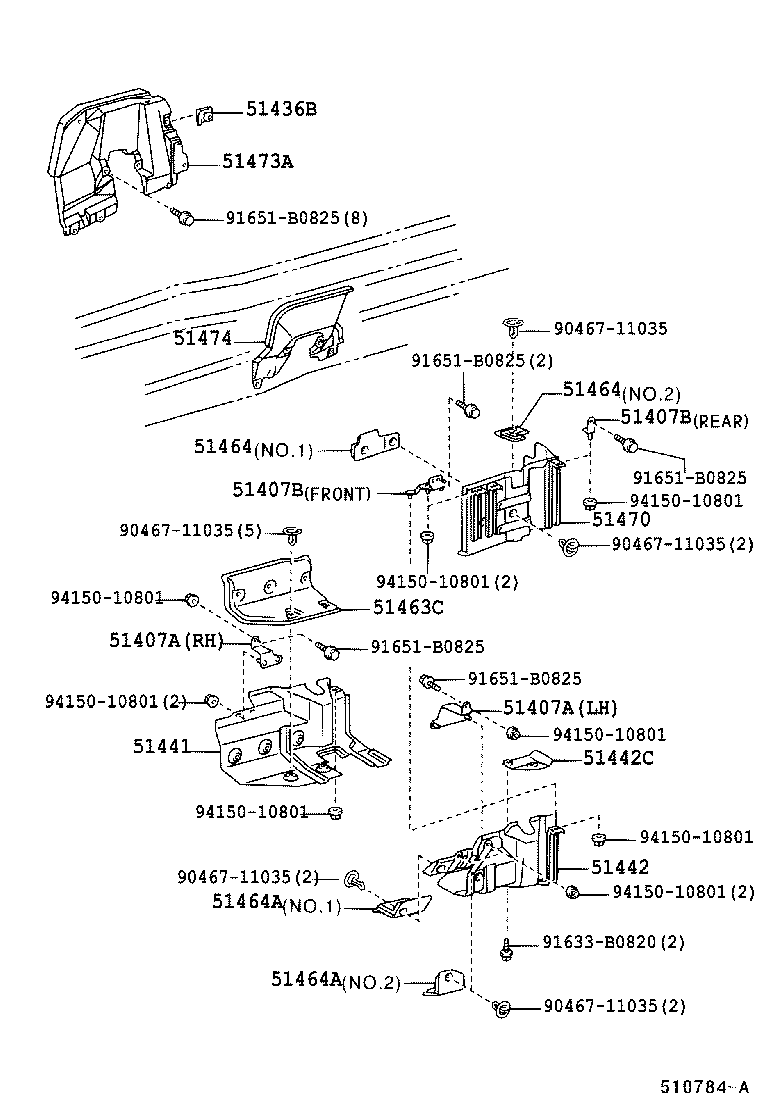

ILLUST NO. 1 OF 2(0206-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37140 |
XZU362,372,382 ﾘﾔ |
1 | ||
| 51407-37310 |
XZU362,372,382 ﾌﾛﾝﾄ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37140 |
XZU362,372,382 ﾘﾔ |
1 | ||
| 51407-37310 |
XZU362,372,382 ﾌﾛﾝﾄ |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51440-37130 |
XZU362,372,382 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-37060 |
XZU362,372,382 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51440-37140 |
XZU362,372,382 |
1 | ||
| 51464B - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37160 |
XZU362,372,382 |
1 | ||
| 51464C - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37110 |
XZU362,372,382 |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37210 |
XZU362,372,382 NO.2 |
1 | ||
| 51464-37170 |
XZU362,372,382 NO.3 |
1 | ||
| 51464-37150 |
XZU362,372,382 NO.1 |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37210 |
XZU362,372,382 NO.2 |
1 | ||
| 51464-37170 |
XZU362,372,382 NO.3 |
1 | ||
| 51464-37150 |
XZU362,372,382 NO.1 |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37210 |
XZU362,372,382 NO.2 |
1 | ||
| 51464-37170 |
XZU362,372,382 NO.3 |
1 | ||
| 51464-37150 |
XZU362,372,382 NO.1 |
1 | ||
| 51470A - COVER ASSY, TRANSMISSION UNDER, LH | ||||
| 51470-37190 |
XZU362,372,382 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37100 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51473-37090 |
XZU362,37#,382..1NO |
1 | ||
| 51473-37191 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37110 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51474-37100 |
XZU362,37#,382..1NO |
1 | ||
| 51474-37161 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| Common parts | ||||
| 90467-11035 | ||||
| 91633-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||

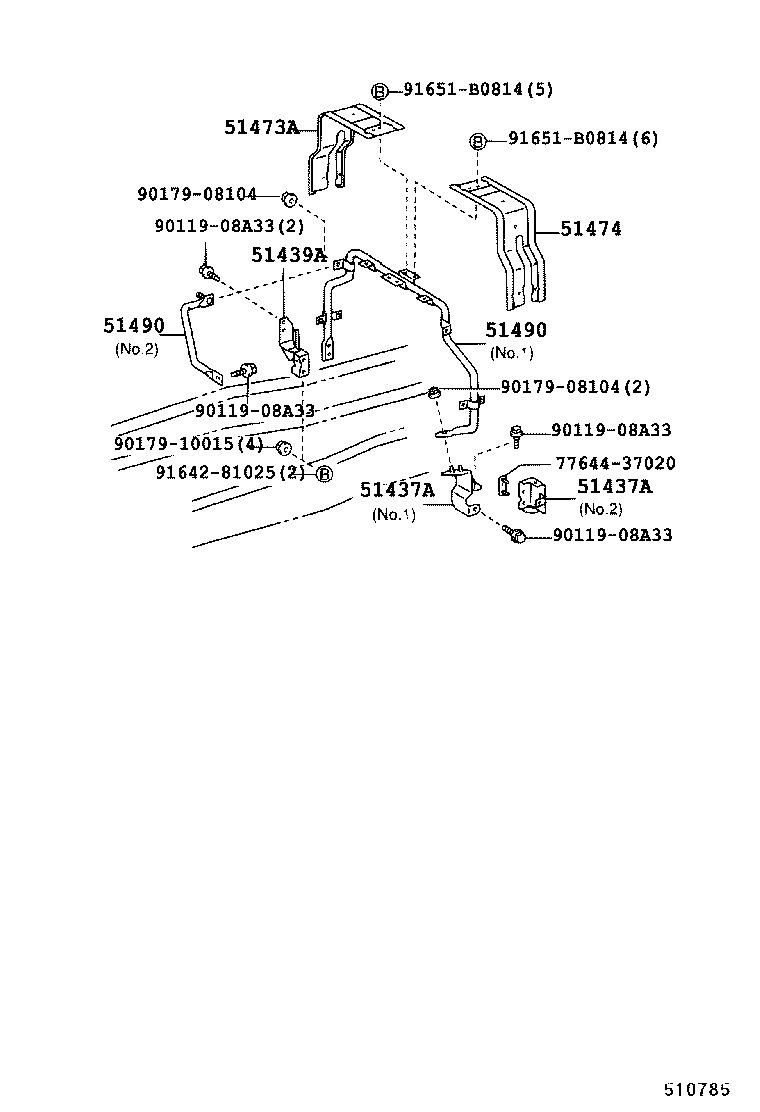

ILLUST NO. 1 OF 2(9907-0406)XZU362,37#,382
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51437A - BRACKET, ENGINE SIDE COVER, NO.1 LH | ||||
| 51437-37030 |
XZU362,372,382..SCB..(T3,T4)..IV3 |
1 | ||
| 51439A - BRACKET, ENGINE SIDE COVER, NO.2 LH | ||||
| 51439-37160 |
XZU382..SCB..IV3 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37100 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51473-37090 |
XZU362,37#,382..1NO |
1 | ||
| 51473-37191 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37110 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51474-37100 |
XZU362,37#,382..1NO |
1 | ||
| 51474-37161 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51490 - SHUTTER ASSY, ENGINE REAR SIDE, LH | ||||
| 51490-37011 |
XZU362,382..SCB..(T3,T4)..IV3 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51490-37030 |
XZU362,382..SCB..(T3,T4)..IV3 TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51490-37021 |
XZU372,382..SCB..IV3 TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 51490-37040 |
XZU372,382..SCB..IV3 TYPE D:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 64177C - STOPPER, REAR MOUNTING BRACKET, RH | ||||
| 64177-37030 |
XZU362,382..SCB..(T3,T4)..IV3 |
1 | ||
| Common parts | ||||
| 90105-08347 | ||||
| 90119-08A33 | ||||
| 90179-08200 | ||||
| 90179-10015 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
ILLUST NO. 1 OF 2(0206-0406)XZU301..DSLL..4NO ; (0206-0406)XZU301,331..CNG,DSL,LPG ; (0206-0406)XZU3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37290 |
XZU362,372,382 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37280 |
XZU362,372,382 左側ﾌﾛﾝﾄ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37140 |
XZU362,372,382 ﾘﾔ |
1 | ||
| 51407-37310 |
XZU362,372,382 ﾌﾛﾝﾄ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37140 |
XZU362,372,382 ﾘﾔ |
1 | ||
| 51407-37310 |
XZU362,372,382 ﾌﾛﾝﾄ |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU302..20T;XZU312..DCB;XZU322..T5..5F;XZU322..DM7,DM8;XZU306..T5..DSLL;XZU306..DSLL..CBU;XZU301..DSLL..IV3..4NO;XZU306..4FC..DSLL..IV3;XZU301,331..CNG,DSL,LPG;XZU302..T4..(295T,30T)..4NO;XZU301,331..5F..DSLL..(CBU,IV4);XZU302,312..(DM3,DM5,T3,T5)..30T;BU30#,346,BZU300,340,RZU30#,340,XZU300,307,311,320,321,330,337,340,341,342,346,347,35#,362,37#,382 |
2 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51440-37130 |
XZU362,372,382 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-37060 |
XZU362,372,382 |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51440-37140 |
XZU362,372,382 |
1 | ||
| 51464B - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37160 |
XZU362,372,382 |
1 | ||
| 51464C - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37110 |
XZU362,372,382 |
1 | ||
| 51464D - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37210 |
XZU362,372,382 NO.2 |
1 | ||
| 51464-37170 |
XZU362,372,382 NO.3 |
1 | ||
| 51464-37150 |
XZU362,372,382 NO.1 |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37080 |
XZU362,37#,382 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37100 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51473-37090 |
XZU362,37#,382..1NO |
1 | ||
| 51473-37191 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37110 |
XZU382..SCB..IV3 ｱﾘ(ﾁﾙﾄ ｷﾔﾌﾞ) |
1 | ||
| 51474-37100 |
XZU362,37#,382..1NO |
1 | ||
| 51474-37161 |
XZU362,372,382..SCB..(T3,T4)..IV3 ﾚｲﾄｳｼﾔ |
1 | ||
| Common parts | ||||
| 90467-09189 | ||||
| 90467-11035 | ||||
| 91633-B0820 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 91651-B1025 | ||||
| 94150-10801 | ||||
ILLUST NO. 1 OF 2(9908-0206)XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-37020 | ||||
| 90119-08A33 | ||||
| 90179-08104 | ||||
| 90179-10015 | ||||
| 90467-11035 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 91651-B0830 | ||||
| 94150-80800 | ||||
ILLUST NO. 1 OF 2(0206- )XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-11035 | ||||
| 91633-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
ILLUST NO. 1 OF 2(9908- )XZU382
ﾚｲﾄｳｼﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 77644-37020 | ||||
| 90119-08A33 | ||||
| 90179-08104 | ||||
| 90179-10015 | ||||
| 91642-81025 | ||||
| 91651-B0814 | ||||
