XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace

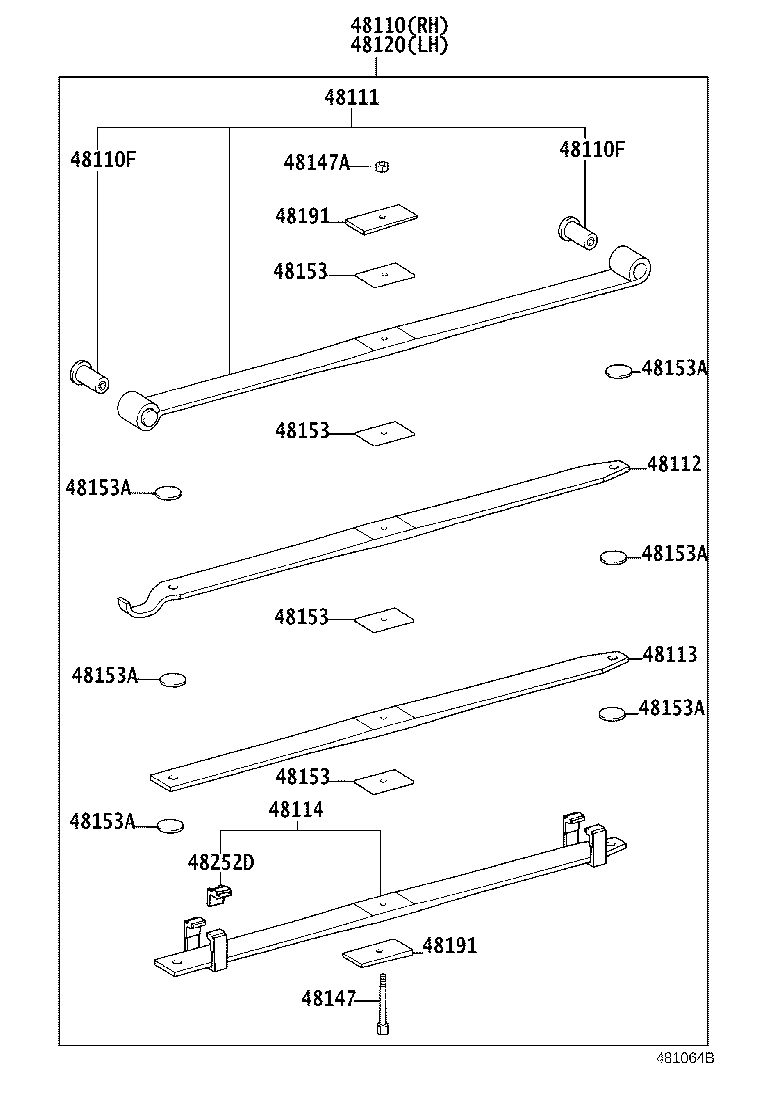

ILLUST NO. 2 OF 3(9905-0406)6F..295T ; (9905-0406)RZU300..T2 ; (9905-0406)RZU300..DCB ; (9905-0406)X
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 2 OF 3(9905-0406)30T..IV6 ; (9905-0406)6F..295T ; (9905-0406)XZU306,351..5F..DSLL..IV3 ;
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 2 OF 3(9905-0406)RZU300,XZU341..SCB..T3,T4..20T,30T..DSL,EFI,LPG ; (9905-0406)XZU300,301,
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 1 OF 3(9907-0406)XZU362,37#,382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37030 |
XZU362,37#,382 |
2 | ||
| 48042-37030 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042-37020 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16025 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 90389-16026 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
4 | ||
| 90389-16025 |
XZU362,37#,382 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36100 |
XZU362,372,382..20T..1NO |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48473A - SEAT, SPRING U BOLT, RH | ||||
| 48473-36160 |
XZU362,37#,382 |
1 | ||
| 48473B - SEAT, SPRING U BOLT, LH | ||||
| 48473-36160 |
XZU362,37#,382 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16051 |
XZU362,37#,382..1NO 長さ=230 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16051 |
XZU362,37#,382..1NO 長さ=230 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80081 |
XZU362,37#,382 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
XZU362,37#,382 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
XZU362,37#,382 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
XZU362,37#,382 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
XZU362,37#,382 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
XZU362,37#,382 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
XZU362,37#,382 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16011 |
XZU362,37#,382 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80081 |
XZU362,37#,382 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-16011 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90105-16077 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
ILLUST NO. 2 OF 3(9907-0406)XZU362,37#,382..1NO
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48192-37060 |
XZU362,37#,382 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48192-37060 |
XZU362,37#,382 |
4 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 2 OF 3(9905-0406)20T..IV6 ; (9905-0406)6F..295T ; (9905-0406)XZU312..DCB ; (9905-0406)XZU
4-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48102-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 2 OF 3(0005-0406)RZU300..T2 ; (0005-0406)RZU300..DCB ;(0406- )RZU300..T2 ; (0406-
3-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3V100 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37390 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16026 |
XZU37#,382 ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48101-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48101-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48101-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48112-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48112-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48112-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48113-3V100 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,運転席側 |
1 | ||
| 48113-3V110 |
XZU372,382..20T ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ,助手席側 |
1 | ||
| 48113-37400 |
XZU362,372,382..20T..1NO 助手席側 |
1 | ||
| 48113-37390 |
XZU362,372,382..20T..1NO 運転席側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3V110 |
XZU372,382..20T 4枚ﾘｰﾌ,ｷﾖｳｶ ｻｽﾍﾟﾝｼﾖﾝ |
1 | ||
| 48110-37400 |
XZU362,372,382..20T..1NO 4枚ﾘｰﾌ |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37390 |
XZU362,37#,382..1NO |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-37130 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48284-37130 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,351,352,362,37#,382..175T,20T,295T,30T |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48251-36530 |
XZU362,37#,382..1NO |
8 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-3B800 |
XZU301..(DM6,T3)..IV6;RZU300,XZU341..295T,30T;BU301,XZU300,301,302,311,320,321,330,331,340,362,37#,382..(20T,295T,30T)..(CBU,IV3,IV4,IV7)..1NO |
12 | ||
| 48252-3B800 |
XZU362,37#,382..1NO |
12 | ||
| 48252D - SILENCER | ||||
| 48252-37380 |
XZU362,37#,382..1NO |
8 | ||
ILLUST NO. 1 OF 3(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37030 |
XZU362,37#,382 |
2 | ||
| 48042-37030 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042-37020 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042A - SHACKLE SUB-ASSY, FRONT SPRING, NO.2 | ||||
| 48042-37030 |
XZU362,37#,382 |
2 | ||
| 48042-37030 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042-37020 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16025 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 90389-16026 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
4 | ||
| 90389-16025 |
XZU362,37#,382 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16025 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 90389-16026 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
4 | ||
| 90389-16025 |
XZU362,37#,382 |
2 | ||
| 48042B - BUSH, FRONT SPRING NO.2 SHACKLE | ||||
| 90389-16025 |
BU301,RZU300,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 90389-16026 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
4 | ||
| 90389-16025 |
XZU362,37#,382 |
2 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48192-37060 |
XZU362,37#,382 |
4 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36100 |
XZU362,372,382..20T..1NO |
2 | ||
| 48422 - SUPPORT, FRONT SPRING PIN | ||||
| 48422-37010 |
BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382 |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16051 |
XZU362,37#,382..1NO 長さ=230 |
4 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16051 |
XZU362,37#,382..1NO 長さ=230 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80081 |
XZU362,37#,382 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
XZU362,37#,382 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
XZU362,37#,382 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
XZU362,37#,382 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
XZU362,37#,382 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
XZU362,37#,382 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
XZU362,37#,382 |
2 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-16011 |
XZU362,37#,382 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80081 |
XZU362,37#,382 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-16011 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90170-16016 | ||||
| 90178-16004 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91642-81235 | ||||
| 91651-B0820 | ||||
| 94130-01202 | ||||
| 94183-60801 | ||||
| 94184-01001 | ||||
| Linked diagrams | ||||
| 5151 | ||||
ILLUST NO. 2 OF 2(9905-0406)XZU400..IV3 ; (9905-0406)XZU430..35T,40T ; (9905-0406)XZU400..35T..CBU ;
2-LEAF 48110-37570,37760
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)BU410,420,430,BZU410,XZU400,401,41#,42#,430..295T,30T,35T ; (0406- )B
2-LEAF,ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)48110-37640,3771
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(9905-0406)XZU400..40T..IV3,IV6 ; (9905-0406)BU420,XZU410,420,430..40T ; (0406-
5-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 1 OF 2(9908-0406)XZU382
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-16067 | ||||
| 90105-16077 | ||||
| 90119-10355 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
| 94184-61001 | ||||
ILLUST NO. 2 OF 2(9908-0406)XZU382
4-LEAF
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0206-0406)XZU400..40T..IV3 ; (0206-0406)XZU410,420,430..40T,40TOV..CBU,IV3 ; (0406
2-LEAF, ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(0103-0406)BU400,410,420,BZU410,XZU402,410,411,412,414,421..T4,T5..20T ; (0610-
3-LEAF,ｷﾖｳｶｻｽﾍﾟﾝｼｮﾝ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
