Toyota Dyna/toyoace XZU382 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU382-TQMMS3 (1999)
4505 - FRONT STEERING GEAR & LINK

XZU382-TQMMS3 (1999)

Toyota Dyna/Toyoace

Production Jul 1999 - Jun 2004

Engine S05C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9907-0406)XZU362,37#,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-37040	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44110 - GEAR ASSY, POWER STEERING
44110-37152	XZU362,37#,382	07/1999 - 06/2004	1
45411 - ARM, PITMAN
45411-37150	XZU362,37#,382	07/1999 - 06/2004	1
Common parts
90101-16022
90170-16023
90170-30001
90204-30040
94622-11600

ILLUST NO. 1 OF 3(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL)
04445-37040	BU301,BZU300,340,RZU30#,340,XZU300,301,302,31#,32#,330,331,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44110 - GEAR ASSY, POWER STEERING
44110-37152	XZU362,37#,382	07/1999 - 06/2004	1
45411 - ARM, PITMAN
45411-37150	XZU362,37#,382	07/1999 - 06/2004	1
Common parts
90101-14059
90105-14106
90170-14012
90170-30001
90204-30040
94622-11400

ILLUST NO. 3 OF 3(9907-0406)XZU362,37#,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
45046 - END SUB-ASSY, TIE ROD, RH
45046-39435	XZU362,37#,382	07/1999 - 05/2001	1
45046-39436	XZU362,37#,382	05/2001 - 06/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T	05/1999 - 06/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T	05/1999 - 06/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T	05/1999 - 06/2004	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-18003	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,351,352,362,37#,382..175T,20T,295T,30T	05/1999 - 06/2004	2
45047 - END SUB-ASSY, TIE ROD, LH
45047-39276	XZU362,37#,382	05/2001 - 06/2004	1
45047-39275	XZU362,37#,382	07/1999 - 05/2001	1
45450 - ROD ASSY, STEERING RELAY
45450-39265	XZU362,37#,382	07/1999 - 05/2001	1
45450-39266	XZU362,37#,382	05/2001 - 06/2004	1
45460A - ROD ASSY, TIE
45460-39535	XZU362,37#,382	07/1999 - 05/2001	1
45460-39536	XZU362,37#,382	05/2001 - 06/2004	1
45461 - ROD, STEERING TIE
45461-36060	XZU362,37#,382	07/1999 - 06/2004	1
45466A - CLAMP, RELAY ROD END
45466-36030	XZU362,37#,382	07/1999 - 06/2004	2
45466A - CLAMP, RELAY ROD END
45466-36030	XZU362,37#,382	07/1999 - 06/2004	2
45477 - PLATE, STOPPER
45477-36020	XZU362,37#,382	07/1999 - 06/2004	2
45477 - PLATE, STOPPER
45477-36020	XZU362,37#,382	07/1999 - 06/2004	2
45700 - DAMPER ASSY, STEERING
45700-36010	XZU362,37#,382	07/1999 - 05/2003	1
45700-37040	XZU362,37#,382	05/2003 - 06/2004	1
45721B - BRACKET, STEERING DAMPER, NO.3
45721-37020	XZU362,37#,382	07/1999 - 06/2004	1
Common parts
90119-10070
90179-10058
90252-04005
90468-16023
91619-61250
94130-61200
94184-01201
94622-11800

ILLUST NO. 2 OF 3(9905-0406)BU301,BZU300,340,RZU30#,340,XZU300,301,302,304,305,31#,32#,330,331,340,3

Click highlighted areas on diagram

Part #	Description	Period	Qty
44011 - PISTON SUB-ASSY, POWER
44011-37150	XZU362,37#,382	07/1999 - 06/2004	1
44015 - SHAFT SUB-ASSY, SECTOR
44015-37150	XZU362,37#,382	07/1999 - 06/2004	1
44101E - RING, O(FOR STEERING WORM)
90029-20047	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
90029-20006	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2	05/1999 - 06/2004	1
44101E - RING, O(FOR STEERING WORM)
90029-20047	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
90029-20006	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2	05/1999 - 06/2004	1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-37152	XZU362,37#,382	07/1999 - 06/2004	1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90029-20061	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01516	XZU362,37#,382	07/1999 - 06/2004	2
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01516	XZU362,37#,382	07/1999 - 06/2004	2
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44142 - NUT, LOCK
94130-61400	XZU362,37#,382	07/1999 - 06/2004	1
44167 - COVER, SECTOR SHAFT DUST
44167-65010	XZU362,37#,382	07/1999 - 06/2004	1
44168 - COVER, WORM SHAFT DUST
44168-25010	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
89110-99002
90029-01001
90029-34002
96711-35042

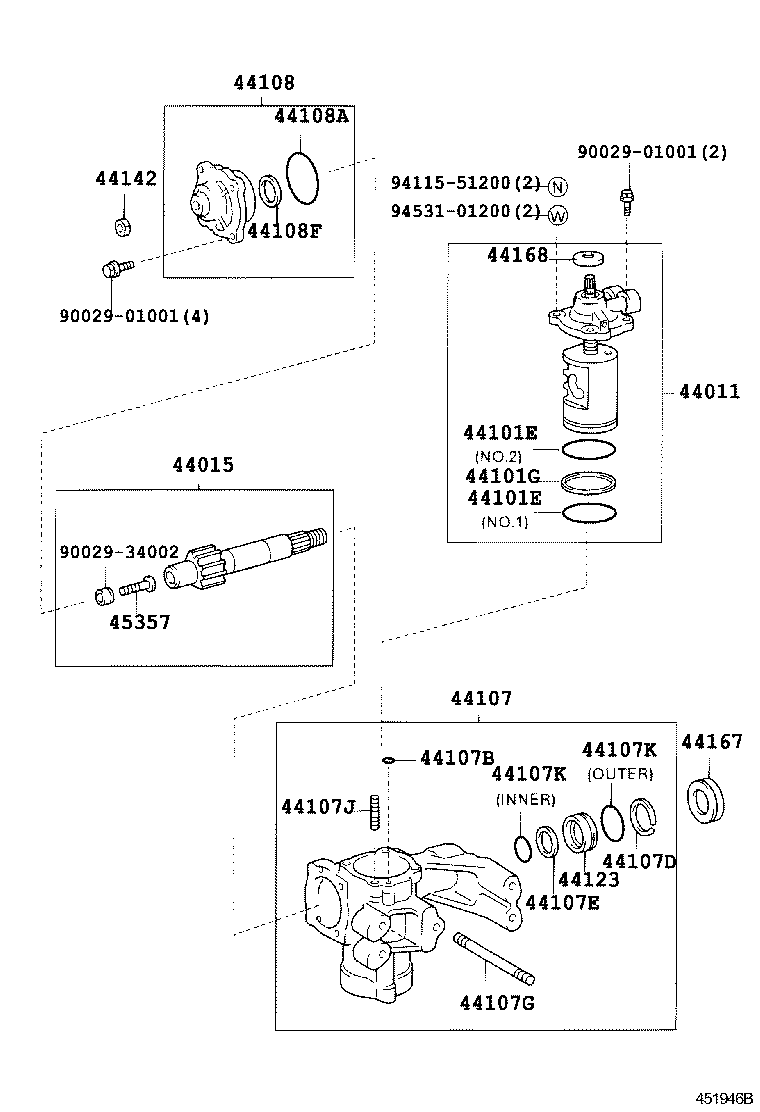

ILLUST NO. 2 OF 3(9907-0406)XZU362,37#,382

Click highlighted areas on diagram

Part #	Description	Period	Qty
44011 - PISTON SUB-ASSY, POWER
44011-37150	XZU362,37#,382	07/1999 - 06/2004	1
44015 - SHAFT SUB-ASSY, SECTOR
44015-37150	XZU362,37#,382	07/1999 - 06/2004	1
44101E - RING, O(FOR STEERING WORM)
90029-20047	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
90029-20006	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2	05/1999 - 06/2004	1
44101E - RING, O(FOR STEERING WORM)
90029-20047	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.1	05/1999 - 06/2004	1
90029-20006	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382 NO.2	05/1999 - 06/2004	1
44101G - SEAL, DUST(FOR STEERING WORM)
90029-20708	XZU362,37#,382	07/1999 - 06/2004	1
44107 - HOUSING SUB-ASSY, POWER STEERING GEAR
44107-37152	XZU362,37#,382	07/1999 - 06/2004	1
44107B - RING, O(FOR POWER STEERING GEAR HOUSING)
90029-20061	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING)
90029-52005	XZU362,37#,382	07/1999 - 06/2004	1
44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING)
90029-21023	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING)
90029-01516	XZU362,37#,382	07/1999 - 06/2004	2
44107J - BOLT, STUD(FOR POWER STEERING VALVE HOUSING)
90029-01515	XZU362,37#,382	07/1999 - 06/2004	2
44107K - RING, O(FOR POWER STEERING GEAR HOUSING)
96711-35042	XZU362,37#,382 内側	07/1999 - 06/2004	1
90029-20046	XZU362,37#,382 外側	07/1999 - 06/2004	1
44107K - RING, O(FOR POWER STEERING GEAR HOUSING)
96711-35042	XZU362,37#,382 内側	07/1999 - 06/2004	1
90029-20046	XZU362,37#,382 外側	07/1999 - 06/2004	1
44108 - COVER SUB-ASSY, SIDE
44108-37110	XZU362,37#,382	07/1999 - 06/2004	1
44108A - RING, O(FOR SIDE COVER)
90029-20006	XZU362,37#,382	07/1999 - 06/2004	1
44108F - SEAL, DUST(FOR SECTOR COVER)
90029-21023	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
44123 - ORIFICE, DUMPING
44123-65010	XZU362,37#,382	07/1999 - 06/2004	1
44142 - NUT, LOCK
94130-61400	XZU362,37#,382	07/1999 - 06/2004	1
44167 - COVER, SECTOR SHAFT DUST
44167-65010	XZU362,37#,382	07/1999 - 06/2004	1
44168 - COVER, WORM SHAFT DUST
44168-25010	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
45357 - SCREW, SECTOR SHAFT ADJUSTING
90029-02302	XZU301..DSLL..IV3..4NO;XZU301,331..CNG,DSL,LPG;XZU301,331..5F..DSLL..(CBU,IV4);BU301,BZU300,340,RZU30#,340,XZU300,302,31#,32#,330,340,341,342,35#,362,37#,382	05/1999 - 06/2004	1
Common parts
90029-01001
90029-34002
94115-51200
94531-01200

ILLUST NO. 3 OF 3(9908- )XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10070
90179-10058
90252-04005
90468-16023
91619-61250
94130-61200
94184-01201
94622-11800

ILLUST NO. 2 OF 3(9908- )XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90029-01001
90029-34002
94115-51200
94531-01200

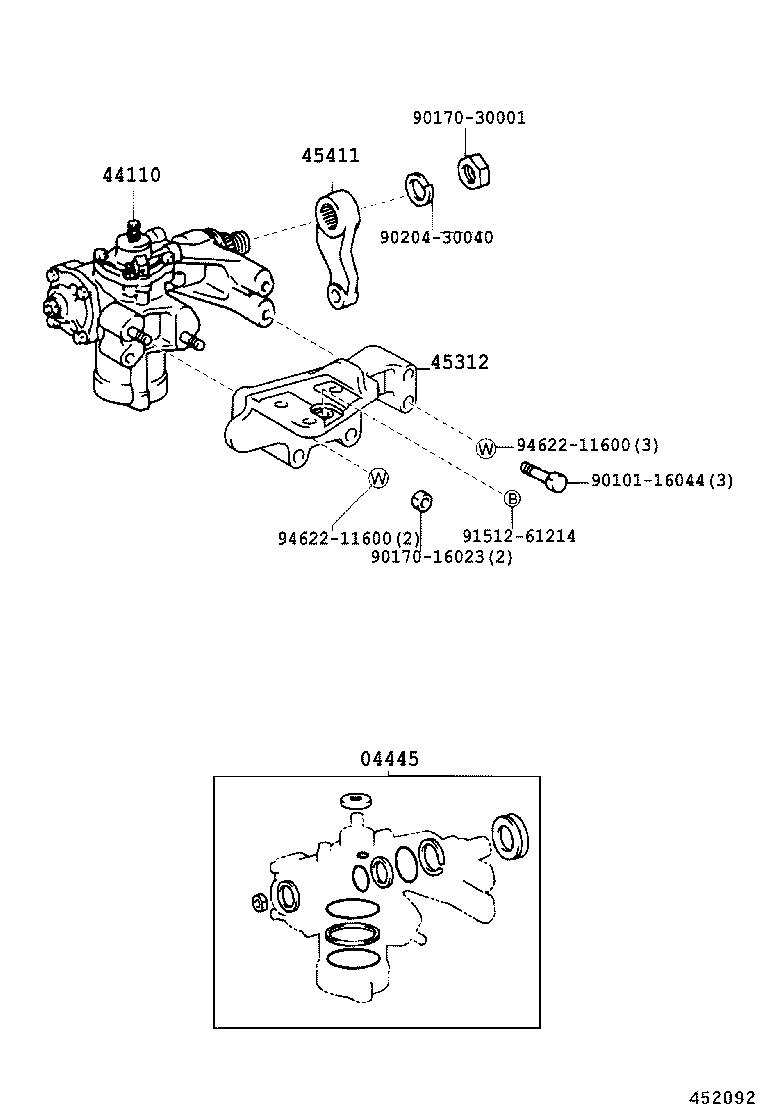

ILLUST NO. 1 OF 3(9908- )XZU382

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90101-16044
90170-16023
90170-30001
90204-30040
91512-61214
94622-11600
