XZU382-TQMMS3 (1999)
Toyota Dyna/Toyoace
Production
Jul 1999
-
Jun 2004
Engine
S05C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9907-0406)XZU362,37#,382

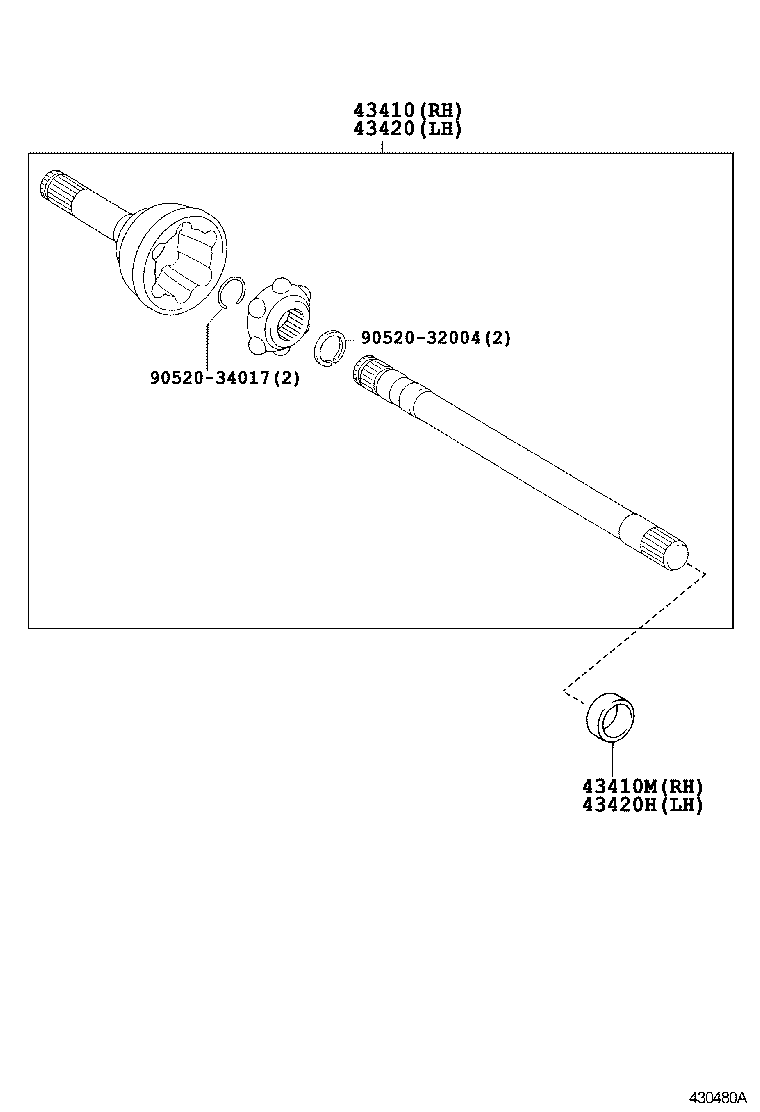

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43430-36010 |
XZU362,37#,382 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-37001 |
XZU362,37#,382 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43430-36010 |
XZU362,37#,382 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-37001 |
XZU362,37#,382 |
1 | ||
| Common parts | ||||
| 90520-32004 | ||||
| 90520-34017 | ||||
(9908- )XZU382
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90520-32004 | ||||
| 90520-34017 | ||||
